Description

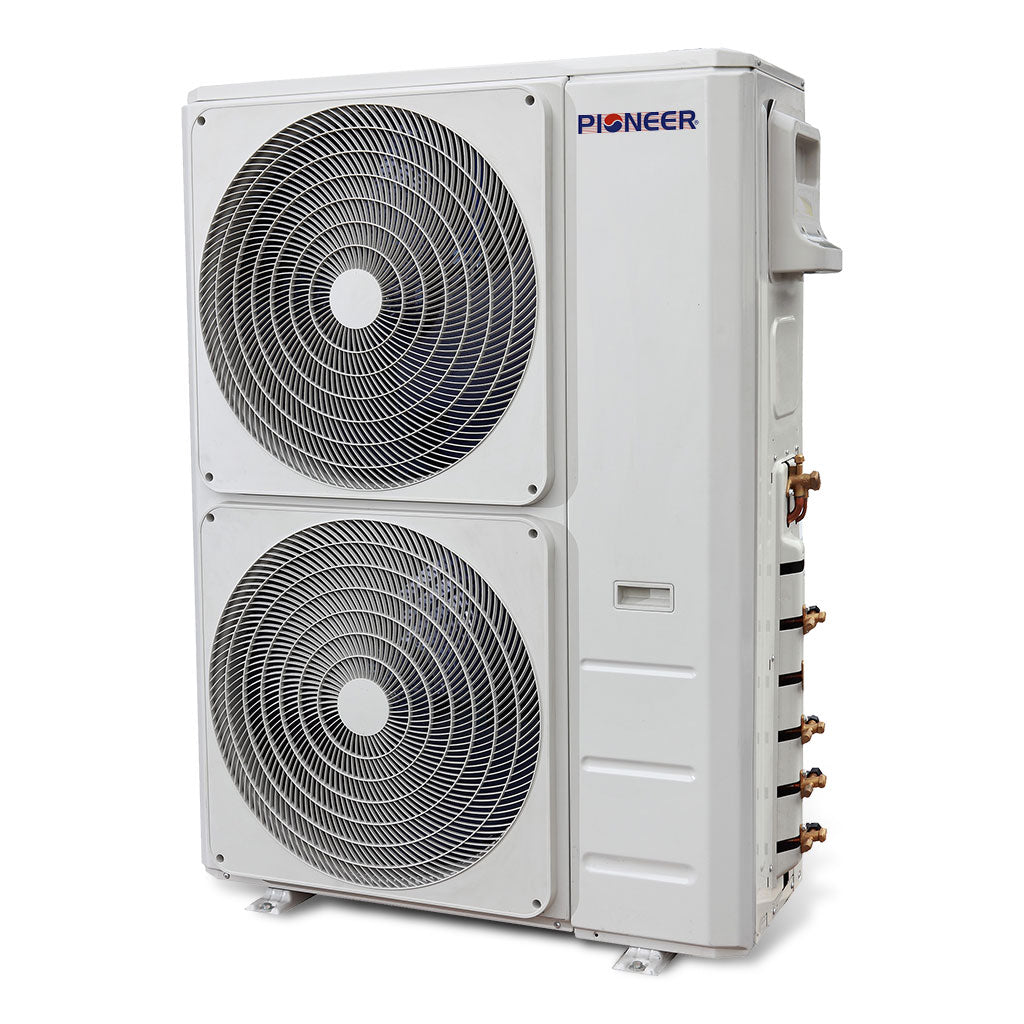

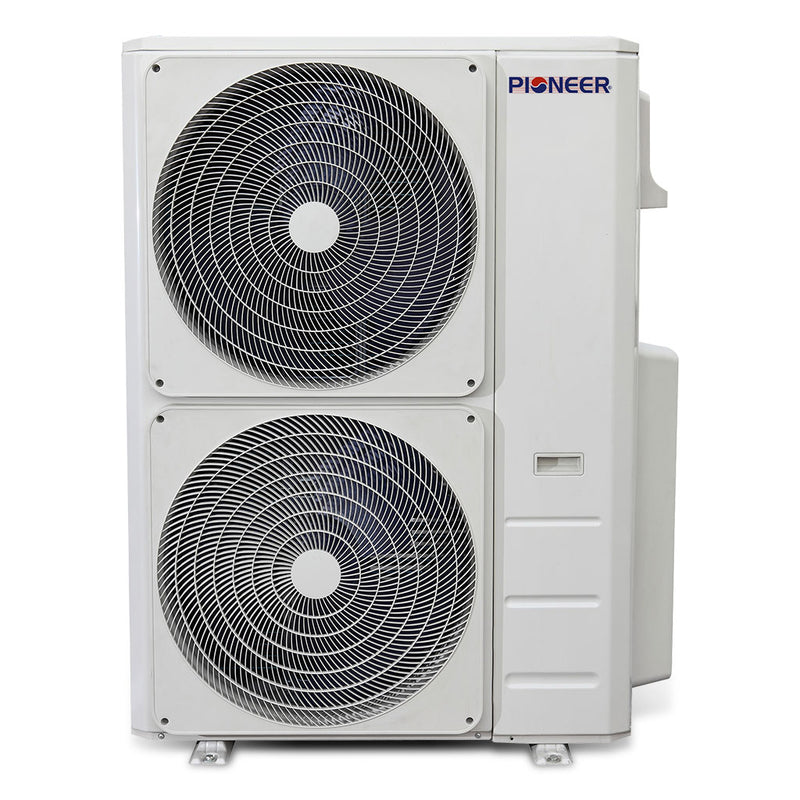

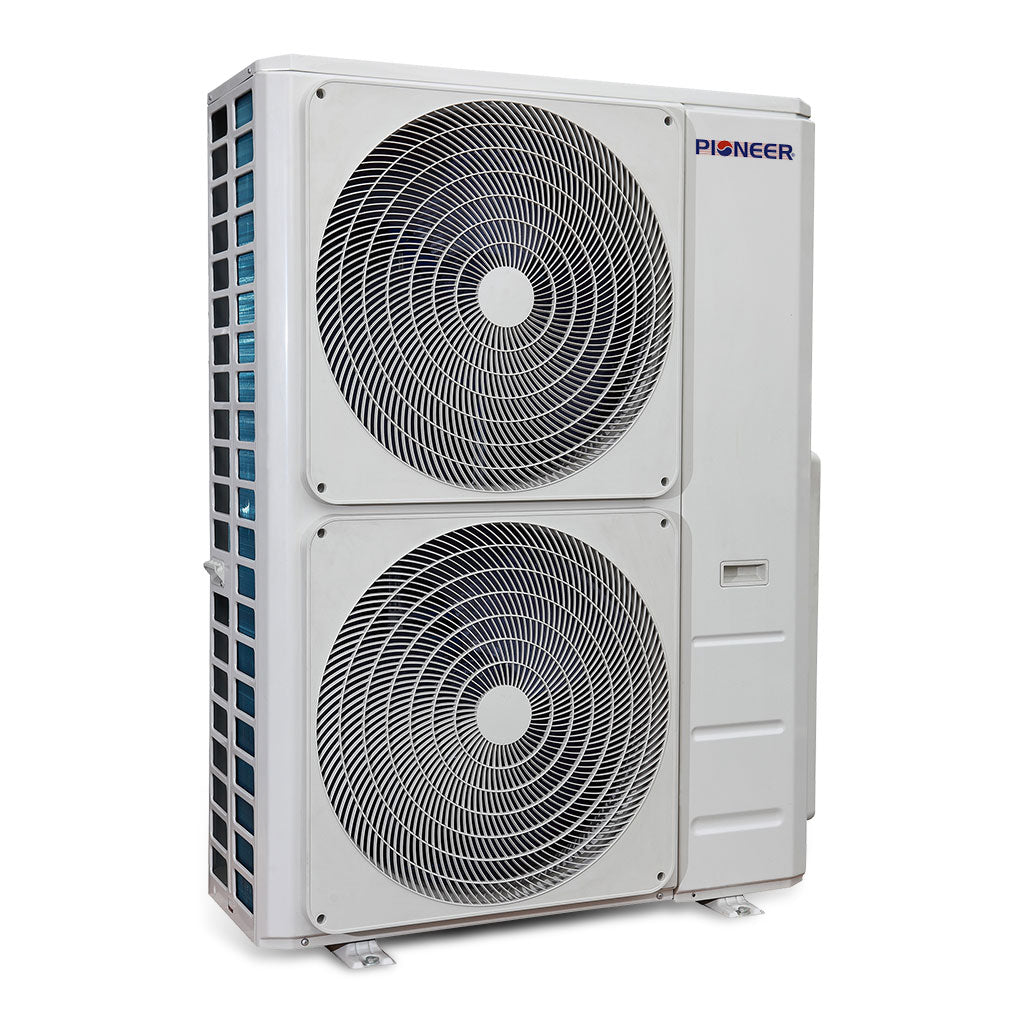

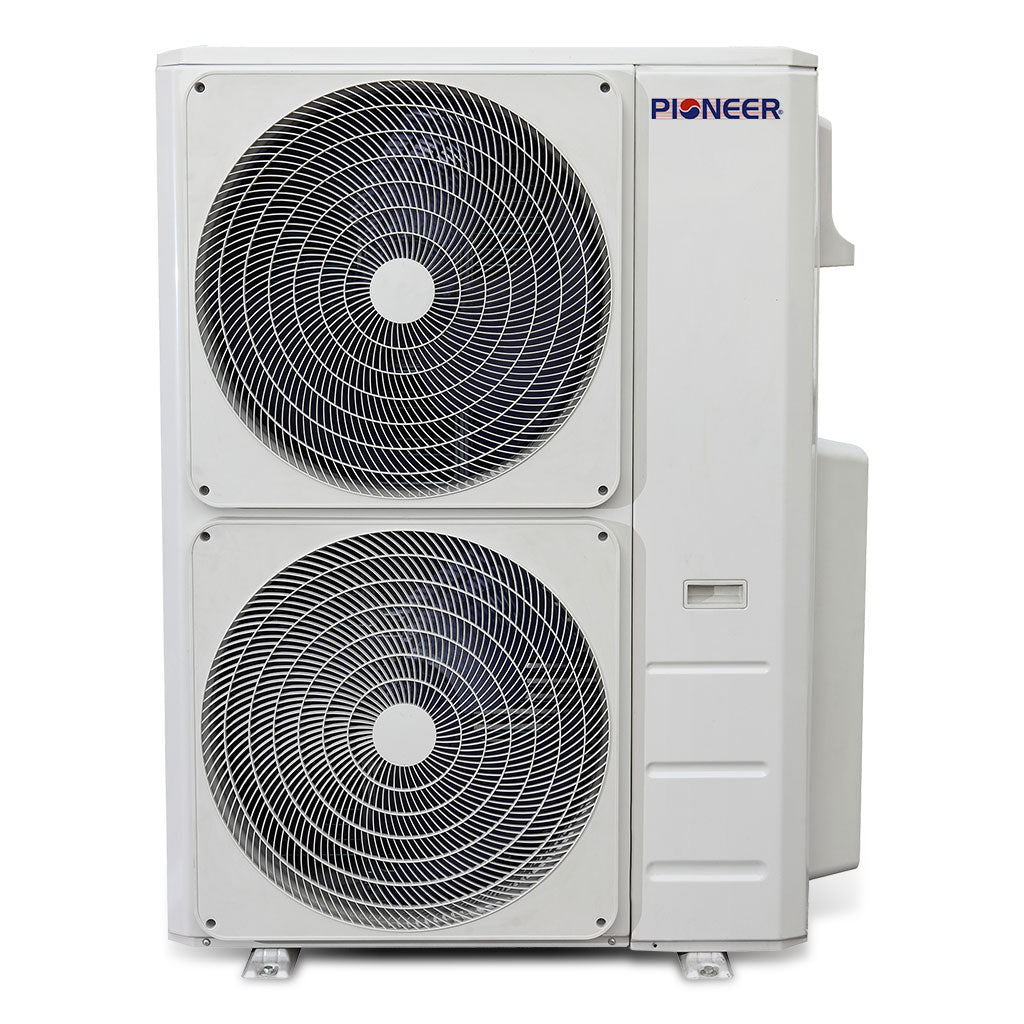

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 36,000~64,000 BTU/h
- Cooling Rated Capacity: 48,000 BTU/h
- Cooling Capacity Range: 11,600~49,700 BTU/h
- Cooling SEER2 (Ductless): 21.1 BTU/W.h
- Cooling EER2 (Ductless): 11.0 BTU/W.h
- Heating Rated Capacity: 48,000 BTU/h
- Heating Capacity Range: 33,000~52,900 BTU/h
- Heating HSPF2 (Ductless): 9.5 BTU/W.h
- Refrigerant Type: R410a
- Suitable Area: 1,600~2,000 Sq.F
- Sound Level: 62.0 dB(A)
- Net Dimensions (WDH): 37.2 x 16.4 x 52.3 Inches
- Carton Dimensions (WDH): 43.2 x 19.5 x 58.3 Inches
- Net / Gross Weight: 225 / 257 Lbs
Manuals & Documents
- Technical Brochure
- User Manual
- Installation Manual
- Service Manual
- AHRI Certificate
- Energy Guide
Quint Zone Combinations (in thousands BTU)
Rating | Two Units | Three units | Four units | Five units |
---|---|---|---|---|
Wall: 9 + 9 + 9 + 9 + 9 | 18 + 18 | 9 + 9 + 18 | 9 + 9 + 9 + 9 | 9 + 9 + 9 + 9 + 9 |
Ducted: 9 + 9 + 9 + 9 + 9 | 18 + 24 | 9 + 9 + 24 | 9 + 9 + 9 + 12 | 9 + 9 + 9 + 9 + 12 |
24 + 24 | 9 + 12 + 12 | 9 + 9 + 9 + 18 | 9 + 9 + 9 + 9 + 18 | |
9 + 12 + 18 | 9 + 9 + 9 + 24 | 9 + 9 + 9 + 9 + 24 | ||
9 + 12 + 24 | 9 + 9 + 12 + 12 | 9 + 9 + 9 + 12 + 12 | ||
9 + 18 + 18 | 9 + 9 + 12 + 18 | 9 + 9 + 9 + 12 + 18 | ||
9 + 18 + 24 | 9 + 9 + 12 + 24 | 9 + 9 + 9 + 18 + 18 | ||
9 + 24 + 24 | 9 + 9 + 18 + 18 | 9 + 9 + 12 + 12 + 12 | ||
12 + 12 + 12 | 9 + 9 + 18 + 24 | 9 + 9 + 12 + 12 + 18 | ||
12 + 12 + 18 | 9 + 12 + 12 + 12 | 9 + 12 + 12 + 12 + 12 | ||
12 + 12 + 24 | 9 + 12 + 12 + 18 | 9 + 12 + 12 + 12 + 18 | ||
12 + 18 + 18 | 9 + 12 + 12 + 24 | 12 + 12 + 12 + 12 + 12 | ||
12 + 18 + 24 | 9 + 12 + 18 + 18 | |||
12 + 24 + 24 | 9 + 18 + 18 + 18 | |||
18 + 18 + 18 | 12 + 12 + 12 + 12 | |||
18 + 18 + 24 | 12 + 12 + 12 + 18 | |||
12 + 12 + 12 + 24 | ||||
12 + 12 + 18 + 18 |
9,000 BTU Compatible Units
- Wall Mounted: WS009GMFI22HLE (30.3 x 11.8 x 21.8 inches)
- Cassette: CB009GMFILCFHD (22.5 x 22.5 x 10.3 inches)
- Concealed Ducted: RB009GMFILDFHD (27.5 x 25.0 x 8.3 inches)
12,000 BTU Compatible Units
- Wall Mounted: WS012GMFI22HLE (31.5 x 13.2 x 21.7 inches)
- Cassette: CB012GMFILCFHD (22.5 x 22.5 x 10.3 inches)
- Floor-Ceiling: FB012GMFILDFHE (27.5 x 23.6 x 8.3 inches)
- Concealed Ducted: RB012GMFILDFHD (27.5 x 25.0 x 8.3 inches)
18,000 BTU Compatible Units
- Wall Mounted: WS018GMFI22HLE (33.3 x 14.4 x 27.6 inches)
- Cassette: CB018GMFILCFHD (22.5 x 22.5 x 10.3 inches)
- Concealed Ducted: RB018GMFILDFHD (36.3 x 25.0 x 8.3 inches)
- Flex mount: UB018GMFILCFHD (42.0 x 26.5 x 9.3 inches)
24,000 BTU Compatible Units
- Wall Mounted: WS024GMFI22HLE (37.2 x 16.5 x 31.8 inches)
- Cassette: CB024GMFILCFHD (33.0 x 33.0 x 8.0 inches)
- Concealed Ducted: RB024GMFILDFHD (36.3 x 25.0 x 10.6 inches)
- Flex mount: UB024GMFILCFHD (42.0 x 26.5 x 9.3 inches)
Min. / Max. Loading
32,000 / 48,000 BTU/h.
Limitations
Do not exceed two pieces of 24,000 BTU/h Indoor Unit
Notes
Every indoor unit attached will operate at a random, self regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity or OFF). Outdoor unit will also self regulate its output capacity, based on the total demand it reads from all of the simultaneously running indoor units at any given moment.
With multi split systems, the total demand from the outdoor unit, shall seldomly exceed 67% of the total available capacity of the combined indoor unit group due to load fluctuations. Although very seldom, if and when the total demand from the combined indoor group exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
For high demand heating applications, max loading limits may need to be reduced by 10-15 % to avoid under-performance risks at some extreme conditions.
