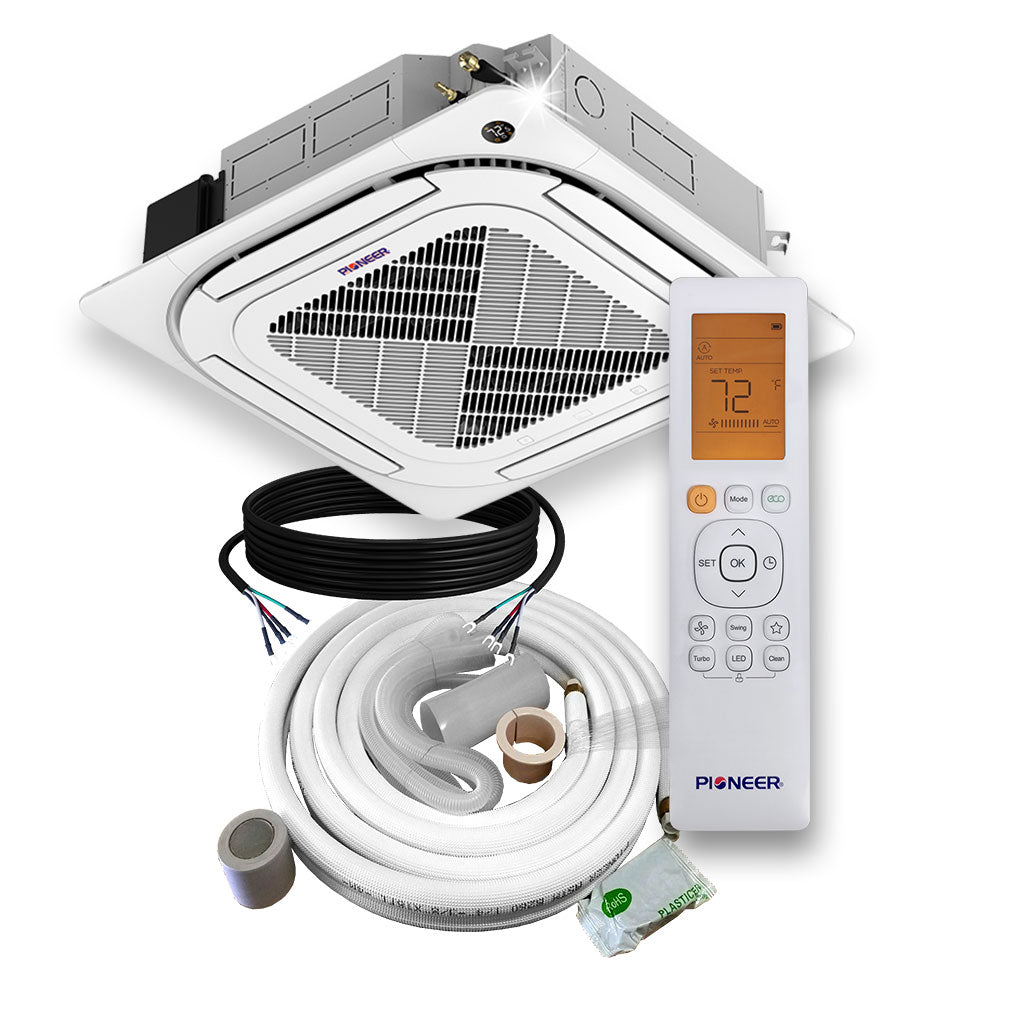

Pioneer® Multi Zone 24,000 BTU Quantum Series Ceiling Cassette Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V
Pioneer® Multi Zone 24,000 BTU Quantum Series Ceiling Cassette Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V
Series:
Product Details
Product Details
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 24,000 BTU/h
- Cooling SEER: 20.0
- Heating Capacity: 24,400 BTU/h
- Heating HSPF: 10.5
- Suitable Area: 650~900 Sq.F
- Air Flow (Hi/Med/Lo): 700 / 630 / 573 CFM
- Sound Level (Hi/Med/Lo): 51 / 47 / 43 dB(A)
- Net Dimensions (WDH): 33" x 33" x 8"
- Carton Dimensions (WDH): 35"-1/2 x 35"-1/2 x 8"-1/2
- Net / Gross Weight: 46.5 / 54 Lbs

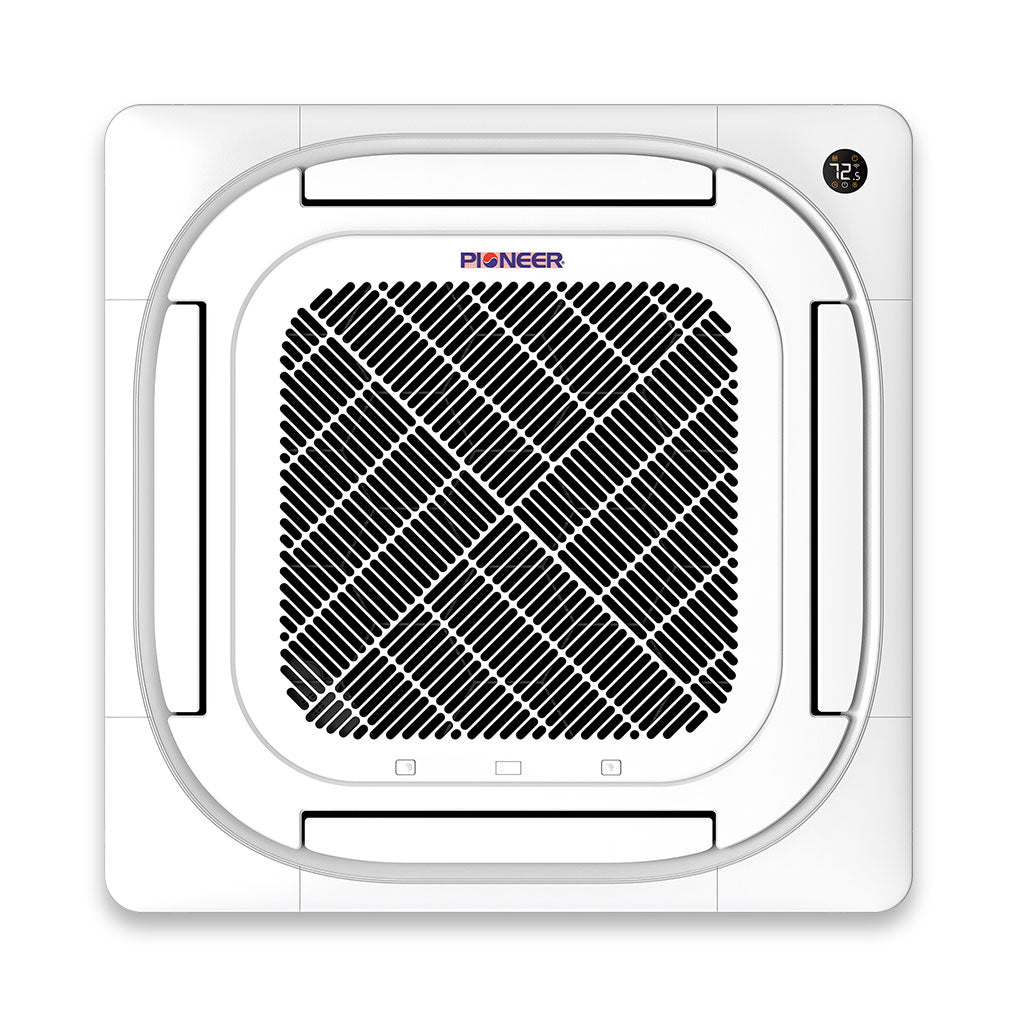

- Panel Net Dimensions (WDH): 37"-1/2 x 37"-1/2 x 2"
- Panel Carton Dimensions (WDH): 40"-3/4 x 40"-3/4 x 3"-1/2
- Panel Net / Gross Weight: 11 / 17.5 Lbs
Manuals & Documents
What's Included
- Indoor Unit

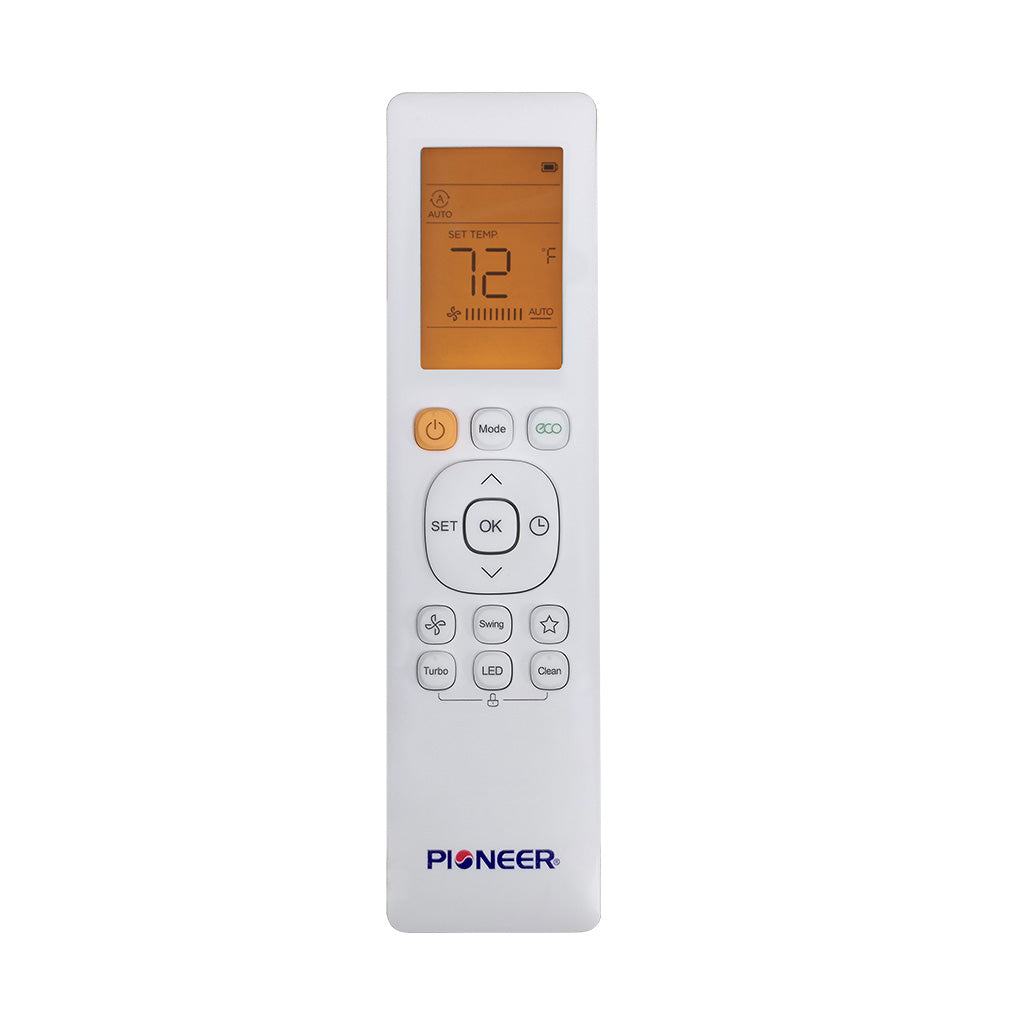

- Wireless Remote Control

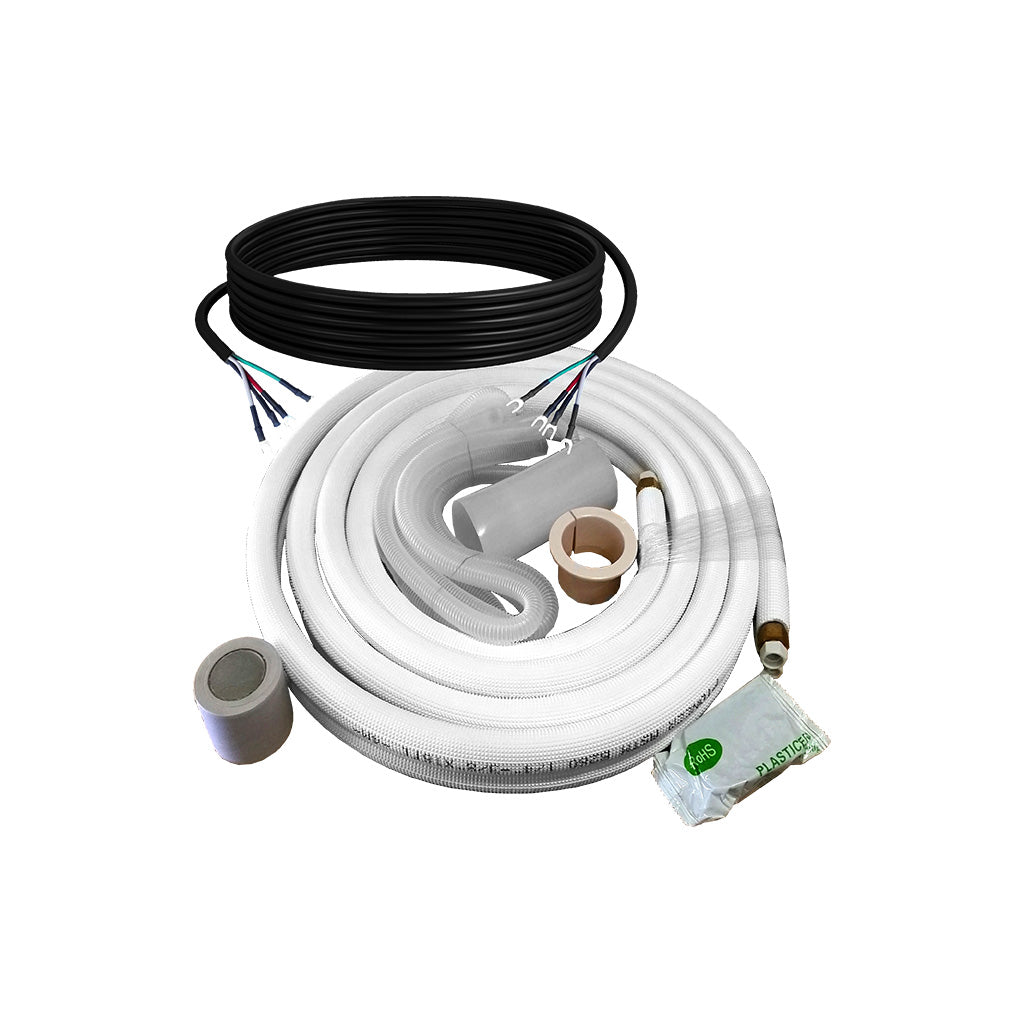

- Full Installation Kit
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
