Pioneer® Diamante Pro™ 18,000 BTU 21 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Product Details

Summary

High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
Cooling capacity: 18,000 BTU/H with 21 SEER2 / 11 EER2 efficiency
Heating capacity: 19,000 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
High Wall-Mounted Ductless Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Dimensioning Chart

Technical Information & Performance

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 4,090 ~ 18,400 BTU/h
- Cooling SEER2: 21.0 BTU/W.h
- Cooling EER2: 11.0 BTU/W.h
- Heating Rated Capacity: 19,000 BTU/h
- Heating Capacity Range: 4,090 ~ 19,000 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.41 / 1.8 W/W
- Refrigerant Type: R454b
- Suitable Area: 500~750 Sq.F
- Piping Diameter: 1/4 x 3/8"
- AHRI Reference: 217048744

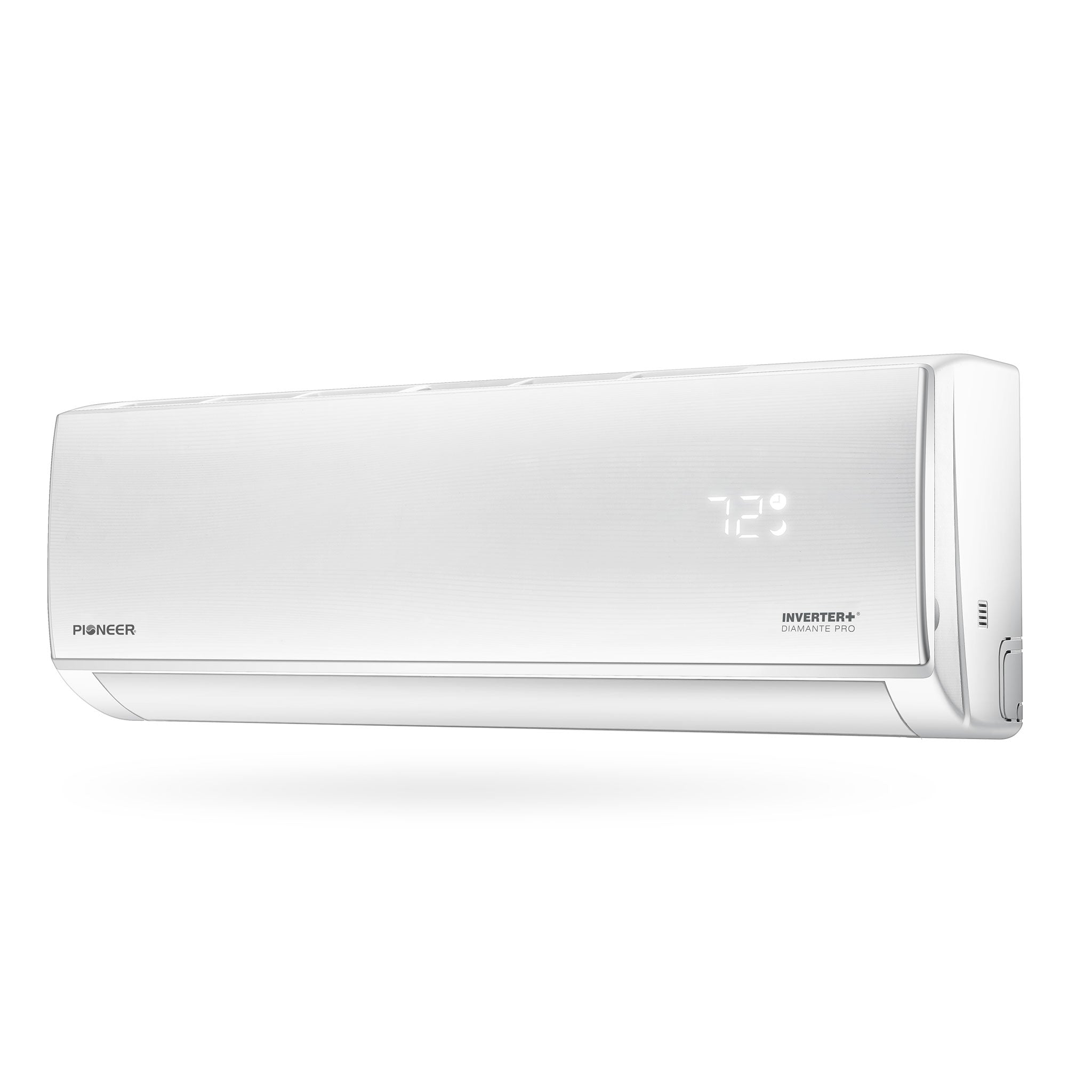

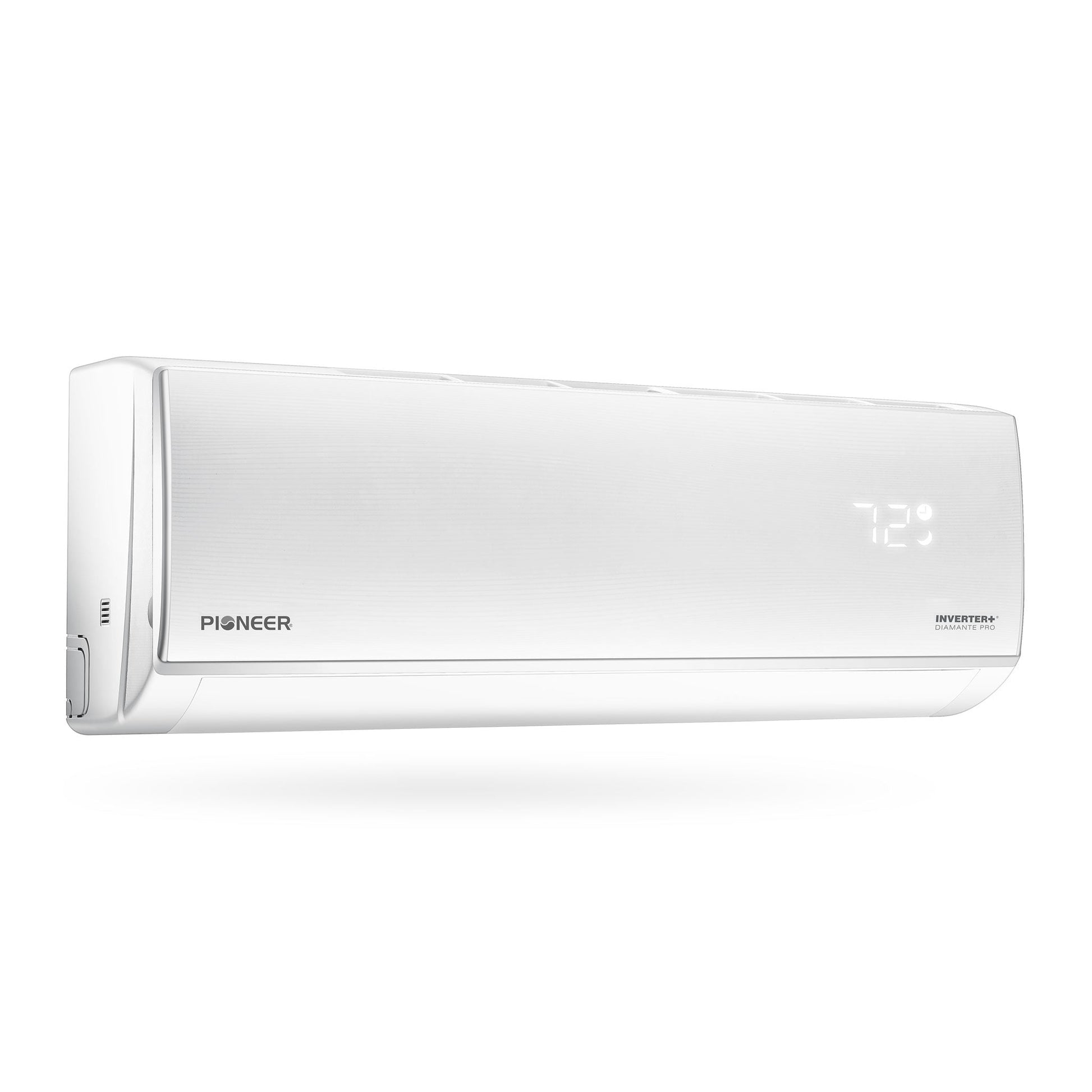

Indoor Unit
- Part Number: WT018GLSI20HLF
- Air Flow (Turbo/Hi/Med/Lo/Mute): 617 / 575 / 511 / 411 / 382 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 49 / 47 / 42 / 37 / 32 dB(A)
- Product Dimensions (WDH): 39"-3/4 x 9" x 12"-3/8 Inches
- Carton Dimensions (WDH): 43"-1/8 x 11"-3/4 x 15"-3/8 Inches
- Net / Gross Weight: 27.6 / 33.7 lbs.

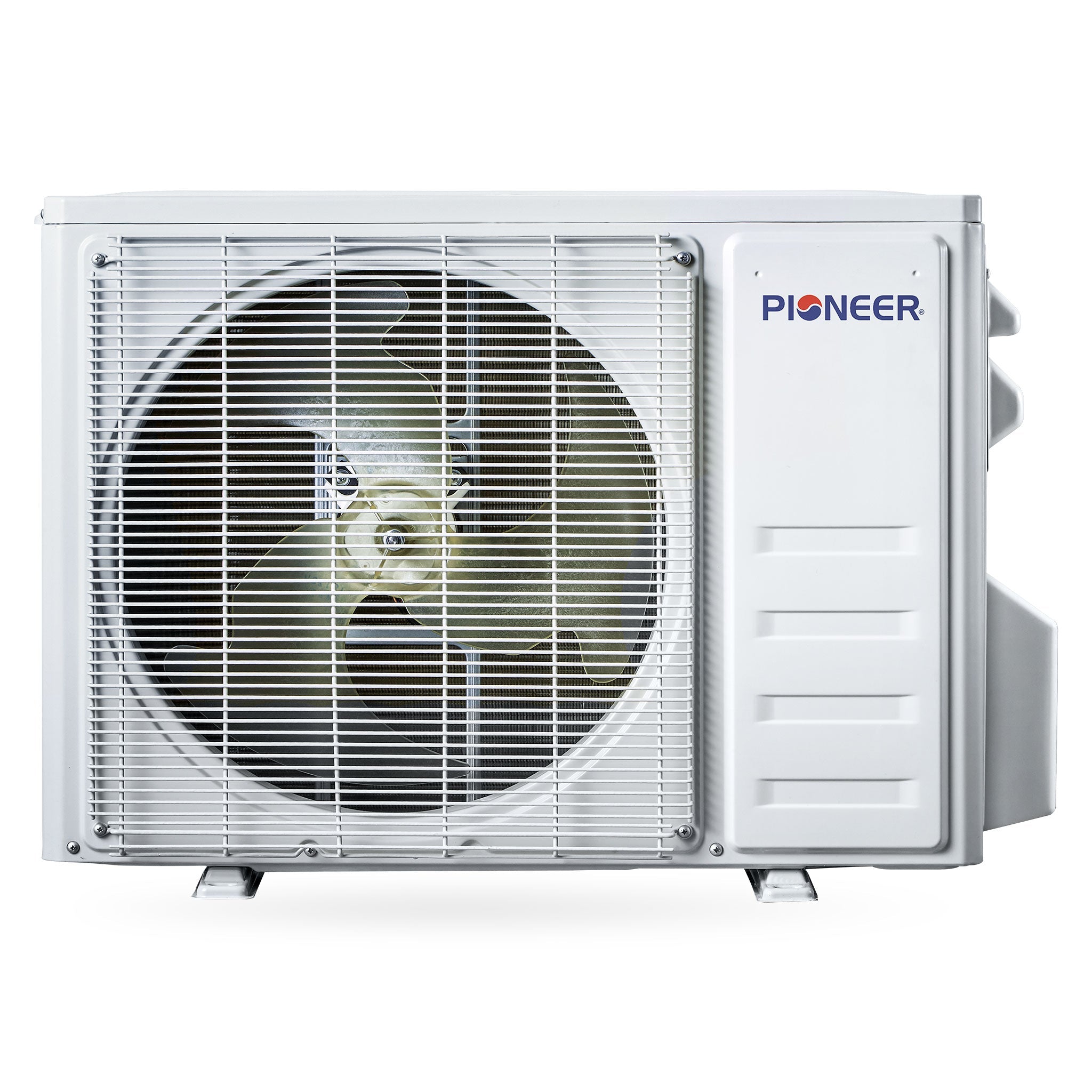

Outdoor Unit
- Part Number: YN018GLSI20RPF
- Breaker Needed: 20A (single-pole)
- Sound Level: 55 dB(A)
- Net Dimensions (WDH): 34" x 13"-3/4 x 23"-3/4 Inches
- Carton Dimensions (WDH): 35"-1/2 x 16" x 27" Inches
- Net / Gross Weight: 70.5 / 82.7 lbs

Product Certifications

Series Details

Diamante Pro™ High-Wall Series

Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.

IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The copper tubing is included in the outdoor unit box, and the communication wiring kit is included in the indoor unit box. This product set consists of only 2 cartons.

Standard Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

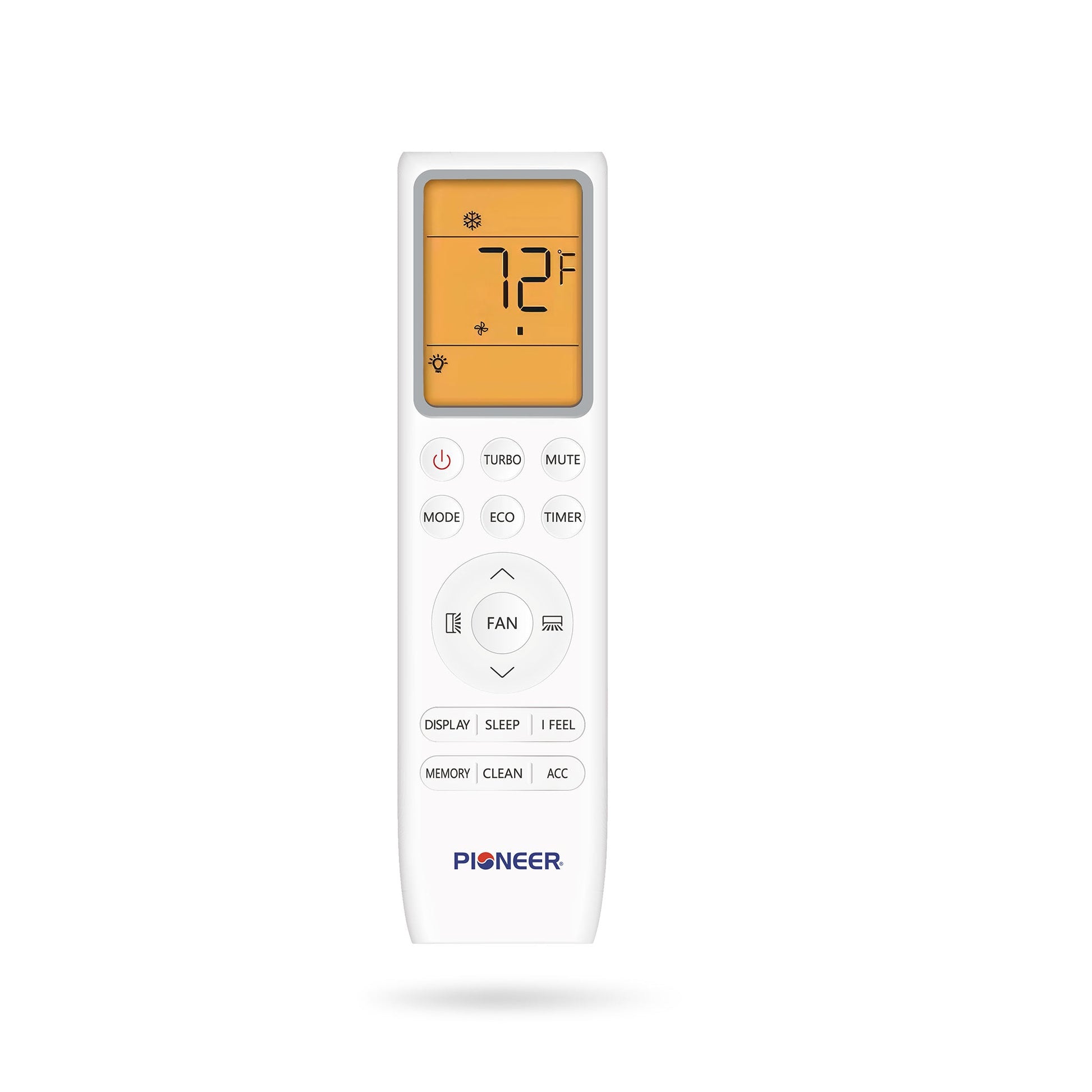

Functional Remote

ECO and SLEEP Modes, for Energy-Conservation
Timer On/Off Control
TURBO, for Times of High-Demand
Self-Clean Cycle
MEMORY, to Recall Favorite Settings
IFEEL, to Detect and Adjust to Local Temperature

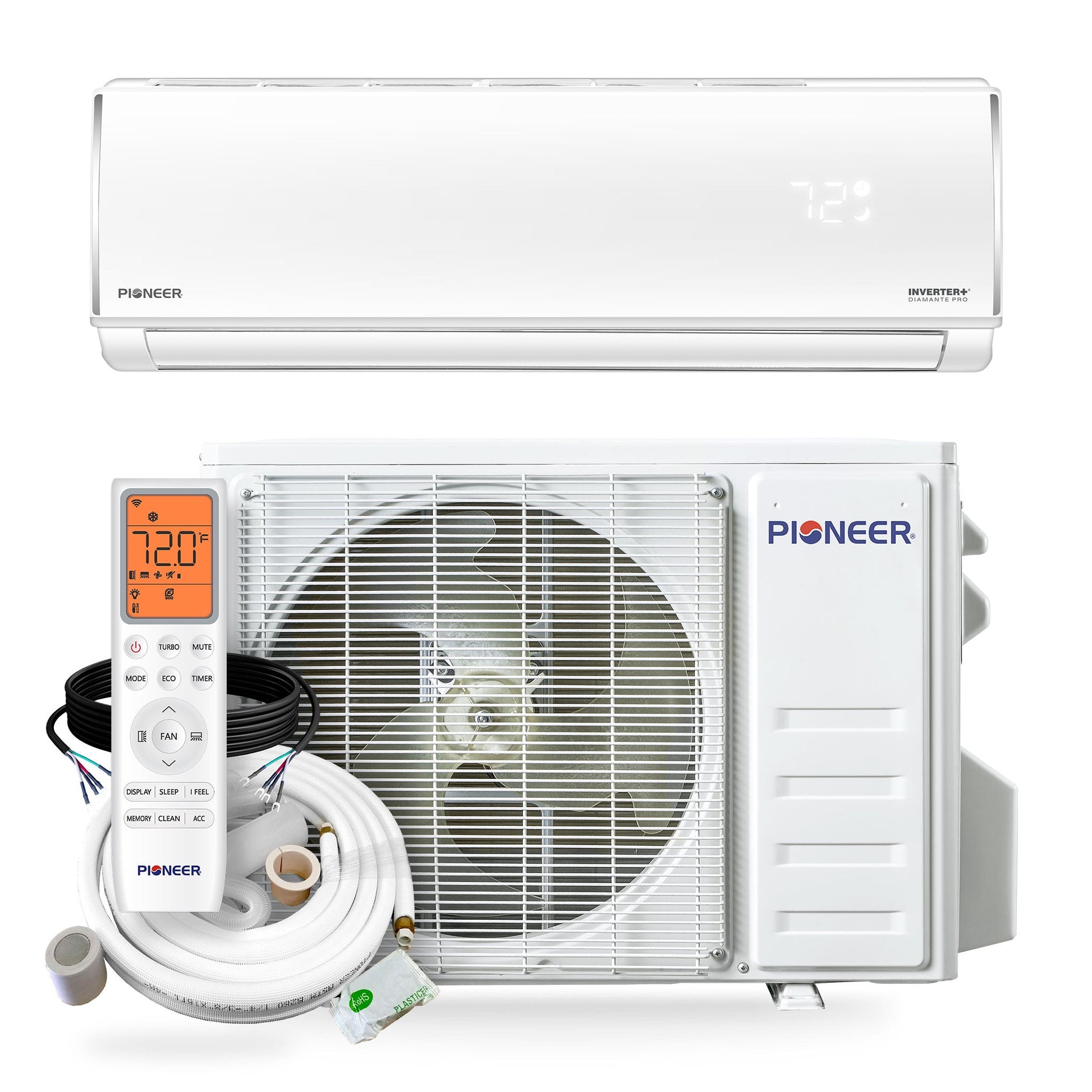

What's Included in Your Purchase

Indoor Unit
Outdoor Unit
Wireless Remote Control
Remote Control Wall Holder
Remote Control Batteries

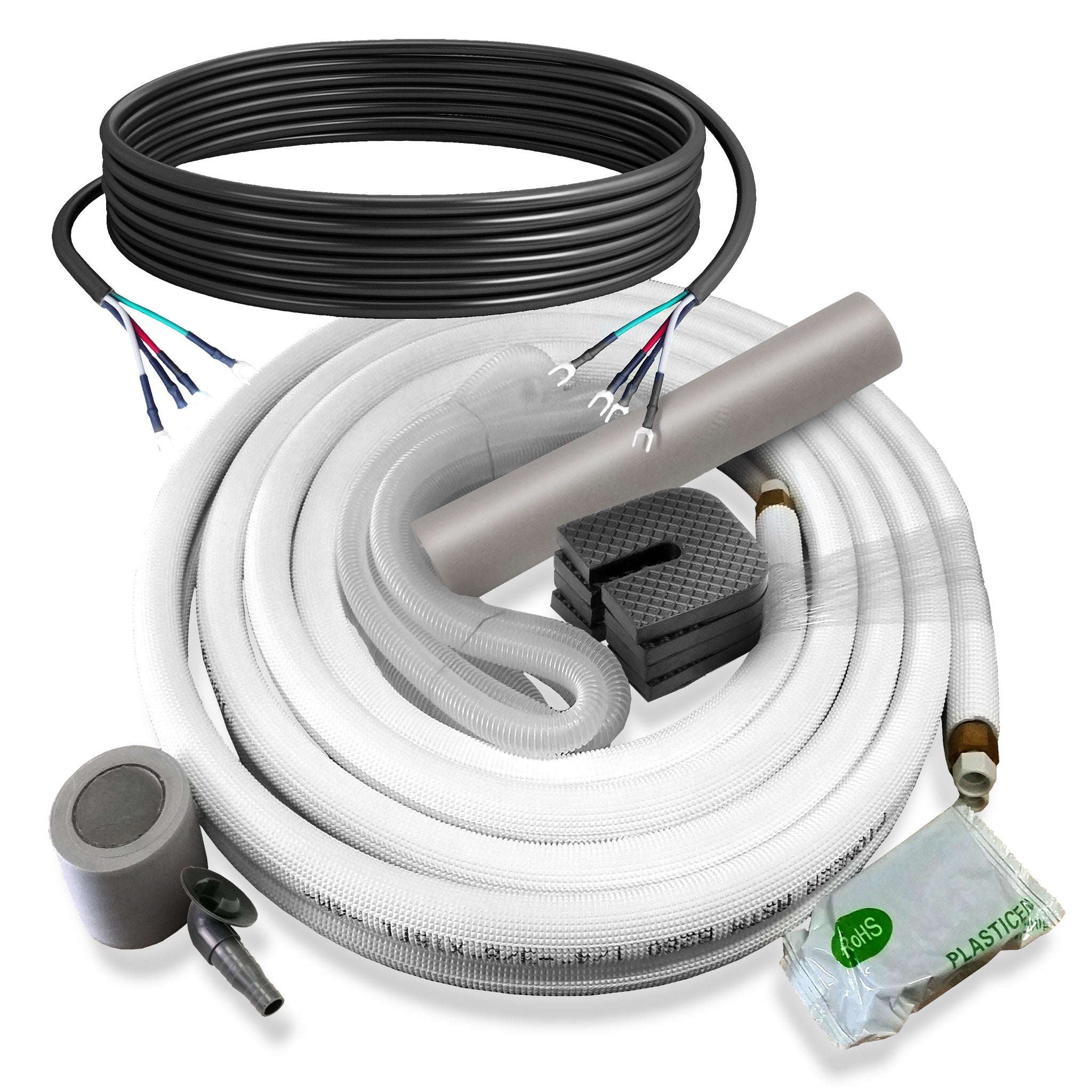

16 Ft. Copper Lines
16 Ft. Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor
