Copper Piping Kit for Mini Split Installation
Copper Piping Kit for Mini Split Installation
Series: Mini Split Accessories
Regular price
$65.00
Sale price
$65.00
Regular price
$92.75
Shipping calculated at checkout.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Diameter Selection Guide (FOR WYS SERIES)
| 9,000 BTU Models (except for 22 SEER 115V) | 1/4"-3/8" |
| 12,000-18,000 BTU Models (as well as 9k 22 SEER 115V) | 1/4"-1/2" |
| 24,000 BTU and Above Models | 3/8"-5/8" |
Diameter Selection Guide (FOR DIAMANTE/WYT-19 SERIES)
| 9,000 BTU - 18,000 BTU | 1/4"-3/8" |
| 24,000 BTU | 1/4"-1/2" |
| 36,000 BTU | 1/4"-5/8" |
Diameter Selection Guide (FOR DIAMANTE ULTRA/WYT-22 SERIES)
| 9,000 BTU - 12,000 BTU | 1/4"-3/8" |
| 18,000 BTU | 1/4"-1/2" |
| 24,000 BTU | 1/4"-5/8" |
Summary
- Copper pipes
- 3 layer insulation
- Brass flare nuts

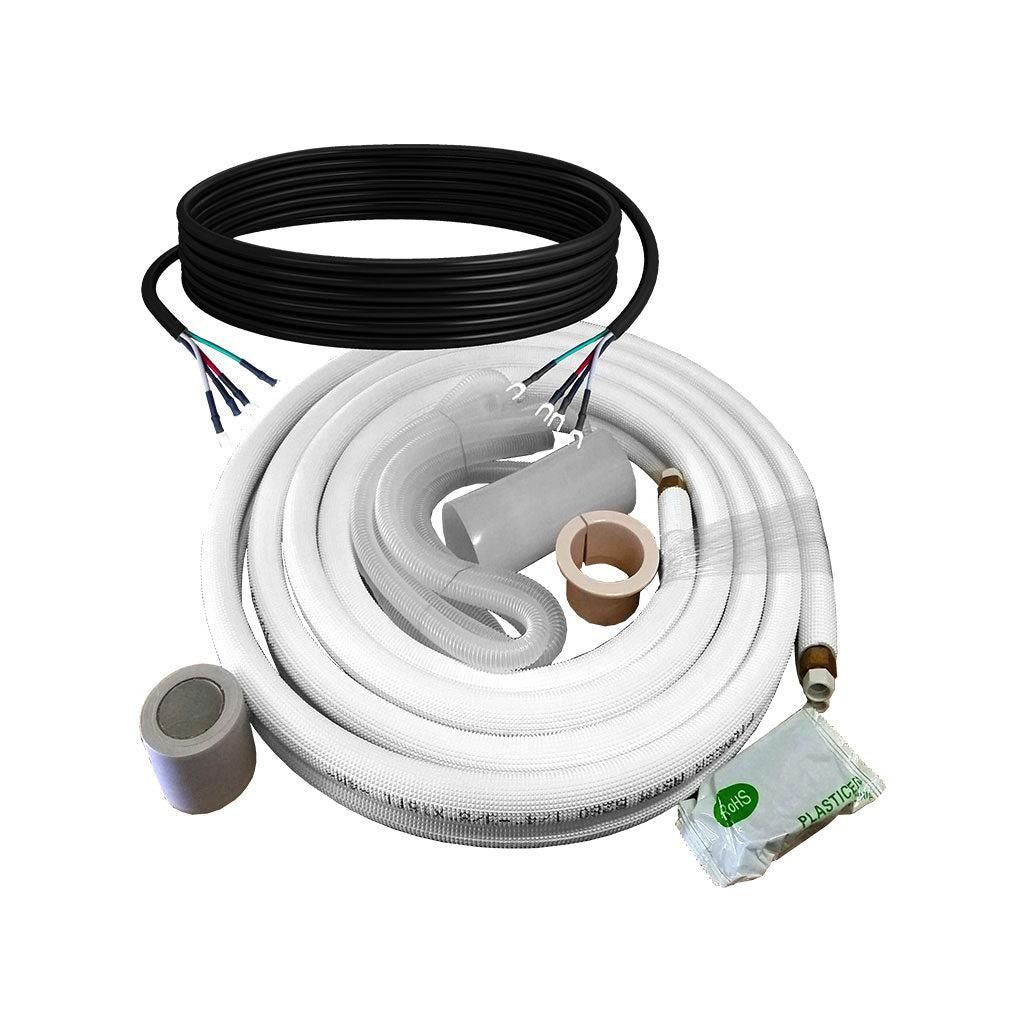

- Includes the following:
- Insulated pre-flared copper refrigerant pipes (length and diameter as chosen)
- 4 lead communication wire between indoor and outdoor unit (same length as chosen)
- 10 ft. condensate drain hose
- Wall passage sleeve with cap and putty
- Non-adhesive wrapping tape (2" wide, 50' length)
Feature Set
- Highest Quality Full Copper Piping Kit Set.
- Compliance with ASTM-B280 Standard (USA-Canada).
- Dehydrated Soft Drawn Copper Tubes.
- Three Layer Water Proof P.E. Insulation.

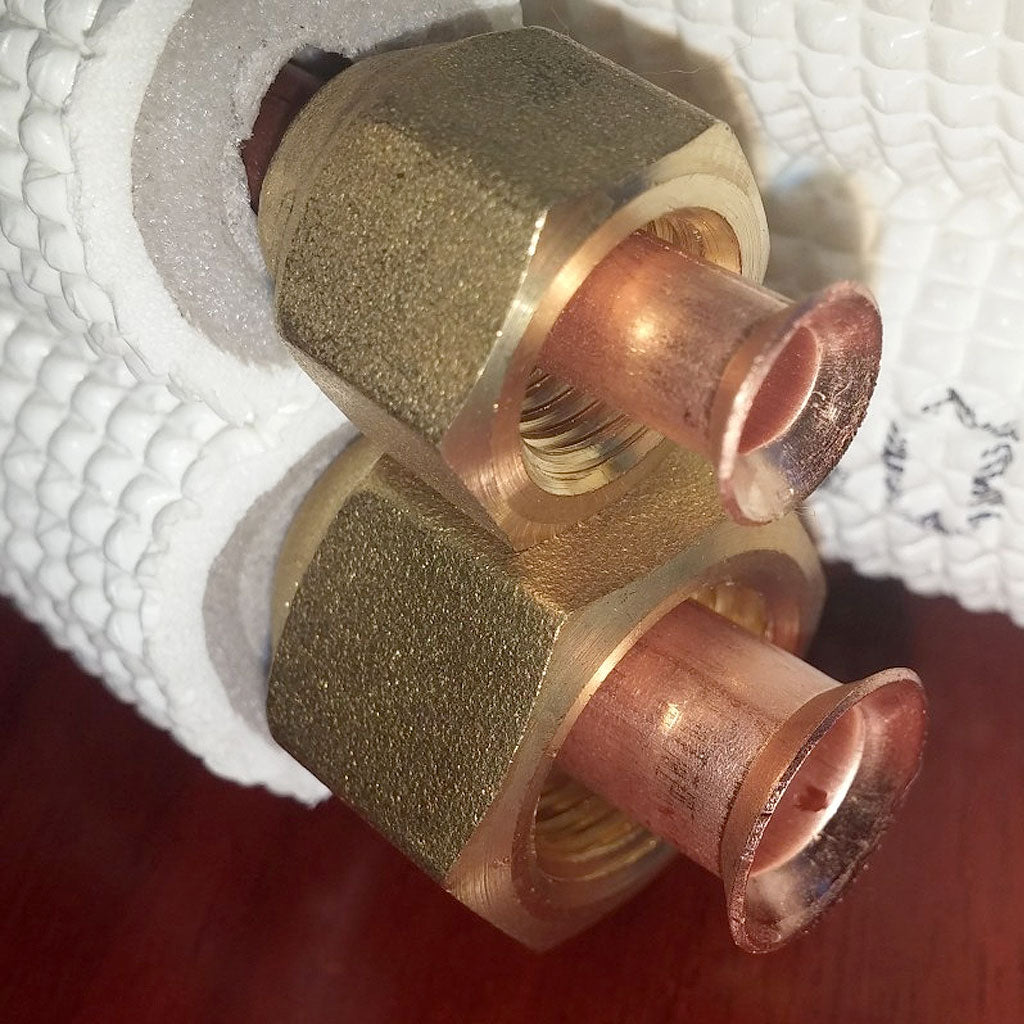

- Brass Flare Nuts, on ready formed flare ends.
- Matching Length 1 Gauge 4 Lead Signal Cable set.

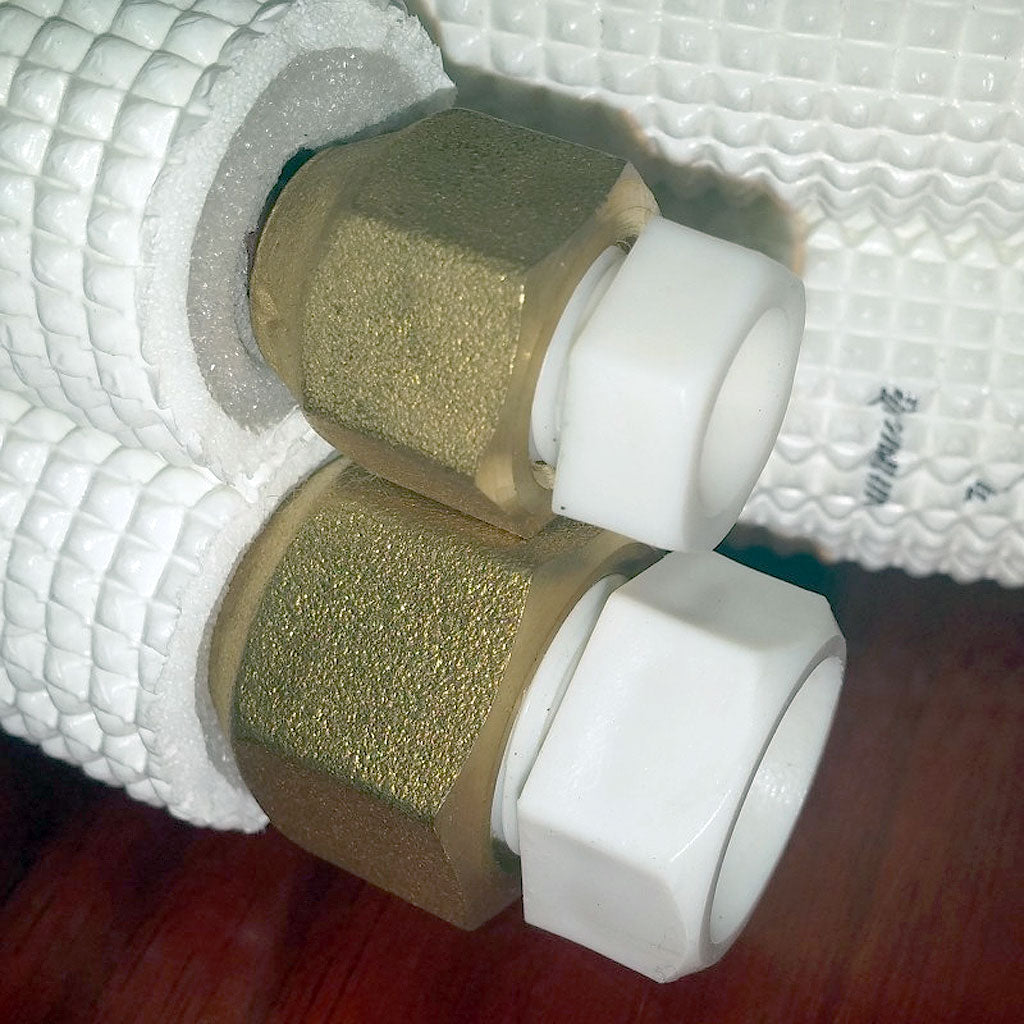

- Plastic dust caps, to keep clean during installation.
- Wall Sleeve/Liner with Cap.
- Wall Filler Putty.
- Non Adhesive Wrapping Tape.
Weight Information:
| 1/4"-3/8" | 1/4"-1/2" | 3/8"-5/8" | |
| 10 ft | 5.2 lbs | 5.9 lbs | 7.7 lbs |
| 16 ft | 7.8 lbs | 8.5 lbs | 10.5 lbs |
| 25 ft | 10.3 lbs | 12 lbs | 15.8 lbs |
| 33 ft | 13.6 lbs | 15.7 lbs | 20.5 lbs |
| 50 ft | 19.2 lbs | 21.2 lbs | 31.3 lbs |
