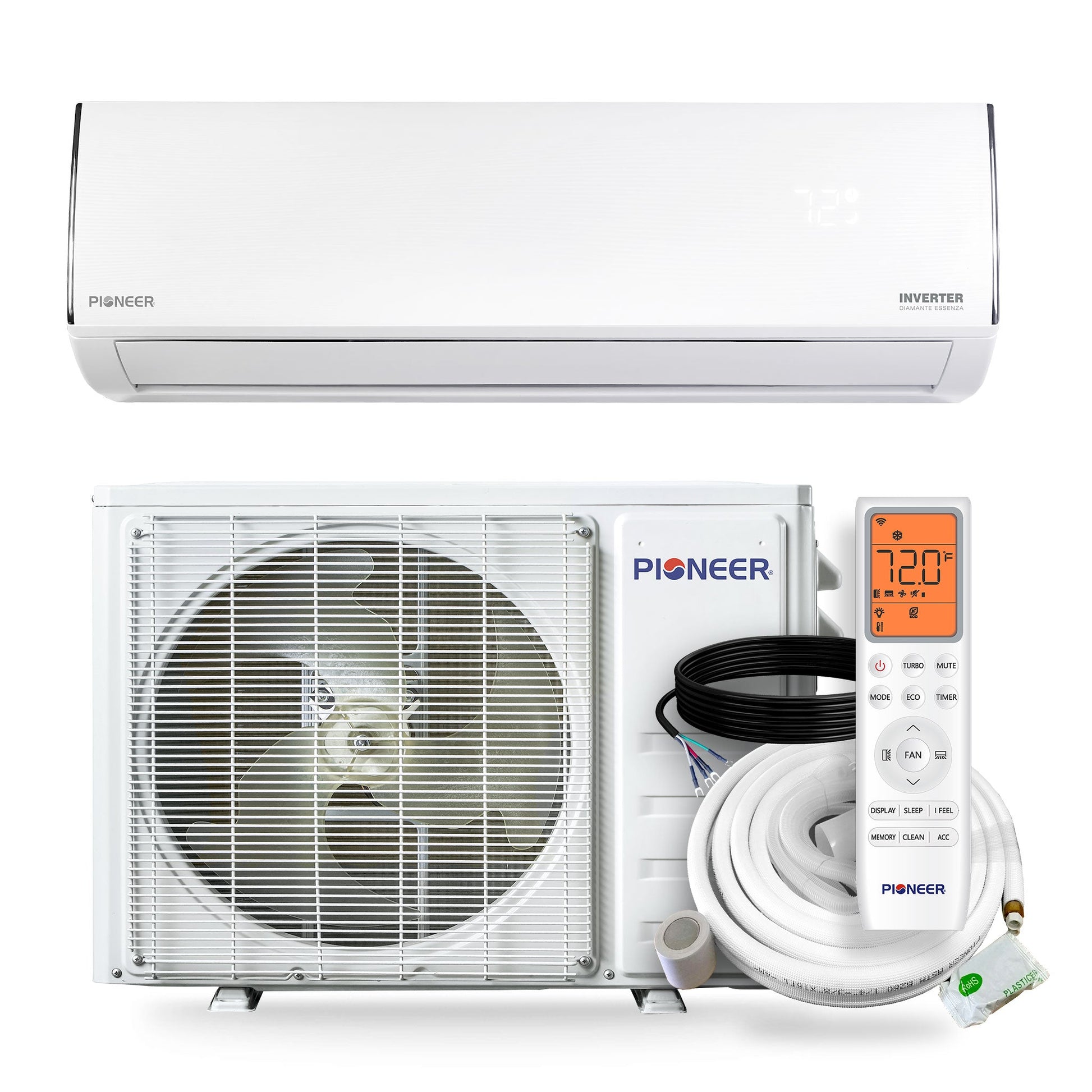

Pioneer® Diamante Essenza™ 24,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Pioneer® Diamante Essenza™ 24,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Series: Diamante Essenza™ High-Wall Series
Regular price
$1,038.00
Sale price
$1,038.00
Regular price
$1,479.00
Shipping calculated at checkout.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Summary
- Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
- Cooling capacity: 23,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 22,400 BTU/H with 9.5 HSPF2 / 3.3 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Dimensioning Chart
Technical Information & Performance
-

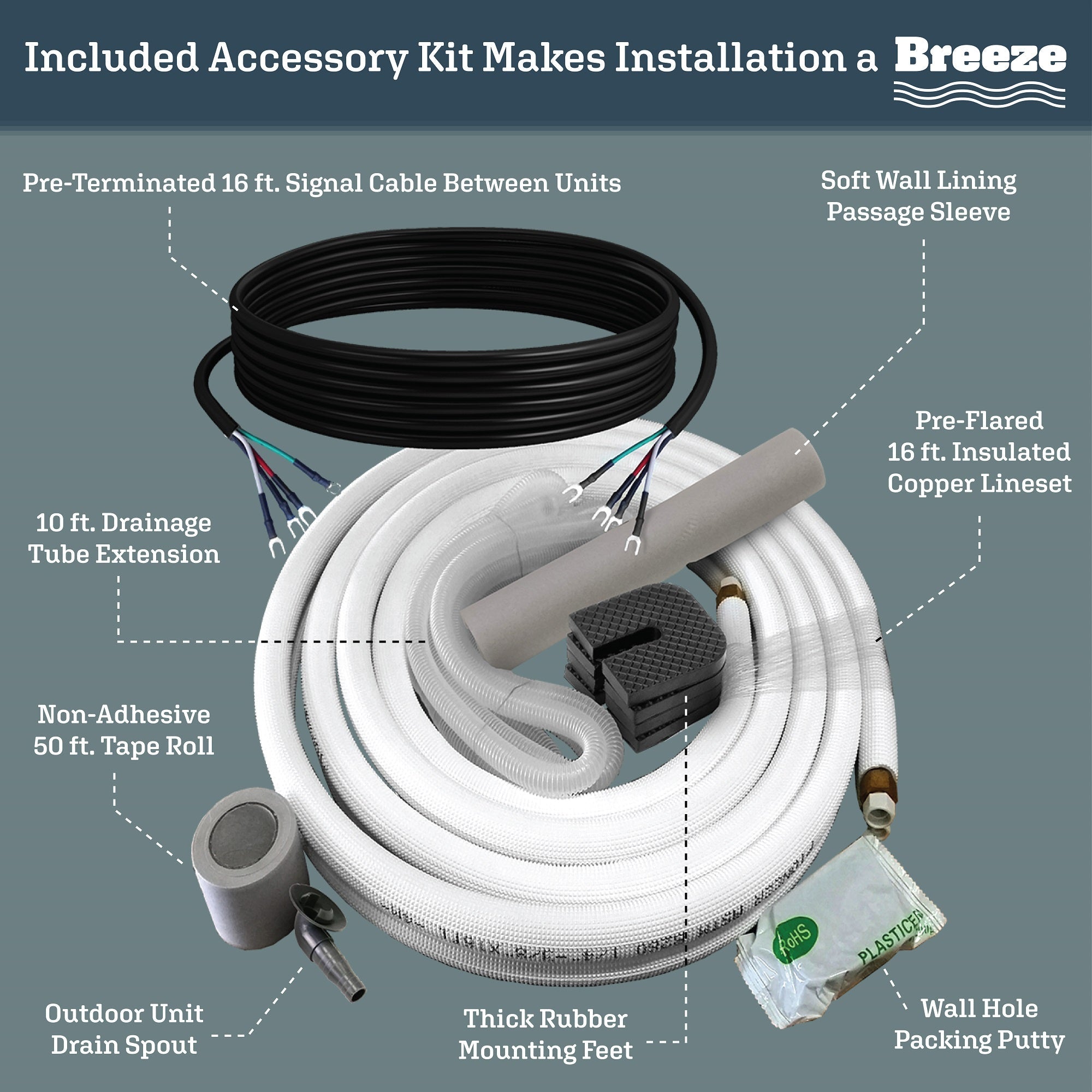

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 23,000 BTU/h
- Cooling Capacity Range: 5,120~24,500 BTU/h
- Cooling SEER2: 17.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 22,400 BTU/h
- Heating Capacity Range: 5,120~24,500 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.3 / 1.8 W/W
- Refrigerant Type: R-32
- Suitable Area: 600~950 Sq.F
- AHRI Reference: 217048737
-
Indoor Unit
- Part Number: WT024GLUI17HLD
- Air Flow (Turbo/Hi/Med/Lo/Mute): 676 / 629 / 505 / 412 / 352 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 48 / 46 / 40 / 37 dB(A)
- Product Dimensions (WDH): 39-3/4 x 8-3/4 x 12-3/8 Inches
- Carton Dimensions (WDH): 43-1/8 x 11-3/4 x 15-3/8 Inches
- Net / Gross Weight: 26.5 / 33.1 lbs
-
Outdoor Unit
- Part Number: YN024GLUI17RPD
- Breaker Needed: 20A (double-pole)
- Sound Level: 56 dB(A)
- Net Dimensions (WDH): 34 x 13-3/4 x 23-5/8 Inches
- Carton Dimensions (WDH): 35-1/2 x 15-7/8 x 26-7/8 Inches
- Net / Gross Weight: 70.5 / 82.7 lbs
