Pioneer® Diamante Pro™ 36,000 BTU 19 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - Clearance 💰
Pioneer® Diamante Pro™ 36,000 BTU 19 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - Clearance 💰
Series: Diamante Pro™ High-Wall Series
Regular price
$1,645.53
Sale price
$1,645.53
Regular price
$2,098.00
Shipping calculated at checkout.
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
PLEASE NOTE, This listing contains scratch and dent OUTDOOR & INDOOR units. Mainly box damage with minor cosmetic imperfections to the units. Performance is not impacted. Full functionality and efficiency assured. 7-8/10 condition compared to new.
Summary
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 36,000 BTU/H with 19.0 SEER2 / 9.0 EER2 efficiency
- Heating capacity: 36,000 BTU/H with 9.0 HSPF2 / 3.15 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Dimensioning Chart
Technical Information & Performance
-

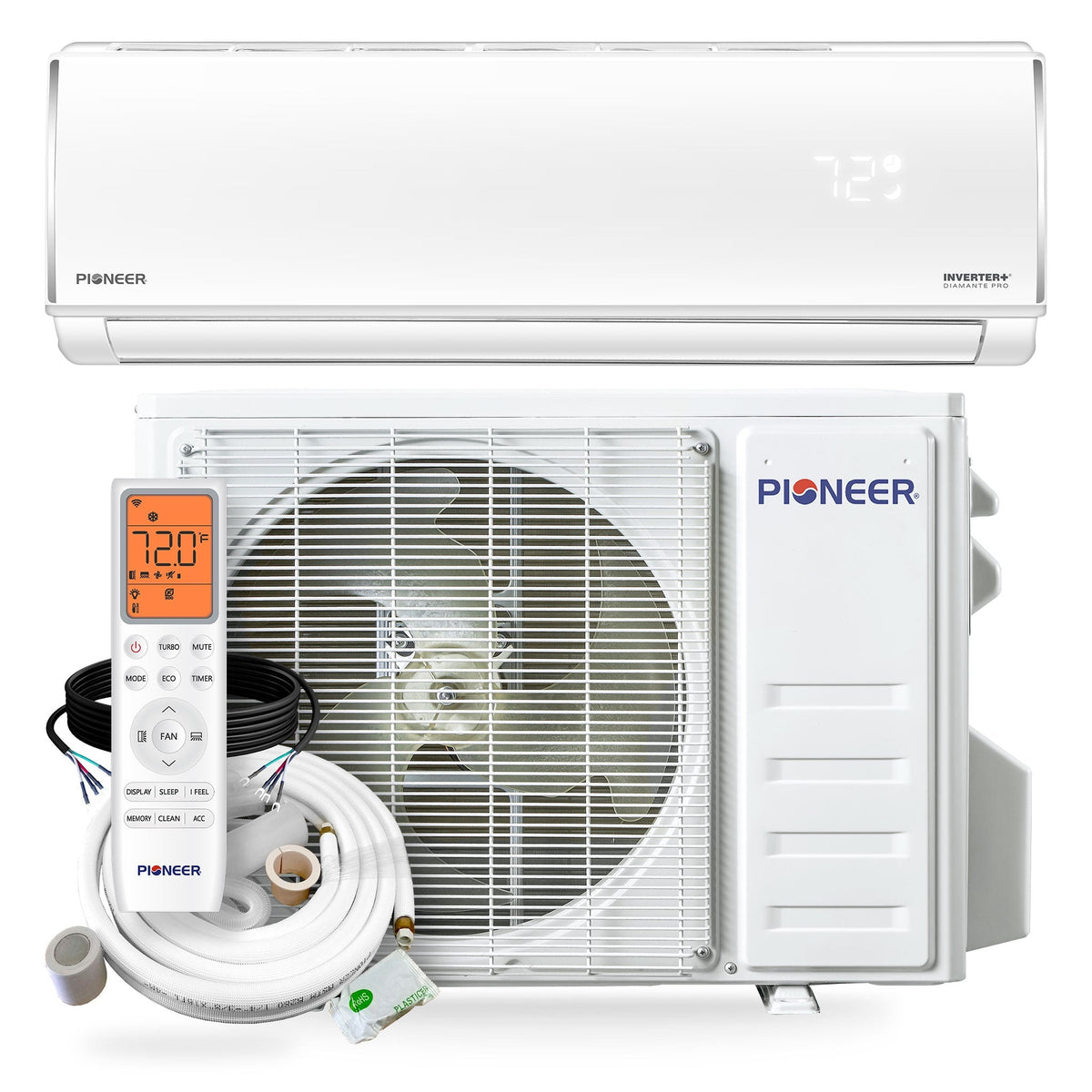

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h
- Cooling Capacity Range: 7,500~36,000 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 9.0 BTU/W.h
- Heating Rated Capacity: 36,000 BTU/h
- Heating Capacity Range: 7,500~36,000 BTU/h
- Heating HSPF2 (Region IV/V): 9.0 / 7.7 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.15 / 2.1 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,100~1,400 sq ft
- Minimum Room Size: 63 sq ft
-

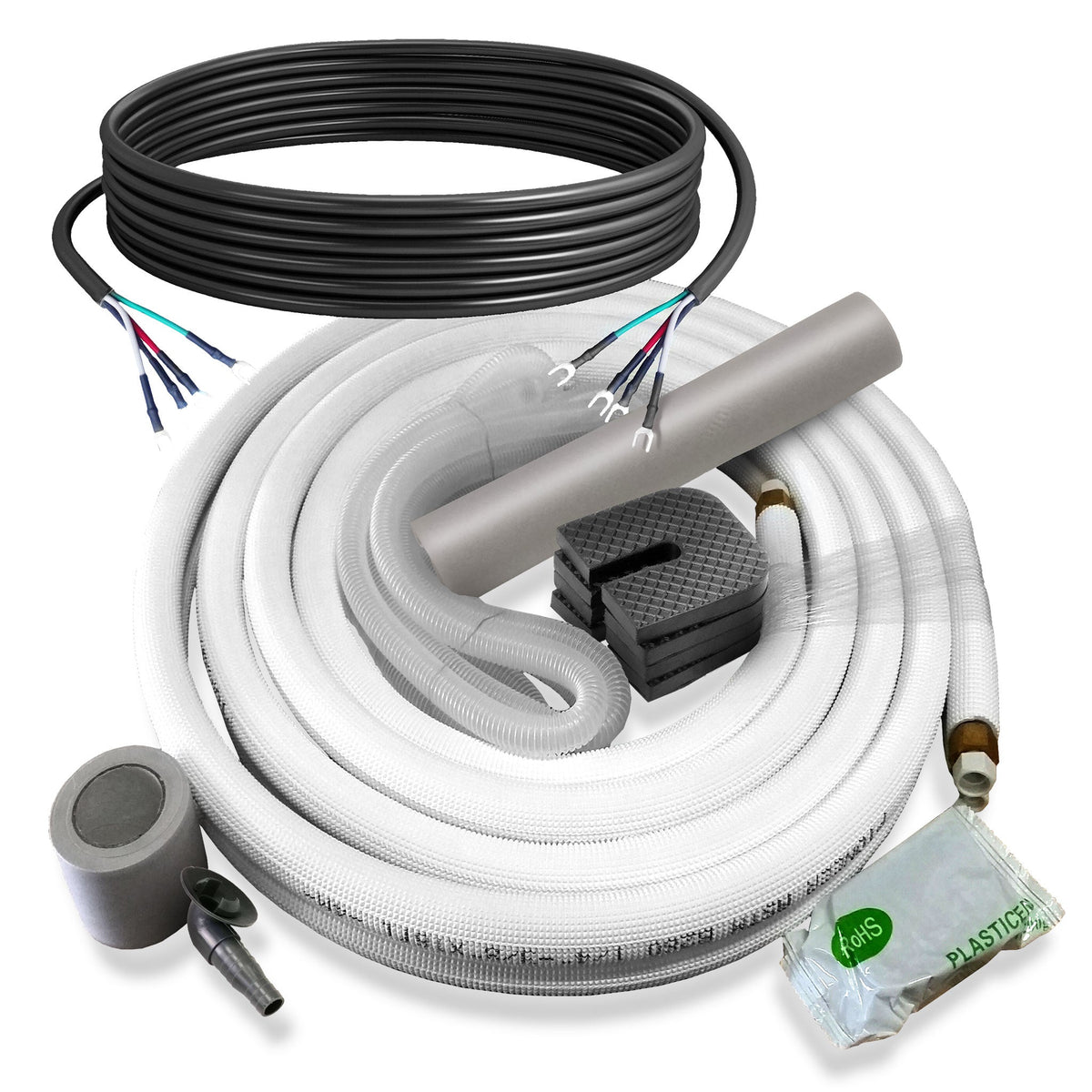

Piping Diameter: 5/8" (Gas) / 1/4" (Liquid)
- AHRI Reference: 217048747
-

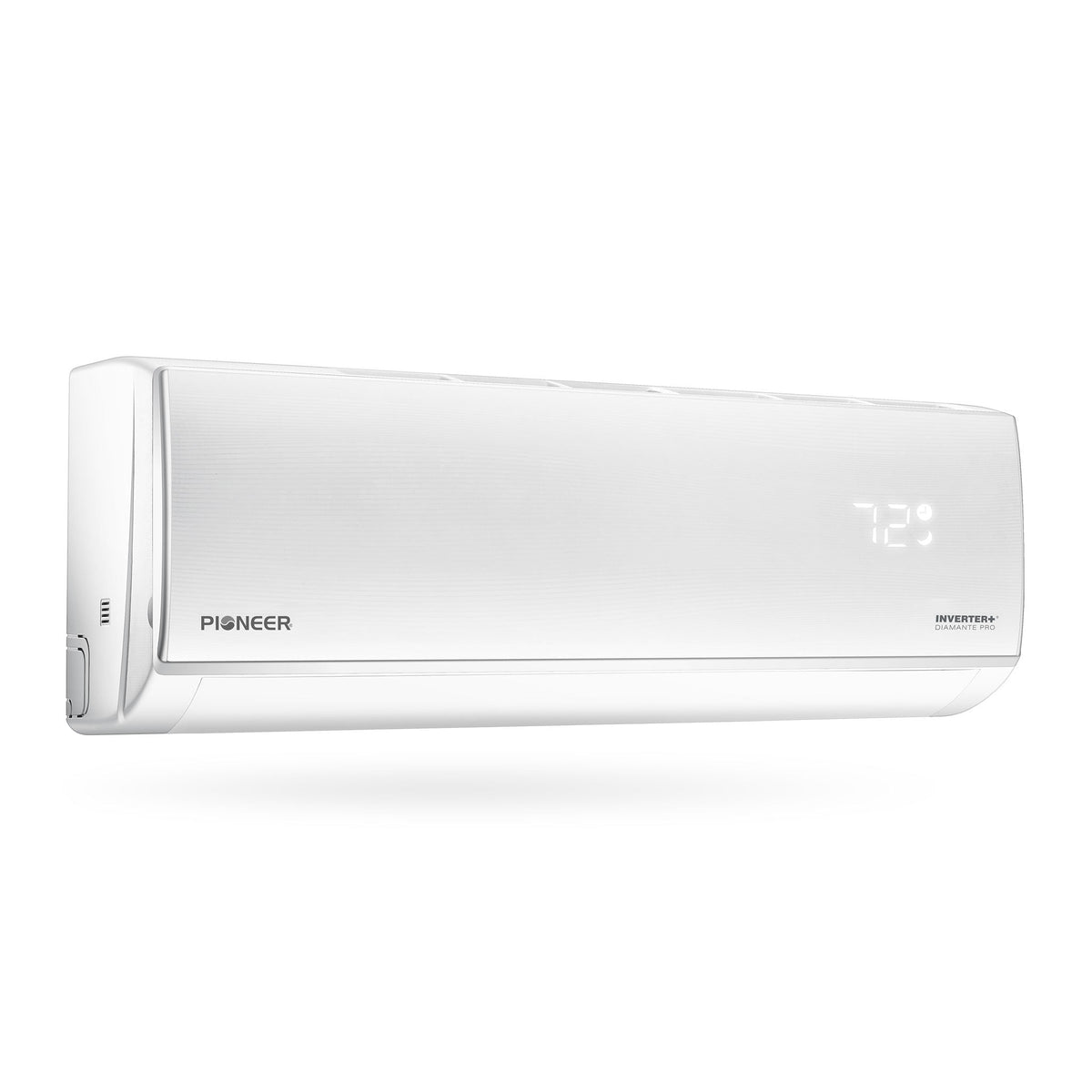

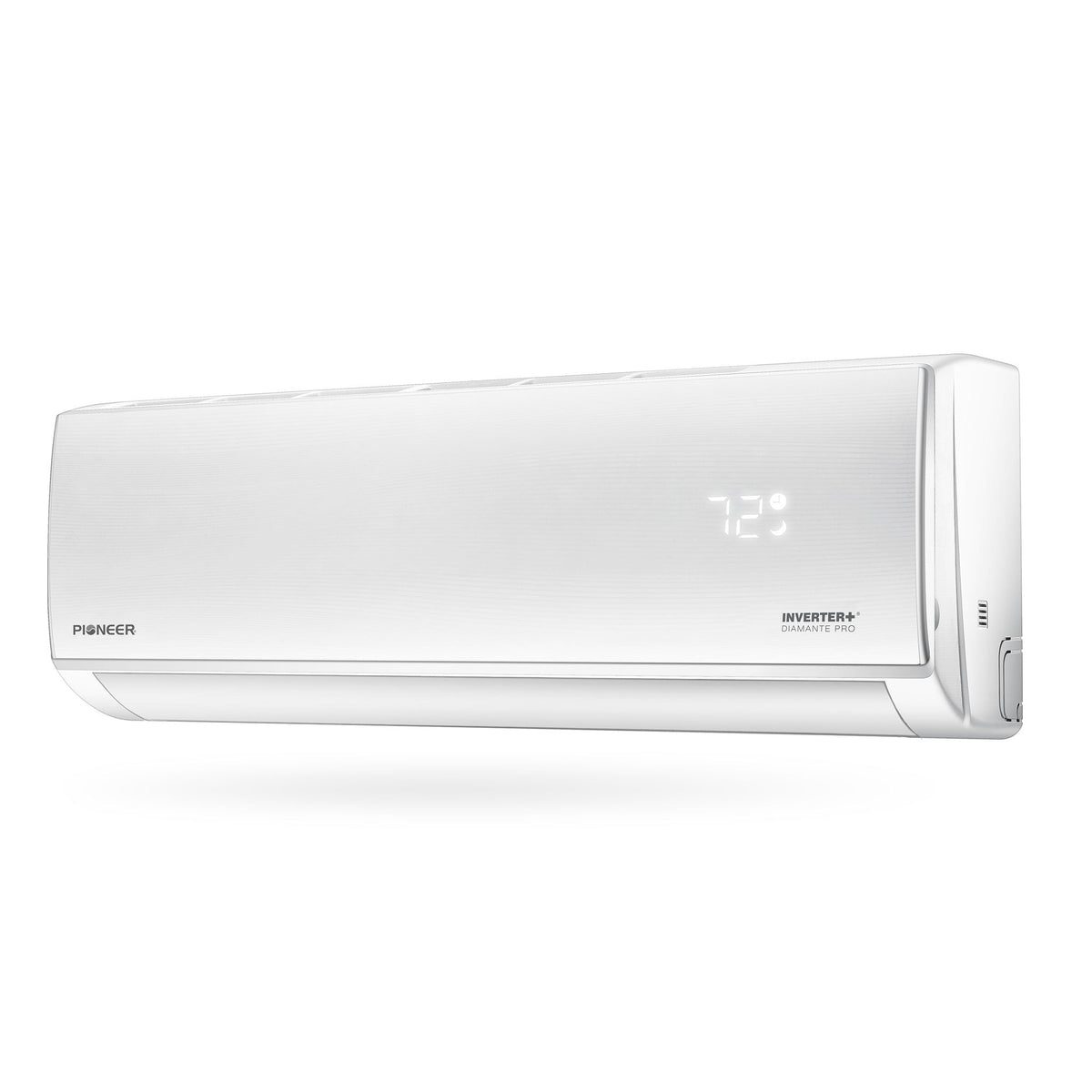

Indoor Unit
- Part Number: WT036GLSI20HLF
- Air Flow (Turbo/Hi/Med/Lo/Mute): 847 / 705 / 588 / 470 / 412 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 52 / 49 / 43 / 38 / 36 dB(A)
- Product Dimensions (WDH): 46"-7/8 x 10"-1/4 x 14"-1/4 Inches
- Carton Dimensions (WDH): 49"-5/8 x 13" x 17" Inches
- Net / Gross Weight: 39.7 / 48.5 lbs.
-

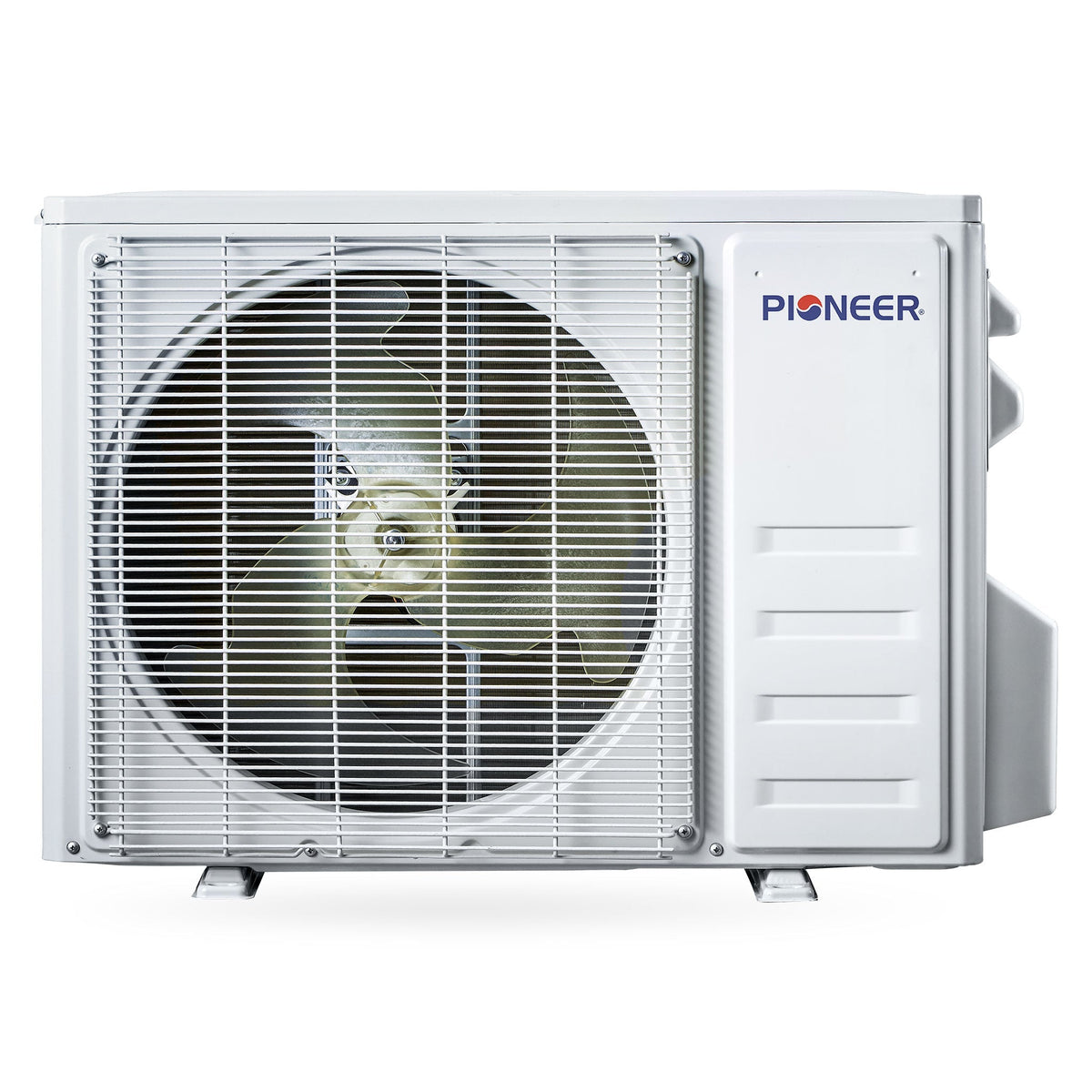

Outdoor Unit
- Part Number: YN036GLSI20RPF
- Breaker Needed: 30A (double-pole)
- Sound Level: 63 dB(A)
- Net Dimensions (WDH): 38"-1/2 x 16"-1/2 x 31"-5/8 Inches
- Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 32"-7/8 Inches
- Net / Gross Weight: 105.8 / 120.2 lbs
Product Certifications
Series Details
Series Details
Diamante Pro™ High-Wall Series
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| PLEASE NOTE, This listing contains scratch and dent OUTDOOR & INDOOR units. Mainly box damage with minor cosmetic imperfections to the units. Performance is not impacted. Full functionality and efficiency assured. 7-8/10 condition compared to new.Summary
Dimensioning ChartTechnical Information & Performance
Product Certifications | Regular price
$1,645.53
Sale price
$1,645.53
Regular price
| Parker Davis HVAC International LLC. | WYT-20S |
Choose your option
Sale
Pioneer® Diamante Pro™ 36,000 BTU 19 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - Clearance 💰
Pioneer® Diamante Pro™ 36,000 BTU 19 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - Clearance 💰
Regular price
$1,645.53
Sale price
$1,645.53
Regular price
$2,098.00
Shipping calculated at checkout.
Hurry up, only 2 items left in stock.
PLEASE NOTE, This listing contains scratch and dent OUTDOOR & INDOOR units. Mainly box damage with minor cosmetic imperfections to the units. Performance is not impacted. Full functionality and efficiency assured. 7-8/10 condition compared to new.
Summary
- High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
- Cooling capacity: 36,000 BTU/H with 19.0 SEER2 / 9.0 EER2 efficiency
- Heating capacity: 36,000 BTU/H with 9.0 HSPF2 / 3.15 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Dimensioning Chart
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h
- Cooling Capacity Range: 7,500~36,000 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 9.0 BTU/W.h
- Heating Rated Capacity: 36,000 BTU/h
- Heating Capacity Range: 7,500~36,000 BTU/h
- Heating HSPF2 (Region IV/V): 9.0 / 7.7 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.15 / 2.1 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,100~1,400 sq ft
- Minimum Room Size: 63 sq ft
-
Piping Diameter: 5/8" (Gas) / 1/4" (Liquid)
- AHRI Reference: 217048747
-
Indoor Unit
- Part Number: WT036GLSI20HLF
- Air Flow (Turbo/Hi/Med/Lo/Mute): 847 / 705 / 588 / 470 / 412 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 52 / 49 / 43 / 38 / 36 dB(A)
- Product Dimensions (WDH): 46"-7/8 x 10"-1/4 x 14"-1/4 Inches
- Carton Dimensions (WDH): 49"-5/8 x 13" x 17" Inches
- Net / Gross Weight: 39.7 / 48.5 lbs.
-
Outdoor Unit
- Part Number: YN036GLSI20RPF
- Breaker Needed: 30A (double-pole)
- Sound Level: 63 dB(A)
- Net Dimensions (WDH): 38"-1/2 x 16"-1/2 x 31"-5/8 Inches
- Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 32"-7/8 Inches
- Net / Gross Weight: 105.8 / 120.2 lbs
Product Certifications
