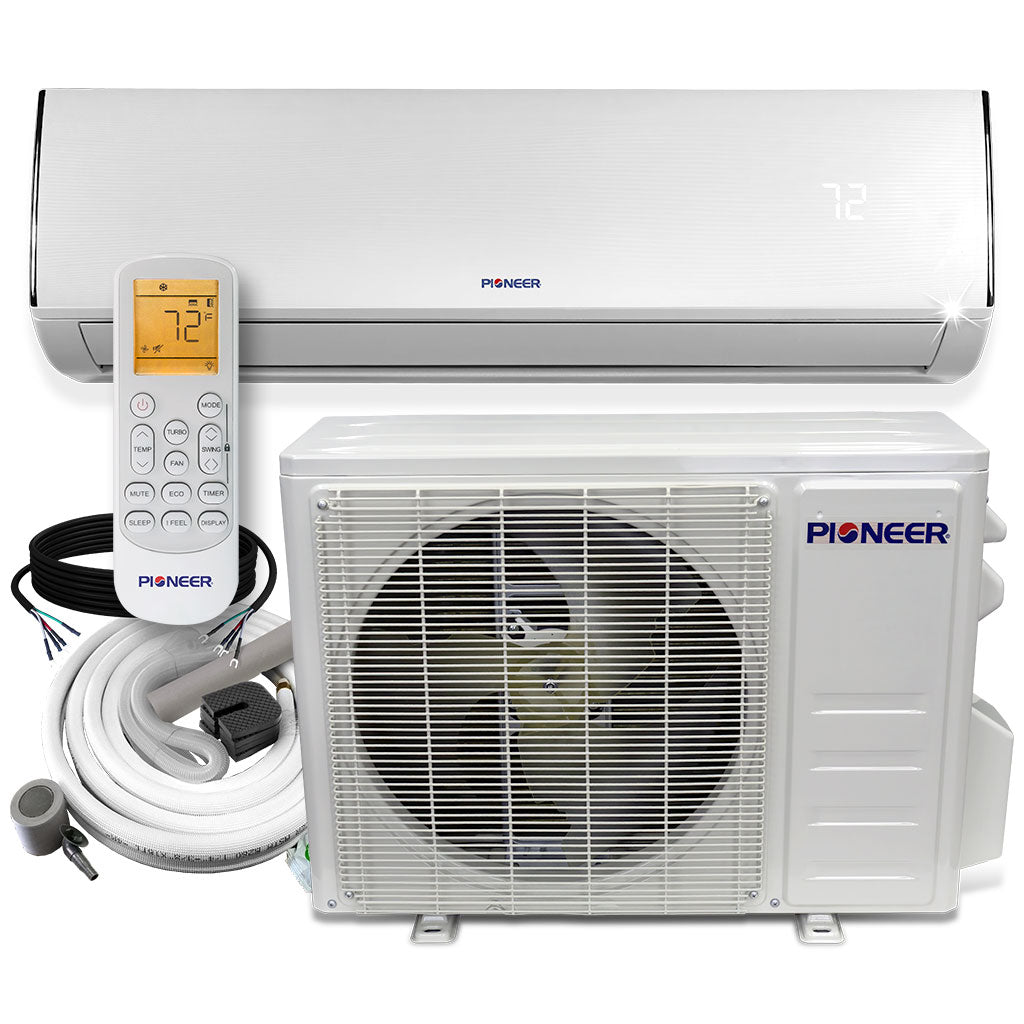

Pioneer® Diamante Series 12,000 BTU 19 SEER 230V Ductless Mini-Split Air Conditioner Heat Pump Full Set with 16 Ft. Kit

SKU: WYT012GLFI19RL

Price:
Sale price$738.00 Regular price$869.00

Shipping calculated at checkout

Financing:
Stock:
In stock (42 units), ready to be shipped

Pickup available at PD Doral

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

IMPORTANT NOTE:
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.

Summary

  • High Efficiency Diamante Ductless Mini Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 19 SEER efficiency
  • Heating capacity: 12,500 BTU/H with 9.5 HSPF efficiency
  • Voltage: 208~230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13F)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $86.00
    • Heating: $265.00

Features

  • Dual Swing
  • Dual Drainage
  • Low Noise
  • High Efficiency

Notes: See comparison table with WYS series

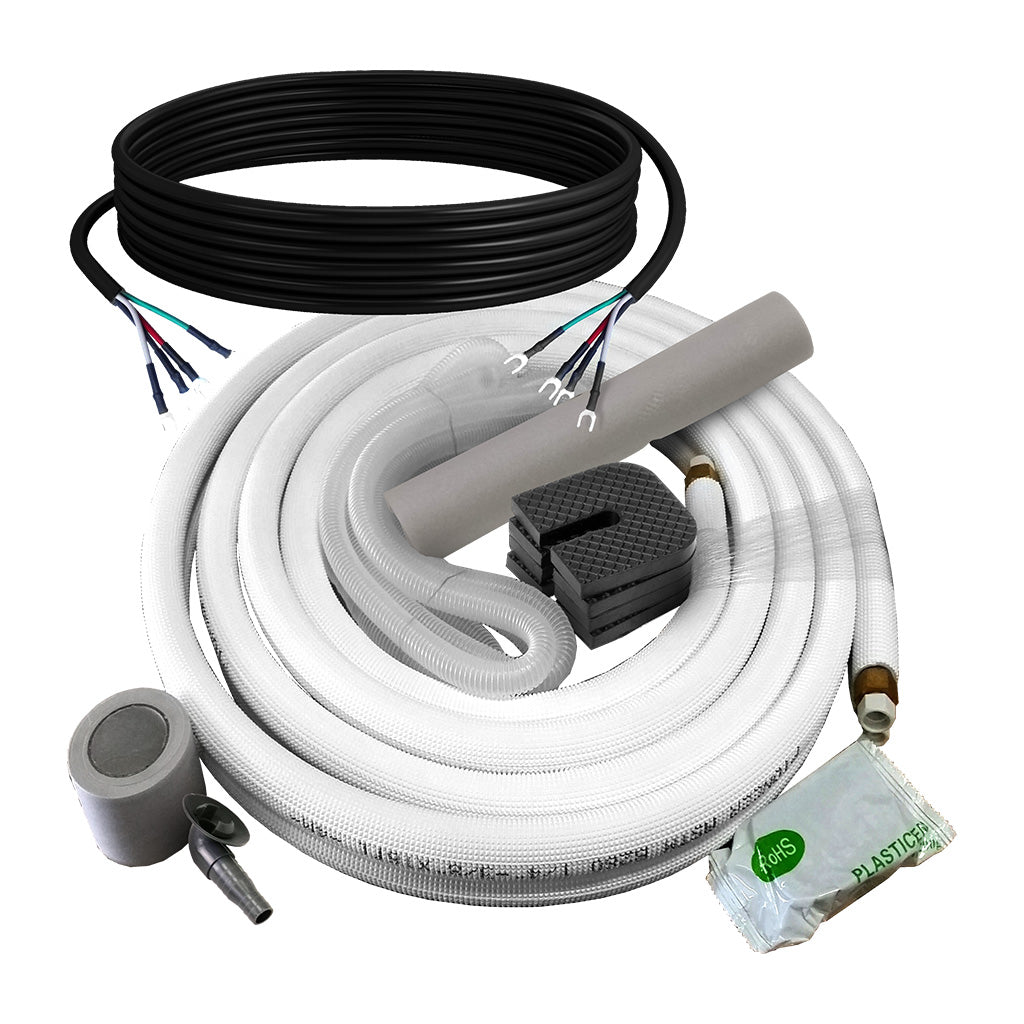

What's Included

  • Indoor Unit
  • Outdoor Unit

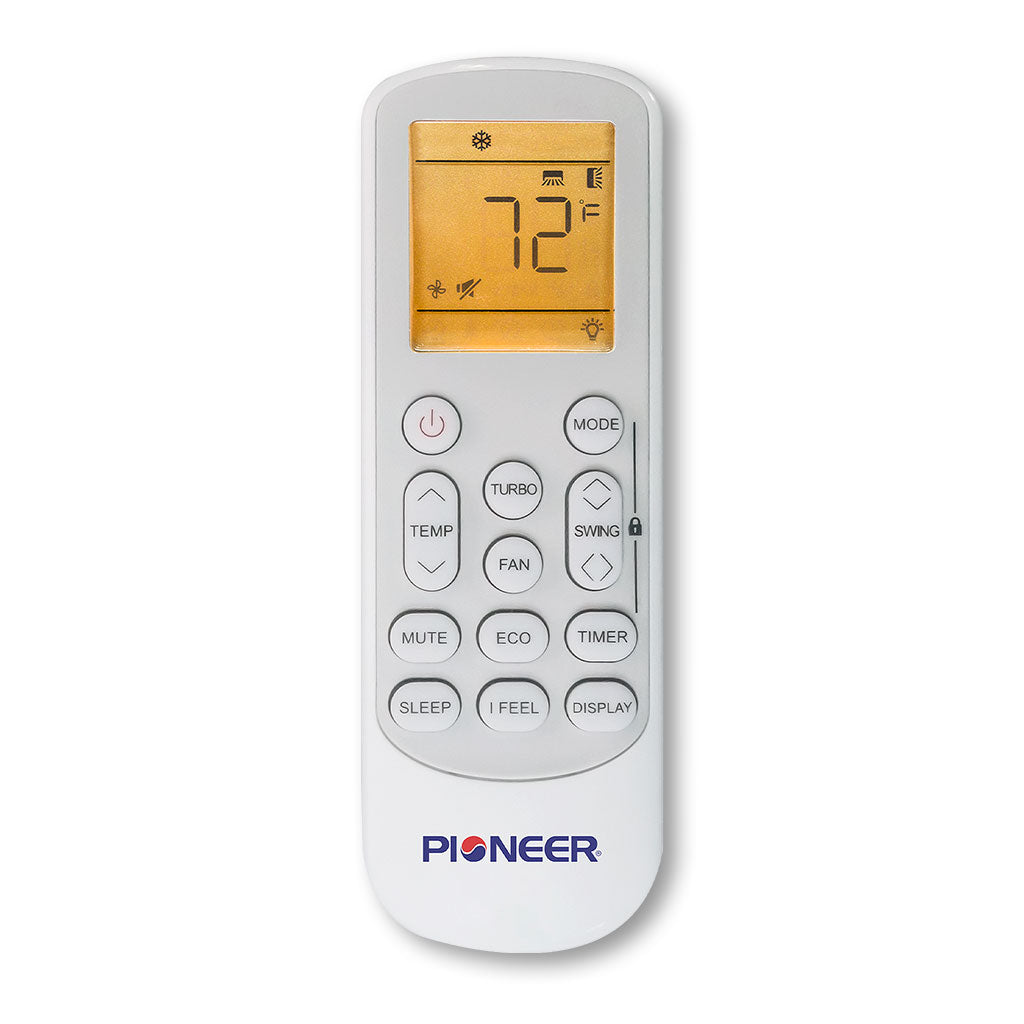

  • Wireless Remote Control (with wall holder and batteries)
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts
  • 5 years for Compressor

    Performance Data

    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 12,000 BTU/h
    • Cooling Capacity Range: 3,700~13,000 BTU/h
    • Cooling SEER: 19 BTU/w
    • Heating Rated Capacity: 12,500 BTU/h
    • Heating Capacity Range: 3,500~13,500 BTU/h
    • Heating HSPF4: 9.5 BTU/w
    • Refrigerant Type: R410A/30
    • Suitable Area: 200~450 Sq.F

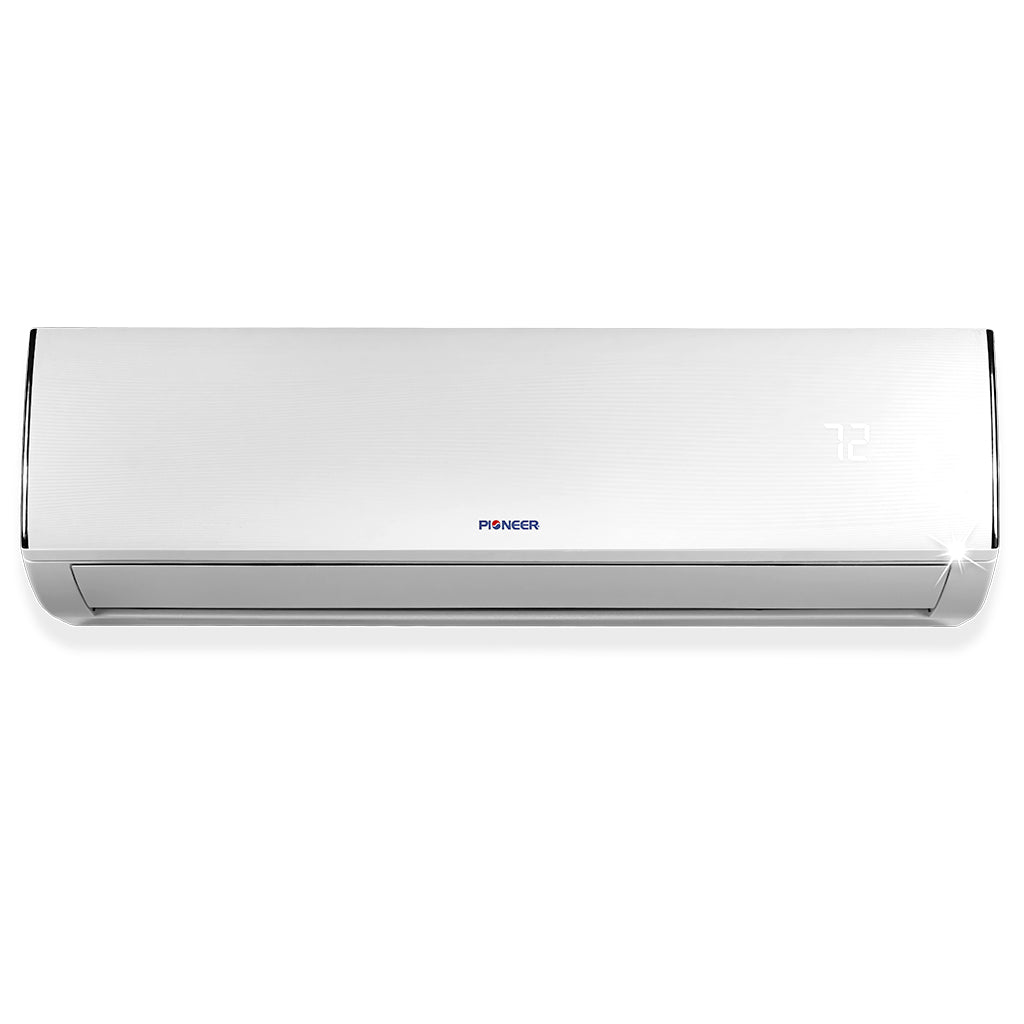

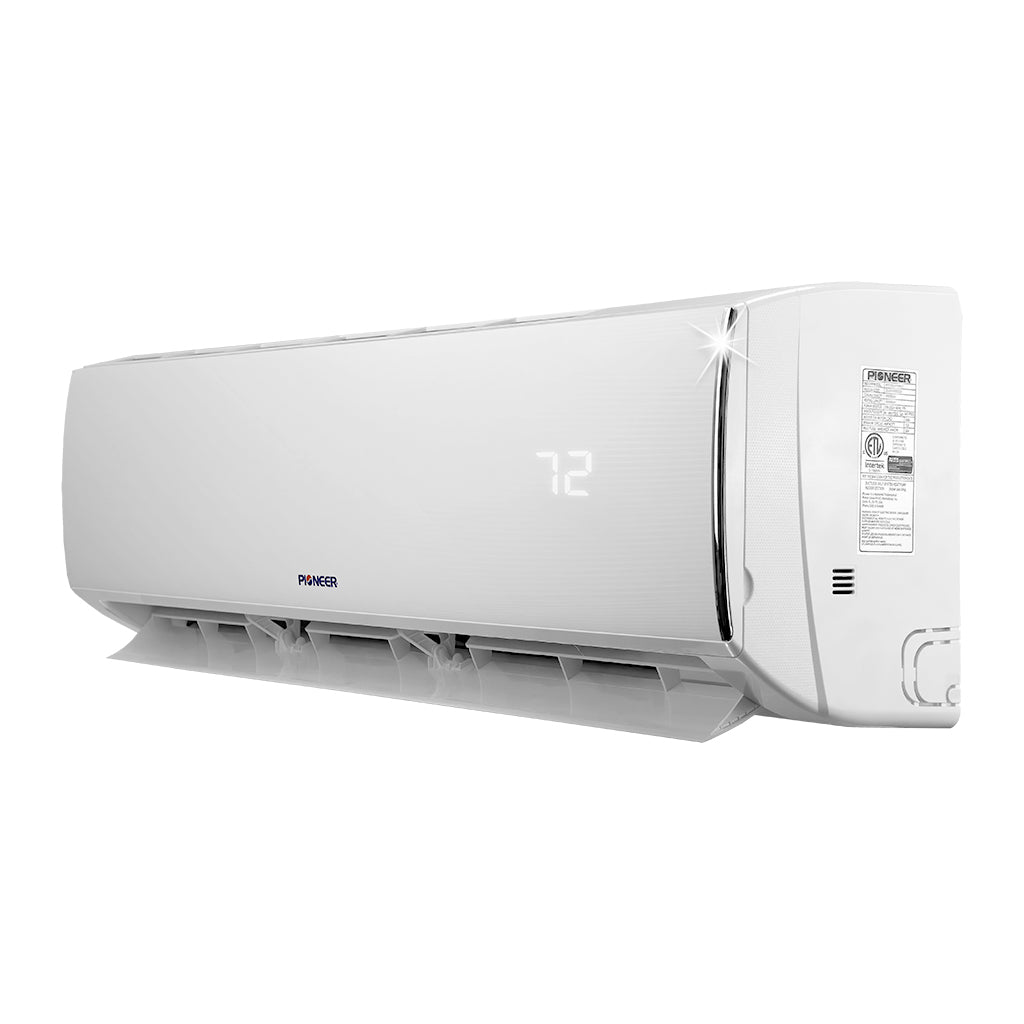

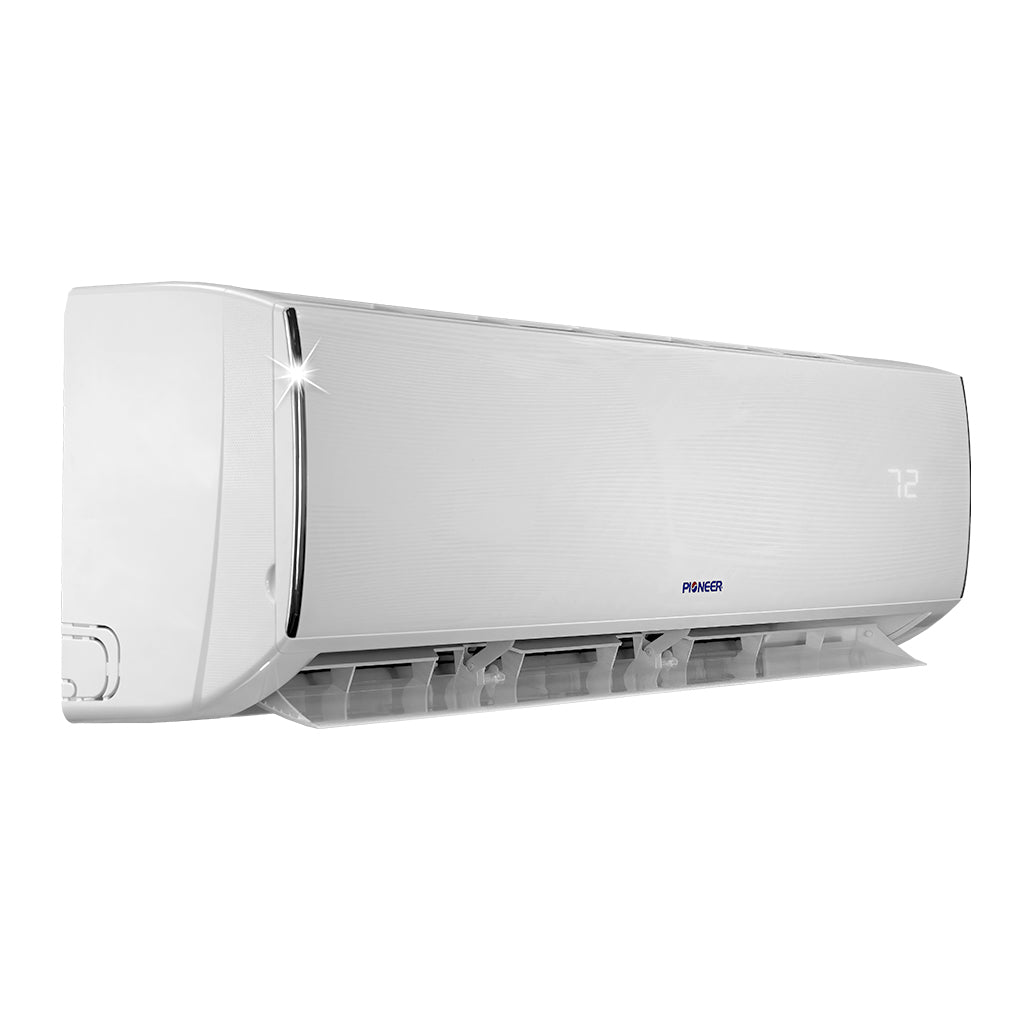

    Indoor Unit Data

    • Air Flow (Hi): 394 CFM
    • Sound Level (Hi/Med/Lo): 40 / 37/ 34 dB(A)
    • Net Dimensions (WDH): 32 x 8-1/8 x 11.5 Inches
    • Carton Dimensions (WDH): 34-7/8 x 11 x 14-1/2 Inches
    • Net / Gross Weight: 17.6 / 24.2 Lbs

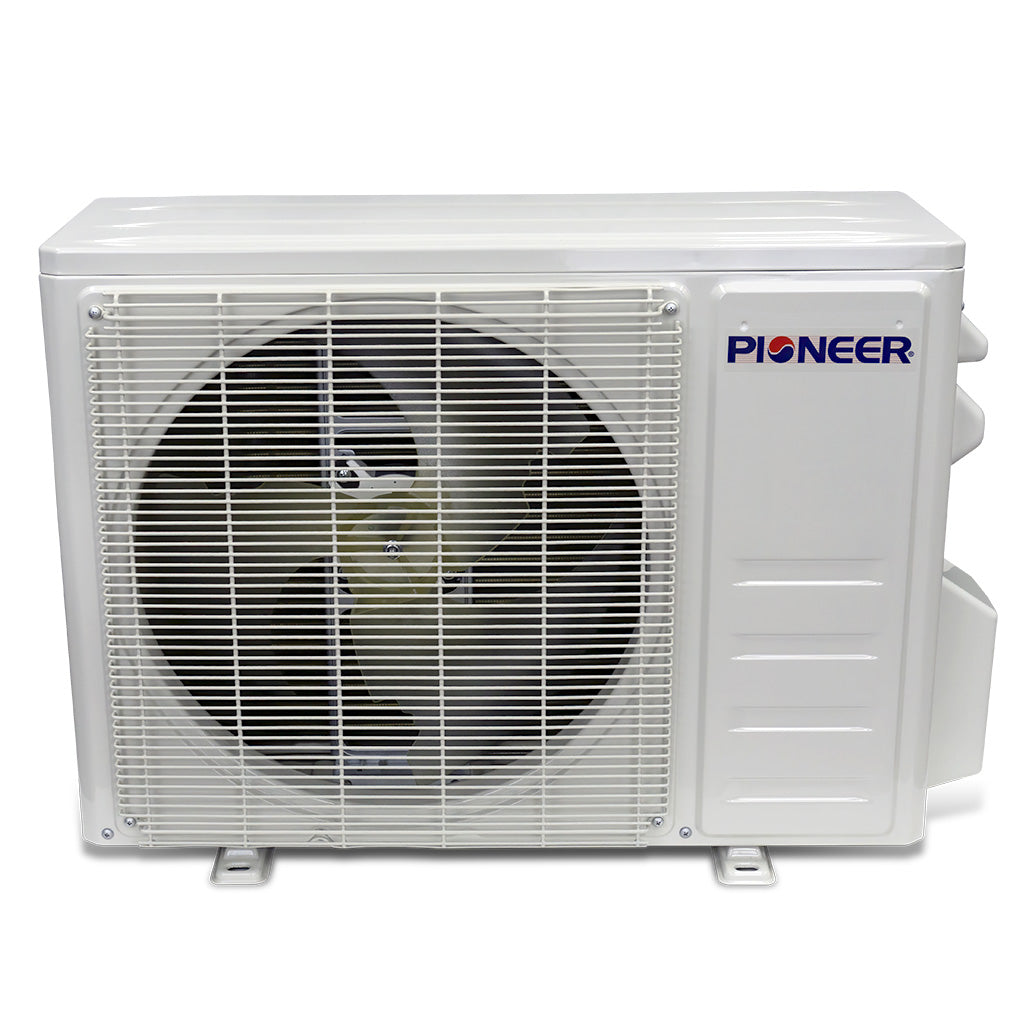

    Outdoor Unit Data

    • Sound Level: 55 dB(A)
    • Net Dimensions (WDH): 28-1/8 x 9-1/2 x 19-3/8 Inches
    • Carton Dimensions (WDH): 32-1/4  x 12-3/4 x 20-1/2 Inches
    • Net / Gross Weight: 59.5 / 68.3 lbs

    MANUALS & DOCUMENTS
