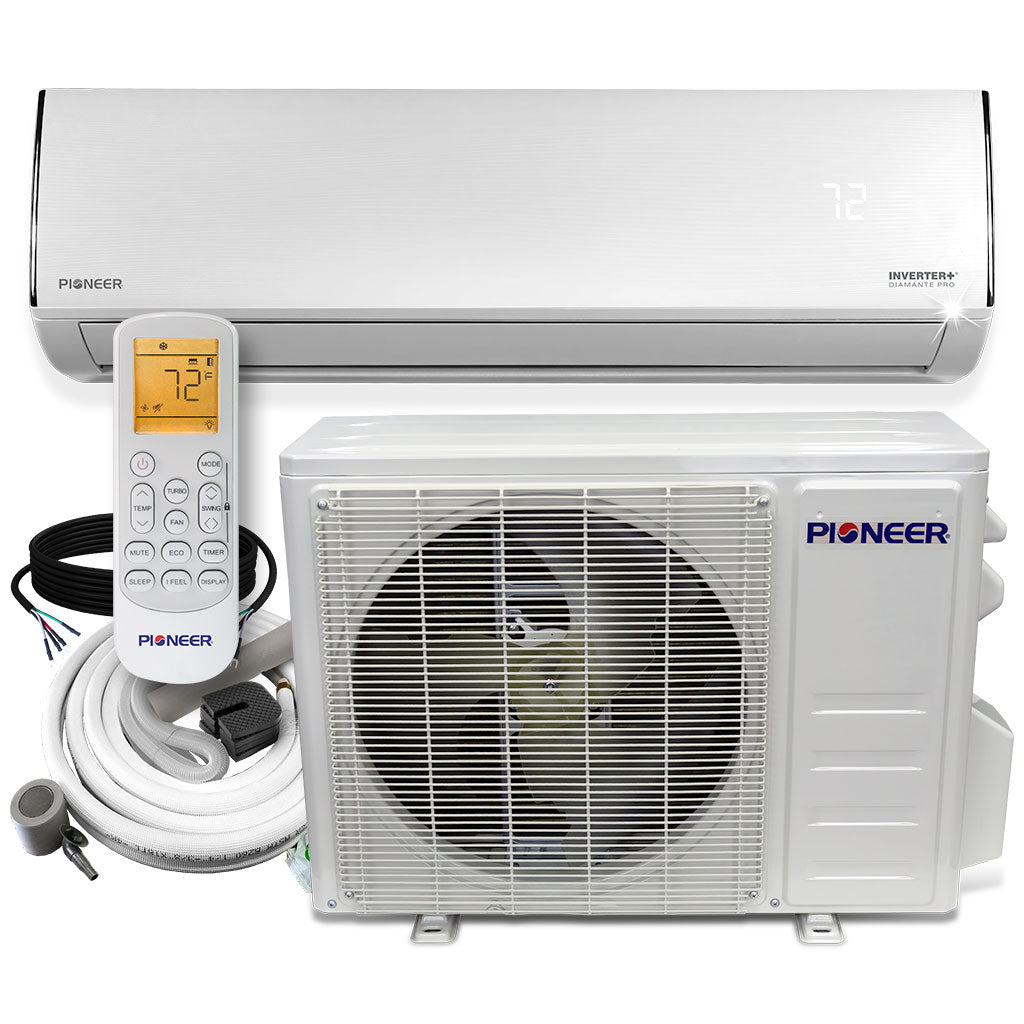

Pioneer® Diamante Pro Series 12,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit

SKU: WYT012ALFI19RL

Price:
Sale price$648.00 Regular price$889.00

Shipping calculated at checkout

Financing:
Stock:
In stock

Pickup available at Parker Davis HQ

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

IMPORTANT NOTE:
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.

Summary

  • High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 19 SEER2 / 10 EER2 efficiency
  • Heating capacity: 12,200 BTU/H with 8.5 HSPF2 / 3.21 COP2 efficiency
  • Voltage: 110/120V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $79.00
    • Heating: $254.00

Features

  • Dual Swing
  • Dual Drainage
  • Low Noise
  • High Efficiency

Notes: See comparison table with WYS series

What's Included

  • Indoor Unit
  • Outdoor Unit

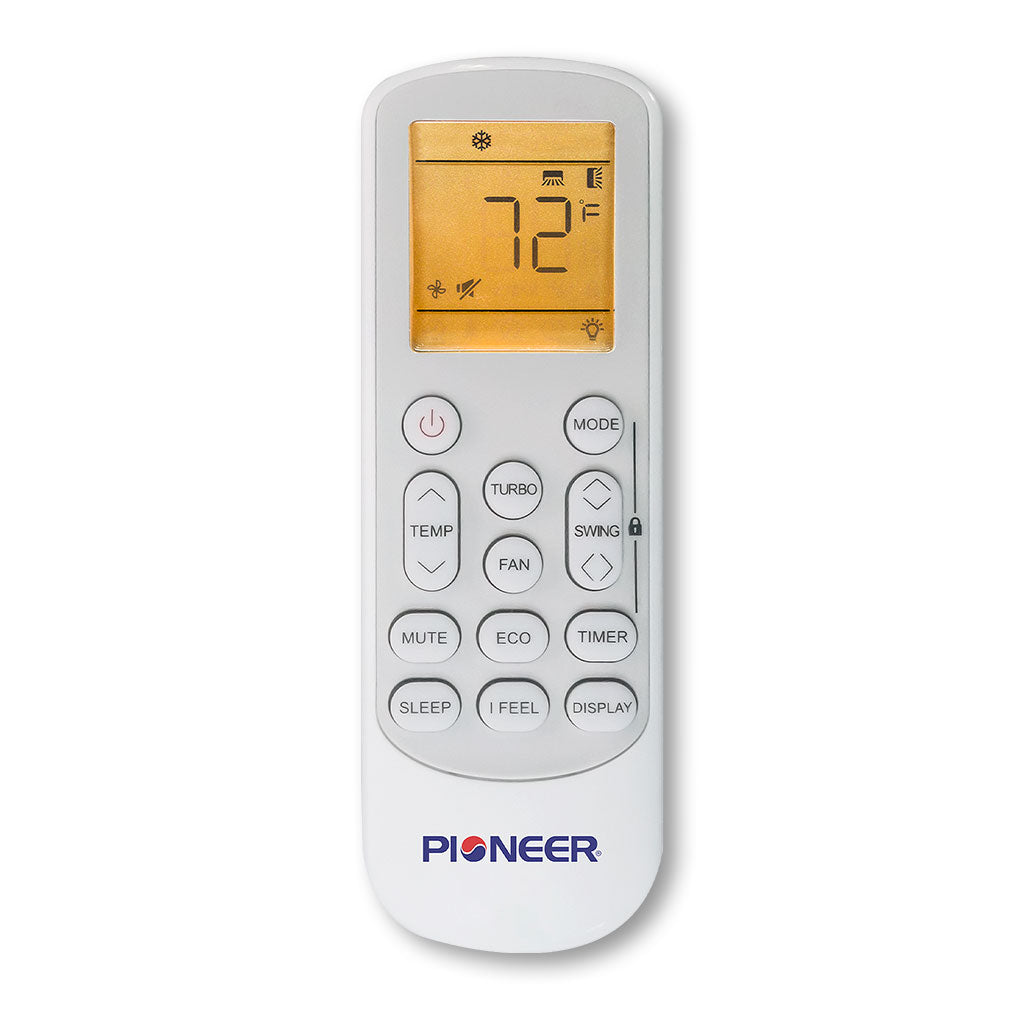

  • Wireless Remote Control (with wall holder and batteries)

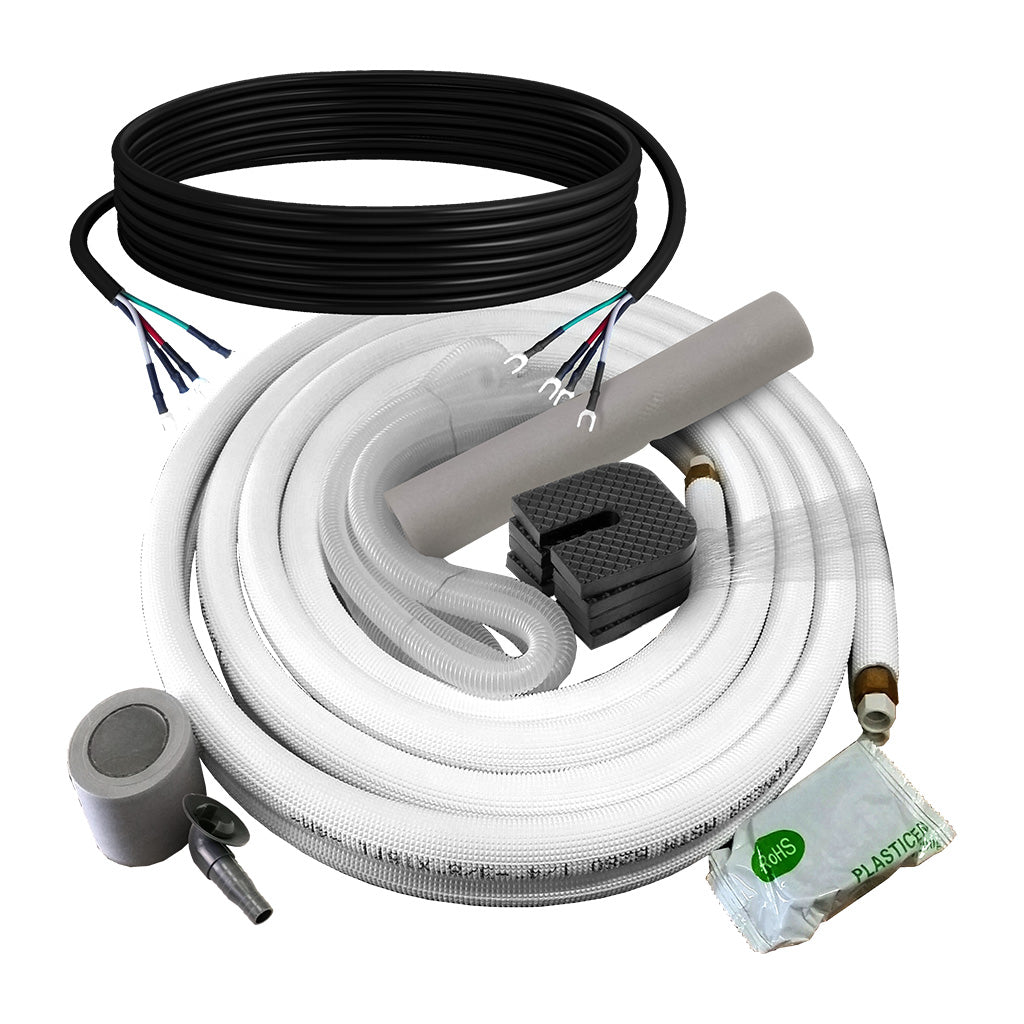

  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts
  • 5 years  Warranty for Compressor

    Performance Data

    • Power Supply: 110~120V, 60Hz, 1Ph
    • Cooling Rated Capacity: 12,000 BTU/h
    • Cooling Capacity Range: 3,600~13,200 BTU/h
    • Cooling SEER2: 19.0 BTU/W.h
    • Cooling EER2: 10.0 BTU/W.h
    • Heating Rated Capacity: 12,200 BTU/h
    • Heating Capacity Range: 3,700~13,500 BTU/h
    • Heating HSPF2 (Region IV/V): 8.5 / 7.2 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.21 / 1.75 W/W
    • Refrigerant Type: R410A
    • Suitable Area: 200~450 Sq.F

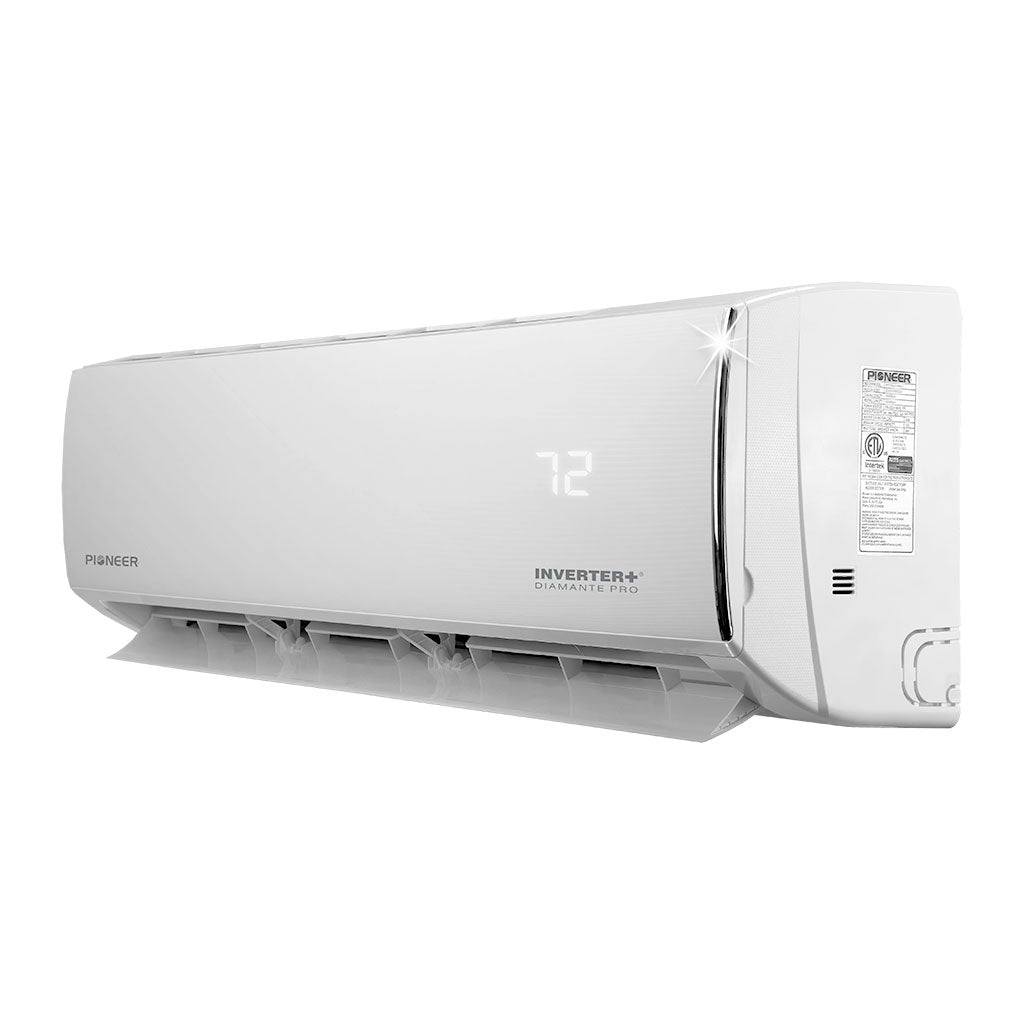

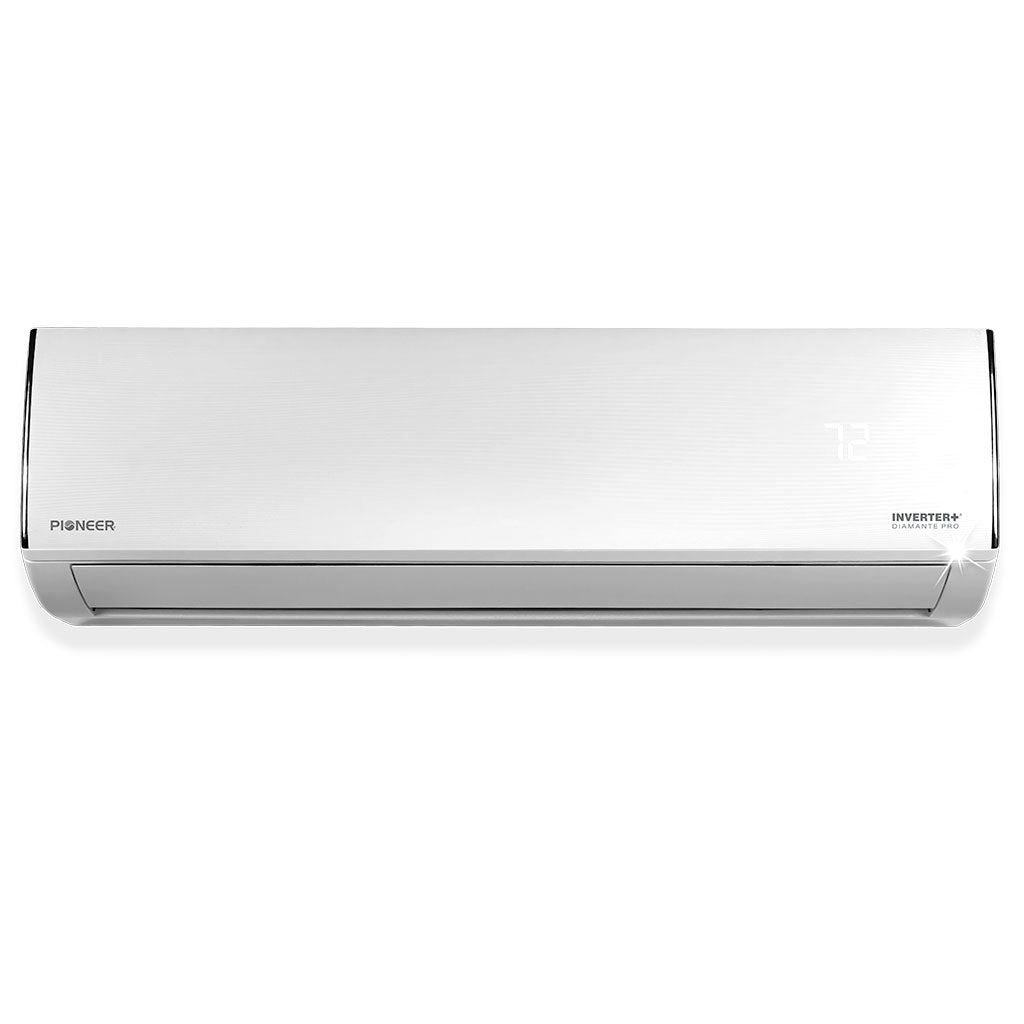

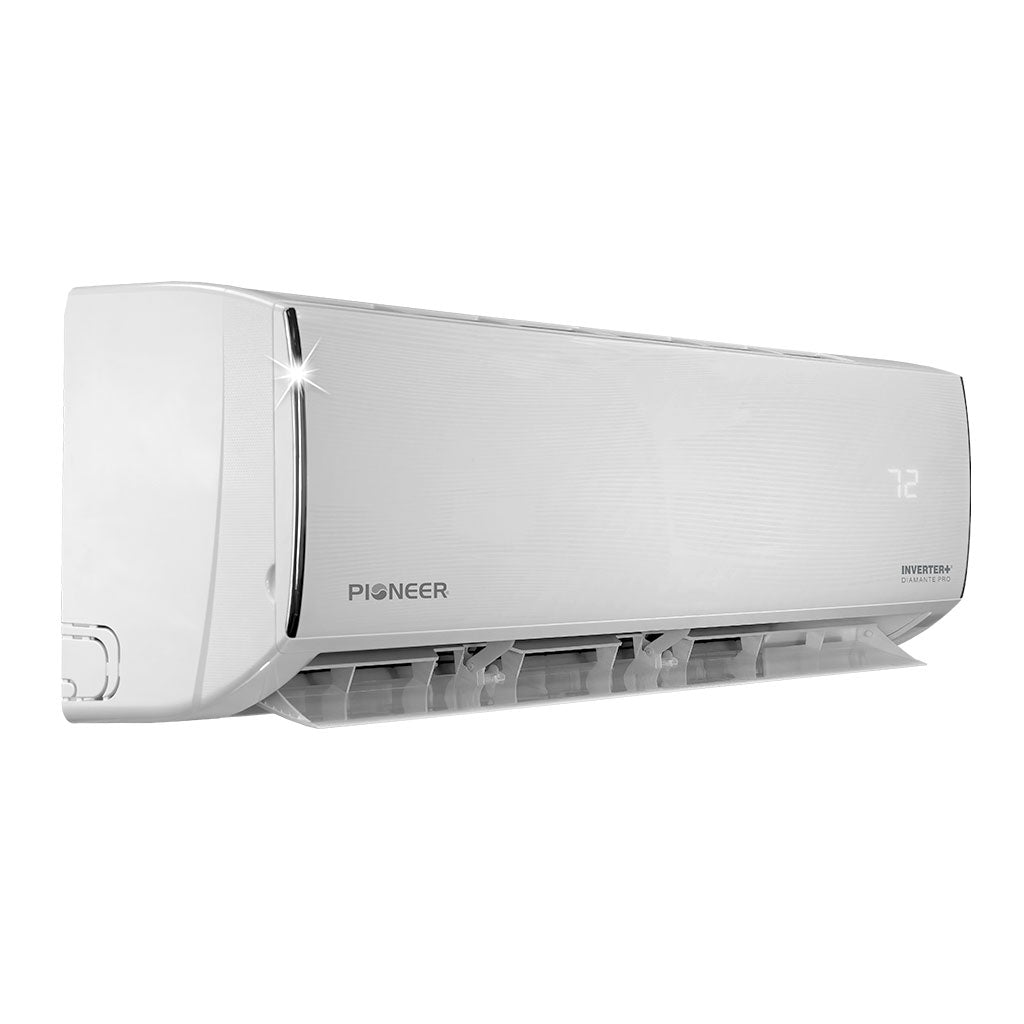

    Indoor Unit Data

    • Part Number: WT012ALFI19HLE
    • Air Flow (Hi/Med/Lo): 383 / 318 / 253 CFM
    • Sound Level (Hi/Med/Lo): 39 / 34 / 29 dB(A)
    • Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
    • Carton Dimensions (WDH): 34-7/8  x 11 x 14-3/8 Inches
    • Net / Gross Weight: 19.8 / 26.5 lbs

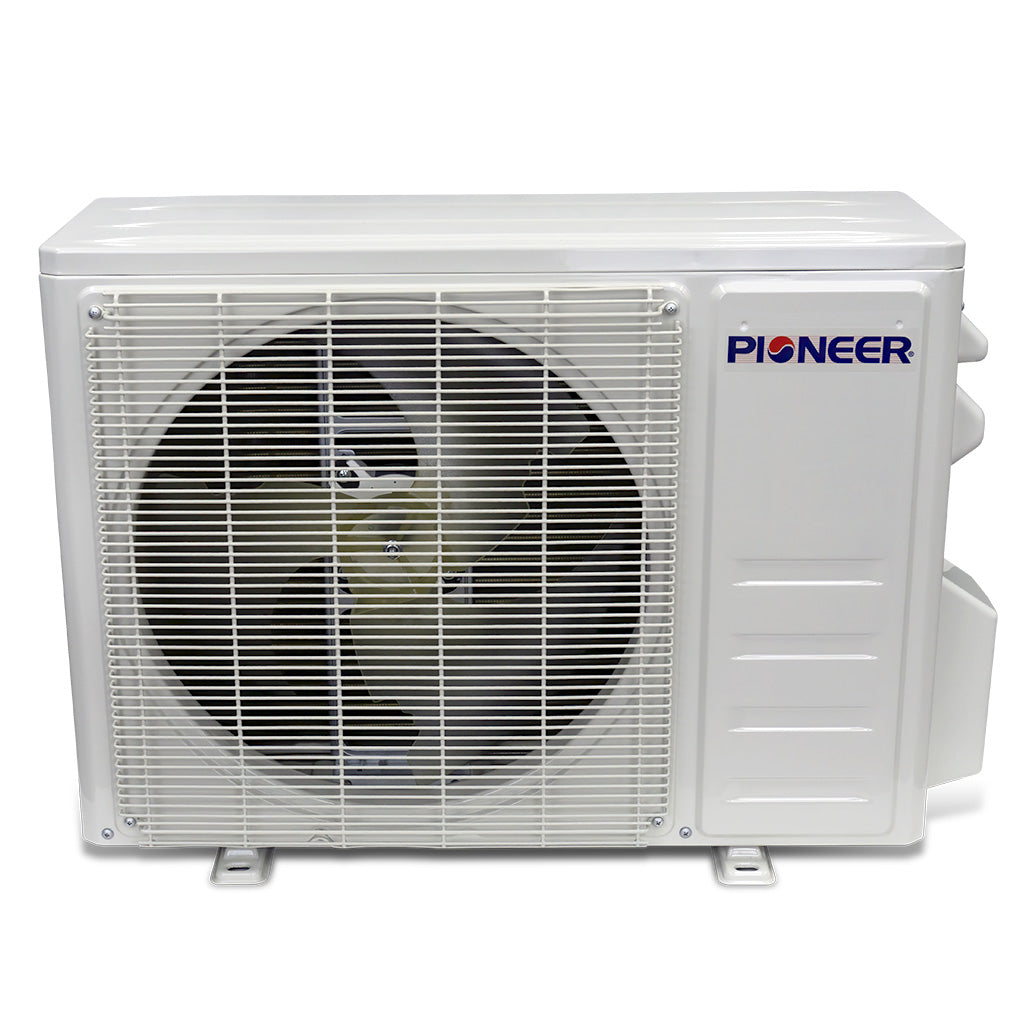

    Outdoor Unit Data

    • Part Number: YN012ALFI19RPE
    • Breaker Needed: 20A (single-pole)
    • Sound Level: 52 dB(A)
    • Net Dimensions (WDH): 28-1/8 x 11-1/2 x 19-5/8 Inches
    • Carton Dimensions (WDH): 33 x 13-1/4 x 21-5/8 Inches
    • Net / Gross Weight: 55 / 66.1 lbs
