Summary

• Ultra Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 9,000 BTU/H with 24 SEER2 / 13 EER2 efficiency
• Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
• Voltage: 110/120V, 60Hz, 1Ph
• High Wall Mounted Ductless Air Conditioning & Heating System
• Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Dimensioning Chart

Technical Information & Performance

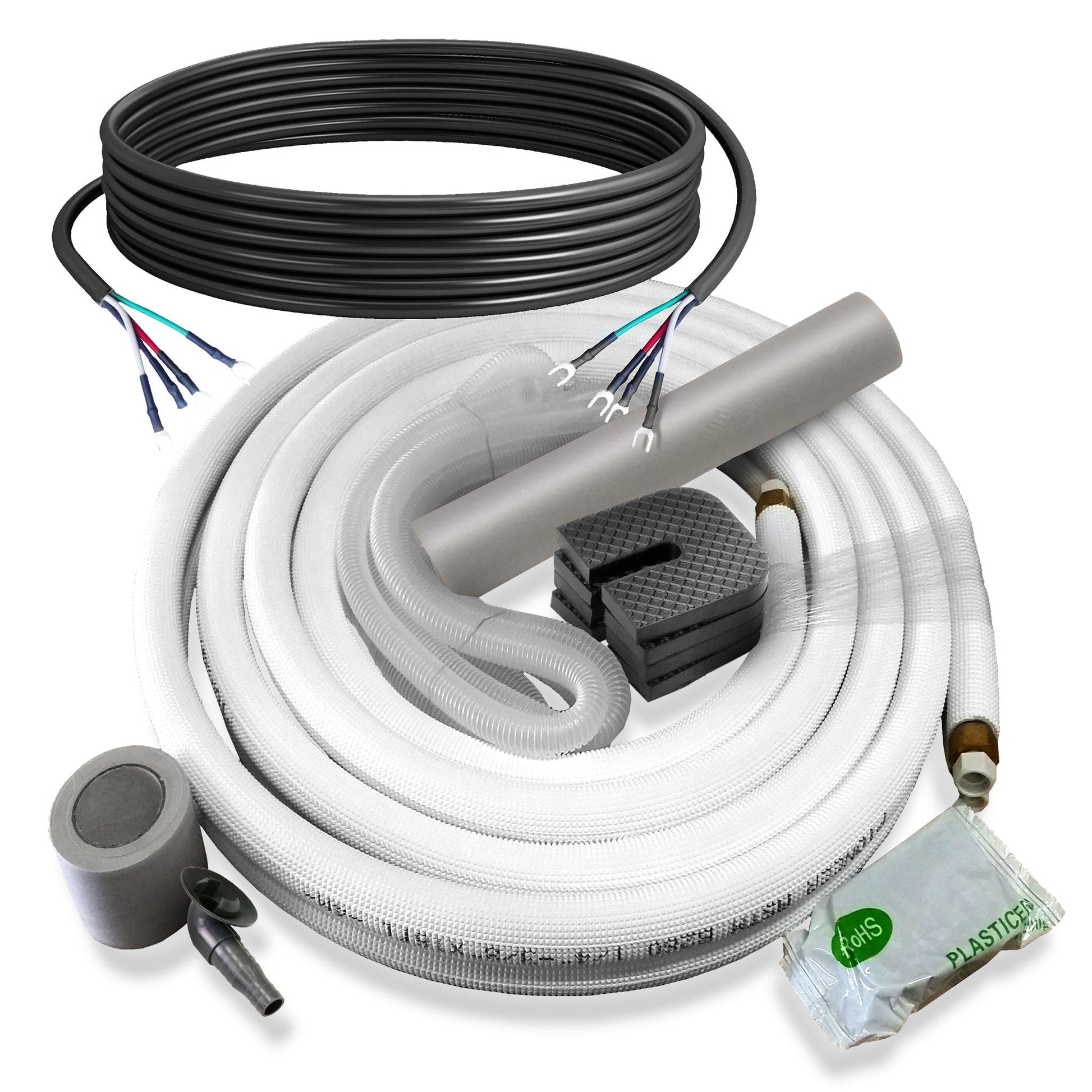

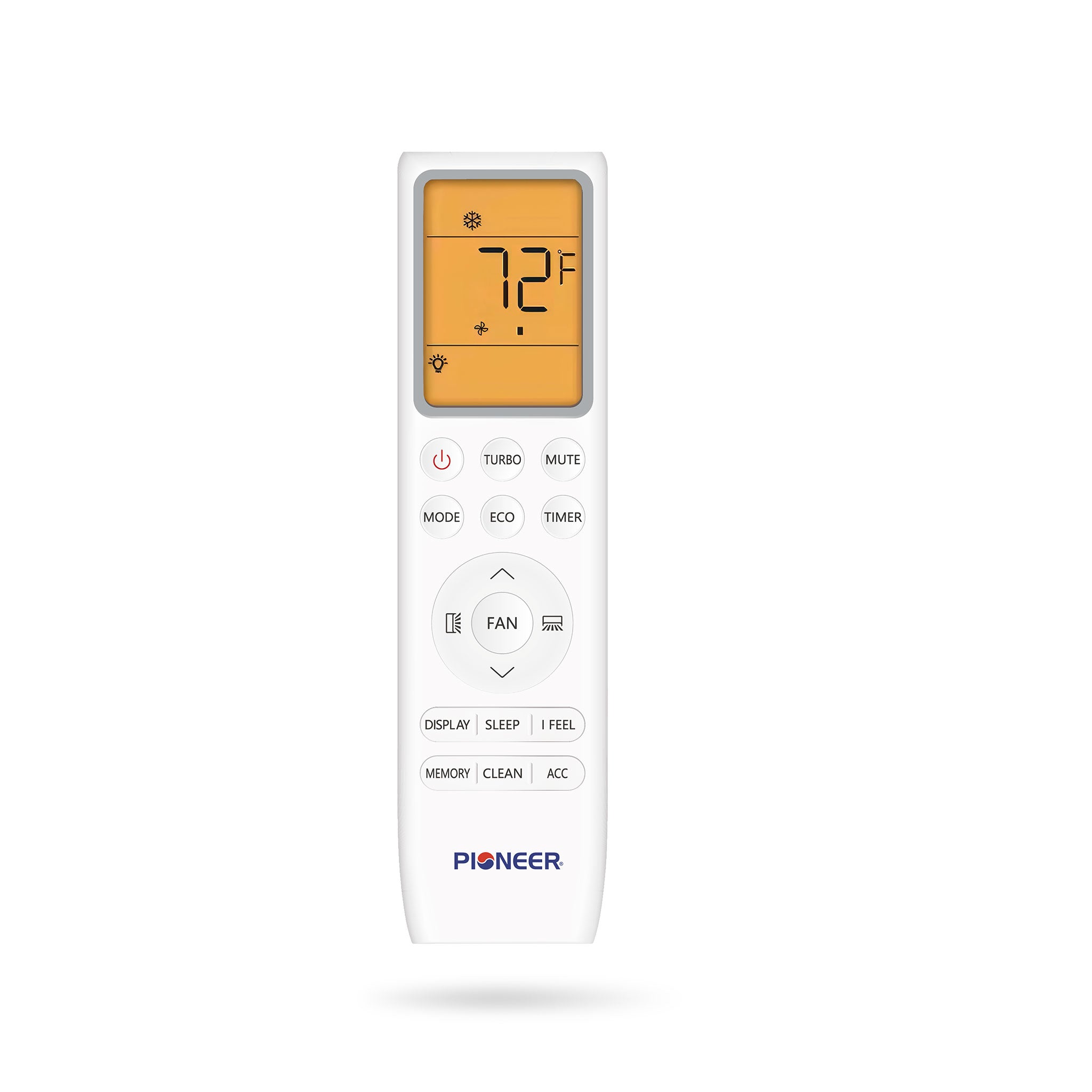

• System Kit
  • Power Supply: 110~120V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 2,400~11,000 BTU/h
  • Cooling SEER2: 24.0 BTU/W.h
  • Cooling EER2: 13.0 BTU/W.h
  • Heating Rated Capacity: 10,000 BTU/h
  • Heating Capacity Range: 2,400~11,000 BTU/h
  • Heating HSPF2 (Region IV): 10.0 / 8.6 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 250~350 Sq.F
  • AHRI Reference: 217048748

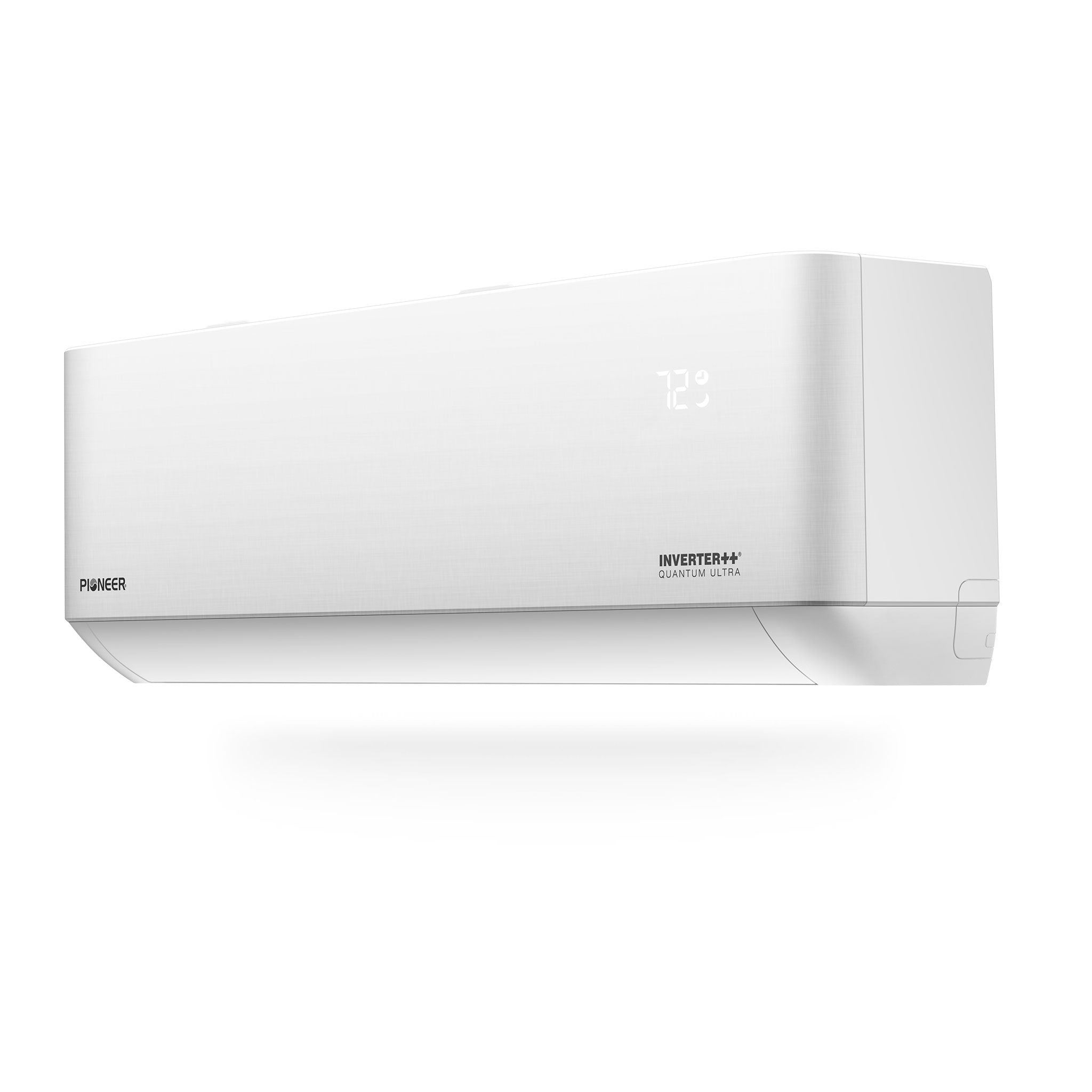

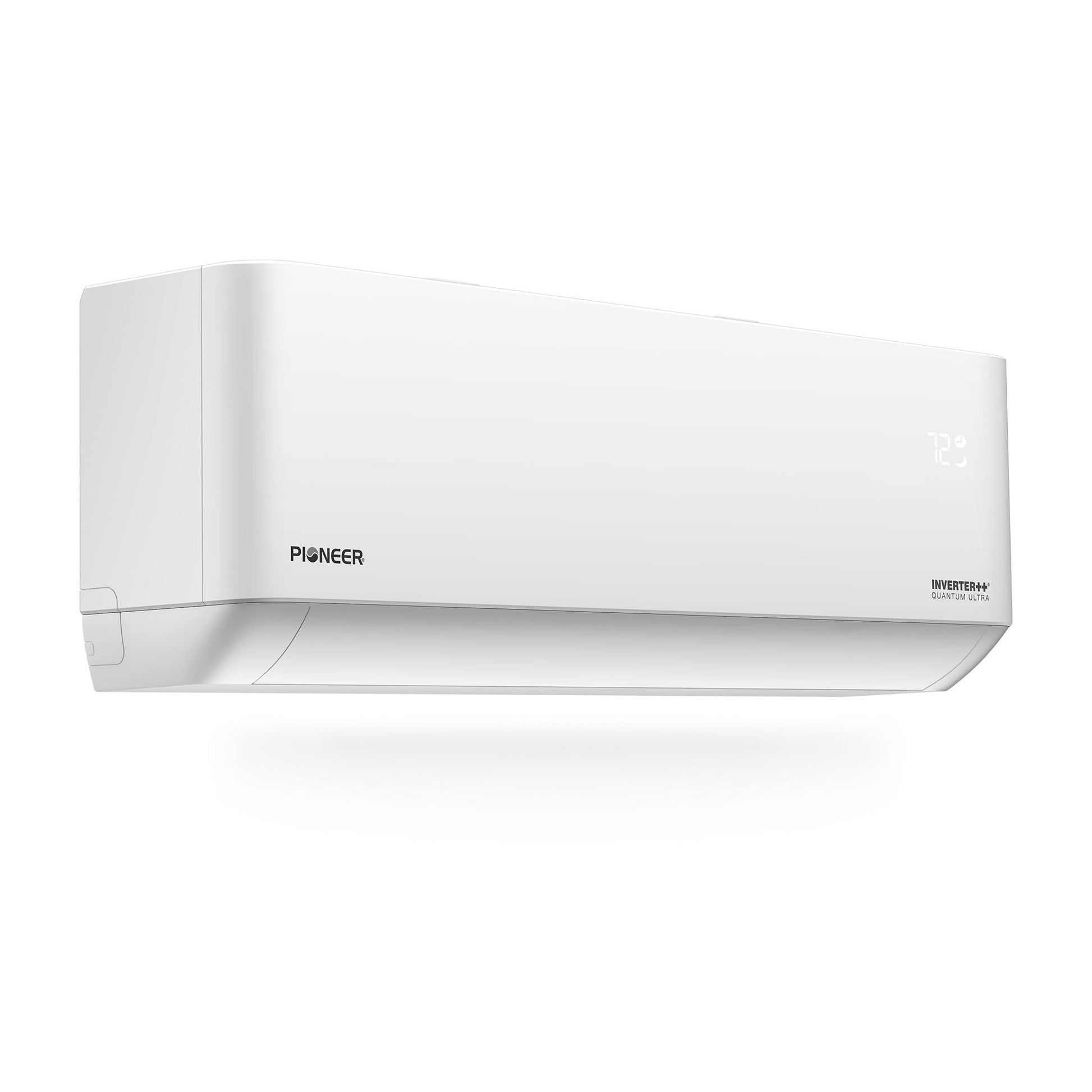

• Indoor Unit
  • Part Number: WT009ALSI24HLG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 326/283/235/188/153 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
  • Product Dimensions (WDH): 32"-1/4 x 7"-5/8 x 12" Inches
  • Carton Dimensions (WDH): 35" x 10"-1/2 x 15" Inches
  • Net / Gross Weight: 20.7 / 25.1 lbs.

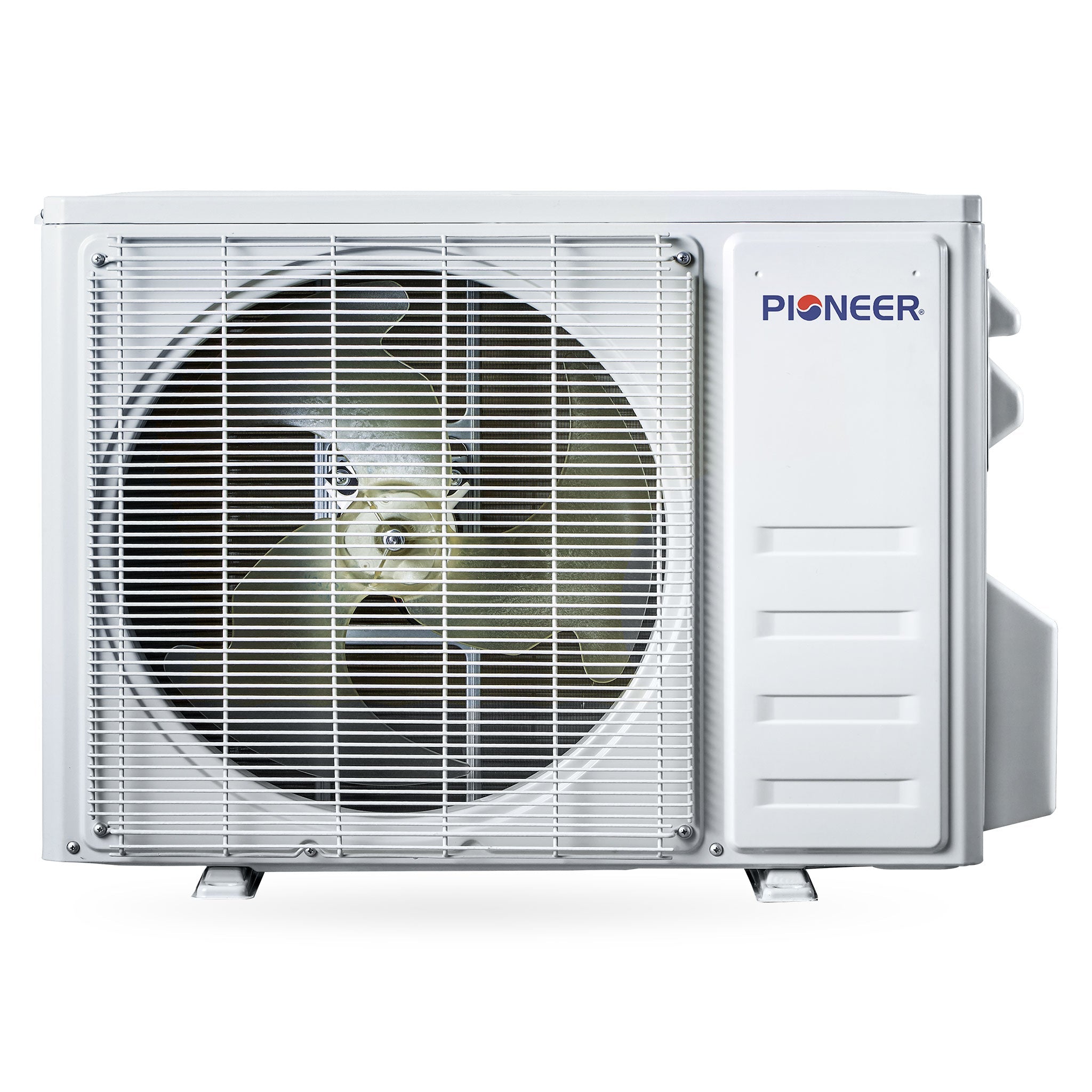

• Outdoor Unit
  • Part Number: YN009ALSI24RPG
  • Breaker Needed: 20A (single-pole)
  • Sound Level: 50 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
  • Net / Gross Weight: 53.6 / 60.2 lbs.

Product Certifications

• AHRI Certificate
• Energy Guide
• Submittal Sheet

Quantum Ultra™ High-Wall Series
