Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Series: Quantum Ultra™ Ceiling Cassette
Regular price
$1,263.00
Sale price
$1,263.00
Regular price
$0.00
Shipping calculated at checkout.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Summary
- High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
- Cooling capacity: 9,500 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 10.0 HSPF2 / 4.0 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)
Dimensioning Chart
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,500 BTU/h
- Cooling Capacity Range: 2,000~10,400 BTU/h
- Cooling SEER2: 23.0 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 9,500 BTU/h
- Heating Capacity Range: 2,500~12,500 BTU/h
- Heating HSPF2 (Region IV): 10.0 / 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 4.0 / 2.0 W/W
- Refrigerant Type: R454b
- Suitable Area: 250~350 Sq.F
- AHRI Reference: 217048758
-

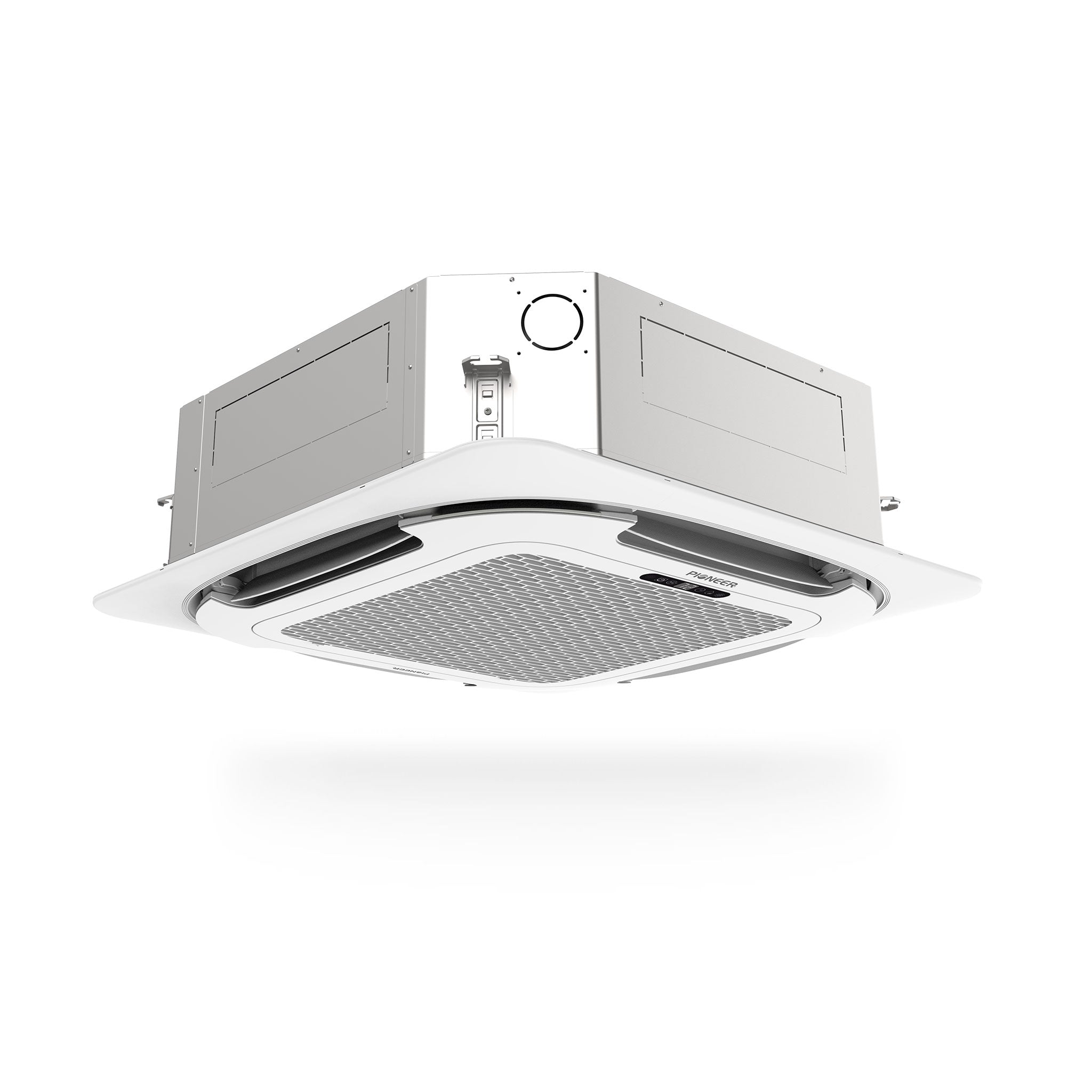

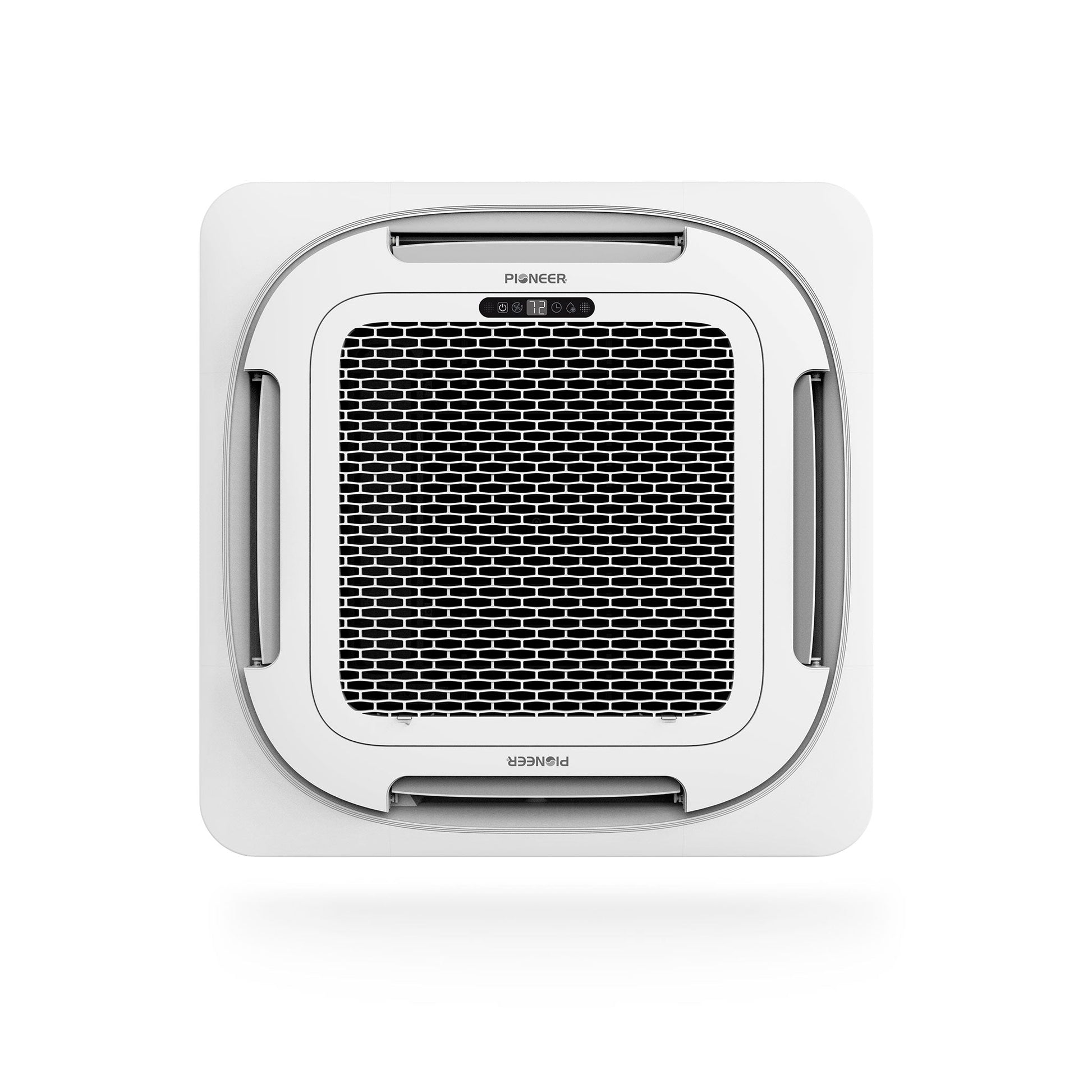

Indoor Unit
- Part Number: CT009GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
- Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
- Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
- Net / Gross Weight: 32.0 / 38.6 lbs.
-

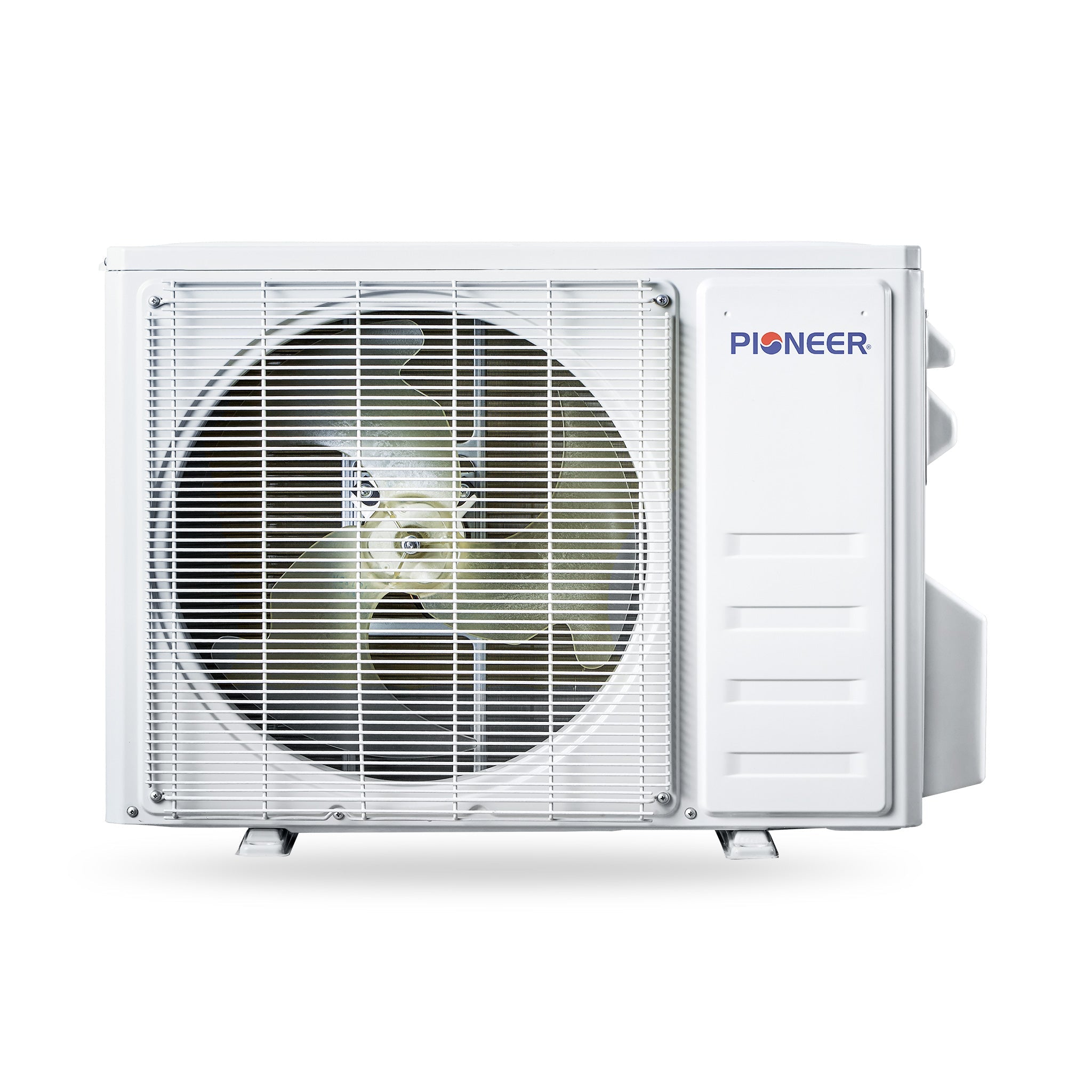

Outdoor Unit
- Part Number: YN009GLSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
- Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
- Net / Gross Weight: 52.7 / 57.1 lbs.
Product Certifications
Series Details
Series Details
Quantum Ultra™ Ceiling Cassette
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| Summary
Dimensioning ChartTechnical Information & Performance
Product Certifications | Regular price
From $1,198.00
Sale price
From $1,198.00
Regular price
| Parker Davis HVAC International LLC. | CYT-24 |
Choose your option
Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Regular price
$1,263.00
Sale price
$1,263.00
Regular price
$0.00
Shipping calculated at checkout.
Summary
- High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
- Cooling capacity: 9,500 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 10.0 HSPF2 / 4.0 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)
Dimensioning Chart
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,500 BTU/h
- Cooling Capacity Range: 2,000~10,400 BTU/h
- Cooling SEER2: 23.0 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 9,500 BTU/h
- Heating Capacity Range: 2,500~12,500 BTU/h
- Heating HSPF2 (Region IV): 10.0 / 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 4.0 / 2.0 W/W
- Refrigerant Type: R454b
- Suitable Area: 250~350 Sq.F
- AHRI Reference: 217048758
-
Indoor Unit
- Part Number: CT009GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
- Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
- Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
- Net / Gross Weight: 32.0 / 38.6 lbs.
-
Outdoor Unit
- Part Number: YN009GLSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
- Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
- Net / Gross Weight: 52.7 / 57.1 lbs.
Product Certifications
