Pioneer® Quantum Ultra™ 9,000 BTU 20.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

Product Details

Summary

High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
Cooling capacity: 9,500 BTU/H with 20.5 SEER2 / 12.5 EER2 efficiency
Heating capacity: 9,500 BTU/H with 9.5 HSPF2 / 3.5 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Dimensioning Chart

Technical Information & Performance

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,500 BTU/h
- Cooling Capacity Range: 2,000~10,400 BTU/h
- Cooling SEER2: 20.5 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 9,500 BTU/h
- Heating Capacity Range: 2,500~12,300 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.5 / 1.9 W/W
- Refrigerant Type: R454b
- Suitable Area: 250~350 Sq.F
- AHRI Reference: 217048762
Indoor Unit
- Part Number: RT009GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 335/305/276/182/182 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 43/41/39 dB(A)
- Product Dimensions (WDH): 27"-1/2 x 19"-1/4 x 7"-7/8 Inches
- Carton Dimensions (WDH): 35"-1/2 x 21"-7/8 x 9"-7/8 Inches
- Net / Gross Weight: 33.1 / 40.8 lbs.

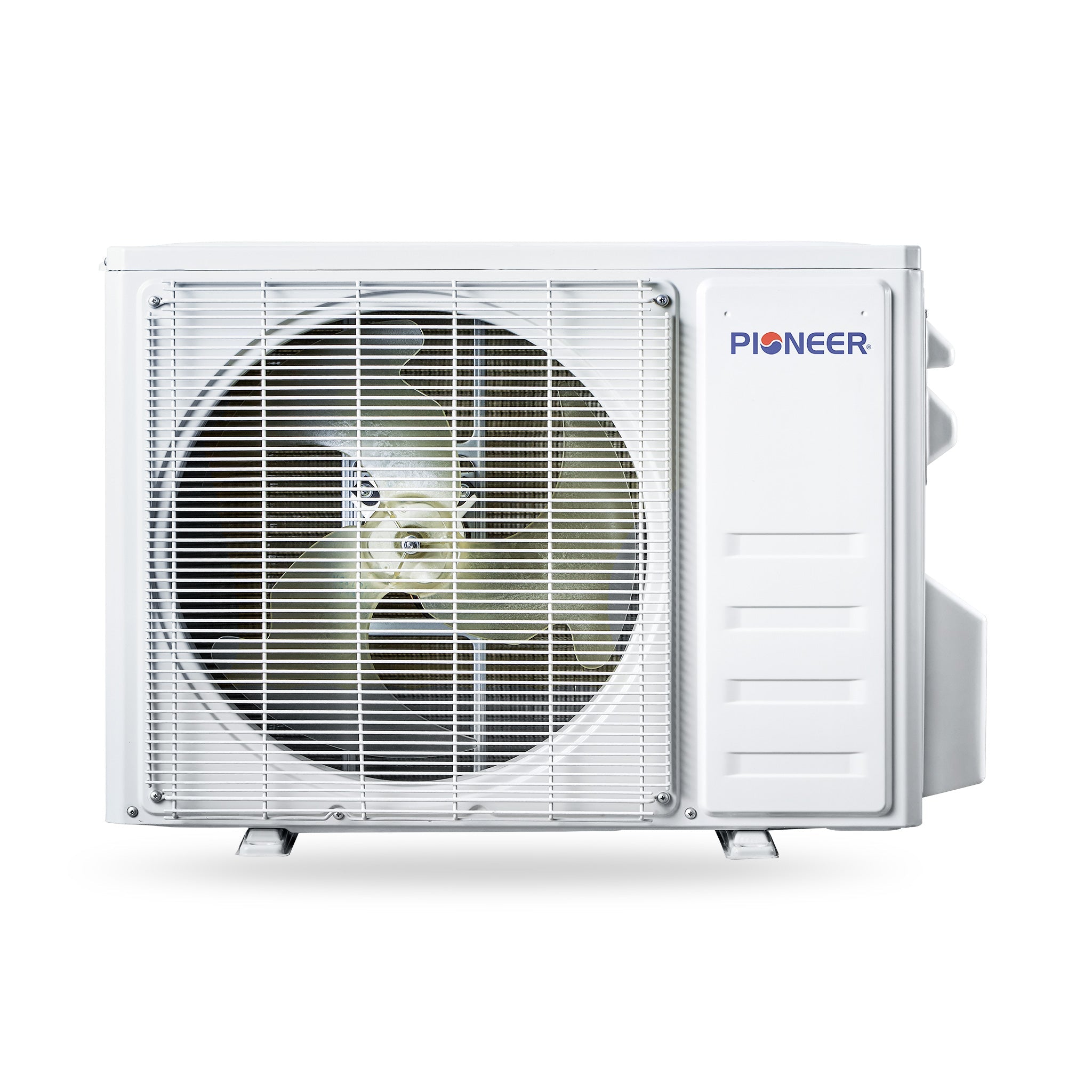

Outdoor Unit
- Part Number: YN009GLSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
- Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
- Net / Gross Weight: 52.7 / 57.1 lbs.

Product Certifications

Series Details

Quantum Ultra™ Ceiling Concealed

Pioneer® concealed duct mini split systems provide hidden heating and cooling for multiple rooms through a single ducted unit. Ideal for separated zones like master suites, one system can condition sub-areas with uniform comfort. Available in six capacities, including ceiling-concealed and slim duct models, these systems suit zones of all sizes.

IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

Functional Remote

ECO and SLEEP Modes, for Energy-Conservation
Timer On/Off Control
TURBO, for Times of High-Demand
Self-Clean Cycle
MEMORY, to Recall Favorite Settings
IFEEL, to Detect and Adjust to Local Temperature

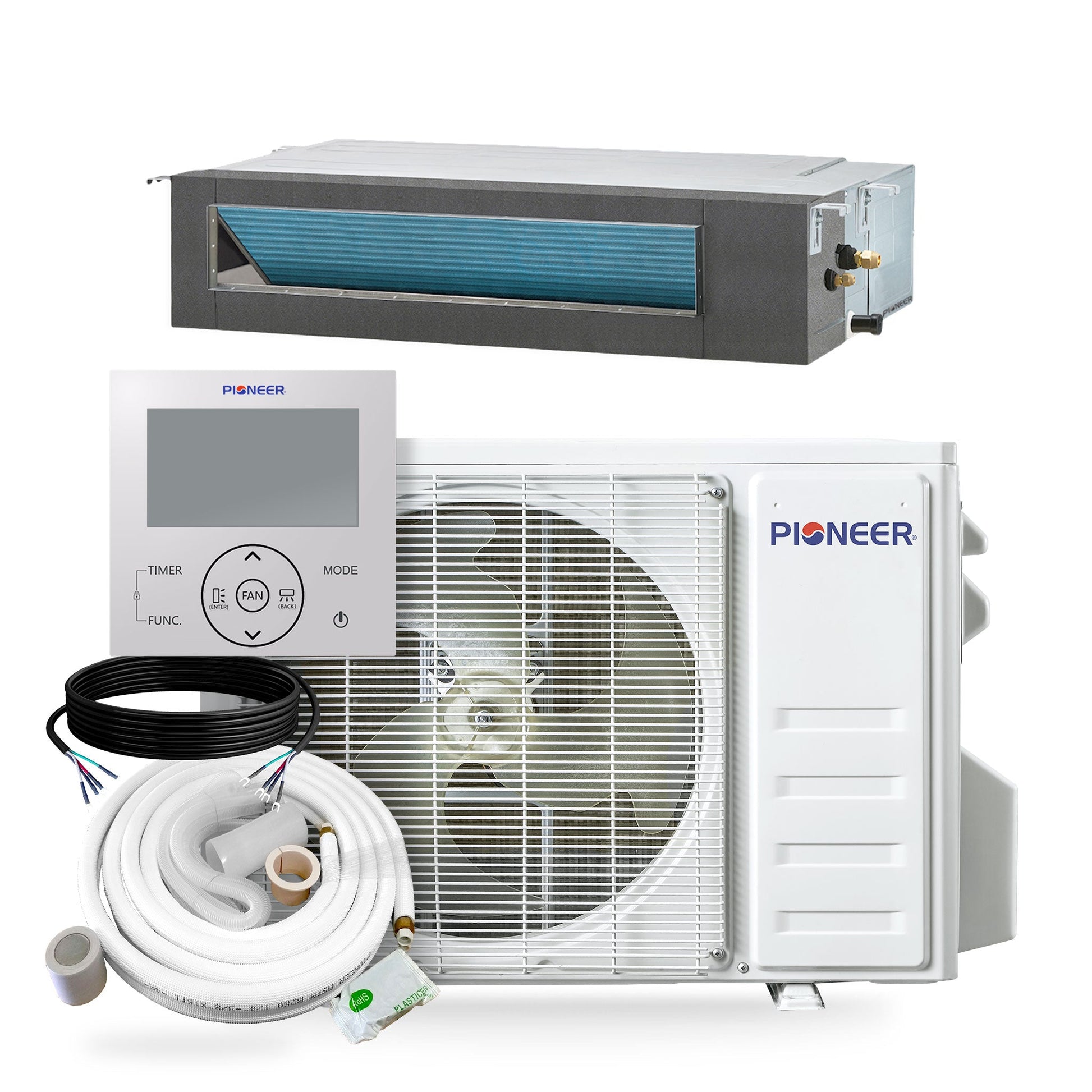

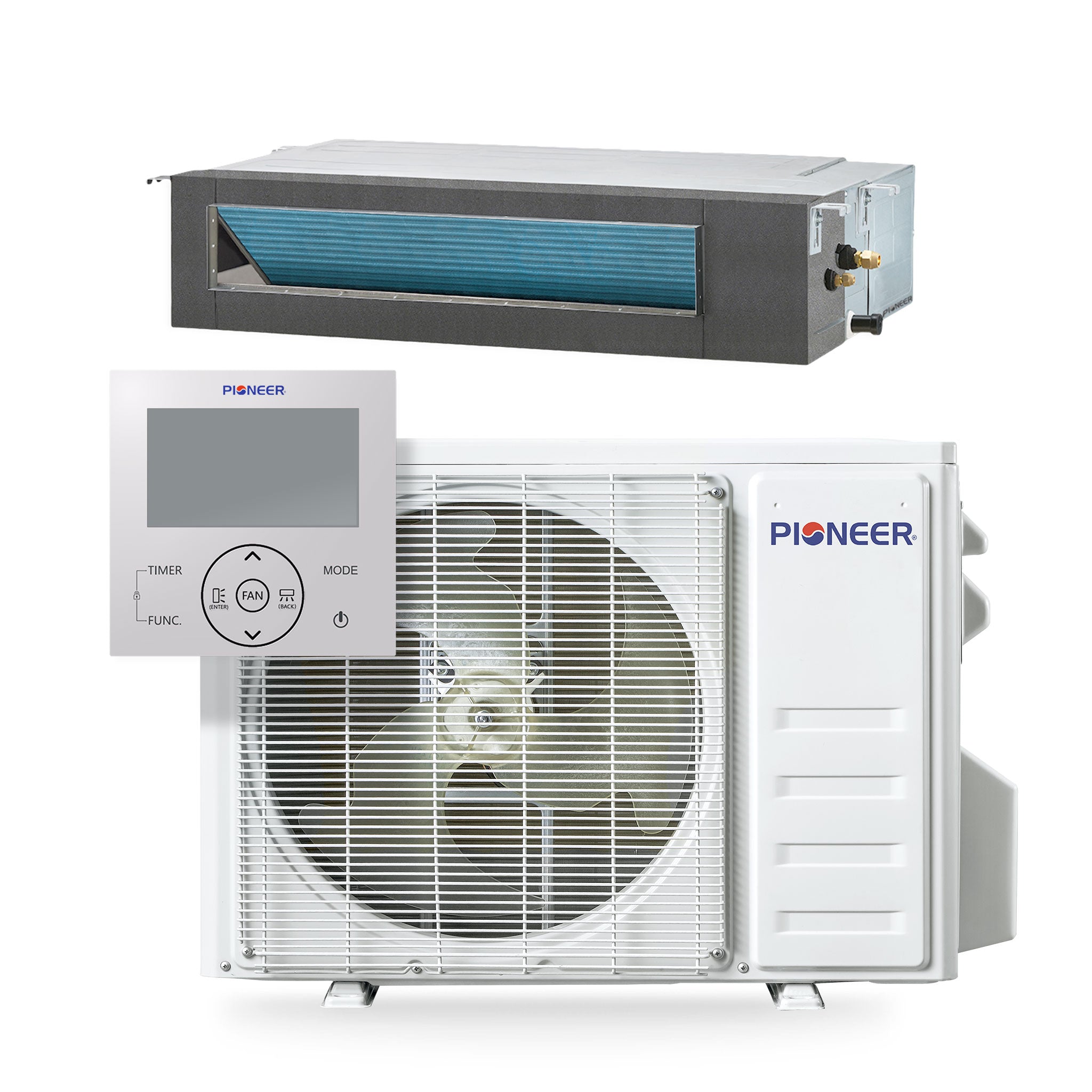

What's Included in Your Purchase

Indoor Unit
Outdoor Unit

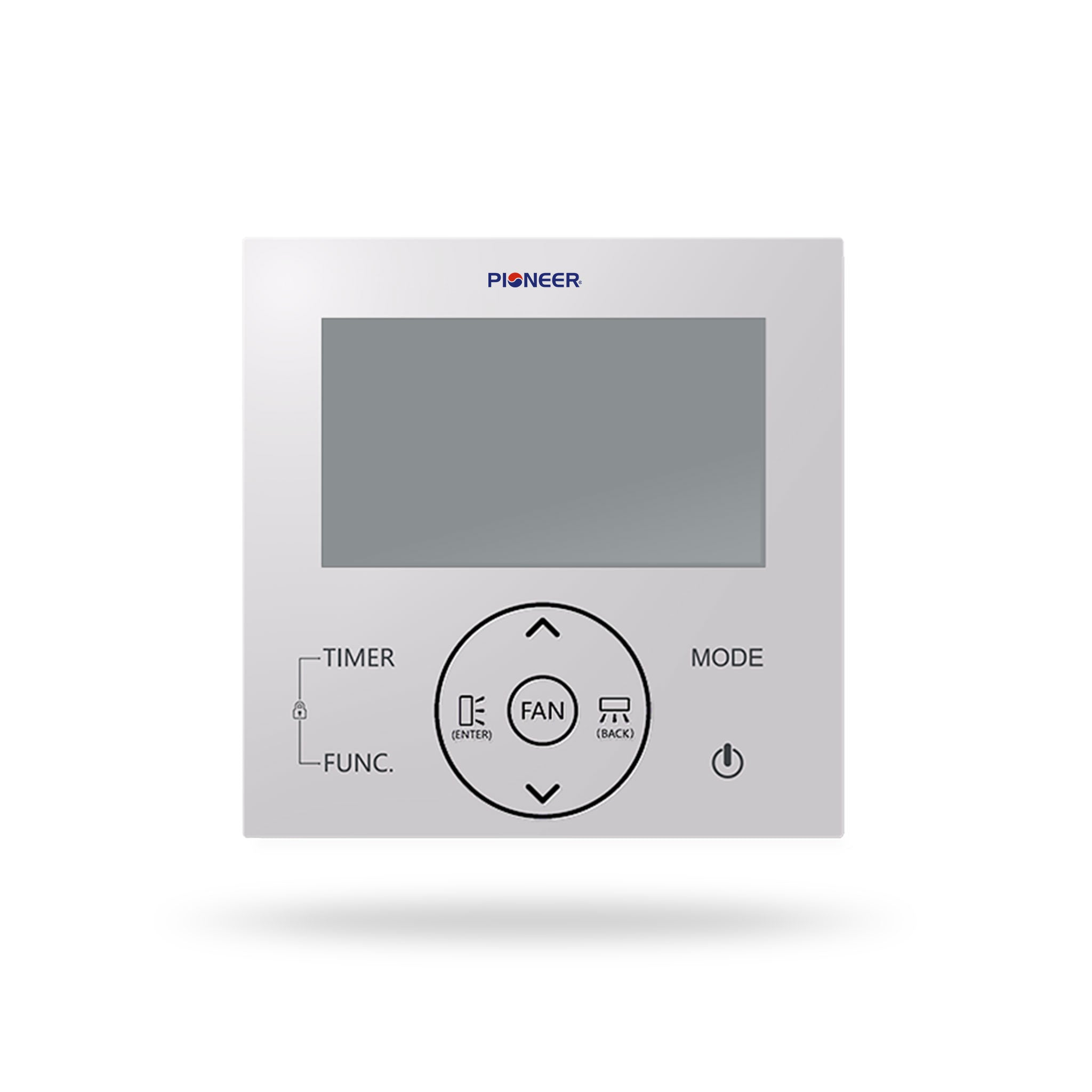

Wire Remote Control
Customizable Length Copper Lines
Customizable Length Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Manuals & Documents

Sold out

Pioneer® Quantum Ultra™ 9,000 BTU 20.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set

Series: Quantum Ultra™ Ceiling Concealed

SKU: RYT009GLSI24RL-10S

$1,193.00

$1,193.00 ~~$0.00~~

Shipping calculated at checkout.

Out of stock

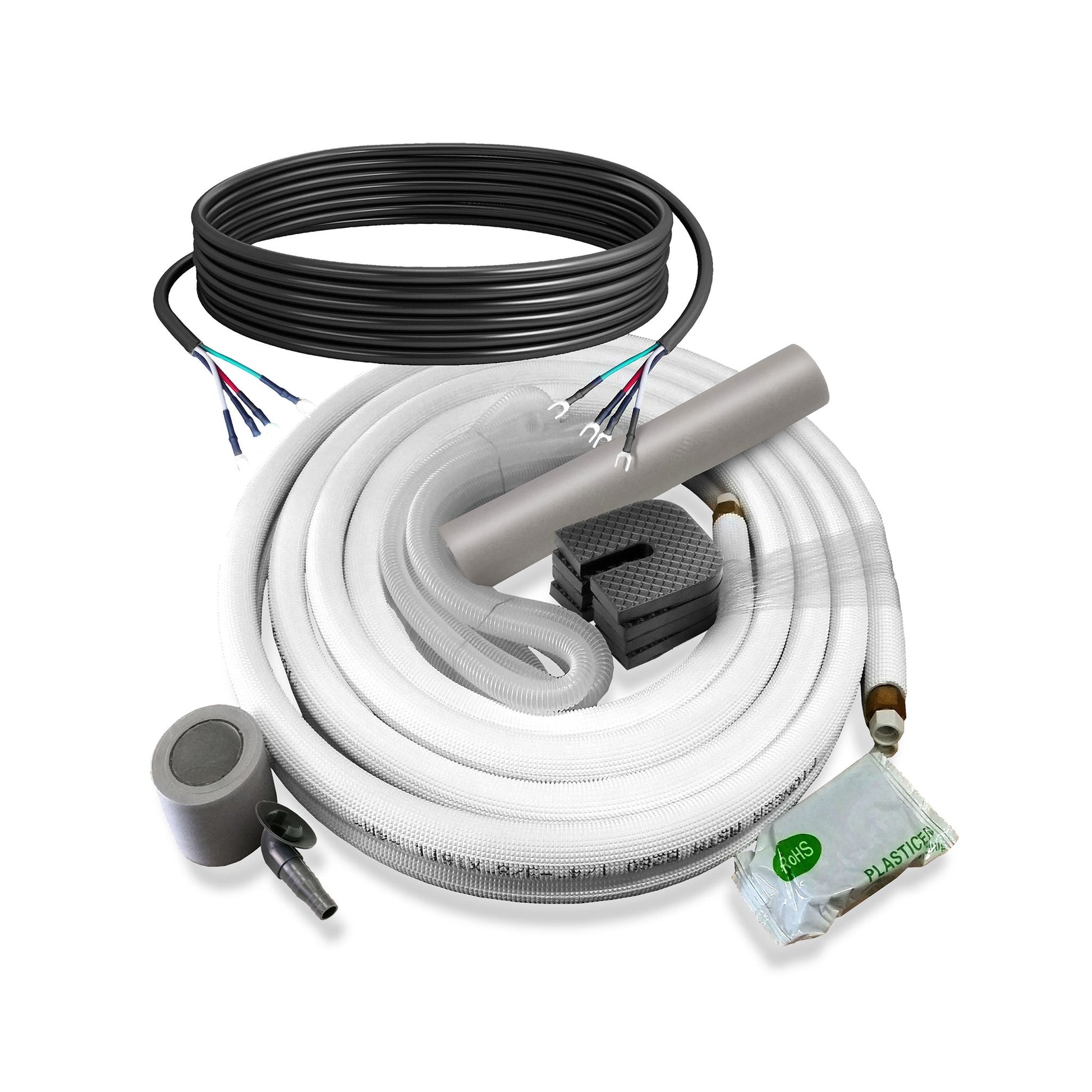

System Installation Kit: Standard Copper Pipe

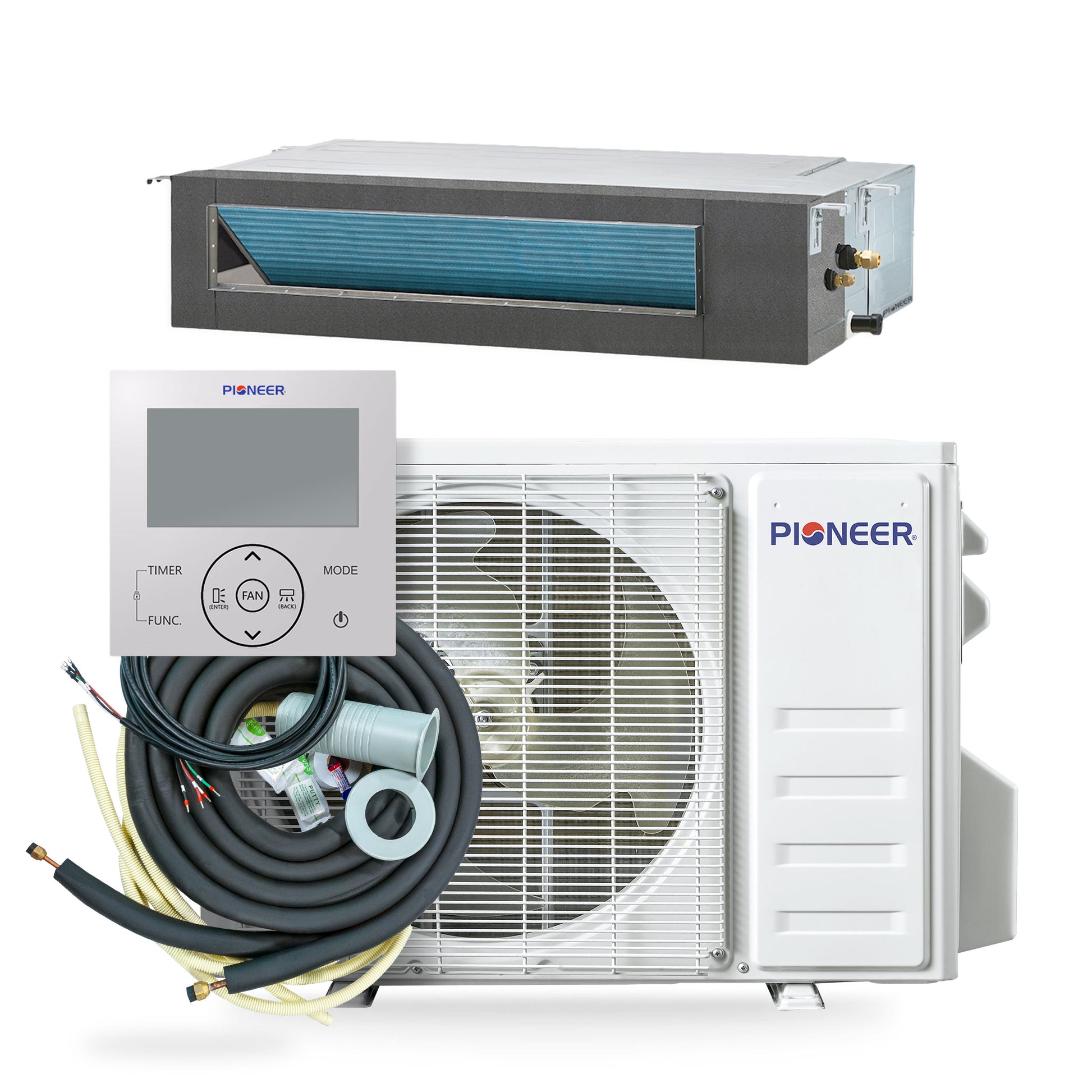

Standard Copper Pipe EZFlex™ Flexible Pipe Don't include

Pipe Length: 10 Ft

10 Ft 16 Ft 25 Ft 33 Ft 50 Ft None
