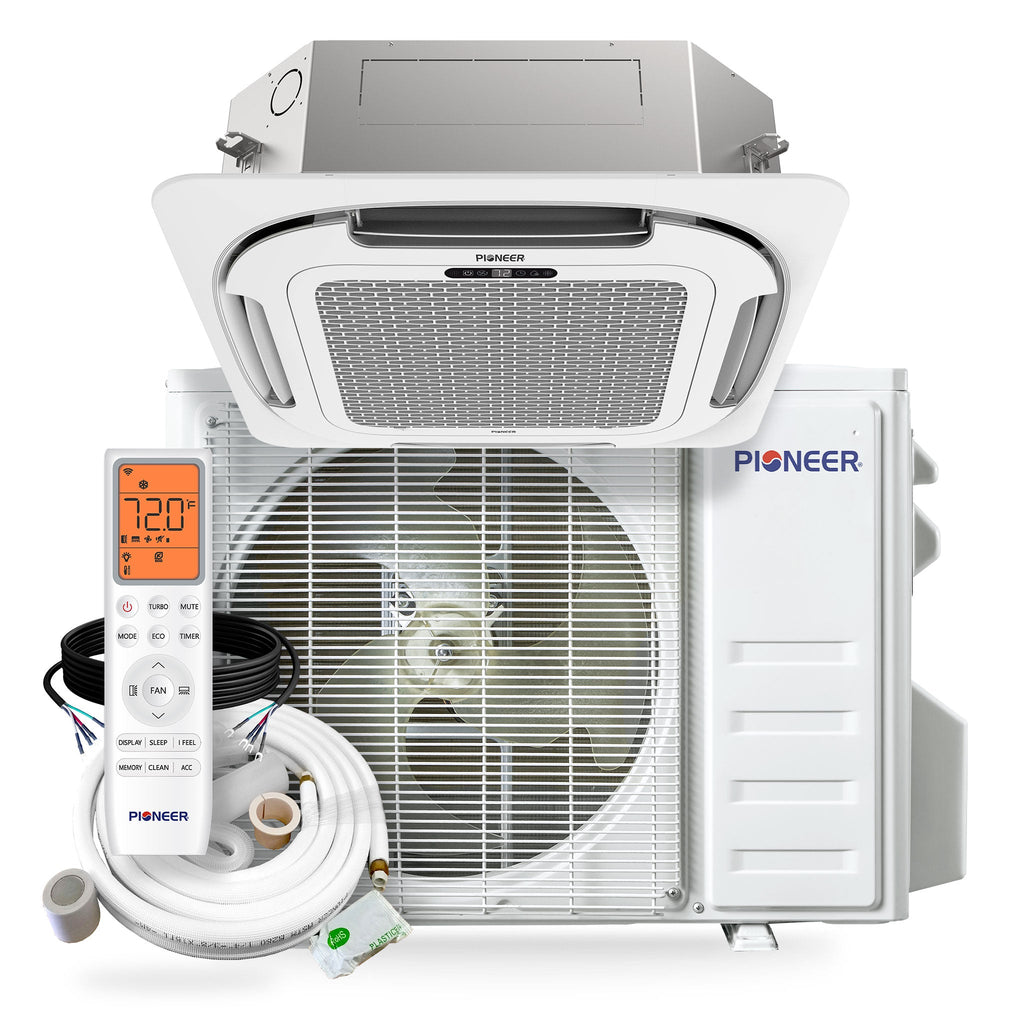

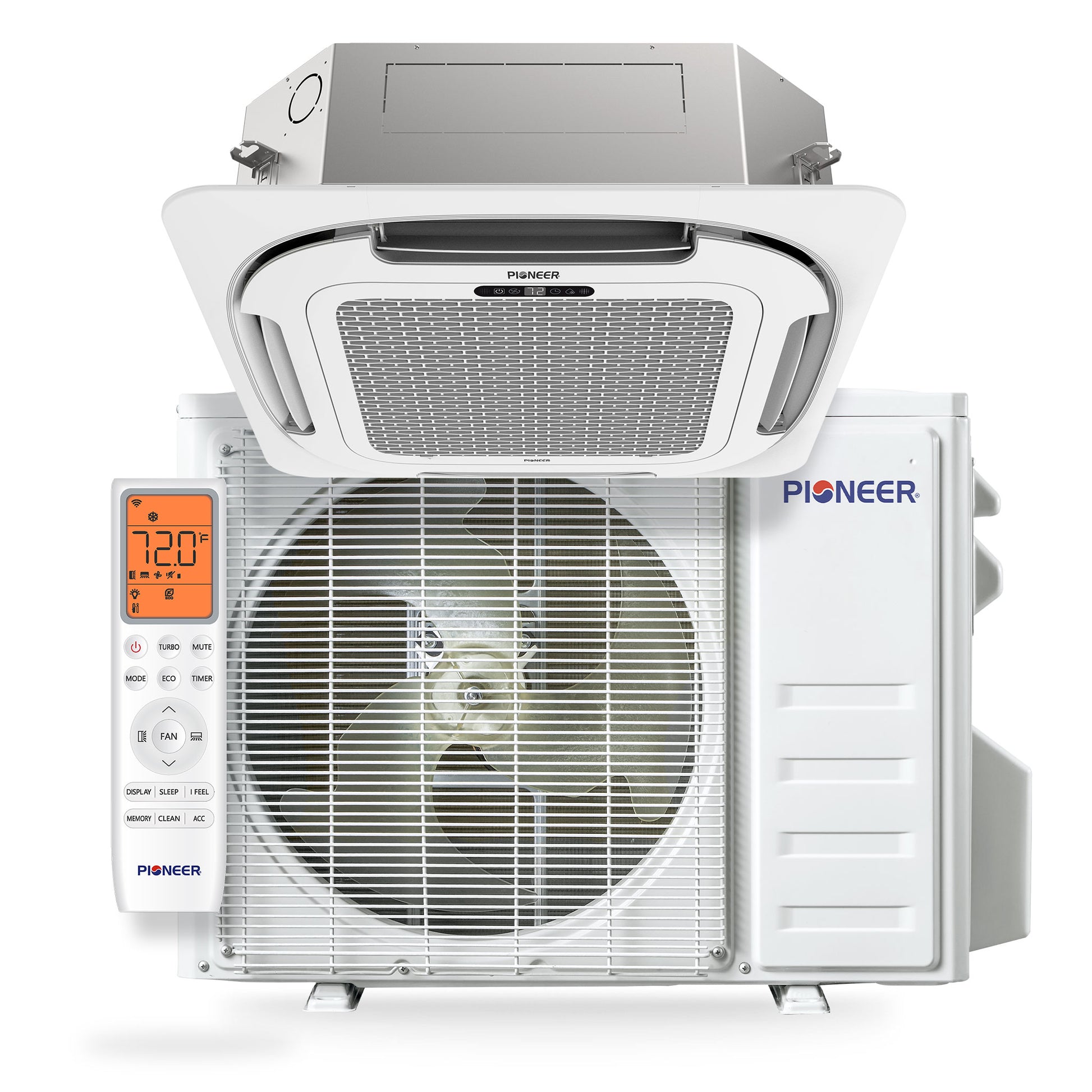

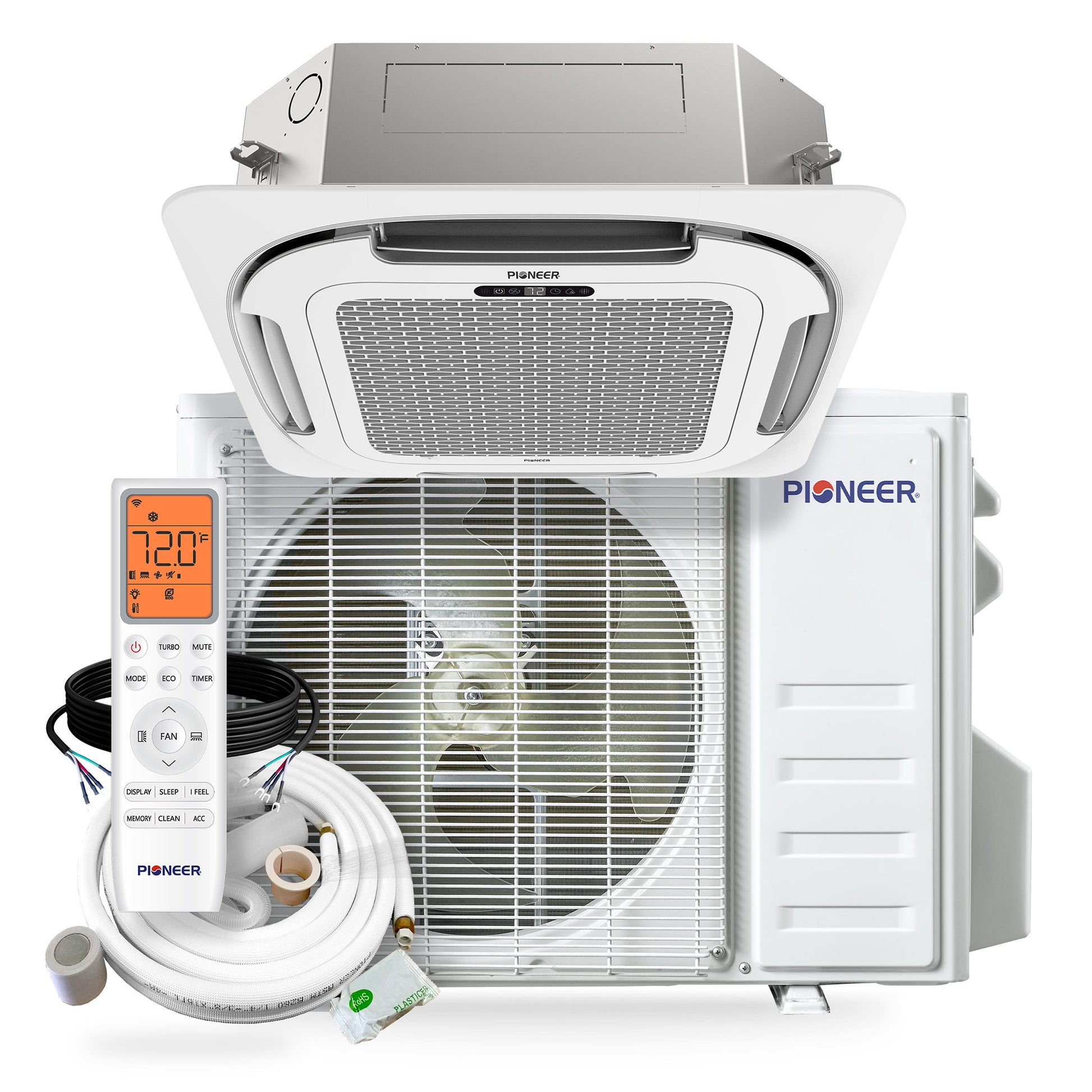

Pioneer® Quantum Ultra™ 23,000 BTU 22.5 SEER2 230V 8-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Product Details

Summary

High Efficiency Quantum Ultra Eight-Way Ceiling Recessed Cassette Split Heat Pump System
Cooling capacity: 23,000 BTU/H with 22.5 SEER2 / 11.7 EER2 efficiency
Heating capacity: 25,000 BTU/H with 10.4 HSPF2 / 3.5 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
Eight-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Dimensioning Chart

Technical Information & Performance

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 23,000 BTU/h
- Cooling Capacity Range: 7,550~25,200 BTU/h
- Cooling SEER2: 22.5 BTU/W.h
- Cooling EER2: 11.7 BTU/W.h
- Heating Rated Capacity: 25,000 BTU/h
- Heating Capacity Range: 8,700~28,300 BTU/h
- Heating HSPF2 (Region IV/V): 10.4 / 9.4 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.5 / 2.0 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 750~1,000 sq ft
- Minimum Room Size: 62 sq ft
- Piping Diameter: 5/8" (Gas) / 1/4" (Liquid)
- AHRI Reference: 217048761

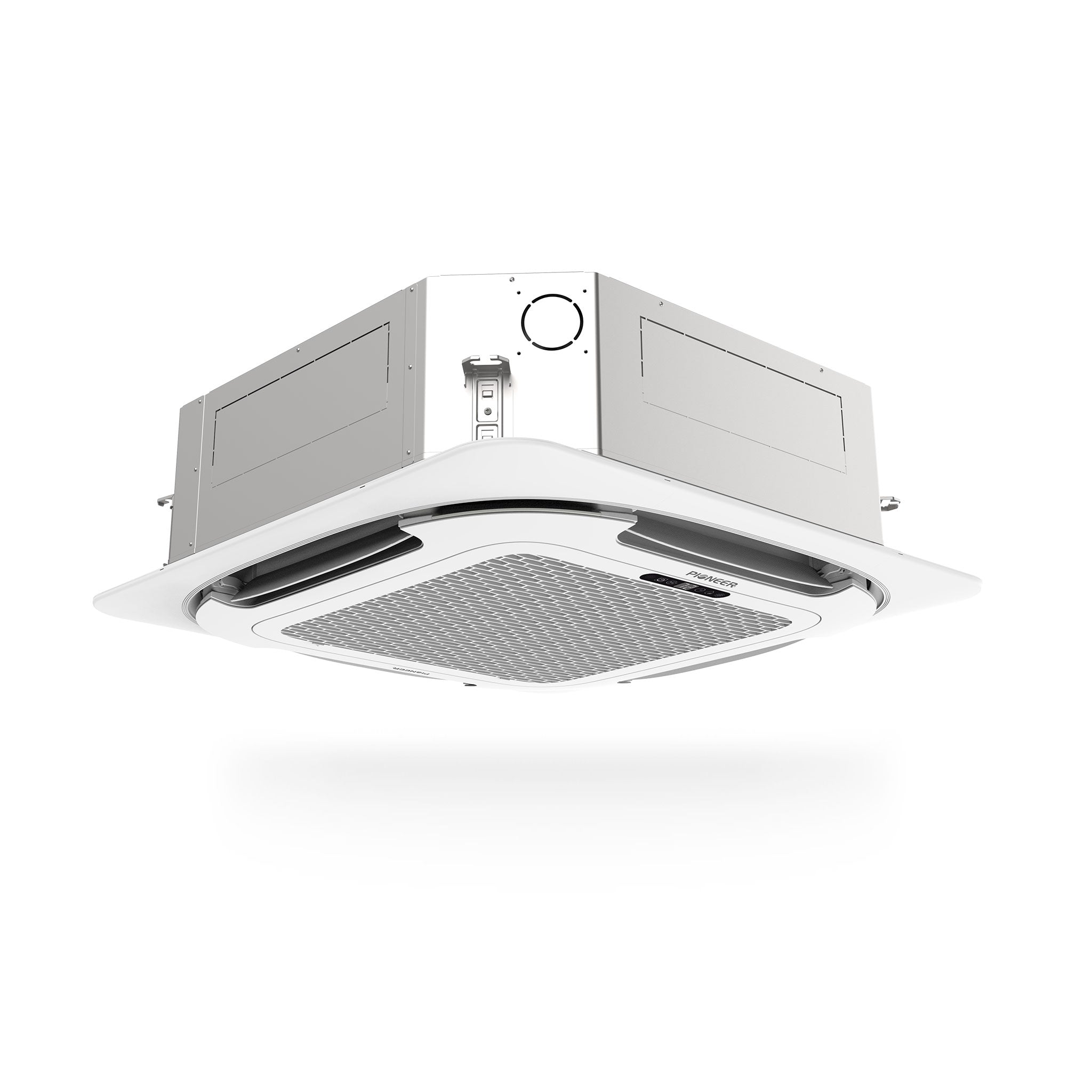

Indoor Unit
- Part Number: CT024GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735 / 676 / 529 / 423 / 394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 47 / 43 / 38 / 34 dB(A)
- Product Dimensions (WDH): 33"-1/8 x 33"-3/4 x 10"-3/4 Inches
- Carton Dimensions (WDH): 36"-7/8 x 36"-7/8 x 11"-1/2 Inches
- Net / Gross Weight: 51.8 / 59.5 lbs.

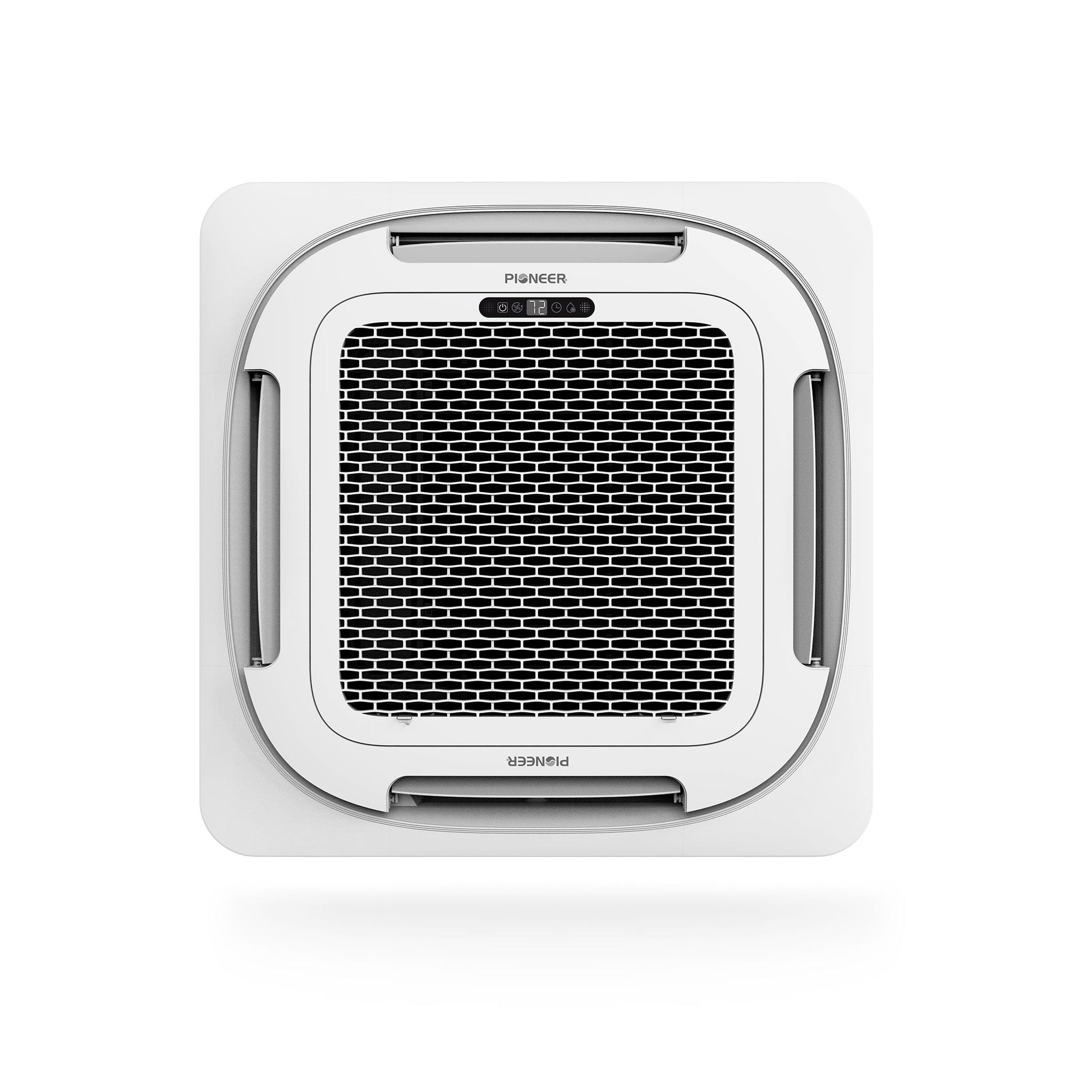

Decorative Panel
- Part Number: CT2460DPNL
- Product Dimensions (WDH): 37"-3/8 x 37"-3/8 x 2"-7/8
- Carton Dimensions (WDH): 41"-1/2 x 41"-1/2 x 3"-1/2
- Net / Gross Weight: 13.2 / 19.8 lbs

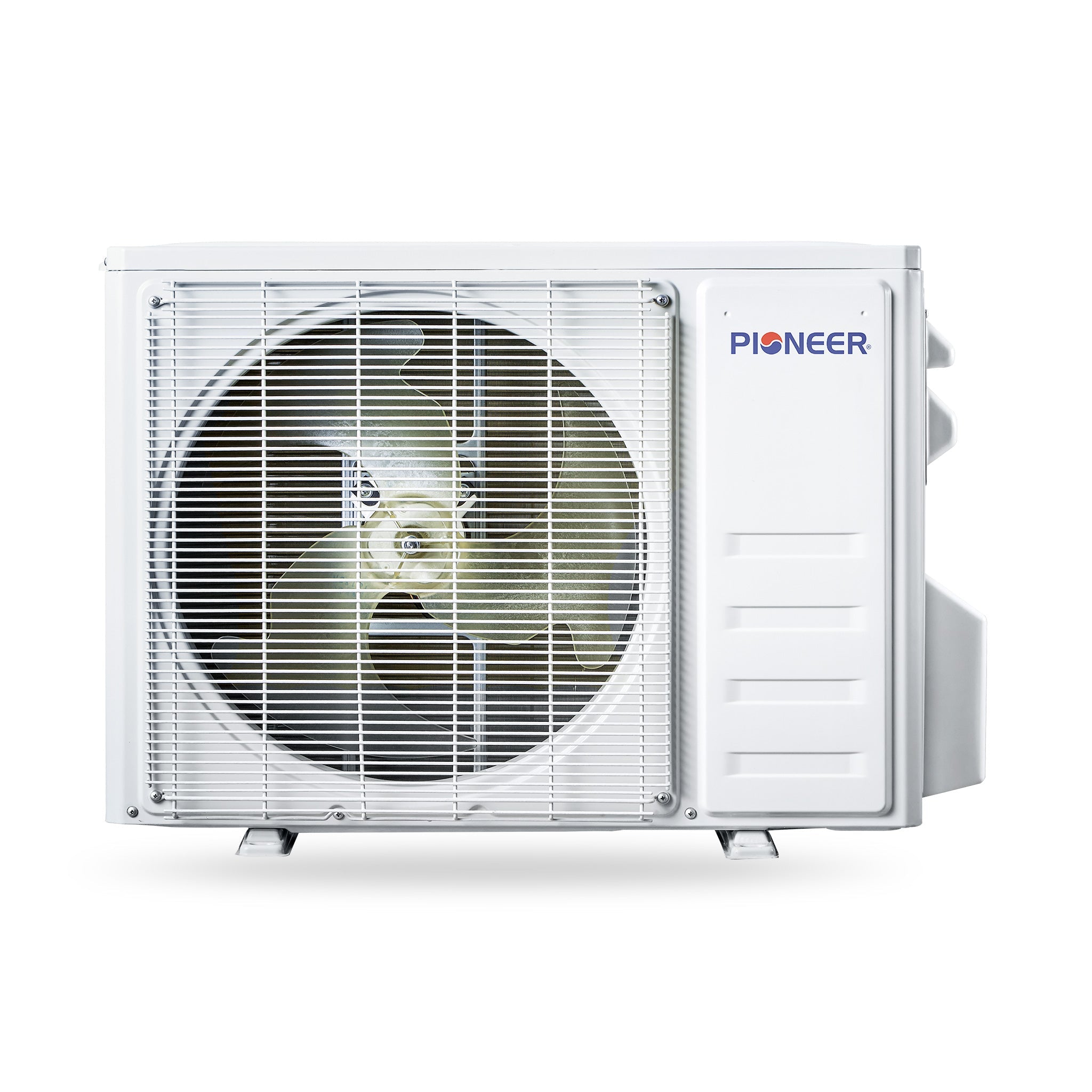

Outdoor Unit
- Part Number: YN024GLSI24RPG
- Breaker Needed: 25A (double-pole)
- Sound Level: 54 dB(A)
- Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
- Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
- Net / Gross Weight: 104.7 / 119.0 lbs.

Product Certifications

Series Details

Quantum Ultra™ Ceiling Cassette

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options.

IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

Standard Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

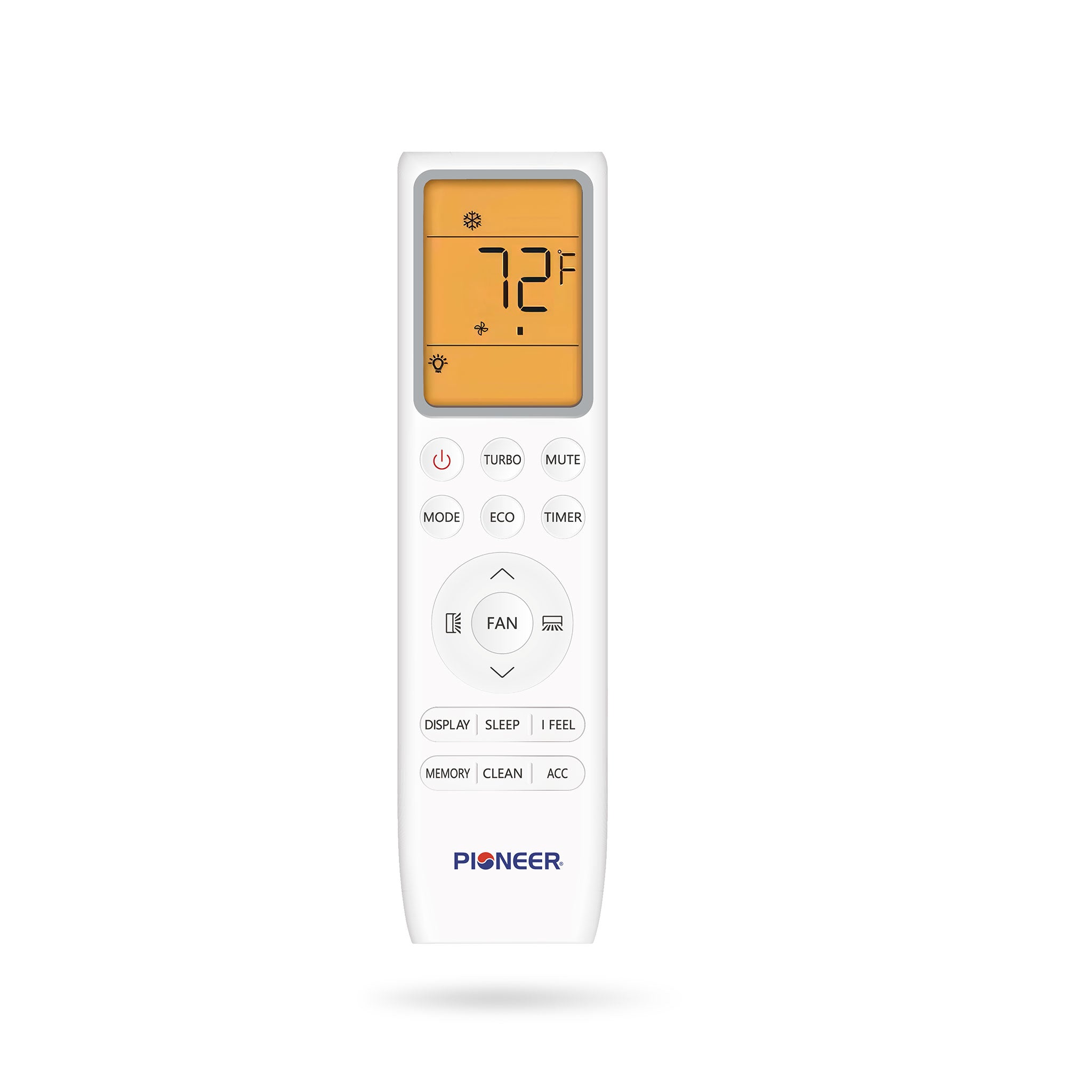

Functional Remote

ECO and SLEEP Modes, for Energy-Conservation
Timer On/Off Control
TURBO, for Times of High-Demand
Self-Clean Cycle
MEMORY, to Recall Favorite Settings
IFEEL, to Detect and Adjust to Local Temperature

What's Included in Your Purchase

Indoor Unit
Outdoor Unit
Indoor Panel
Wireless Remote Control
Remote Control Wall Holder
Remote Control Batteries
Customizable Length Copper Lines
Customizable Length Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Manuals & Documents

Sold out

Pioneer® Quantum Ultra™ 23,000 BTU 22.5 SEER2 230V 8-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Series: Quantum Ultra™ Ceiling Cassette

SKU: CYT024GLSI24RL-10S

$2,083.00

$2,083.00 ~~$0.00~~

Shipping calculated at checkout.

Out of stock

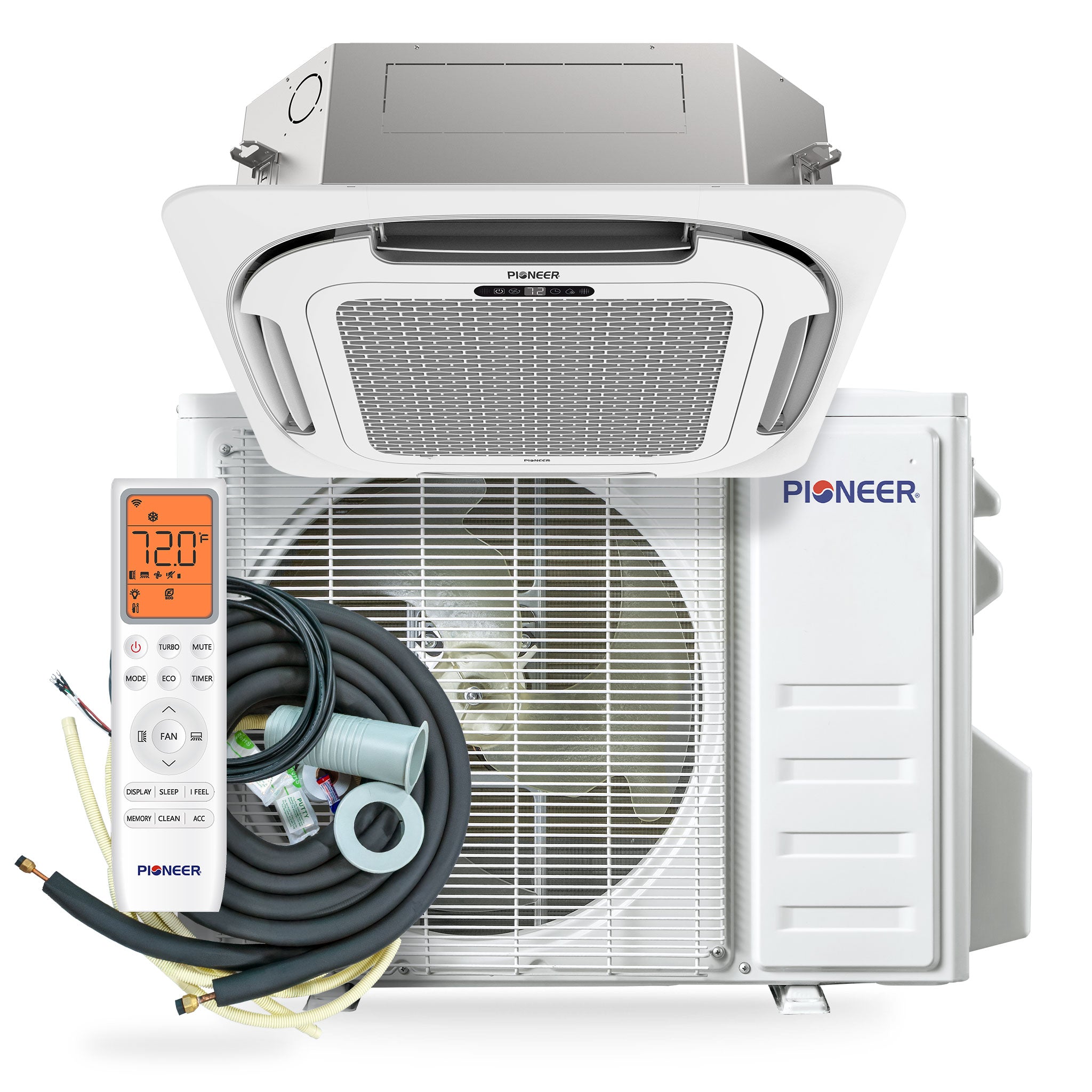

System Installation Kit: Standard Copper Pipe
