Product Details

Technical Information

Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 9,000 BTU/h
- Suitable Area: 150~350 Sq.F
- Air Flow (Turbo/Hi/Med/Lo/Mute): 335/305/276/182/160 CFM
- Sound Level ( Turbo/Hi/Med/Lo/Mute): 42/39/34/28/27 dB(A)
- Product Dimensions (WDH): 27"-1/2 x 19-1/4" x 7-7/8" Inches
- Carton Dimensions (WDH): 35-1/2" x 21-7/8" x 9-7/8" Inches
- Net / Gross Weight: 33.1 / 40.8 lbs
Compatibility
- Dual (2) Zone Condenser: YN020GLSI24M2G
- Triple (3) Zone Condenser: YN030GLSI24M3G
- Quad (4) Zone Condenser: YN040GLSI24M4G
- Quint (5) Zone Condenser: YN050GLSI24M5G

Submittal Sheets

Series Details

Multi-Zone Quantum Ultra™ Mini Split Indoor Units

Make cooling your home’s interior easier with indoor air conditioning heat pump units from the HVAC experts at Pioneer. Available in various sizes, you can now provide comfort to every room in the house. Easy to use and maintain, these easily connect with the central unit to provide a consistent temperature throughout the building. We work with our clients to provide the best value and service on everything Pioneer manufactures.

What's Included in Your Purchase

Indoor Unit
Wireless Remote Control
Wi-Fi Module w/ Free App
Full Installation Kit (unless "No Installation Kit" is selected)
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
Manufacturer Warranty

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Manuals & Documents

Sold out

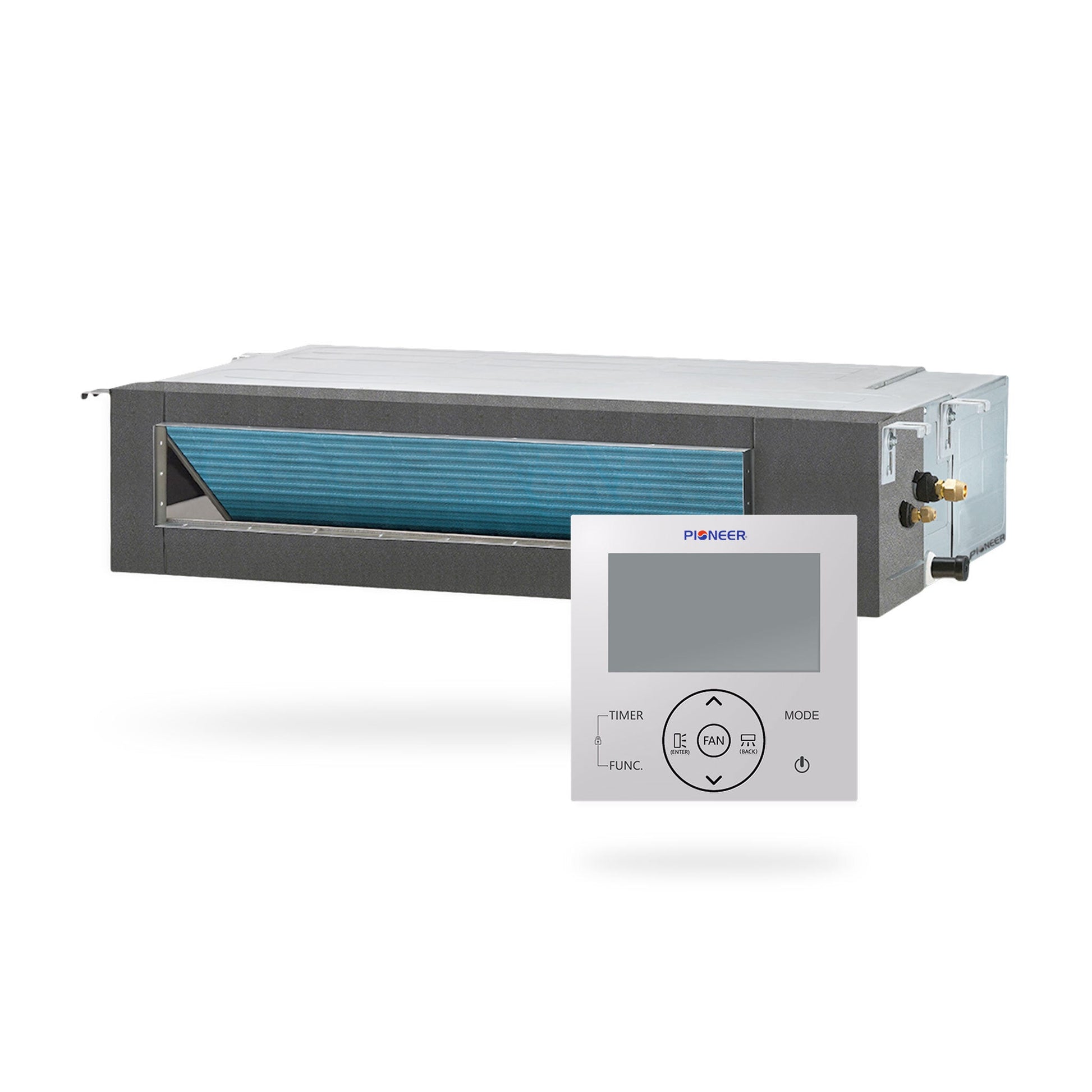

Pioneer® Multi Zone 9,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Series: Multi-Zone Quantum Ultra™ Mini Split Indoor Units

SKU: RT009GLSILCFHG-10S

$613.00

Shipping calculated at checkout.

Out of stock

System Installation Kit: Standard Copper Pipe

Standard Copper Pipe EZFlex™ Flexible Pipe Don't include

Pipe Length: 10 Ft

10 Ft 16 Ft 25 Ft 33 Ft 50 Ft None
