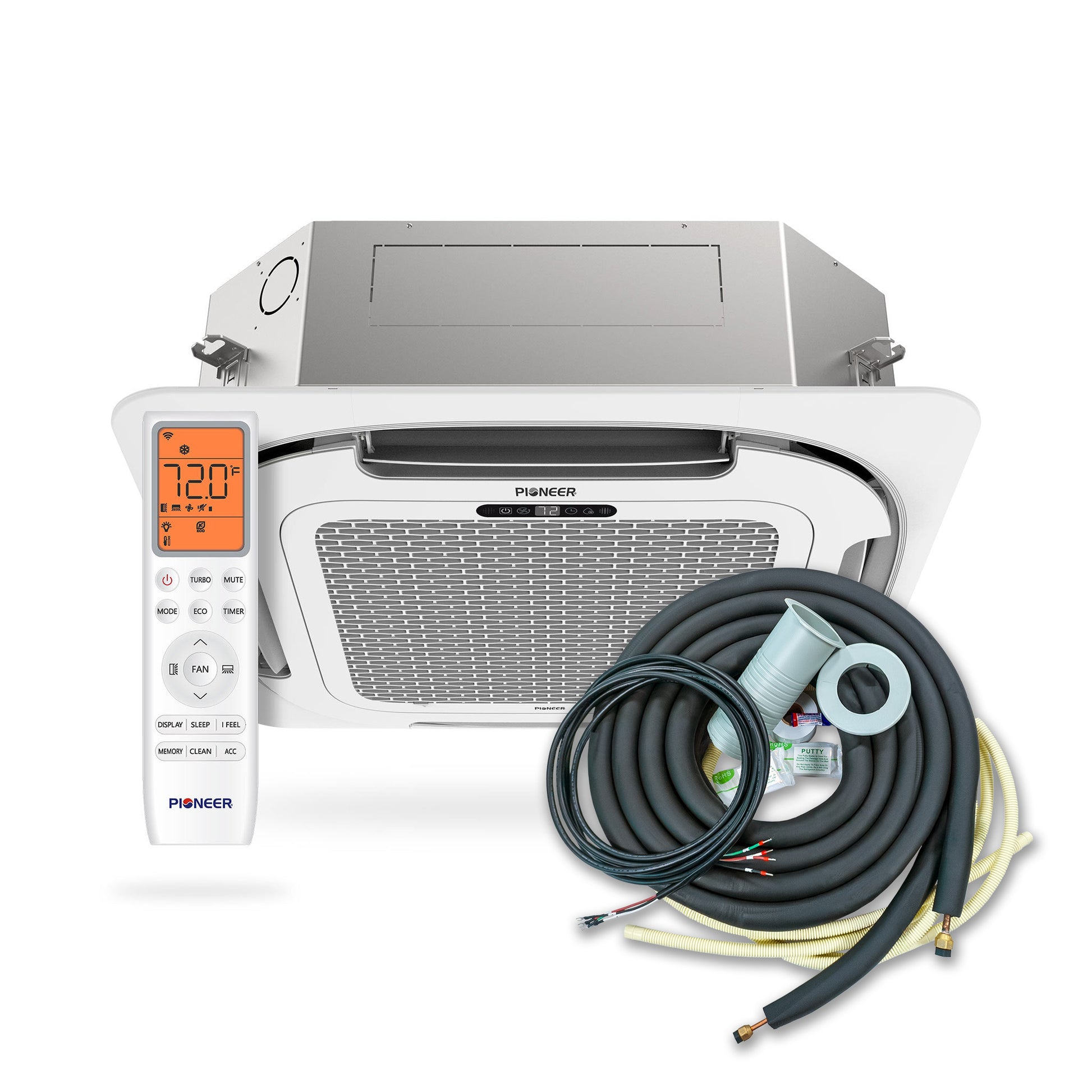

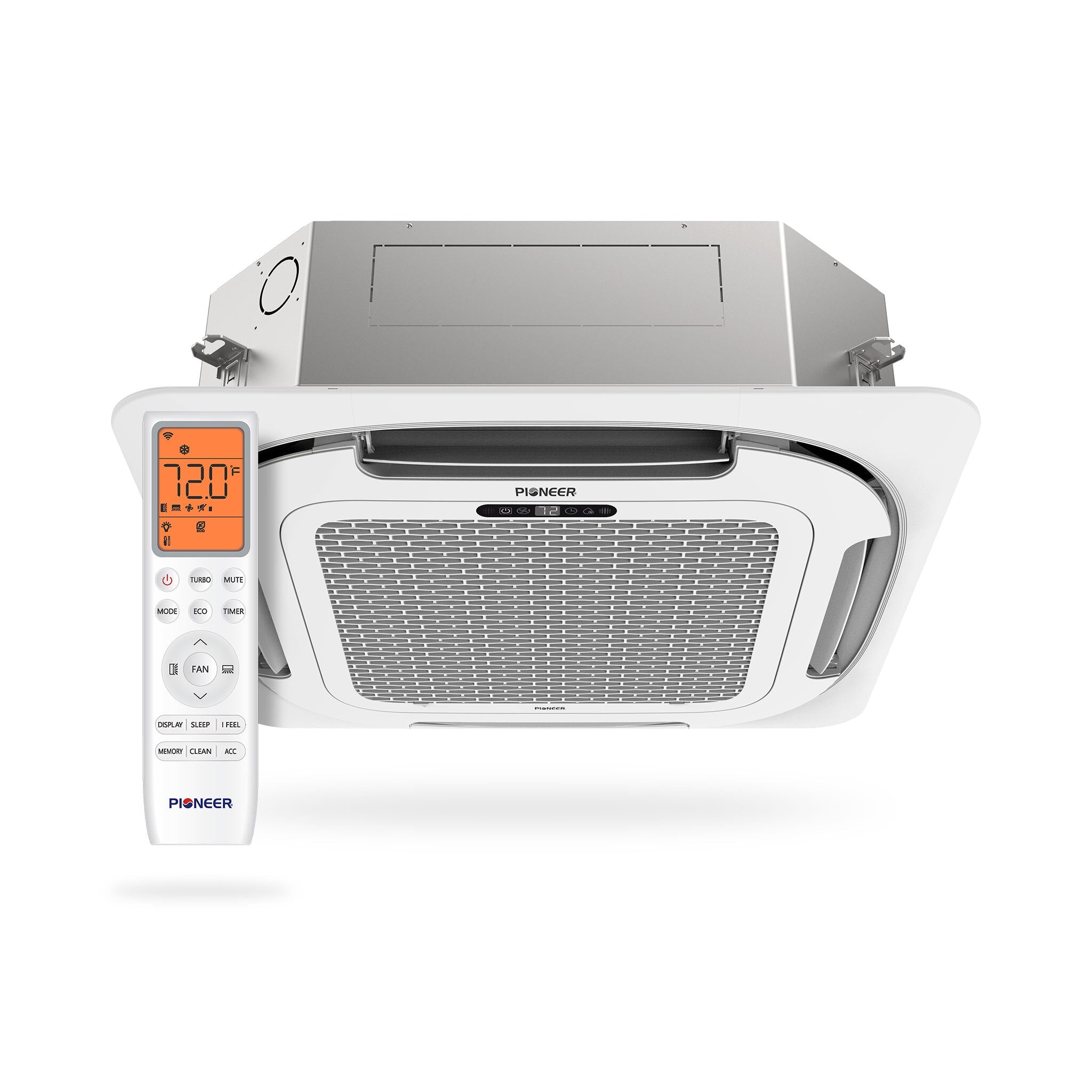

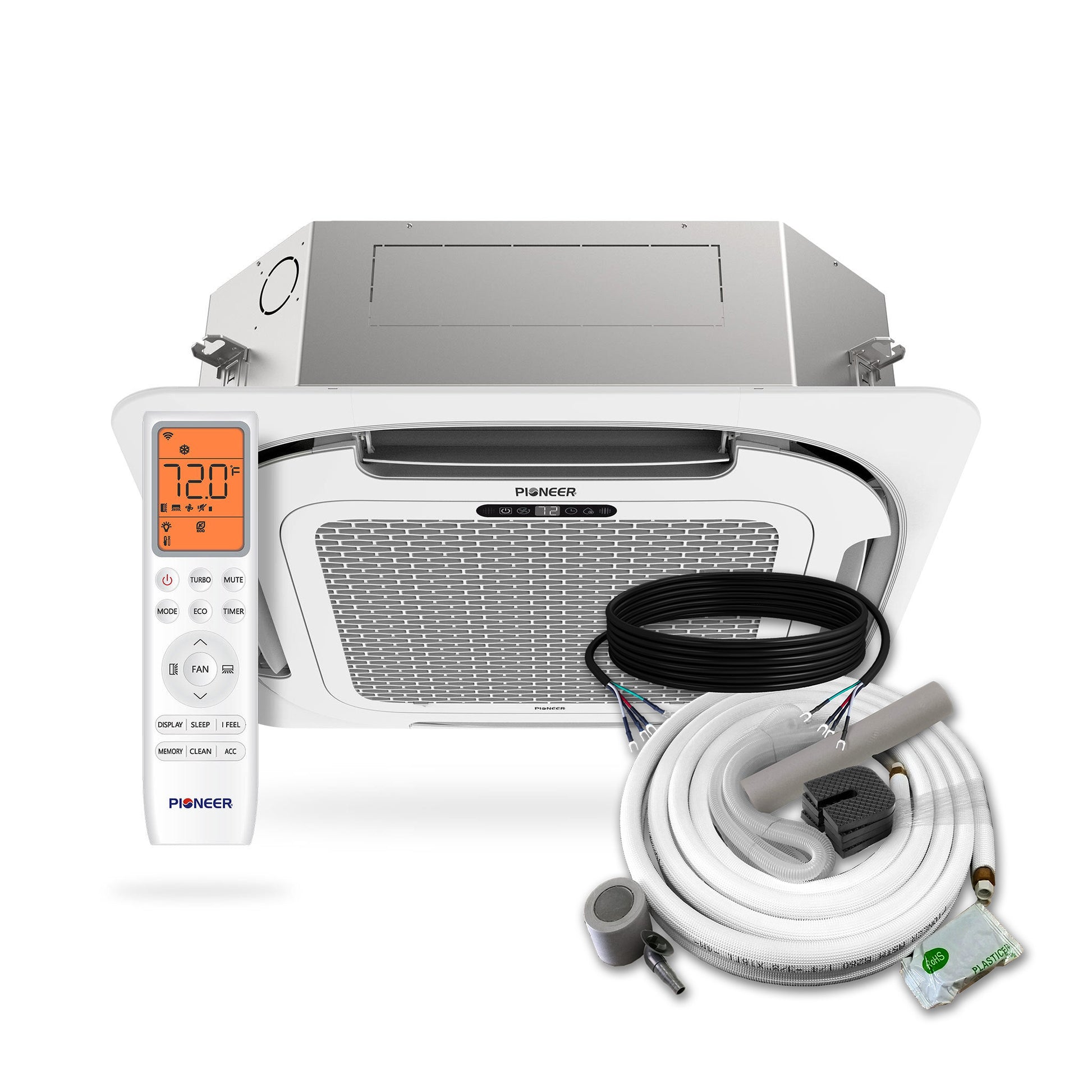

Pioneer® Multi Zone 24,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Product Details

Technical Information

Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 24,000 BTU/h
- Heating Capacity: 24,000 BTU/h
- Suitable Area: 750~1,000 Sq.F
Indoor Unit
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
- Product Dimensions (WDH): 33"-1/8 x 33"-3/4 x 10"-3/4 Inches
- Carton Dimensions (WDH): 36"-7/8 x 36"-7/8 x 11"-1/2 Inches
- Net / Gross Weight: 51.8 / 59.5 lbs
Decorative Panel
- Part Number: CT2460DPNL
- Product Dimensions (WDH): 37-3/8" x 37-3/8" x 2-7/8"
- Carton Dimensions (WDH): 41-1/2" x 41-1/2" x 3"-1/2
- Net / Gross Weight: 13.2 / 19.8 lbs

Submittal Sheets

Series Details

Multi-Zone Quantum Ultra™ Ceiling Cassette Indoor Units

Make cooling your home’s interior easier with indoor air conditioning heat pump units from the HVAC experts at Pioneer. Available in various sizes, you can now provide comfort to every room in the house. Easy to use and maintain, these easily connect with the central unit to provide a consistent temperature throughout the building. We work with our clients to provide the best value and service on everything Pioneer manufactures. Give us a call today to learn more about everything you can do with our indoor air conditioning heating pump units and how they can provide environmental control to your home.

What's Included in Your Purchase

Indoor Unit
Decorative Panel
Wireless Remote Control
Wi-Fi Module w/ Free App
Full Installation Kit (unless "No Installation Kit" is selected)
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
Manufacturer Warranty

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Manuals & Documents

Pioneer® Multi Zone 24,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Series: Multi-Zone Quantum Ultra™ Ceiling Cassette Indoor Units

SKU: CT024GLSILCFHG-10S

$1,013.00

$1,013.00 ~~$0.00~~

Shipping calculated at checkout.

System Installation Kit: Standard Copper Pipe

Standard Copper Pipe EZFlex™ Flexible Pipe Don't include

Pipe Length: 10 Ft

10 Ft 16 Ft 25 Ft 33 Ft 50 Ft None
