Product Details

Technical Information

Specifications

Part Number: UT018GLSILCFHG
Power Supply: 208~230V, 60Hz, 1Ph
Refrigerant Type: R454b
Recommended Room Size: 500~750 sq ft
Minimum Room Size (Ceiling Suspended): 51 sq ft
Minimum Room Size (Floor/Low Wall): 195 sq ft
Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
Net / Gross Weight: 52.9 / 68.3 lbs
Piping Diameter: 1/2" (Gas) / 1/4" (Liquid)

Performance

Cooling Rated Capacity: 18,000 BTU/h
Cooling Capacity Range: 4,550~20,200 BTU/h
Cooling SEER2: 20.5 BTU/W.h
Cooling EER2: 11.7 BTU/W.h
Heating Rated Capacity: 18,000 BTU/h
Heating Capacity Range: 2,910~22,840 BTU/h
Heating HSPF2 (Region IV/V): 9.0 / 8.2 BTU/W.h
Heating C.O.P.2 (47°F/5°F): 2.8 / 1.85 W/W
Air Flow (Turbo/Hi/Med/Lo/Mute): 588 / 512 / 453 / 353 / 265 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute): 50 / 46 / 44 / 40 / 36 dB(A)
Moisture Removal: 110 Pint/day

Multi-Zone Compatibility

Dual (2) Zone Condenser: YN020GLSI24M2G
Triple (3) Zone Condenser: YN030GLSI24M3G
Quad (4) Zone Condenser: YN040GLSI24M4G
Quint (5) Zone Condenser: YN050GLSI24M5G

Submittal Sheets

Series Details

Multi-Zone Quantum Ultra™ Mini Split Indoor Units

Make cooling your home’s interior easier with indoor air conditioning heat pump units from the HVAC experts at Pioneer. Available in various sizes, you can now provide comfort to every room in the house. Easy to use and maintain, these easily connect with the central unit to provide a consistent temperature throughout the building. We work with our clients to provide the best value and service on everything Pioneer manufactures.

What's Included in Your Purchase

Indoor Unit
Wireless Remote Control
Wi-Fi Module w/ Free App
Full Installation Kit (unless "No Installation Kit" is selected)
Flare Connection Leak Guard Sealer
Installation Manual
User’s Manual
Manufacturer Warranty

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Manuals & Documents

Indoor Unit (UYT-24 Series)

Outdoor Unit (YNL-24 Series)

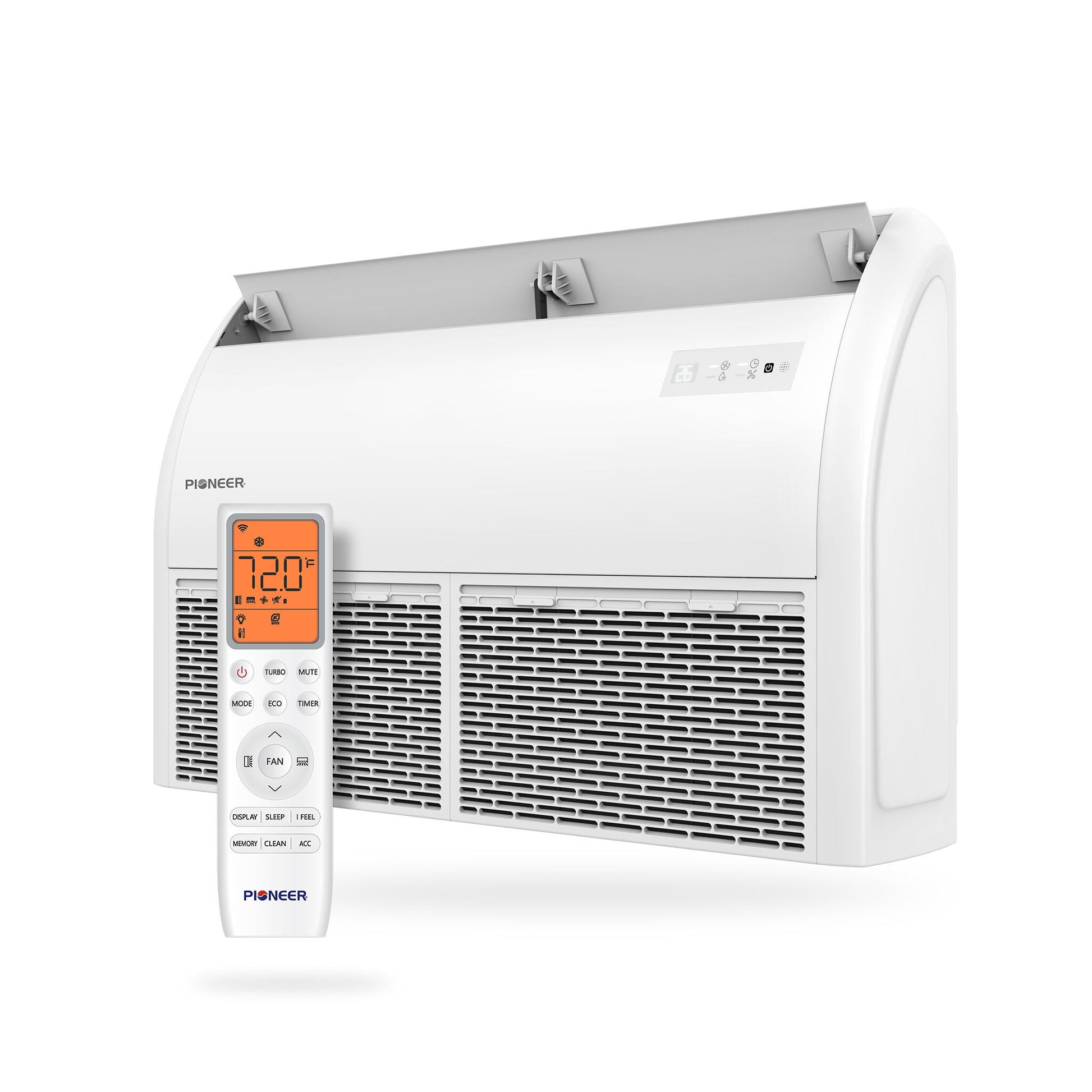

Pioneer® Multi-Zone 18,000 BTU Quantum Ultra Floor-Ceiling Flex Mount Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
