Description
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit
NOTE: The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Overview
Summary

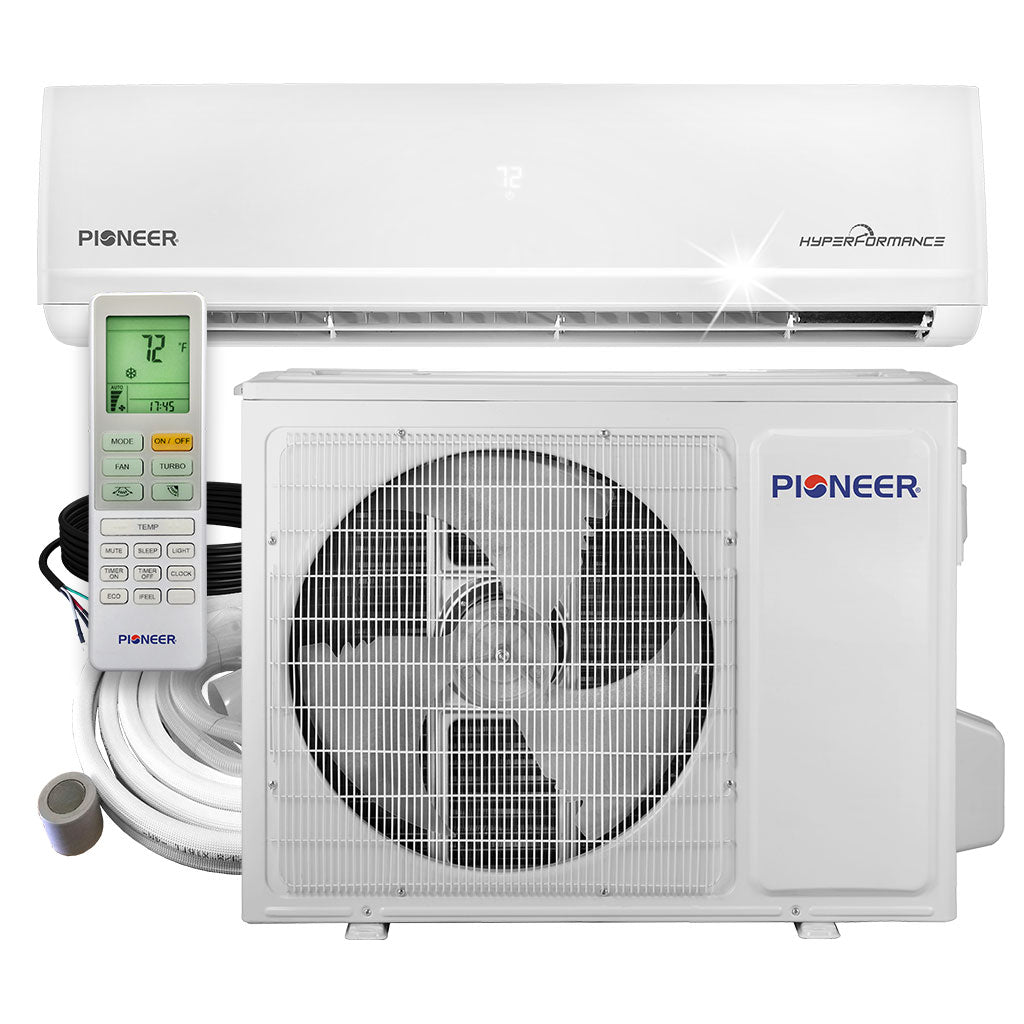

- Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
- Cooling capacity: 24,000 BTU/H (2 Ton) with 21 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 24,000 BTU/H (2 Ton) with 10.0 HSPF2 / 3.05 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Hyper Heat Unit (Continues heating in -22°F weather)
- Wireless Internet Access Included (Via Free Smartphone App)
What's Included

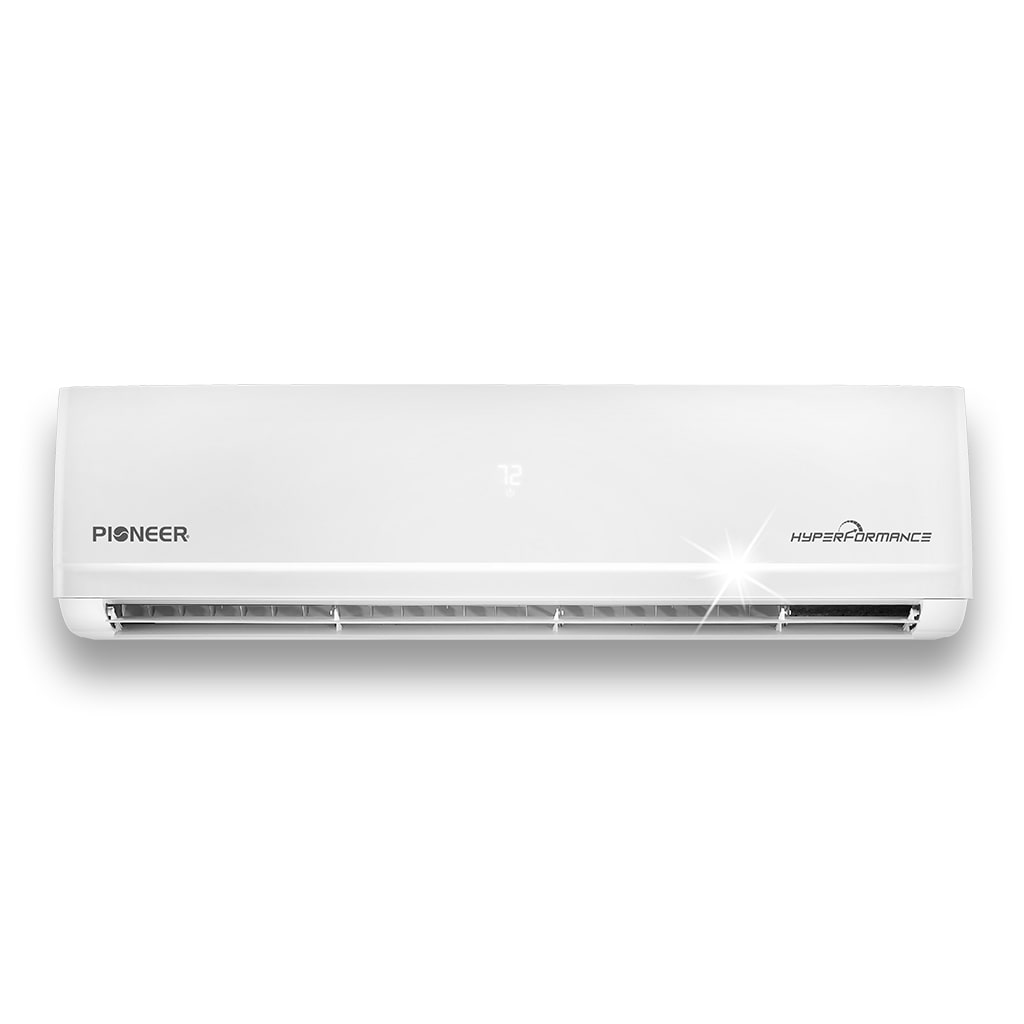

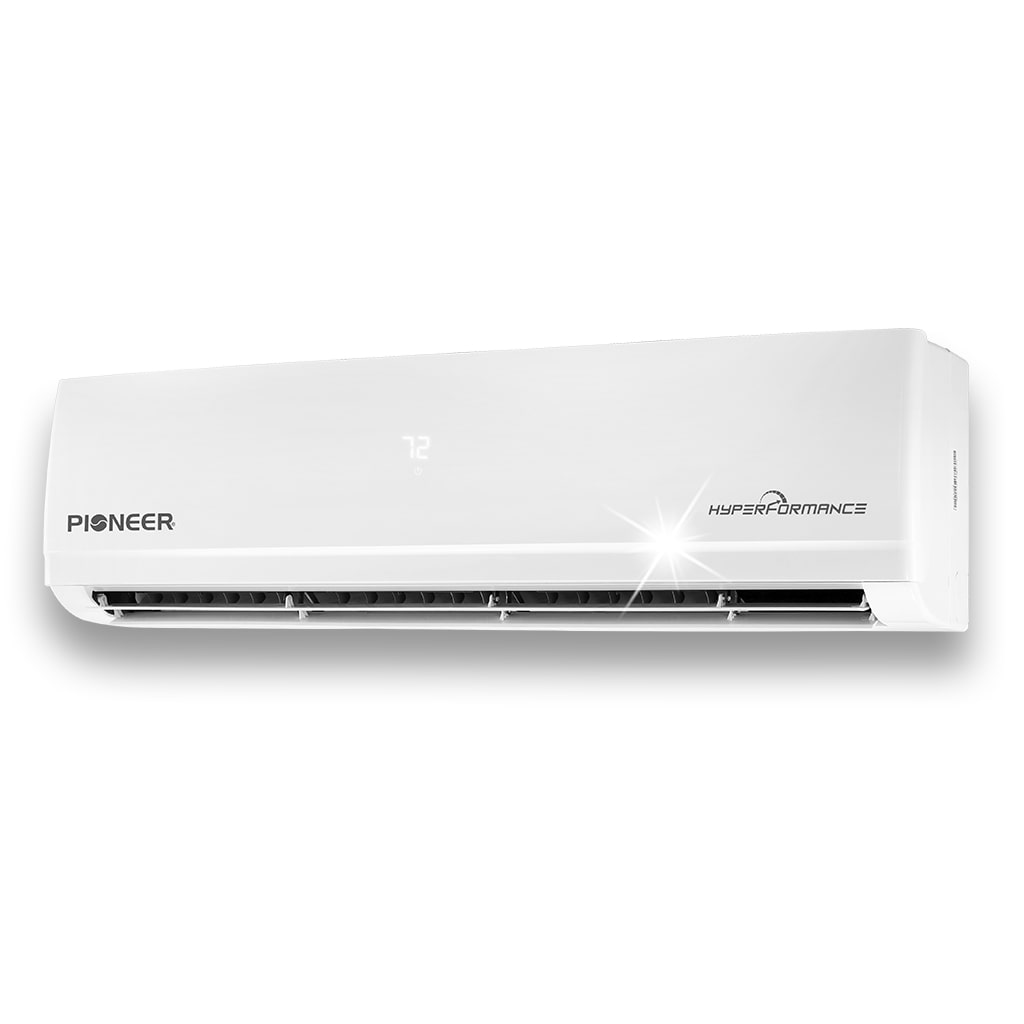

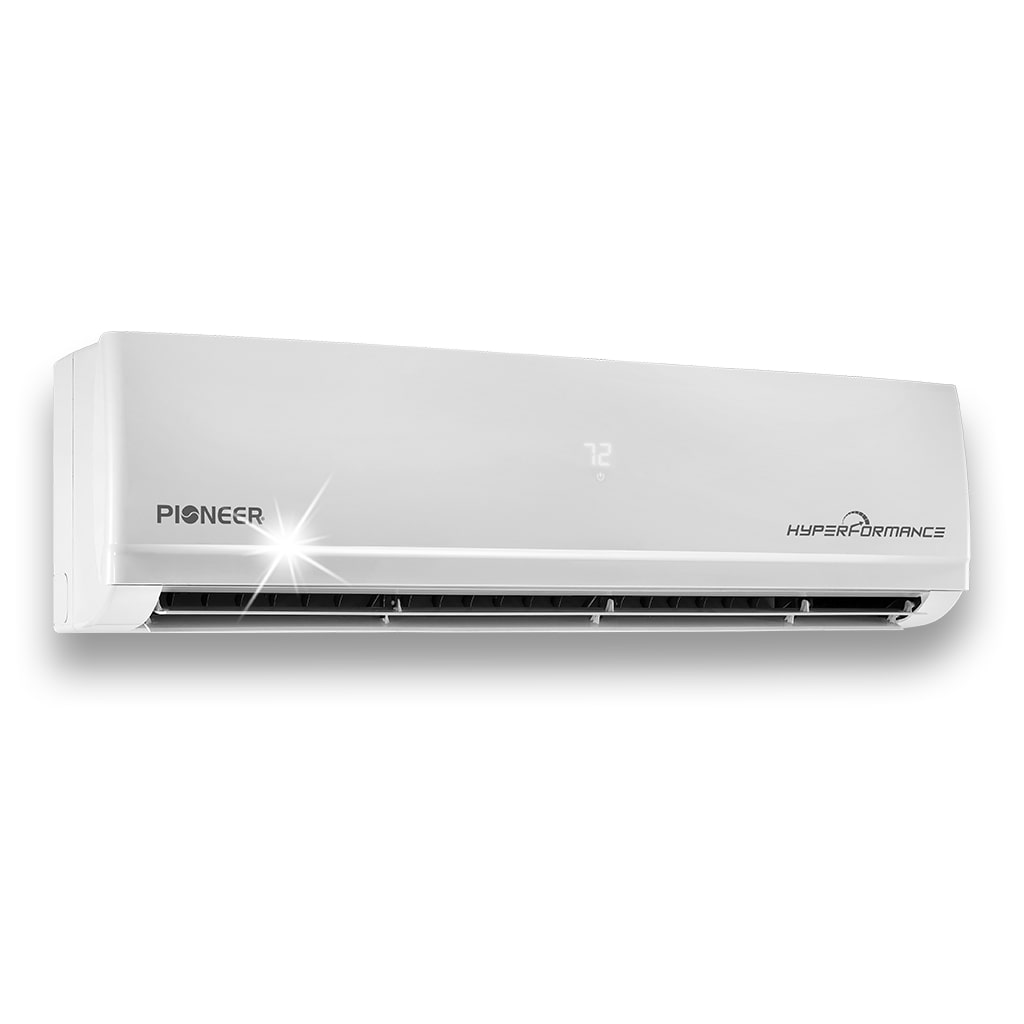

- Indoor Unit

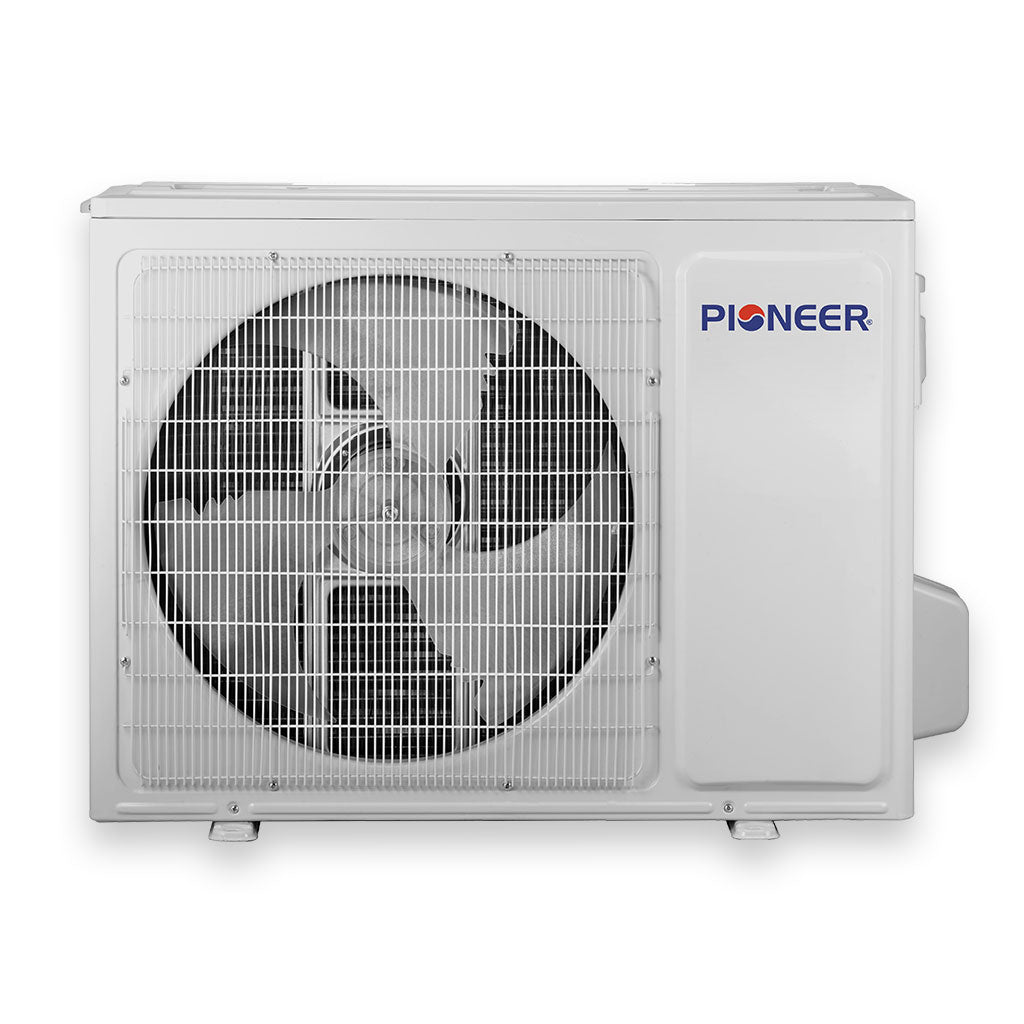

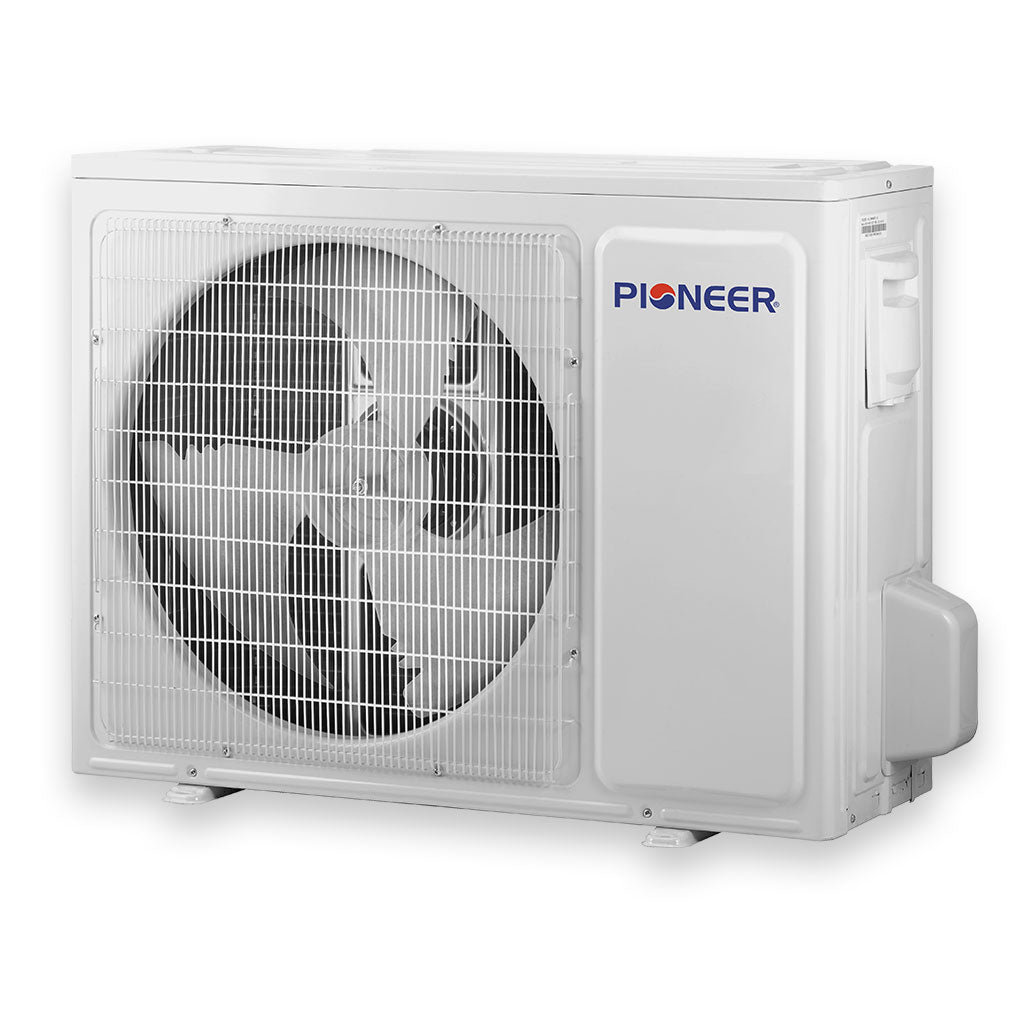

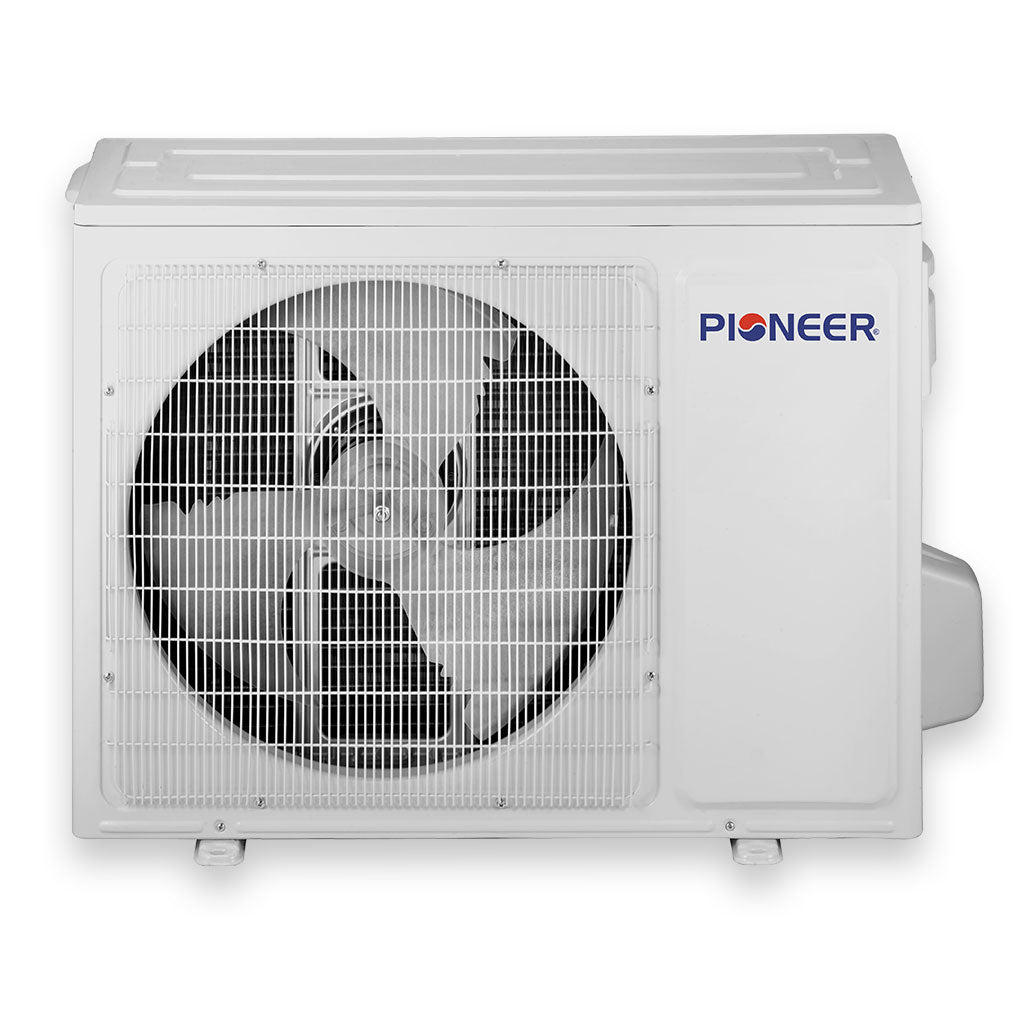

- Outdoor Unit

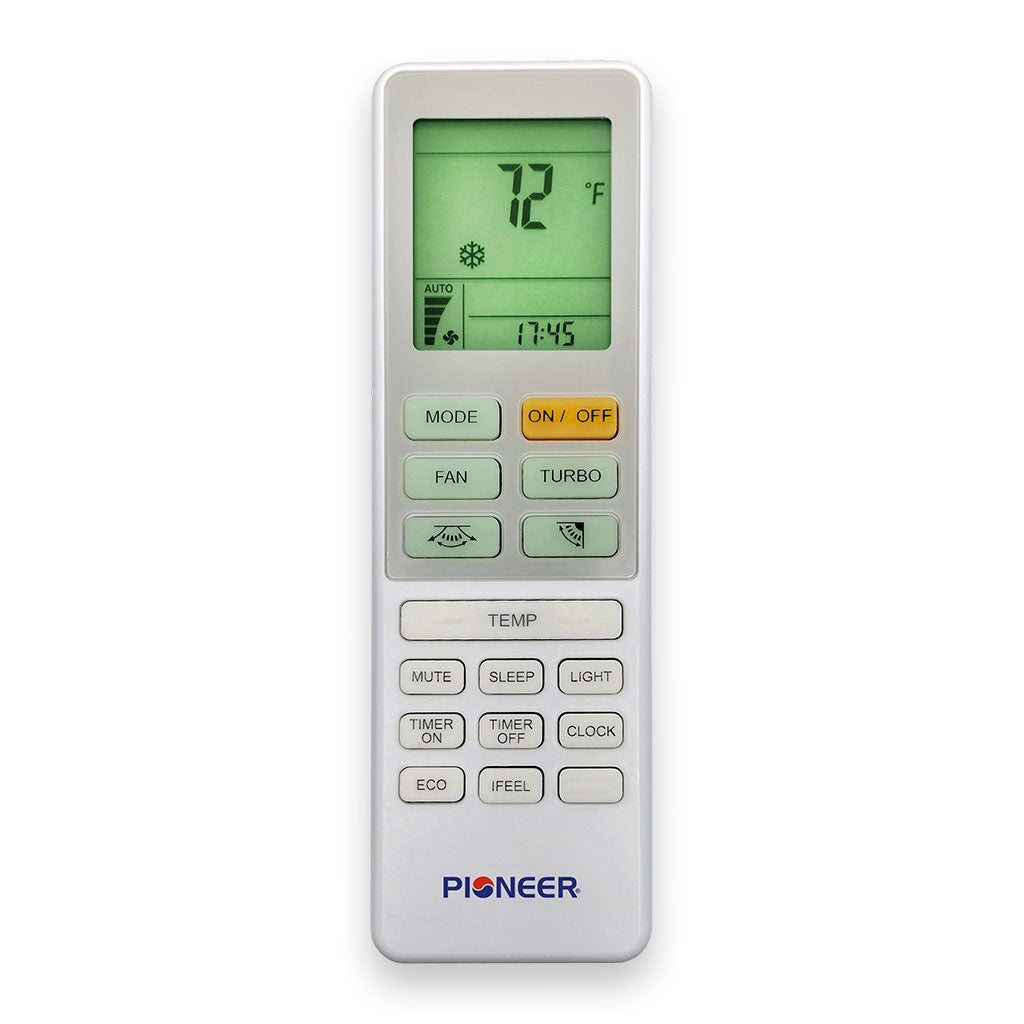

- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module
- Copper Lines*
- Signal Cable Between Units*
- Drain for Indoor/Outdoor*
- Wall Passage Sleeve*
- Putty for Wall Hole*
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
*If ordered with an installation kit
Our Guarantee
- 5 years Warranty for Parts (Extendable to up to 7 years)
- 5 years for Compressor (Extendable to up to 10 years)
Technical Information
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity (BTU/hr): 24,000 (5,500 ~ 25,000)
- Rated Power Input (Cooling): 1,920W
- Rated Current (Cooling): 8.5A
- Cooling SEER2: 21.0 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity (BTU/hr): 26,000 (6,000 ~ 27,000)
- Rated Power Input (Heating): 2,500W
- Rated Current (Heating): 11.2A
- Heating HSPF2 (Region IV/V): 11.5 / 10.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.05 / 1.75 W/W
-
Refrigerant Type/Weight: R410A/2.1kg
- Recommended Application Area: 500~1,000 Sq.Ft
Indoor Unit Data
- Part Number: WF024GHFI25HLH
- Air Flow (Hi/Med/Lo): 706 / 647 / 559 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 53/50/47/45/42 dB(A)
- Net Dimensions (WDH): 50-3/8 x 10-1/4 x 14-1/4 Inches
- Carton Dimensions (WDH): 54-1/2 x 12-3/4 x 17-1/8 Inches
- Net / Gross Weight: 40.1 / 50.3 Lbs

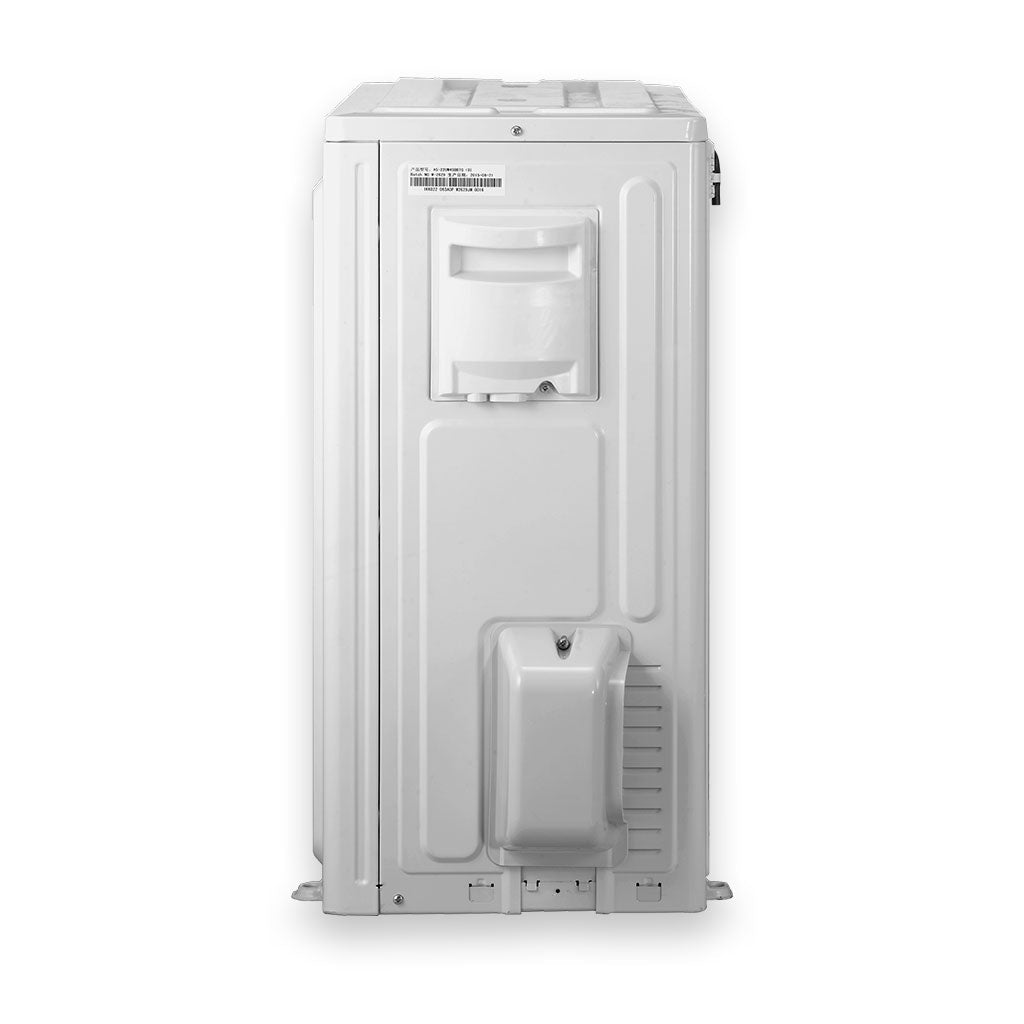

Outdoor Unit Data
- Part Number: YN024GHFI25RPH
-
Sound Level: 61 dB(A)
- Net Dimensions (WDH): 35-3/8 x 13-1/2 x 29-1/2 Inches
- Carton Dimensions (WDH): 41-3/4 x 17-3/4 x 32-1/4 Inches
- Net / Gross Weight: 132 / 140.8 lbs
- Electrical Circuit Size: 20A (double-pole)
