Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - Clearance 💰
Pioneer® Diamante Essenza™ 35,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - Clearance 💰
Series: Diamante Essenza™ High-Wall Series
Regular price
$1,292.58
Sale price
$1,292.58
Regular price
$1,648.00
Shipping calculated at checkout.
Hurry up, only 2 items left in stock.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
PLEASE NOTE, This listing contains scratch and dent OUTDOOR & INDOOR units. Mainly box damage with minor cosmetic imperfections to the units. Performance is not impacted. Full functionality and efficiency assured. 7-8/10 condition compared to new.
Summary

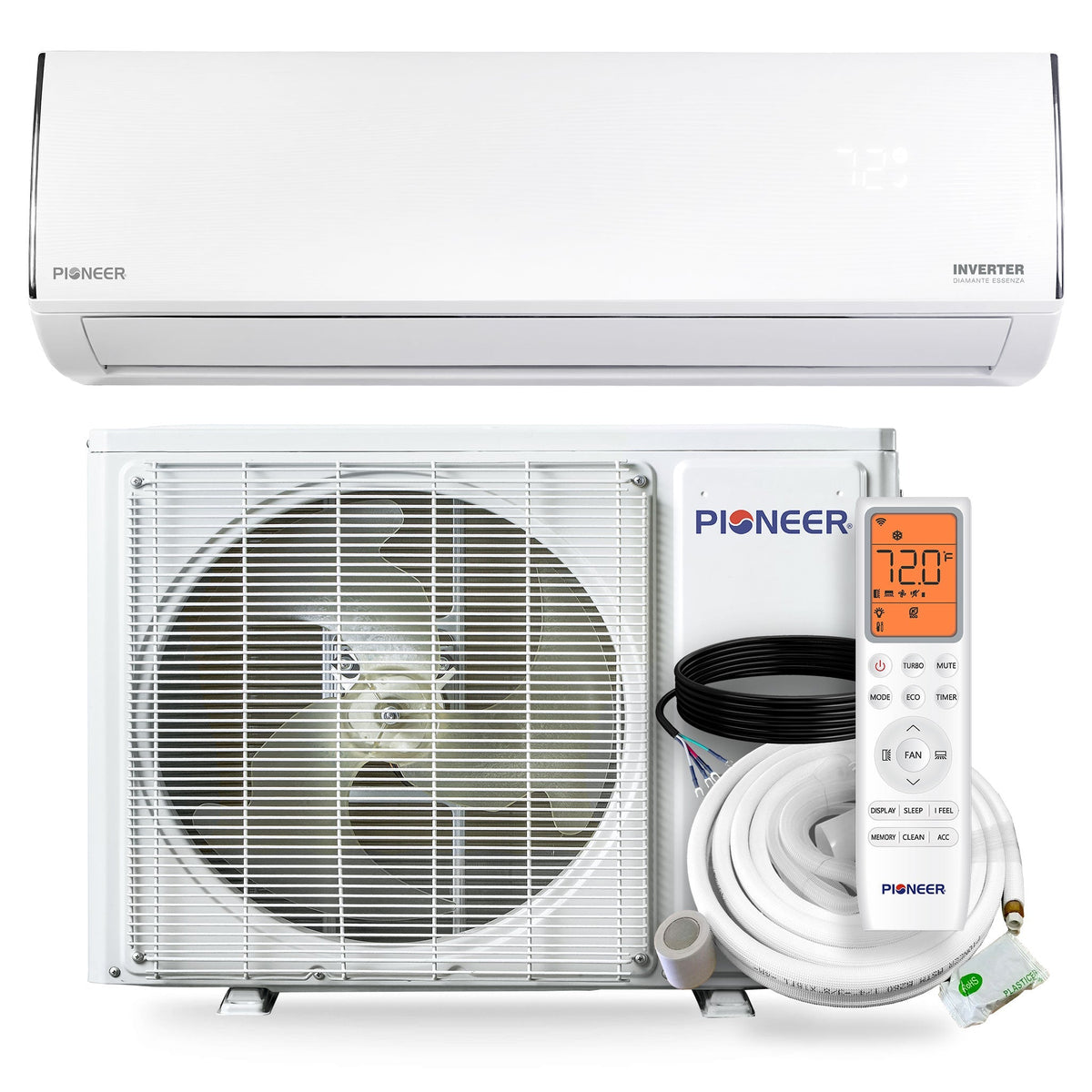

- Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
- Cooling capacity: 35,000 BTU/H with 17.0 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 35,400 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance

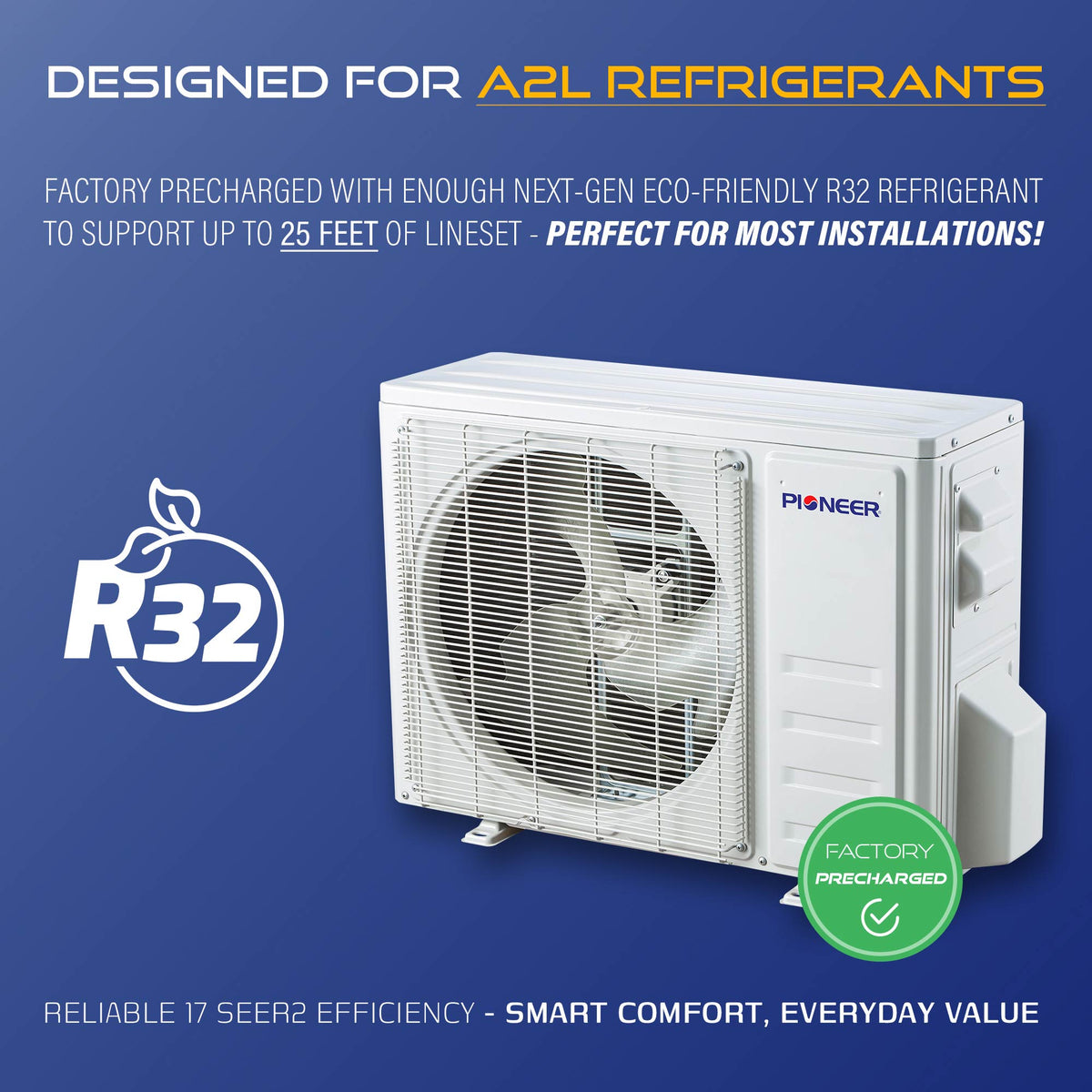

- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Dimensioning Chart
Technical Information & Performance
-

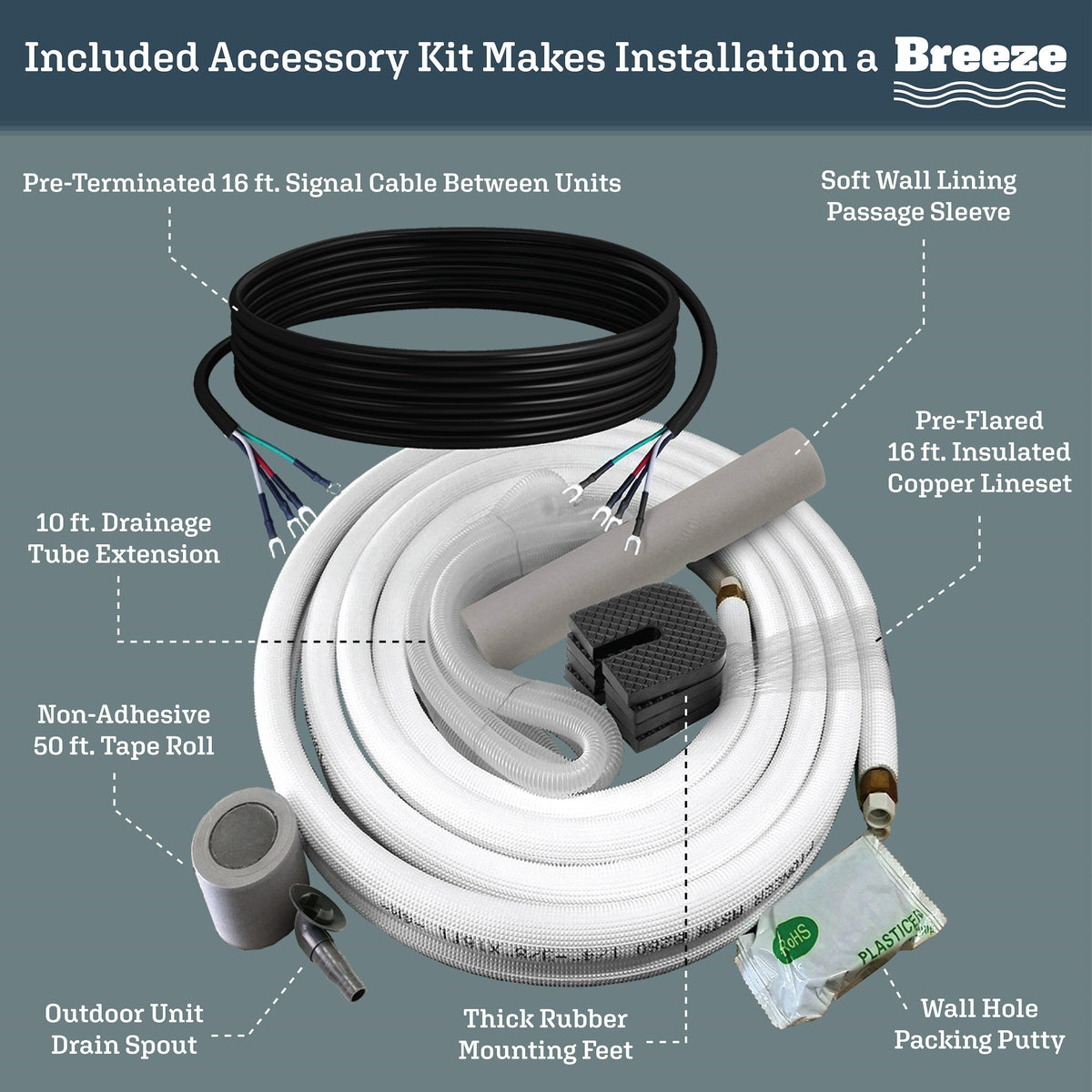

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 35,000 BTU/h
- Cooling Capacity Range: 7,500~36,000 BTU/h
- Cooling SEER2: 17.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 35,400 BTU/h
- Heating Capacity Range: 7,500~36,000 BTU/h
- Heating HSPF2 (Region IV/V): 8.5 / 7.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
- Refrigerant Type: R-32
- Recommended Room Size: 1,000~1,400 sq ft
- Minimum Room Size: 63 sq ft
-
Piping Diameter: 5/8" (Gas) / 1/4" (Liquid)
- AHRI Reference: 217048738
-
Indoor Unit
- Part Number: WT036GLUI17HLD
- Air Flow (Turbo/Hi/Med/Lo/Mute): 882 / 741 / 564 / 458 / 411 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 55 / 52 / 46 / 41 / 39 dB(A)
- Product Dimensions (WDH): 46"-7/8 x 10"-1/4 x 14"-1/4 Inches
- Carton Dimensions (WDH): 49"-5/8 x 12"-7/8 x 16"-7/8 Inches
- Net / Gross Weight: 38.6 / 46.3 lbs.
-
Outdoor Unit
- Part Number: YN036GLUI17RPD
- Breaker Needed: 35A (double-pole)
- Sound Level: 63 dB(A)
- Net Dimensions (WDH): 38"-1/2 x 16"-1/2 x 31"-5/8 Inches
- Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 32"-7/8 Inches
- Net / Gross Weight: 105.8 / 120.2 lbs
