PLEASE NOTE, This listing contains a scratch and dent OUTDOOR unit ONLY. Mainly box damage with minor cosmetic imperfections to the units. Performance is not impacted. Full functionality and efficiency assured. 7-8/10 condition compared to new.

Summary

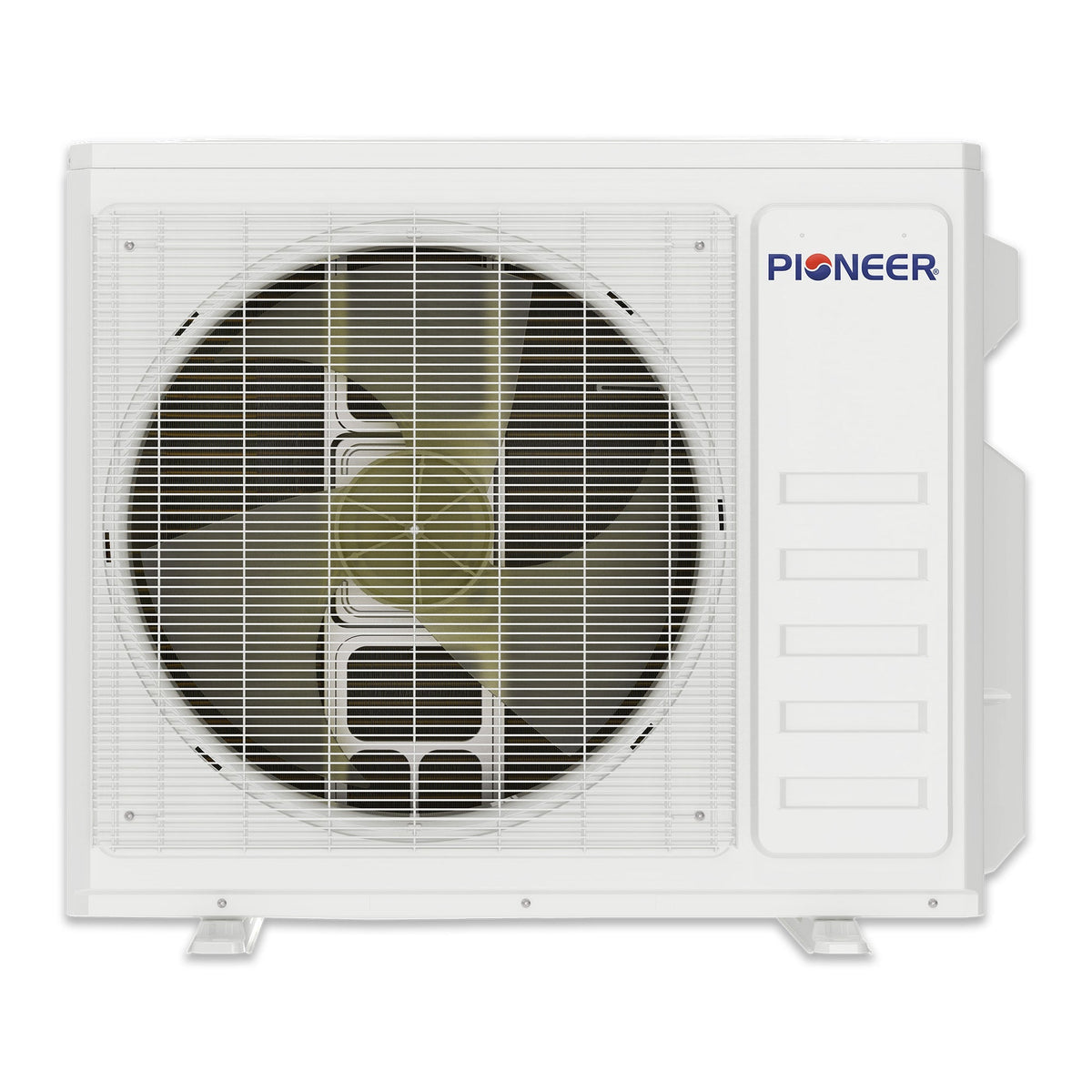

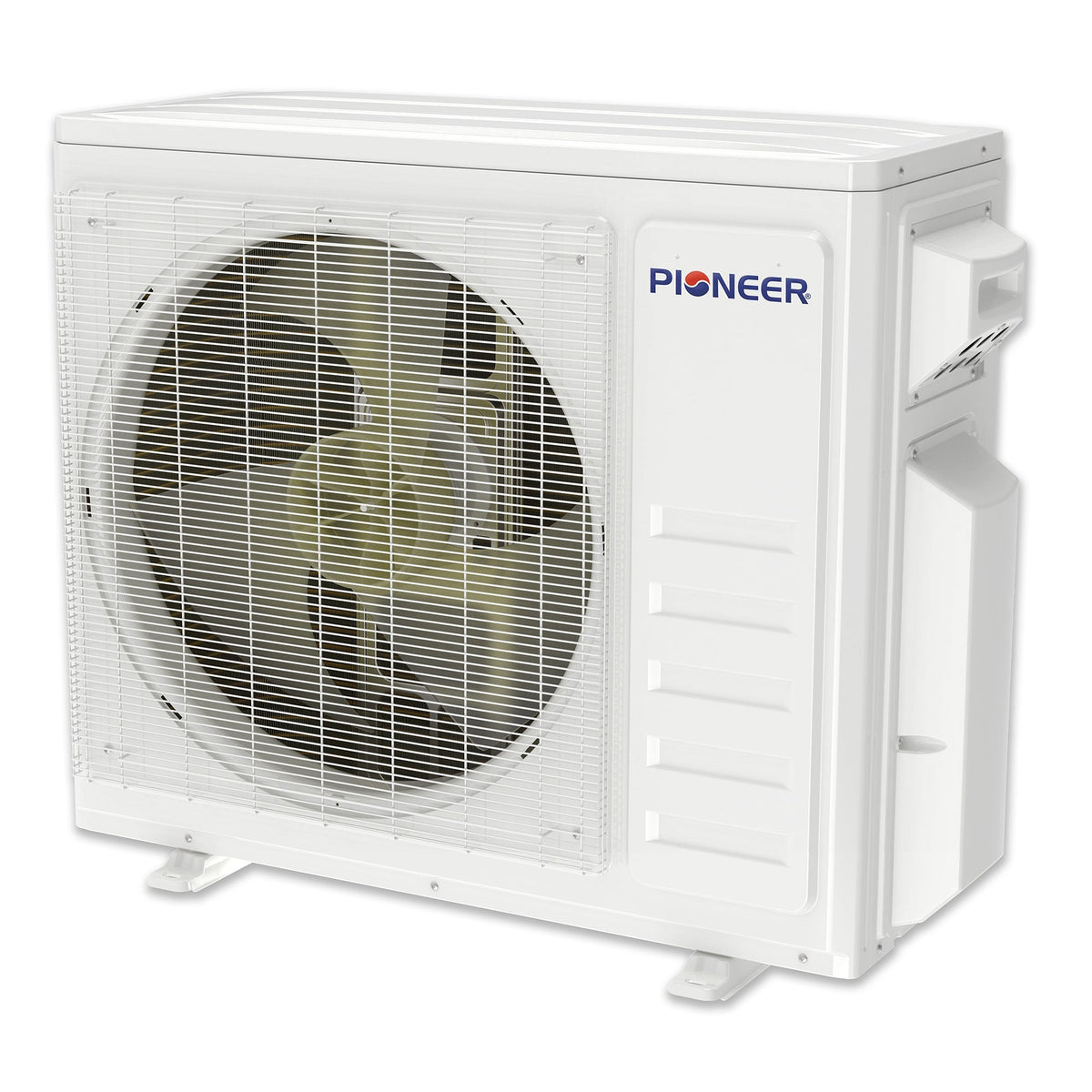

• Ultra High Efficiency Triple Zone (3 Circuit) Outdoor Condensing System
• Cooling Capacity: 27,000 BTU with 24.0 SEER2 / 12.0 EER2 efficiency
• Heating Capacity: 28,000 BTU with 10.5 HSP2 / 3.5 COP2 efficiency
• Energy-Star and Energy-Star Cold-Climate Designated Performance
• Wide Ambient Operation Range (As low as -13°F in Heating / As high as 131°F in Cooling)
• Factory Precharged to Cover Up to 75 Ft. of Total Combined Attached Lineset Length

• Can be Utilized as a Stronger Dual-Zone System by Leaving 3rd Zone Closed

Specifications

• Part Number: YN030GLSI24M3G
• Power Supply: 208~230V, 60Hz, 1Ph
• Communication Protocol: Current Loop
• Min-Max Load Attached: 18,000~39,000 BTU/h
• Refrigerant Type: R454B

• Minimum Room Size: 88 sq ft
• Maximum Circuit Breaker: 30A (double-pole)
• Net Dimensions (WDH): 38"-1/2 x 16"-1/2 x 31"-5/8 Inches
• Carton Dimensions (WDH): 40"-1/2 x 18"-7/8 x 32"-7/8 Inches
• Net / Gross Weight: 119.0 / 127.9 lbs
• AHRI Reference: 217048769 (Ductless) / 217048773 (Ducted)

Performance

• Cooling Rated Capacity (Ductless): 27,000 BTU/h
• Cooling Rated Capacity (Ducted): 27,000 BTU/h
• Cooling Capacity Range (Ductless/Ducted): 4,500~31,000 BTU/h
• Cooling SEER2 (Ductless): 24.0 BTU/W.h
• Cooling SEER2 (Ducted): 22.0 BTU/W.h
• Cooling EER2 (Ductless): 12.0 BTU/W.h
• Cooling EER2 (Ducted): 12.0 BTU/W.h
• Heating Rated Capacity (Ductless): 28,000 BTU/h
• Heating Rated Capacity (Ducted): 27,000 BTU/h
• Heating Capacity Range (Ductless/Ducted): 4,500~33,000 BTU/h
• Heating HSPF2 Region IV/V (Ductless): 10.5 / 8.8 BTU/W.h
• Heating HSPF2 Region IV/V (Ducted): 9.0 / 7.8 BTU/W.h
• Heating C.O.P.2 47°F/5°F (Ductless): 3.5 / 2.0 W/W
• Heating C.O.P.2 47°F/5°F (Ducted): 3.4 / 1.9 W/W
• Sound Level: 62 dB(A)

Technical Information & Certifications

• AHRI Certificate (Ductless Indoor Units / Ducted Indoor Units)
• Energy Guide

Submittal Sheets

• High Wall
  Submittal Sheet
• Ceiling Cassette
  Submittal Sheet
• Flex Mount
  Submittal Sheet
• Ceiling Concealed
  Submittal Sheet


Triple Zone Combinations (in thousands BTU)

9,000 BTU Compatible Units

• Wall Mounted: WT009GLSI24HLG (32"-1/4 x 7"-5/8 x 12" Inches WDH)
• Ceiling Cassette: CT009GLSILCFHG (22"-1/2 x 22"-1/2 x 9"-5/8 Inches WDH)
• Ductable Concealed: RT009GLSILCFHG (27"-1/2 x 19"-1/4 x 7"-7/8 Inches WDH)

12,000 BTU Compatible Units

• Wall Mounted: WT012GLSI24HLG (36"-1/2 x 7"-5/8 x 12" Inches WDH)
• Ceiling Cassette: CT012GLSILCFHG (22"-1/2 x 22"-1/2 x 9"-5/8 Inches WDH)
• Ductable Concealed: RT012GLSILCFHG (27"-1/2 x 19"-1/4 x 7"-7/8 Inches WDH)

18,000 BTU Compatible Units

• Wall Mounted: WT018GLSI24HLG (43"-1/8 x 8"-3/4 x 13" Inches WDH)
• Ceiling Cassette: CT018GLSILCFHG (22"-1/2 x 22"-1/2 x 9"-5/8 Inches WDH)
• Ductable Concealed: RT018GLSILCFHG (35"-1/2 x 19"-1/4 x 7"-7/8 Inches WDH)
• Floor-Ceiling Flex Console: UT018GLSILCFHG (41"-1/2 x 26"-1/2 x 9"-1/4 Inches WDH)

24,000 BTU Compatible Units

• Wall Mounted: WT024GLSI24HLG (43"-1/8 x 8"-3/4 x 13"-1/8 Inches WDH)
• Ceiling Cassette: CT024GLSILCFHG (33"-1/8 x 33"-3/4 x 10"-3/4 Inches WDH)
• Ductable Concealed: RT024GLSILCFHG (43"-1/4 x 17"-3/4 x 7"-7/8 Inches WDH)
• Floor-Ceiling Flex Console: UT024GLSILCFHG (41"-1/2 x 26"-1/2 x 9"-1/4 Inches WDH)

Min. / Max. Loading

18,000 / 39,000 BTU/h.
