Summary

• High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
• Cooling capacity: 48,000 BTU/H with 19.9 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 50,000 BTU/H with 12.0 HSPF2 / 2.82 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)


Dimensioning Chart

Technical Information & Performance

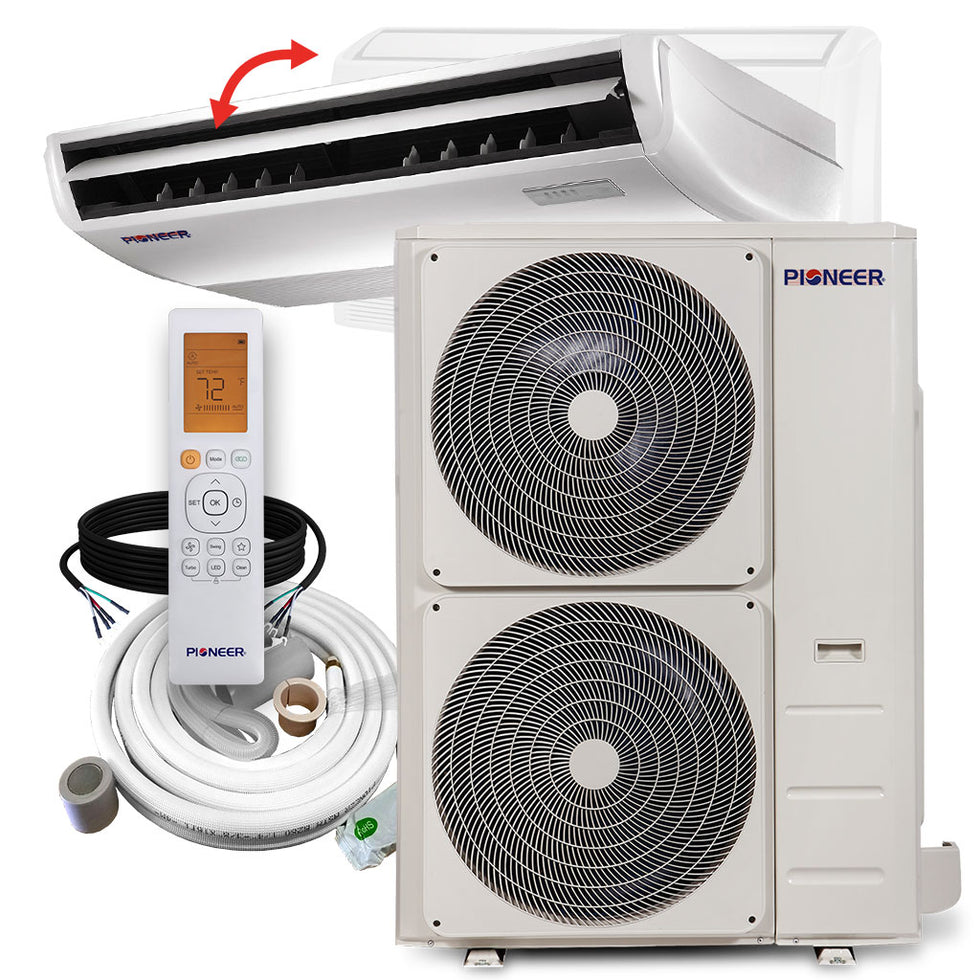

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 48,000 BTU/h
  • Cooling Capacity Range: 10,100~50,000 BTU/h
  • Cooling SEER2: 19.9 BTU/W.h
  • Cooling EER2: 9.5 BTU/W.h
  • Heating Rated Capacity: 50,000 BTU/h
  • Heating Capacity Range: 15,800~59,100 BTU/h
  • Heating HSPF2 (Region IV/V): 12.0 / 7.8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 2.82 / 1.95 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 1,400~1,800 sq ft
  • Minimum Room Size (Ceiling Suspended): 143 sq ft
  • Minimum Room Size (Floor/Low Wall): 700 sq ft
  • Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)

  • AHRI Reference: 218010996

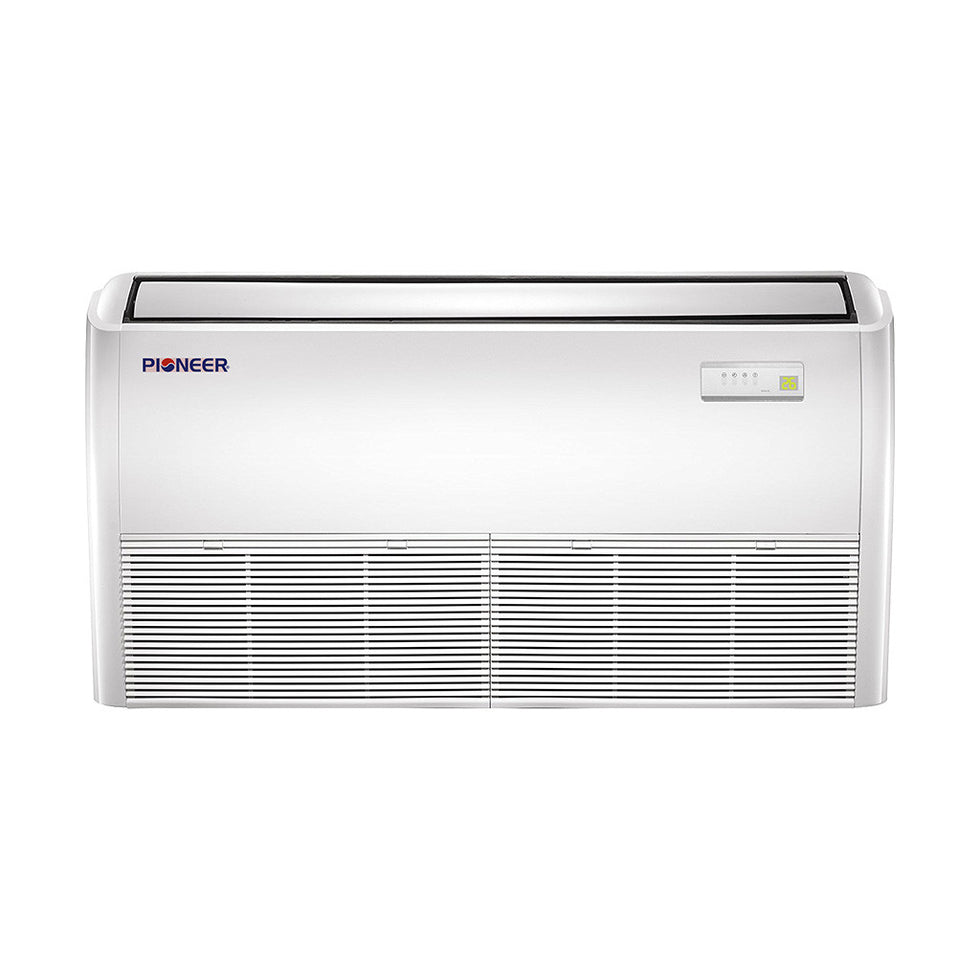

• Indoor Unit
  • Part Number: UB048GMSILDFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 1,354 / 1,236 / 1,083 / 800 / 665 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 55 / 53 / 49 / 39 / 34 dB(A)
  • Product Dimensions (WDH): 65" x 26"-5/8 x 9"-1/4 Inches
  • Carton Dimensions (WDH): 68"-3/8 x 30" x 12"-1/4 Inches
  • Net / Gross Weight: 89.0 / 105.0 lbs

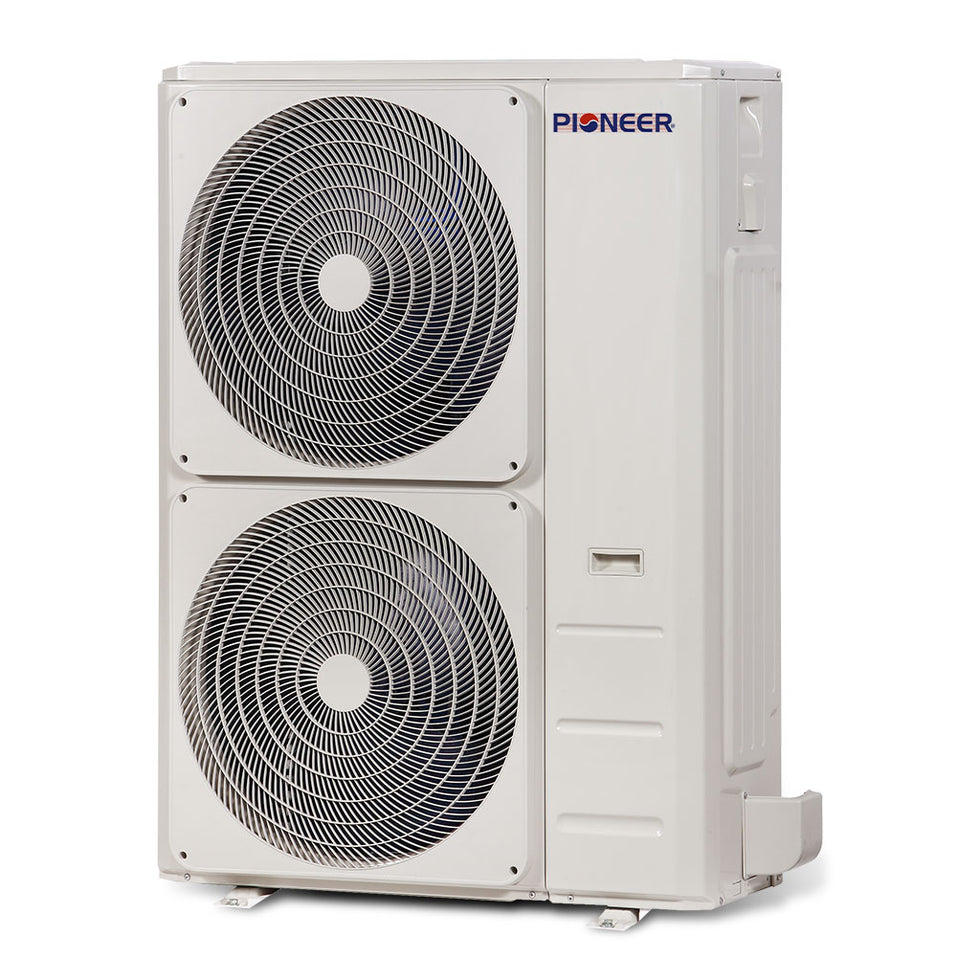

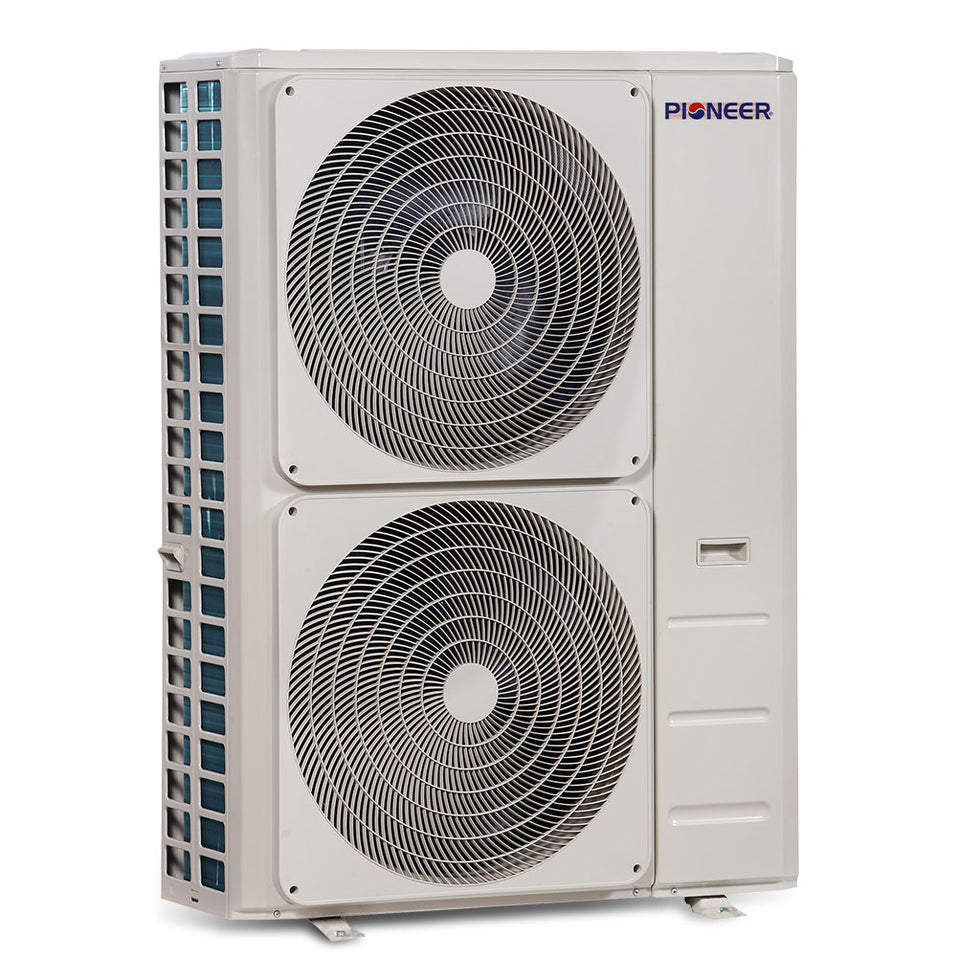

• Outdoor Unit
  • Part Number: YN048GMSI20RUG
  • Breaker Needed: 45A (double-pole)
  • Sound Level: 64 dB(A)
  • Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
  • Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 57"-1/2 Inches
  • Net / Gross Weight: 208.8 / 237.5 lbs

Product Certifications

• AHRI Certificate
• Energy Guide
• Submittal Sheet
