Pioneer® Quantum Ultra™ 12,000 BTU 24.6 SEER2 230V Floor/Low-Wall Mounted Console Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Product Details

Summary

High Efficiency Quantum Ultra Floor/Low-Wall Mounted Console Split Heat Pump System
Cooling capacity: 12,000 BTU/H with 24.6 SEER2 / 12.7 EER2 efficiency
Heating capacity: 12,000 BTU/H with 11.0 HSPF2 / 3.9 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph

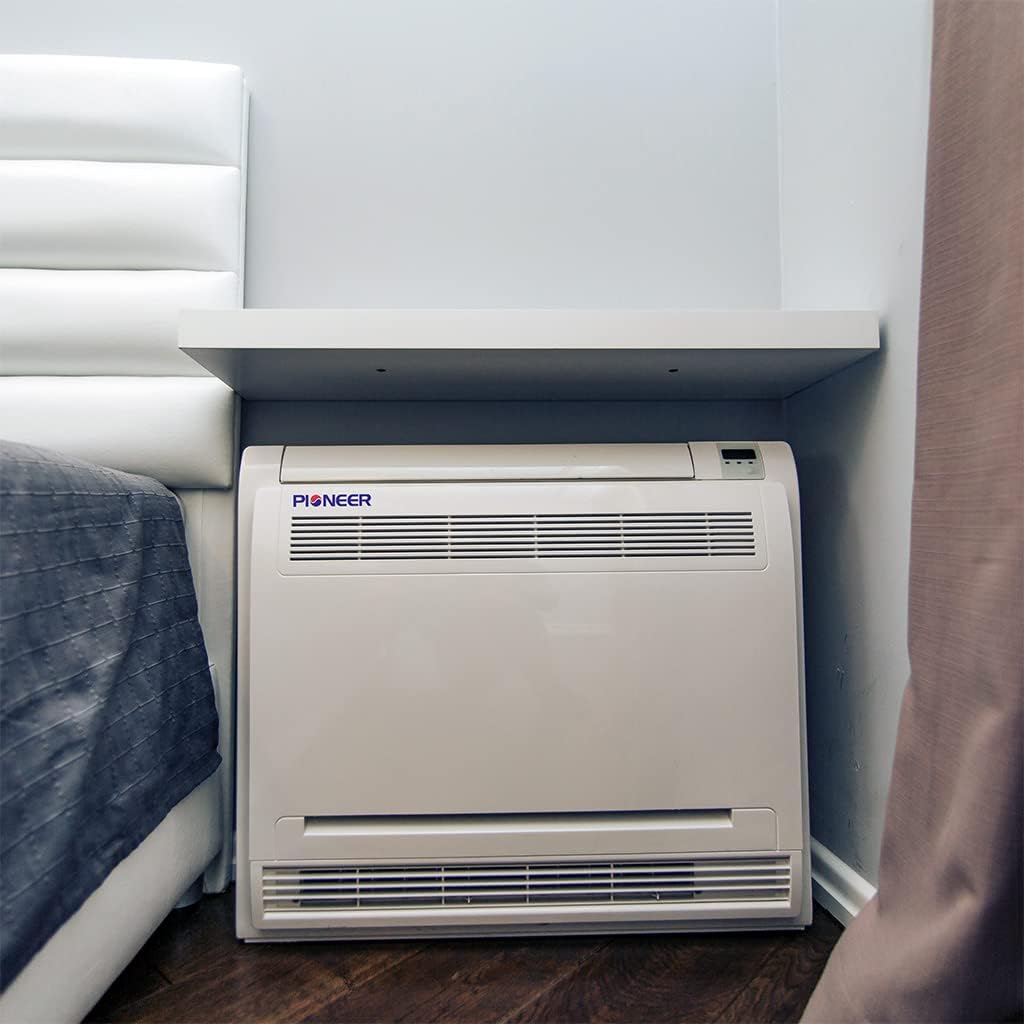

Floor/Low-Wall Mounted Console Ductless Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Coolin

Dimension Chart

Technical Information & Performance

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 4,000~13,100 BTU/h
- Cooling SEER2: 24.6 BTU/W.h
- Cooling EER2: 12.7 BTU/W.h
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 5,100~12,900 BTU/h
- Heating HSPF2 (Region IV/V): 11.0 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.9 / 2.5 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 350~500 sq ft
- Minimum Room Size: 154 sq ft
- Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
- AHRI Reference: 218010989

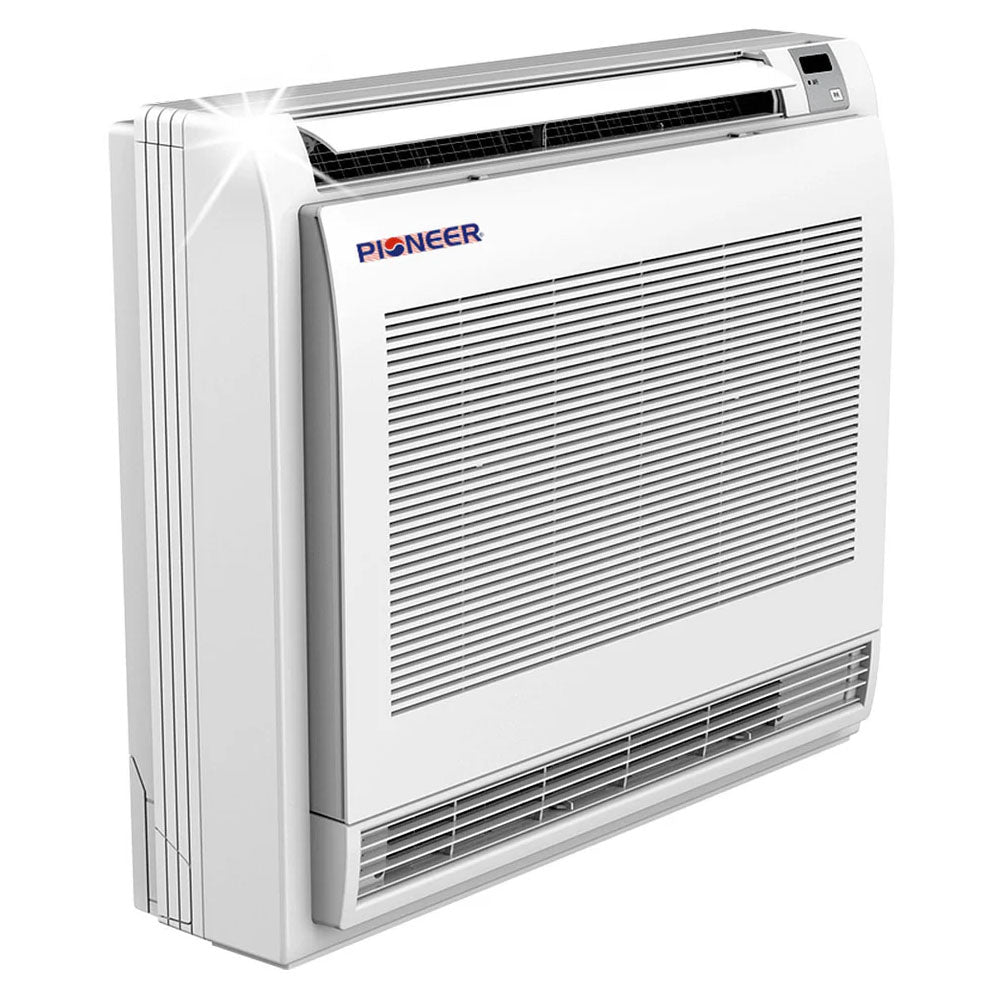

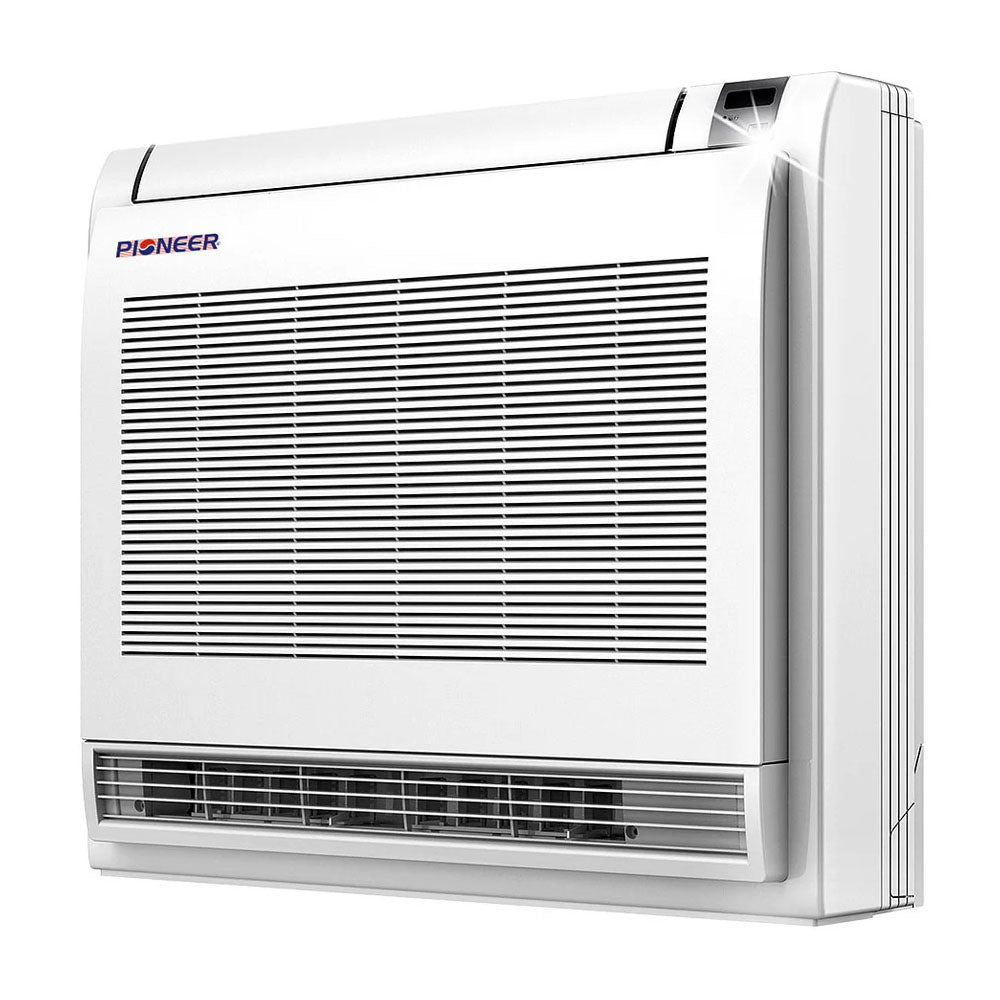

Indoor Unit
- Part Number: FB012GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 441 / 386 / 324 / 188 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 39 / 34.5 / 29.5 dB(A)
- Product Dimensions (WDH): 31"-1/4 x 7"-7/8 x 24"-1/2 Inches
- Carton Dimensions (WDH): 34"-1/8 x 11" x 28"-3/8 Inches
- Net / Gross Weight: 32.9 / 41.9 lbs

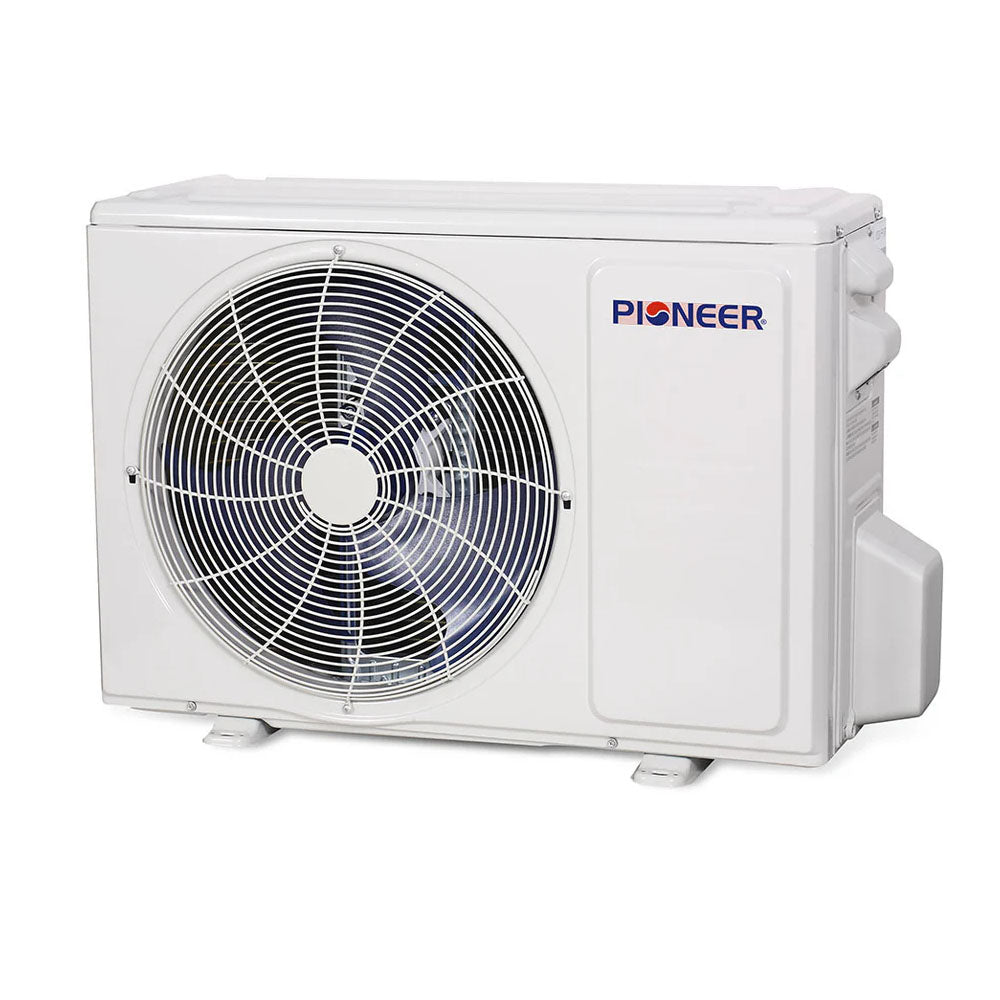

Outdoor Unit
- Part Number: YN012GMSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 55 dB(A)
- Net Dimensions (WDH): 30"-1/8 x 12" x 21"-7/8 Inches
- Carton Dimensions (WDH): 35" x 13"-1/4 x 24" Inches
- Net / Gross Weight: 62.1 / 67.7 lbs

Product Certifications

Series Details

Quantum Ultra™ Floor-Mounted Console

IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

Standard Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

Functional Remote

ECO and SLEEP Modes, for Energy-Conservation
Timer On/Off Control
TURBO, for Times of High-Demand
Self-Clean Cycle
MEMORY, to Recall Favorite Settings
IFEEL, to Detect and Adjust to Local Temperature

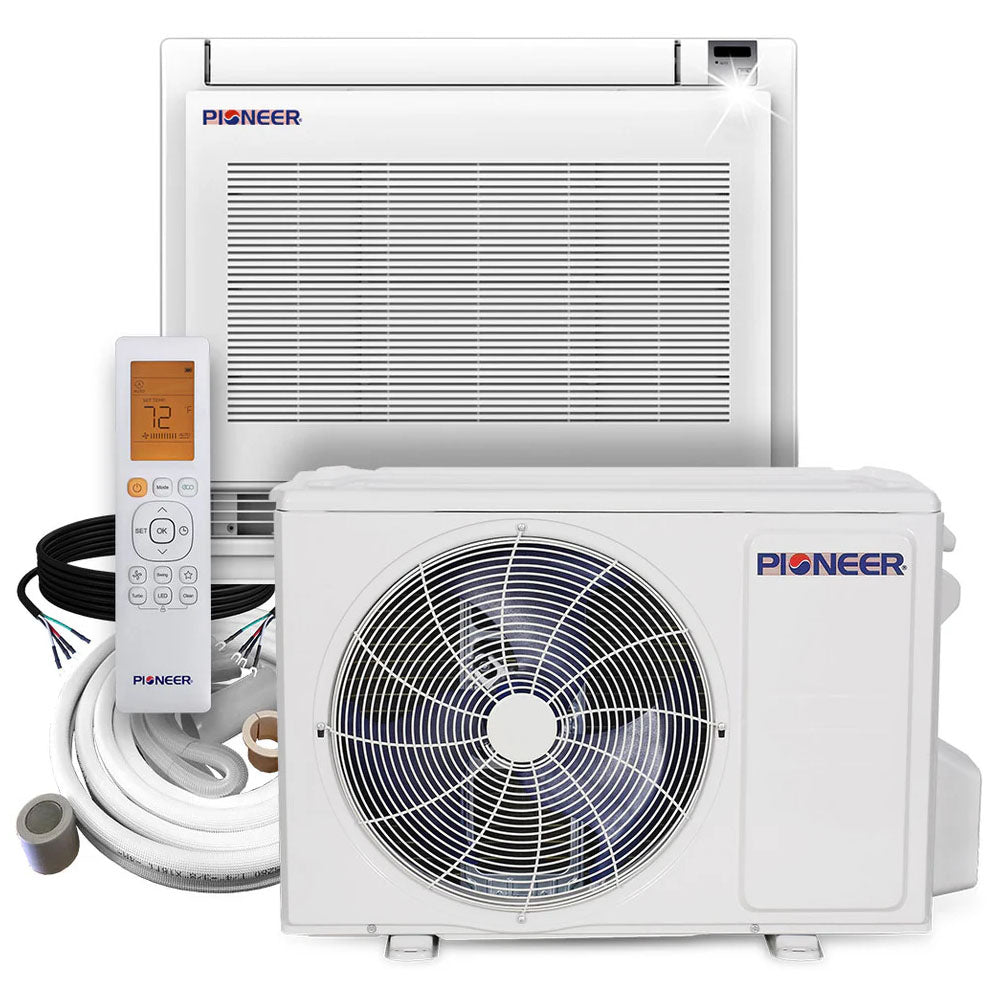

What's Included in Your Purchase

Indoor Unit
Outdoor Unit
Indoor Panel

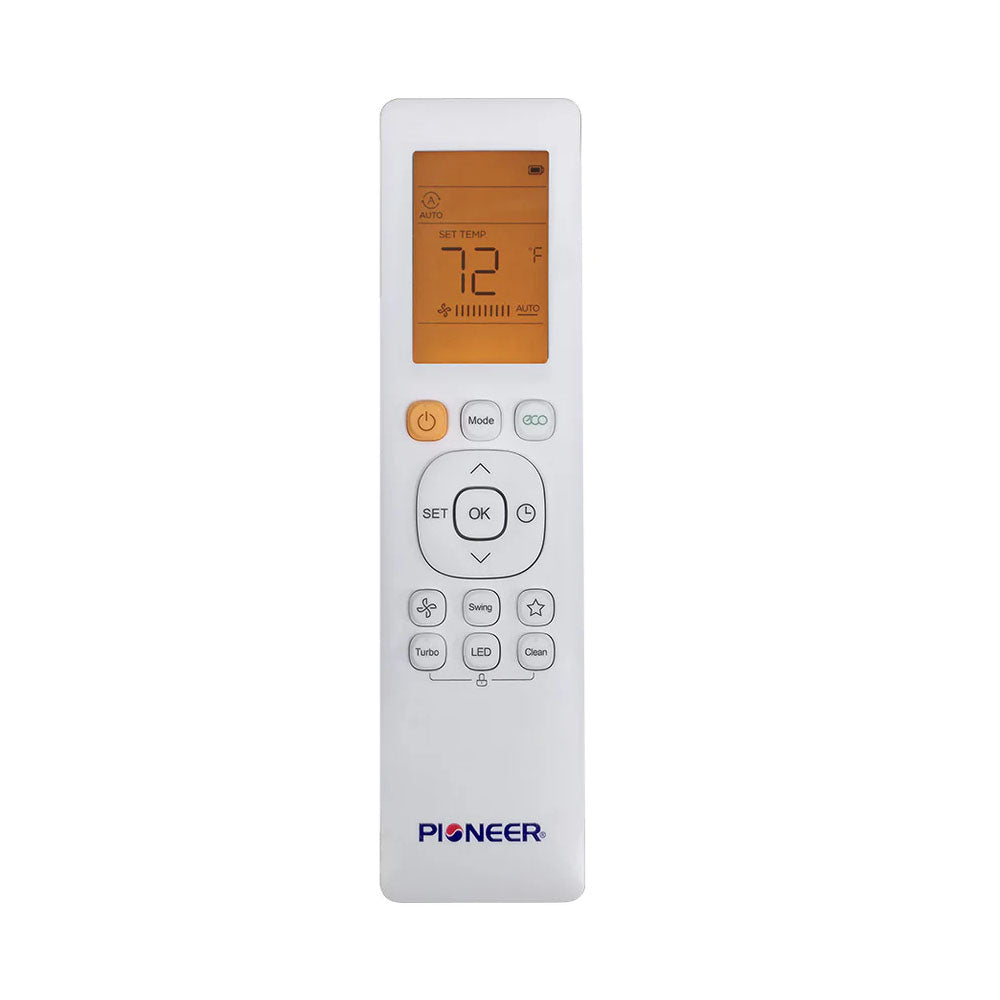

Wireless Remote Control
Remote Control Wall Holder
Remote Control Batteries

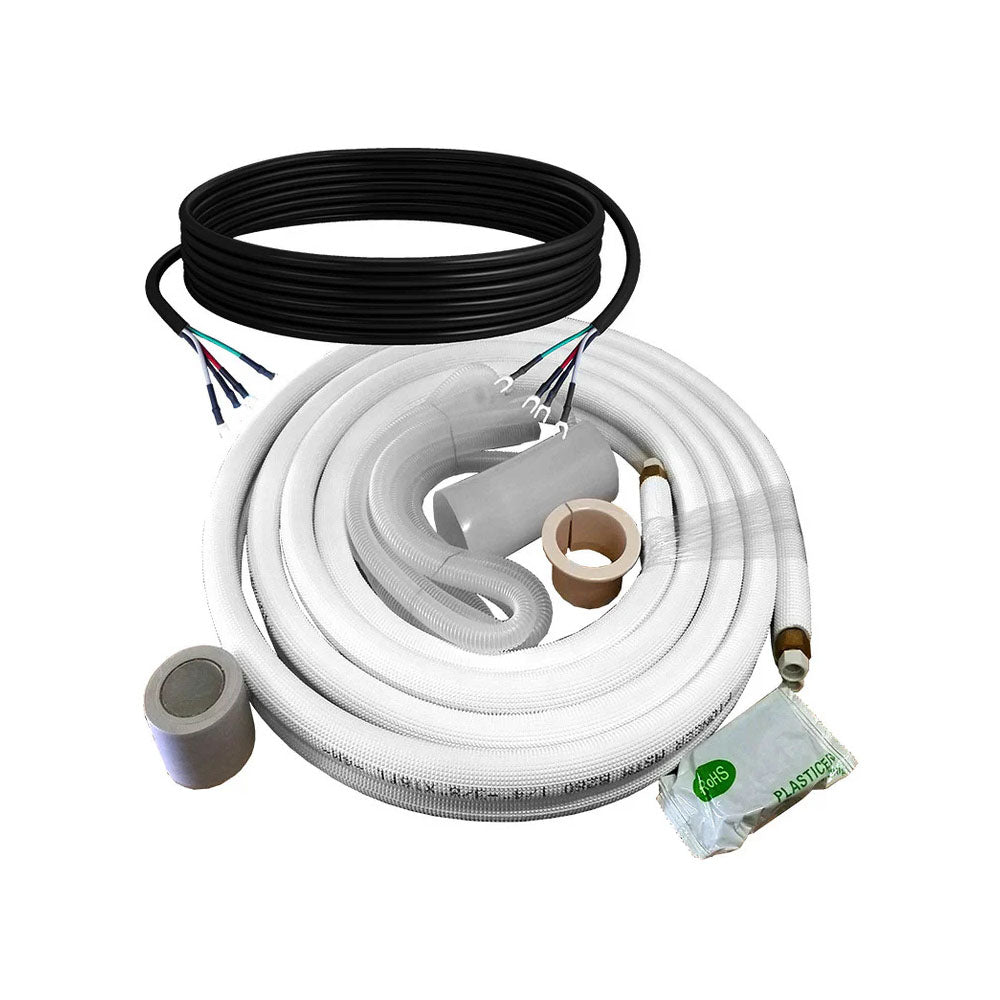

Customizable Length Copper Lines
Customizable Length Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Manuals & Documents

Pioneer® Quantum Ultra™ 12,000 BTU 24.6 SEER2 230V Floor/Low-Wall Mounted Console Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Series: Quantum Ultra™ Floor-Mounted Console

SKU: FYB012GMSI24RL-10S

$1,413.00

$1,413.00 ~~$1,836.90~~

Shipping calculated at checkout.
