Pioneer® Diamante Ultra 24,000 BTU 20 SEER Wi-Fi Ductless Mini-Split Inverter++ Air Conditioner Heat Pump Full Set with 16 Ft. Kit - 230V

SKU: WYT024GLFI22RL

Price:
Sale price$1,578.00 Regular price$2,489.00

Shipping calculated at checkout

Financing:
Stock:
In stock

Pickup available at Parker Davis HQ

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

IMPORTANT NOTE:
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.

Summary

  • Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
  • Cooling capacity: 23,000 BTU/H with 20 SEER/12.5 EER efficiency
  • Heating capacity: 24,000 BTU/H with 10 HSPF/3.2 COP efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)
  • Wireless Internet Access Included (Via Free Smartphone App)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $152.00
    • Heating: $507.00

Features

  • Dual Swing
  • Dual Drainage
  • Ultra Low Noise
  • Ultra High Efficiency
  • Energy-Star Certified
  • Wi-Fi Enabled

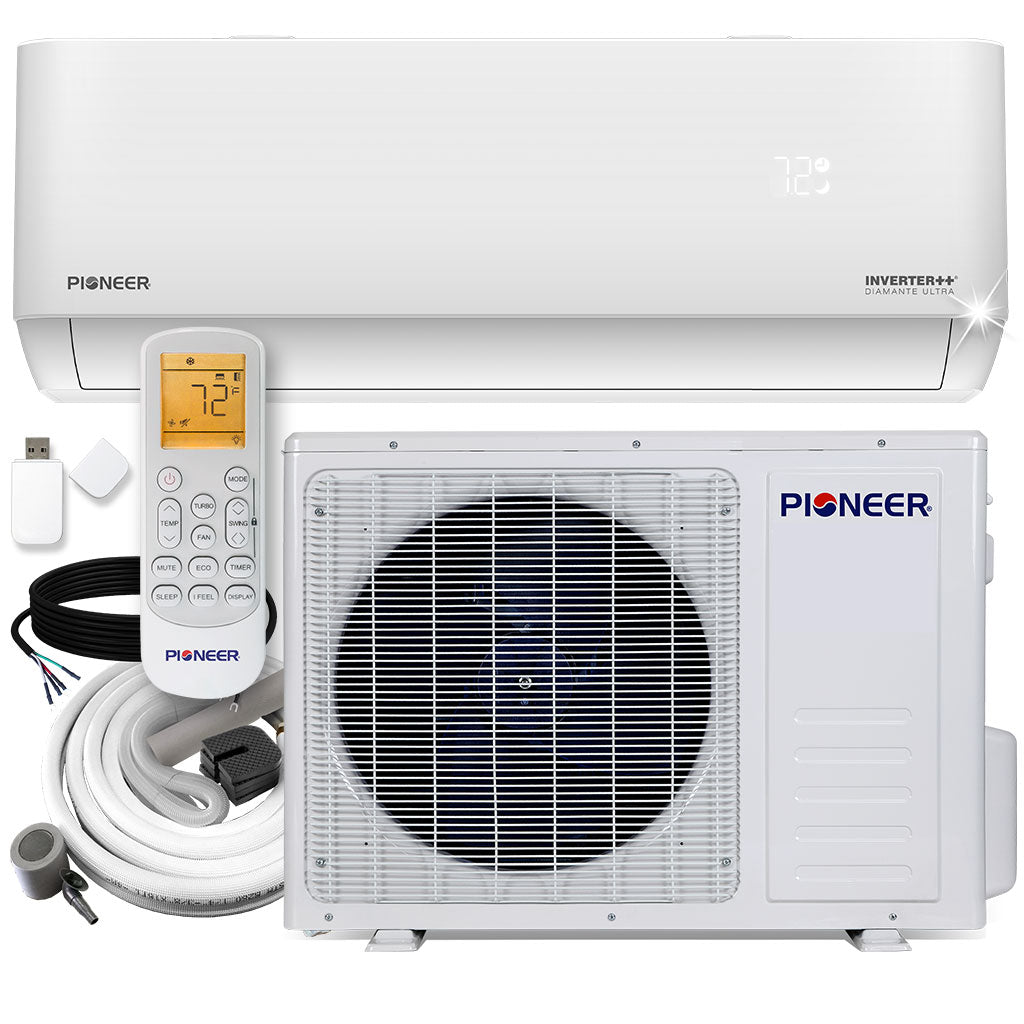

What's Included

  • Indoor Unit
  • Outdoor Unit

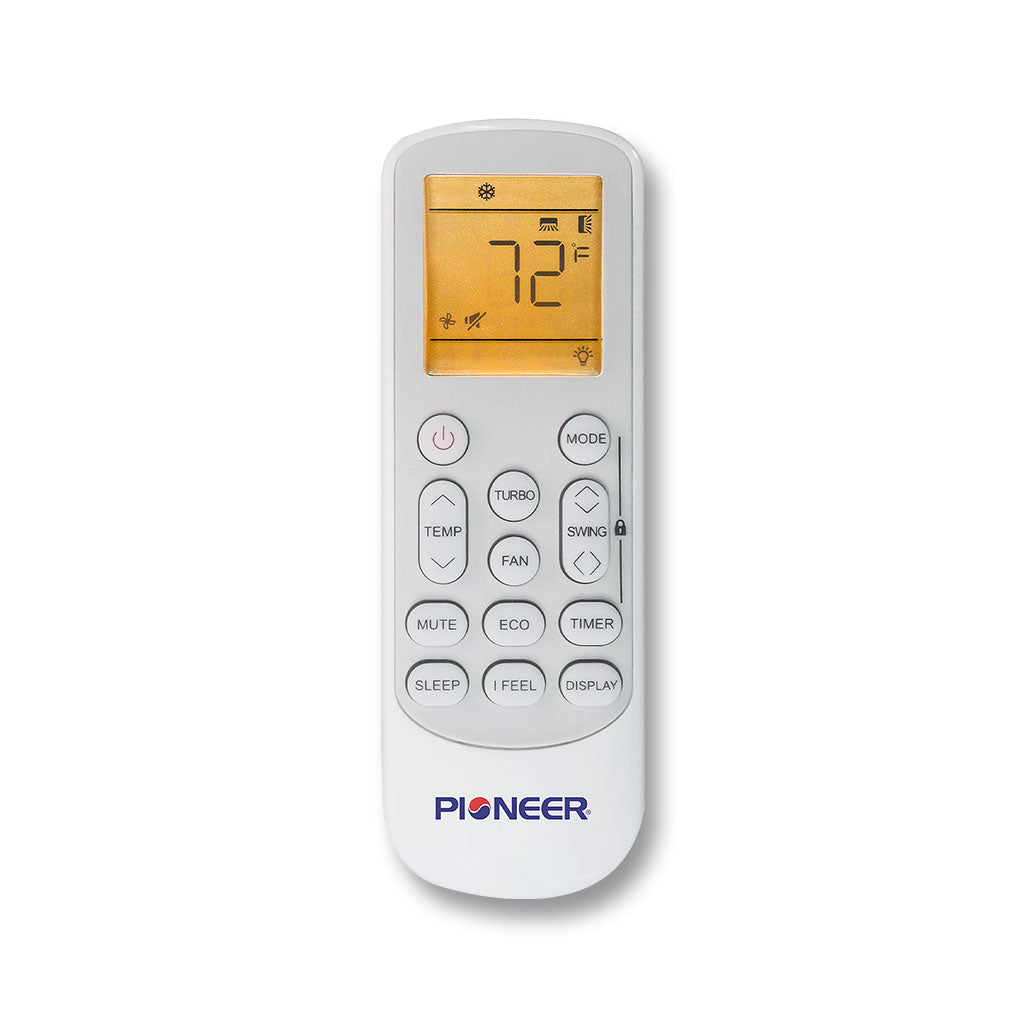

  • Wireless Remote Control (with wall holder and batteries)

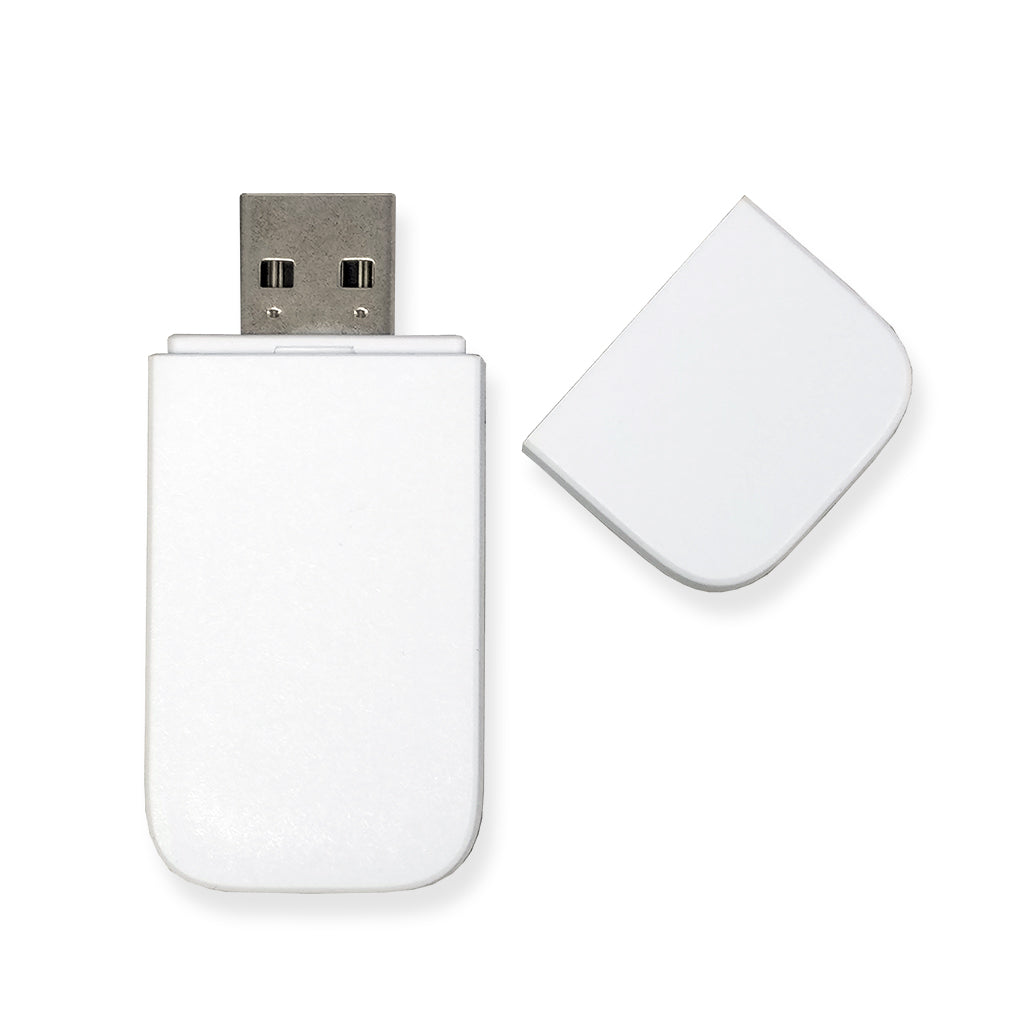

  • Internet Control Module
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts
  • 5 years for Compressor

Performance Data

  • Power Supply: 230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 23,000 BTU/h (1.9 Ton)
  • Rated Power Input (Cooling): 1920W
  • Cooling SEER: 20 BTU/w
  • Heating Rated Capacity: 24,000 BTU/h (2 Ton)
  • Rated Power Input (Heating): 2050W
  • Heating HSPF4: 10 BTU/w
  • Refrigerant Type: R410A
  • Recommended Application Area: 600~950 Sq.Ft

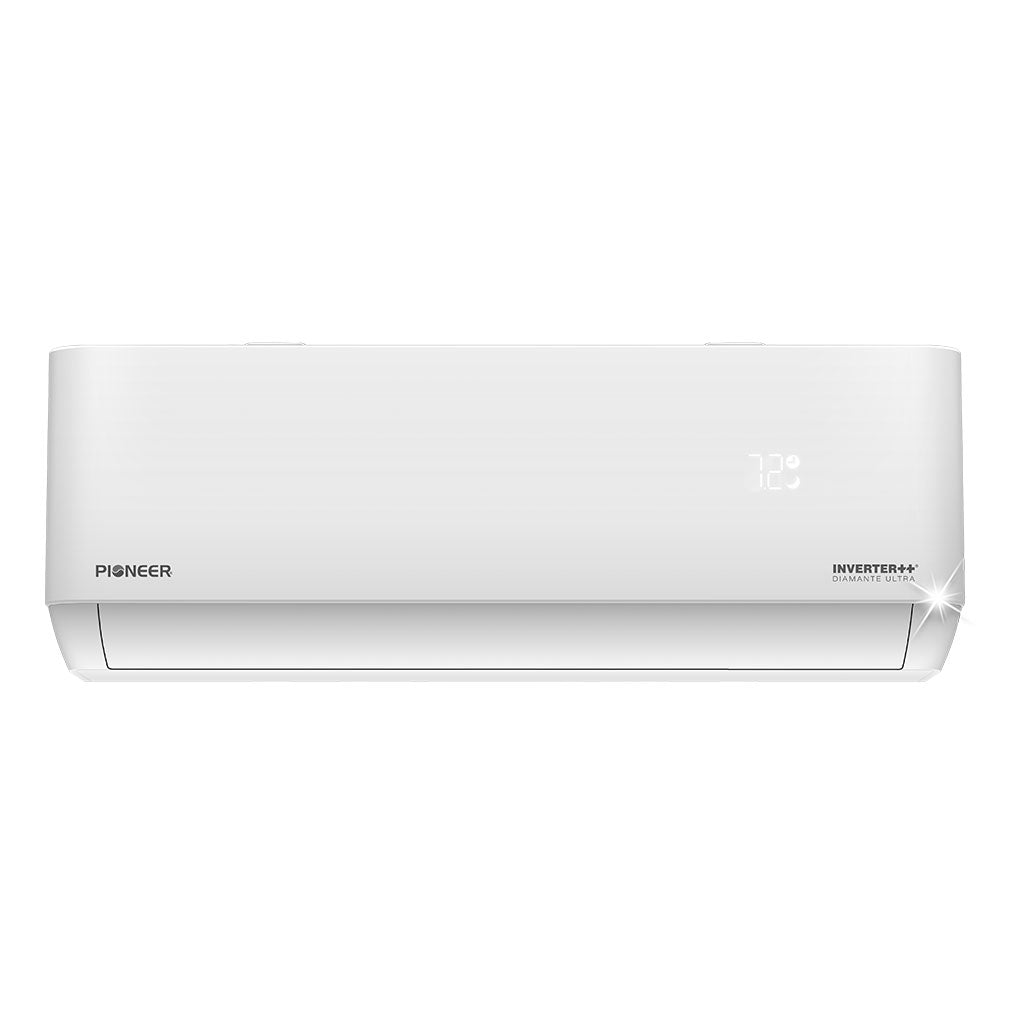

Indoor Unit Data

  • Model Number: WT024GLFI22HLD
  • Air Flow (Hi): 735 CFM
  • Sound Level (Hi/Med/Lo/Mute): 45/40/35/31 dB(A)
  • Net Dimensions (WDH): 43-3/8 x 8-3/4 x 13-1/8 Inches
  • Carton Dimensions (WDH): 45-7/8 x 11-5/8 x 16 Inches
  • Net / Gross Weight: 30.9 / 35.3 Lbs

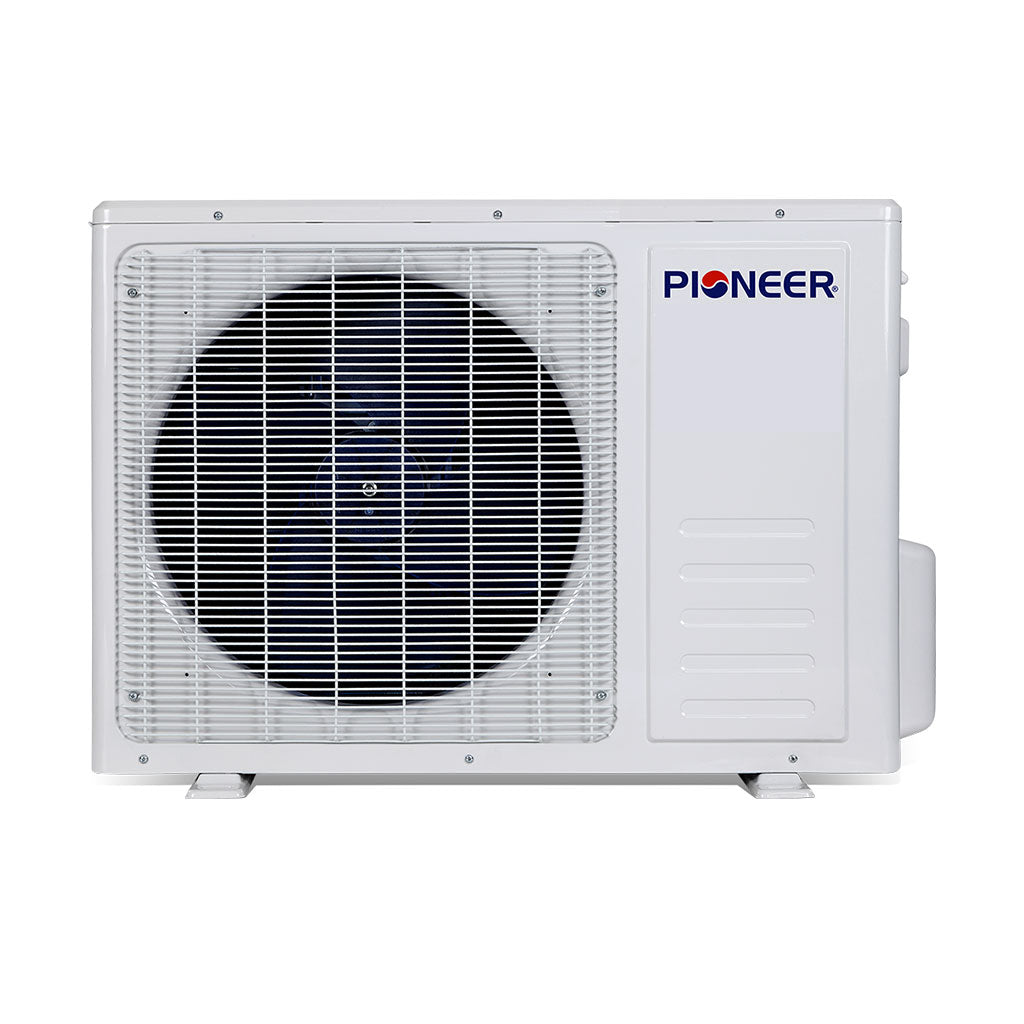

Outdoor Unit Data

  • Model Number: YN024GLFI22RPD
  • Sound Level: 58 dB(A)
  • Net Dimensions (WDH): 35-7/8 x 15-5/8 x 31-5/8 Inches
  • Carton Dimensions (WDH): 40-1/2  x 19-1/8 x 33-1/2 Inches
  • Net / Gross Weight: 104.7 / 119.1 lbs
  • Electrical Circuit Size: 20A (double-pole)
