Pioneer® Diamante Pro Series 30,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit

SKU: WYT030GLFI19RL

Price:
Sale price$1,638.00 Regular price$2,339.00

Shipping calculated at checkout

Financing:
Stock:
In stock

Pickup available at Parker Davis HQ

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

IMPORTANT NOTE:
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.

Summary

  • High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
  • Cooling capacity: 30,000 BTU/H with 19 SEER2 / 9 EER2 efficiency
  • Heating capacity: 30,000 BTU/H with 8.5 HSPF2 / 3.01 COP2 efficiency
  • Voltage: 208~230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)

Features

  • Dual Swing
  • Dual Drainage
  • Low Noise
  • High Efficiency

Notes: See comparison table with WYS series

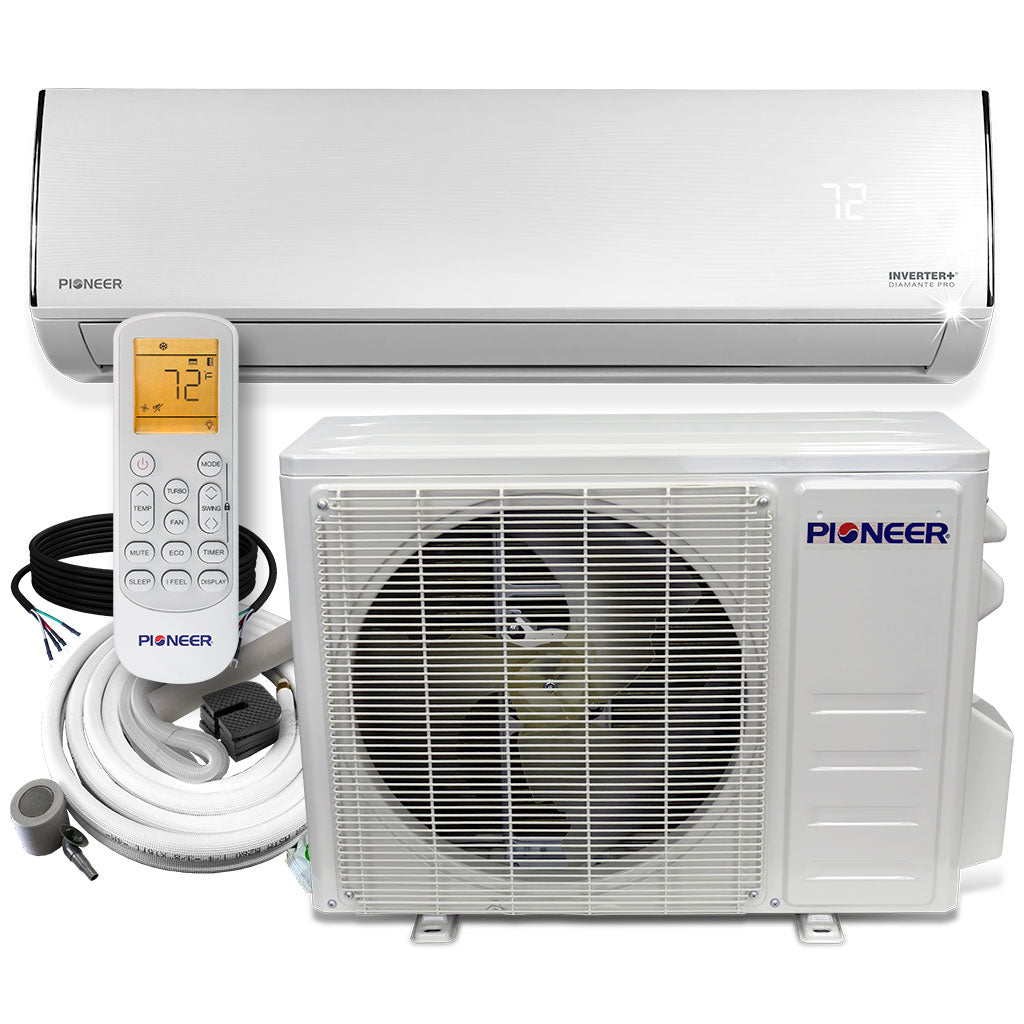

What's Included

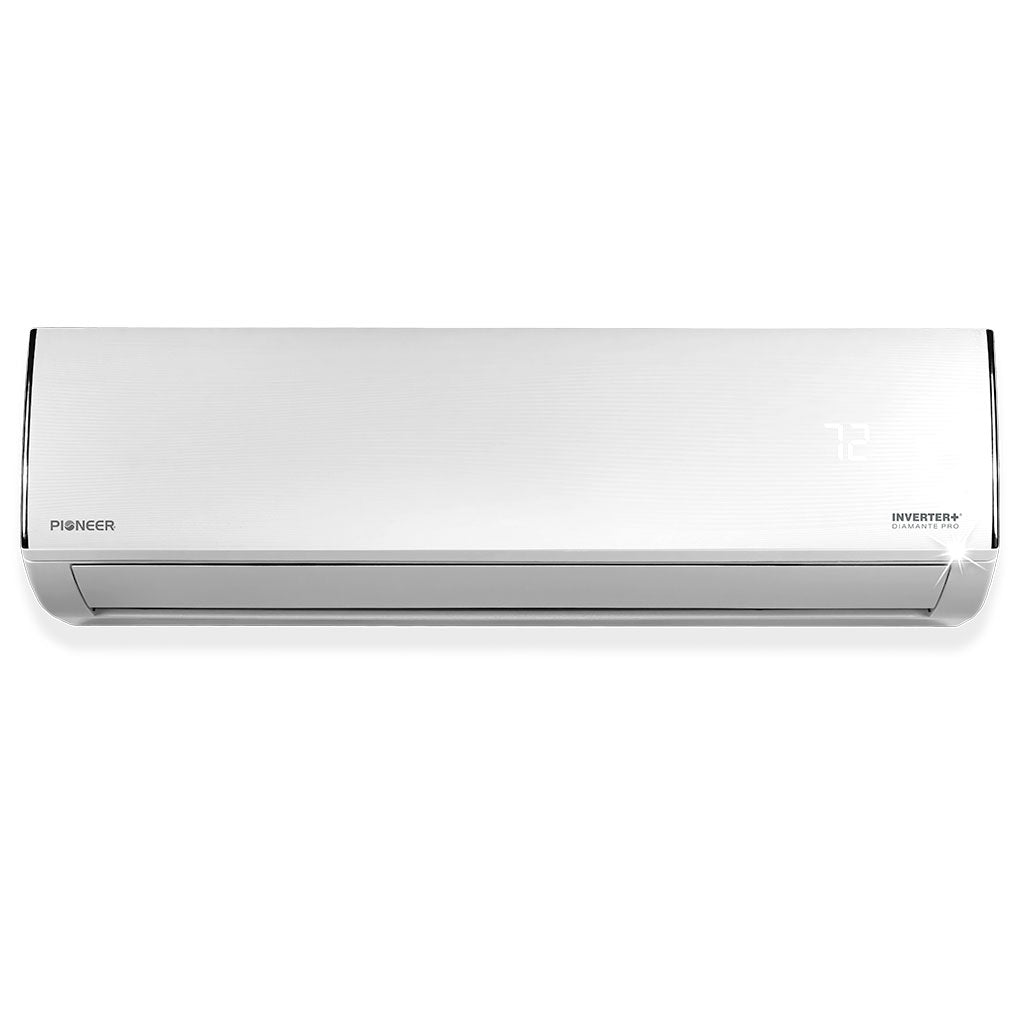

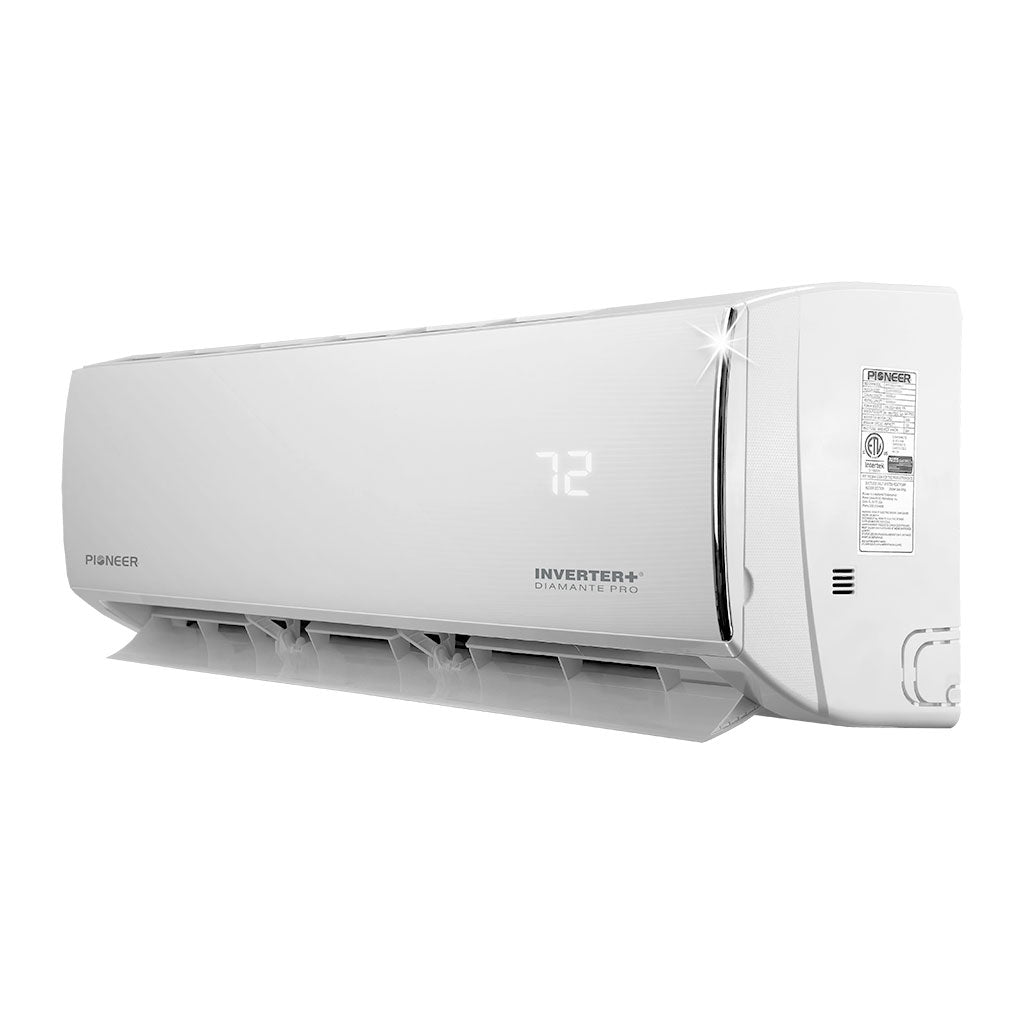

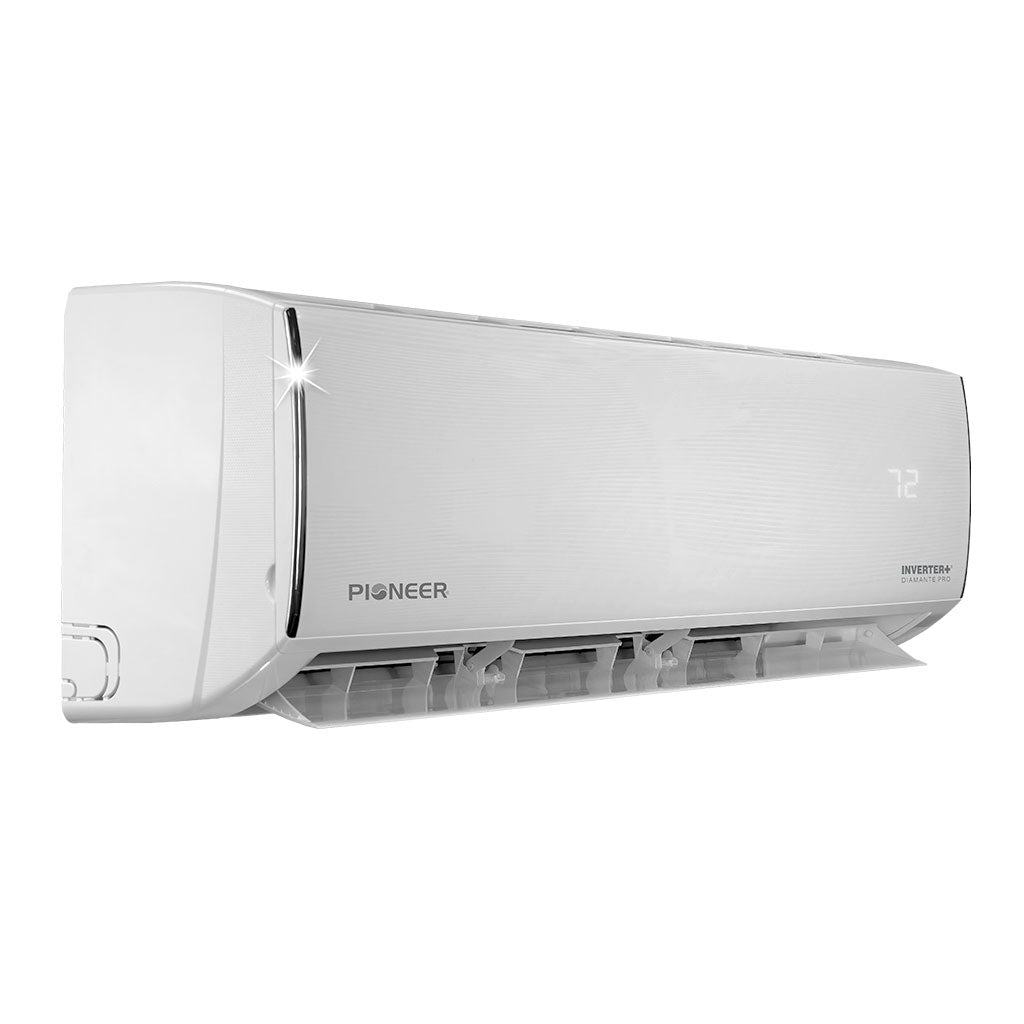

  • Indoor Unit

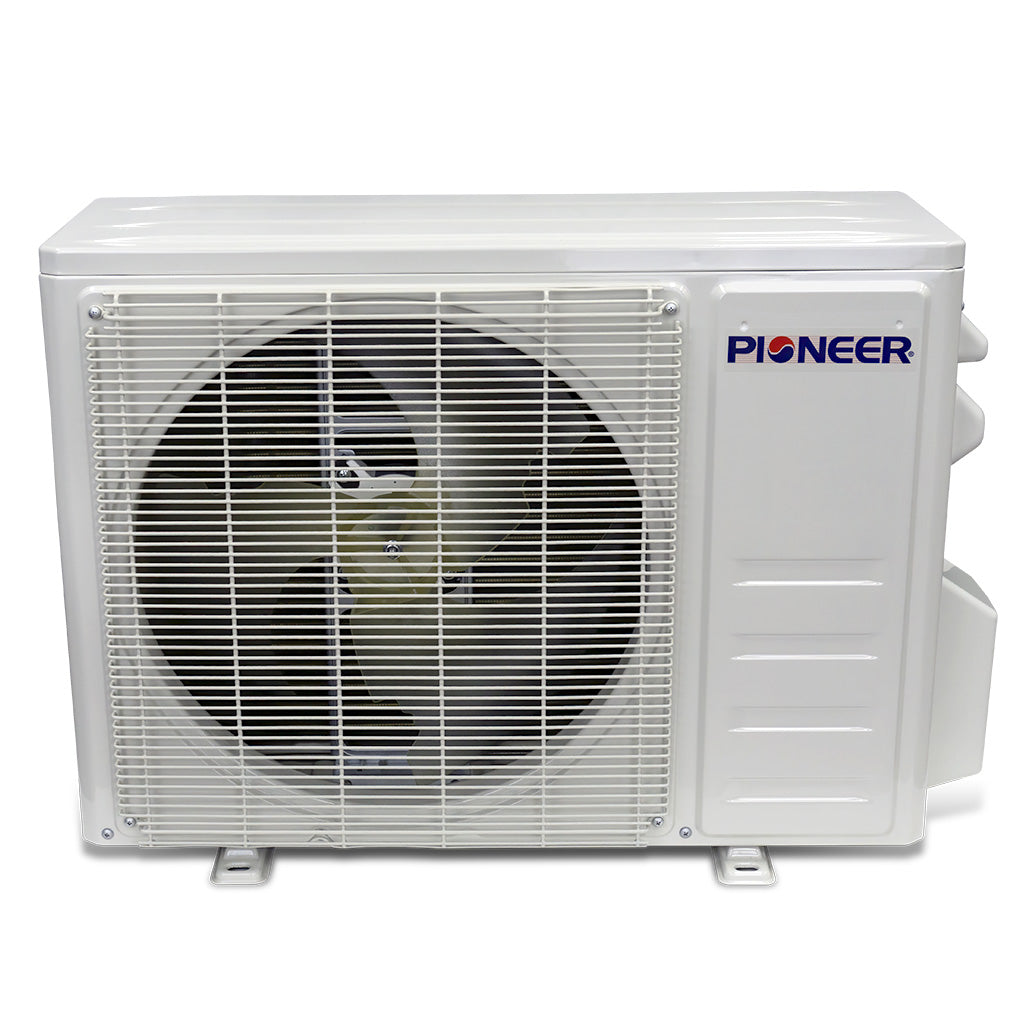

  • Outdoor Unit

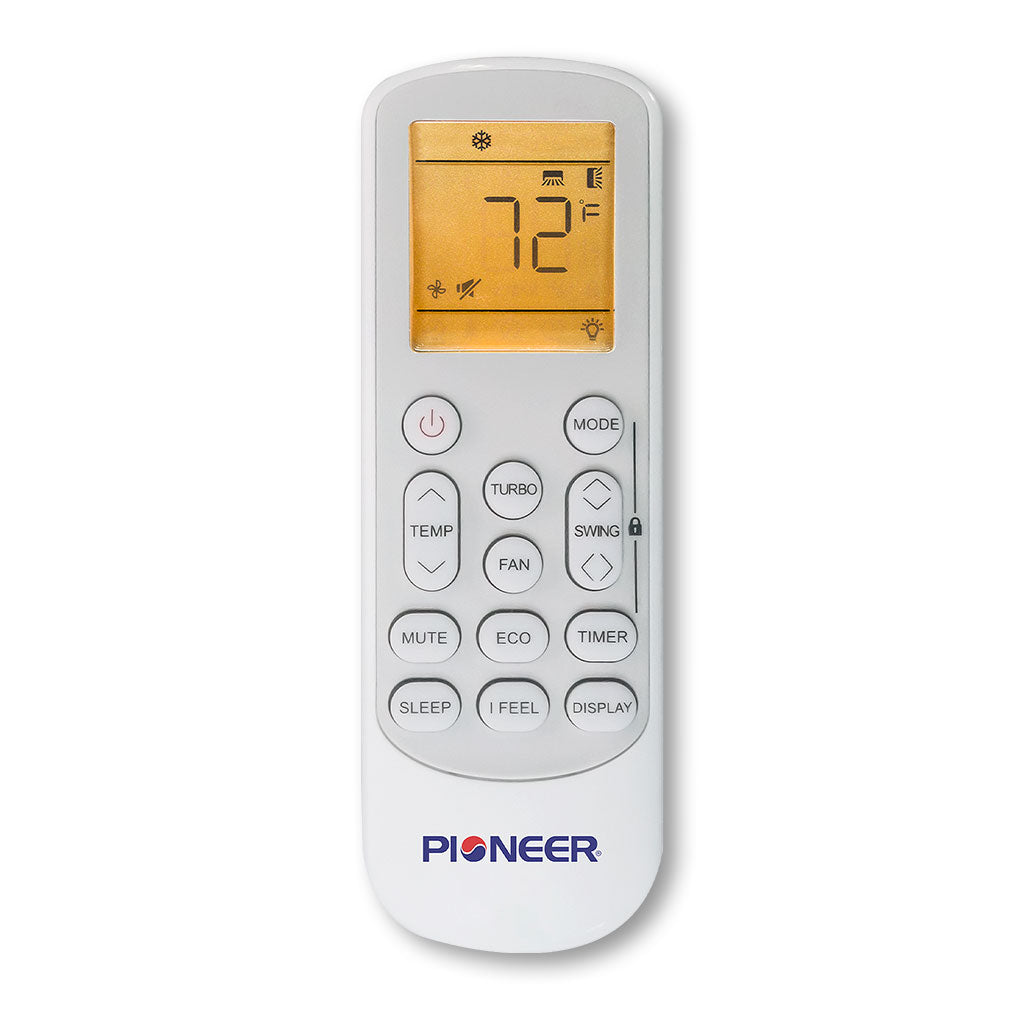

  • Wireless Remote Control (with wall holder and batteries)

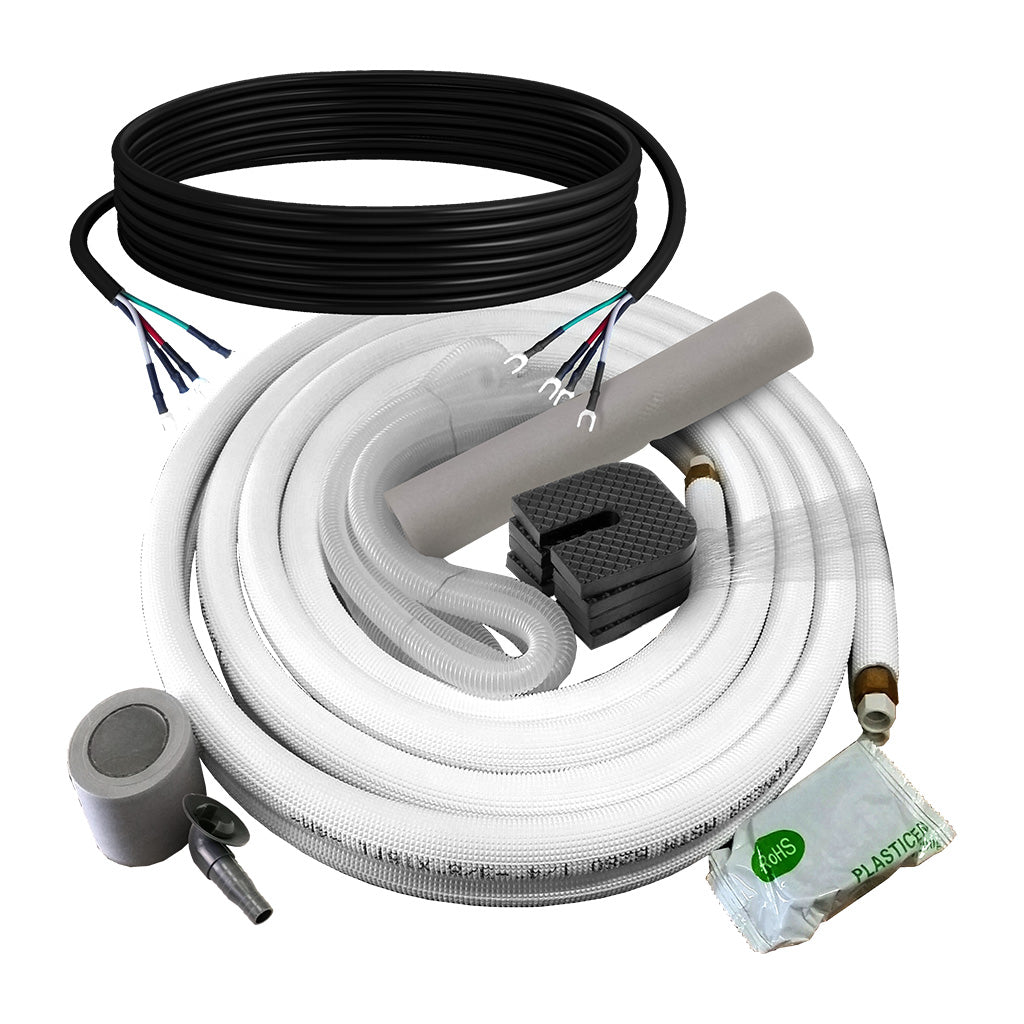

  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years warranty for Parts
  • 5 years warranty for Compressor

    Performance Data

    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 30,000 BTU/h
    • Cooling Capacity Range: 9,000~33,000 BTU/h
    • Cooling SEER2: 19 BTU/W.h
    • Cooling EER2: 9 BTU/W.h
    • Heating Rated Capacity: 30,000 BTU/h
    • Heating Capacity Range: 9,000~33,000 BTU/h
    • Heating HSPF2 (Region IV/V): 8.5 / 7.0 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.11 / 1.8 W/W
    • Refrigerant Type: R410A
    • Suitable Area: 800~1,100 Sq.F

    Indoor Unit Data

    • Part Number: WT030GLFI19HLE
    • Air Flow (Hi/Med/Lo): 847 / 700 / 641 CFM
    • Sound Level (Hi/Med/Lo): 48 / 43 / 38 dB(A)
    • Net Dimensions (WDH): 47  x 10-1/4 x 14-1/4 Inches
    • Carton Dimensions (WDH): 49-3/4 x 13-1/4 x 17-1/4 Inches
    • Net / Gross Weight: 39.7 / 48.5 lbs

    Outdoor Unit Data

    • Part Number: YN030GLFI19RPE
    • Breaker Needed: 25A (double-pole)
    • Sound Level: 63 dB(A)
    • Net Dimensions (WDH): 35-3/4 x 14-1/8 x 31-1/2 Inches
    • Carton Dimensions (WDH): 40-1/2 x 18-3/4 x 34 Inches
    • Net / Gross Weight: 114.6 / 126.8 lbs
