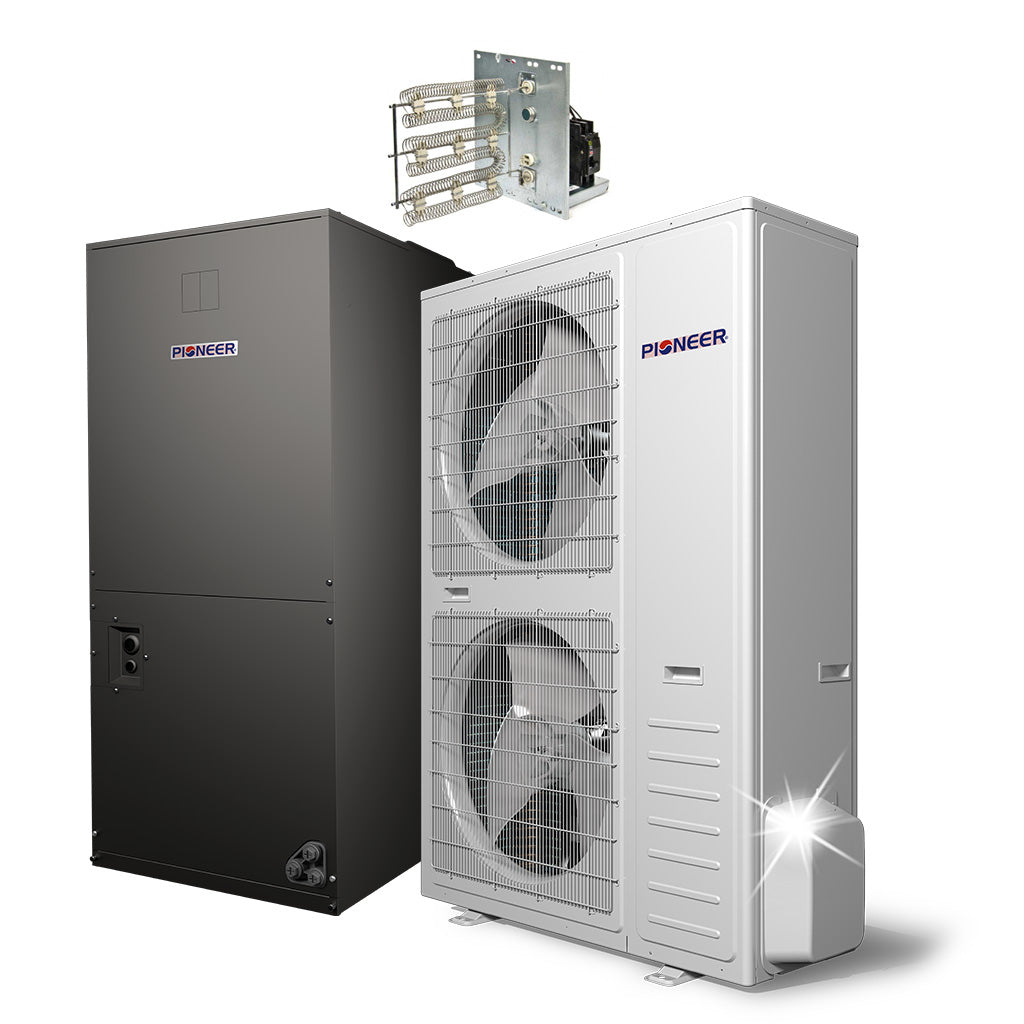

Pioneer® 48,000 BTU 17.5 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation

SKU: DYR4248GMFI18R

Price:
Sale price$3,858.00 Regular price$4,957.00

Shipping calculated at checkout

Financing:
Stock:
Only 5 units left

Pickup available at Parker Davis HQ

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

Performance

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 48,000 BTU/h
  • Cooling SEER2: 17.5 BTU/W.h
  • Cooling EER2: 10.1 BTU/W.h
  • Heating Rated Capacity: 48,000 BTU/h
  • Heating HSPF2 (Region IV): 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.3 / 1.9 W/W
  • Communicating system with dedicated signal transmission
  • Refrigerant Type: R410a
  • Suitable Area: 1,600 Sq.F
  • Includes 10 kW Electric Strip Heater w/ breaker
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $352.00
    • Heating: $1015.00

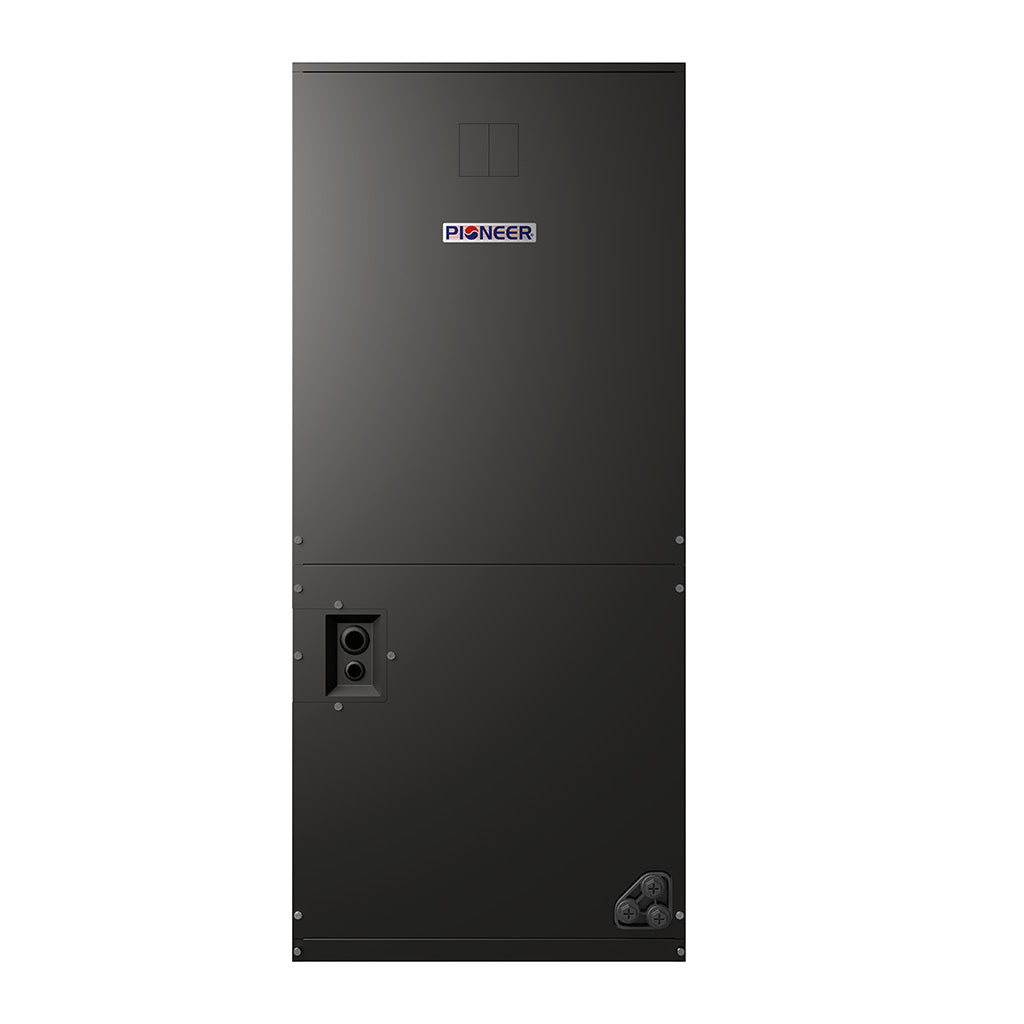

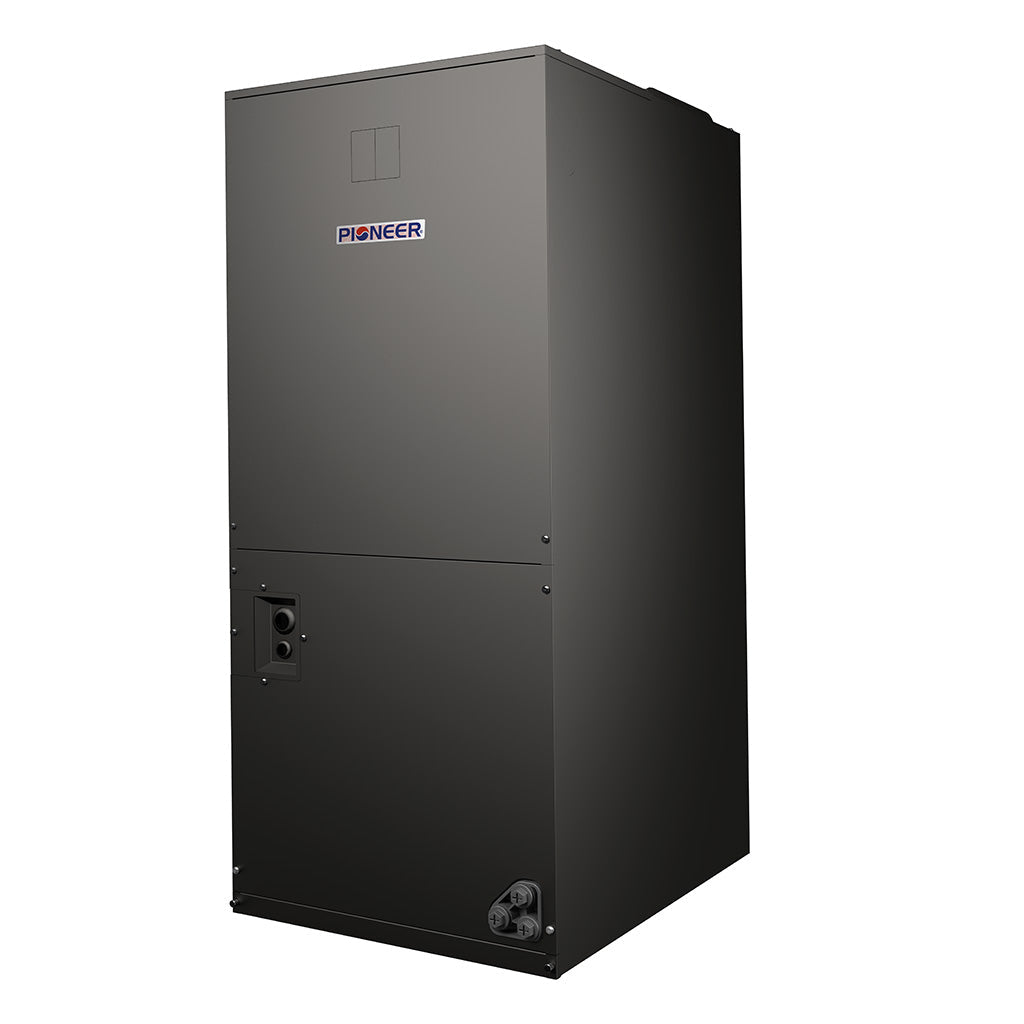

Indoor Unit

  • Model: DR048GHFD18HT2
  • Air Flow: 1706 CFM
  • Sound Level: 64 dB(A)
  • Fan Motor Type: Multi-Speed ECM
  • Net Dimensions (WDH): 22 × 24 × 53-7/8 Inches
  • Carton Dimensions (WDH): 25-1/4 × 28 × 55-1/2 Inches
  • Net / Gross Weight: 187 / 214 Lbs

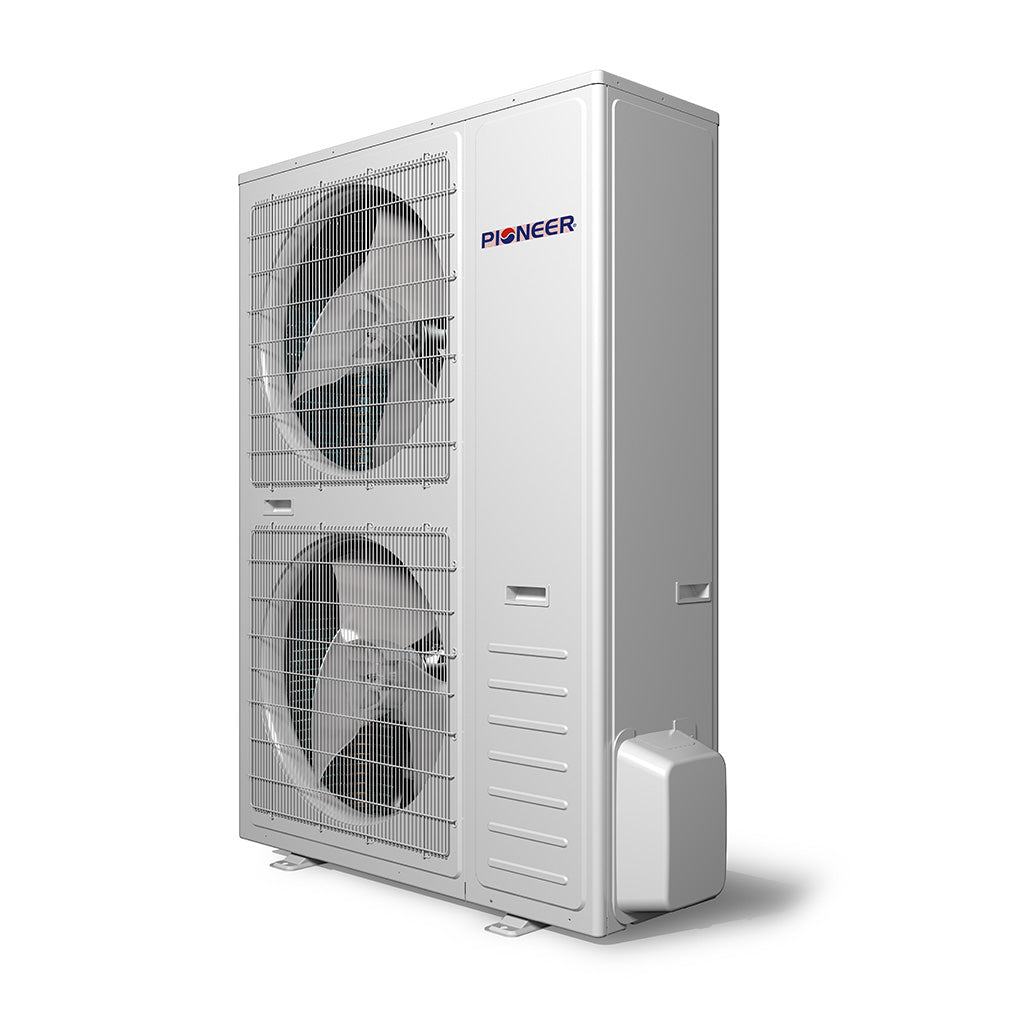

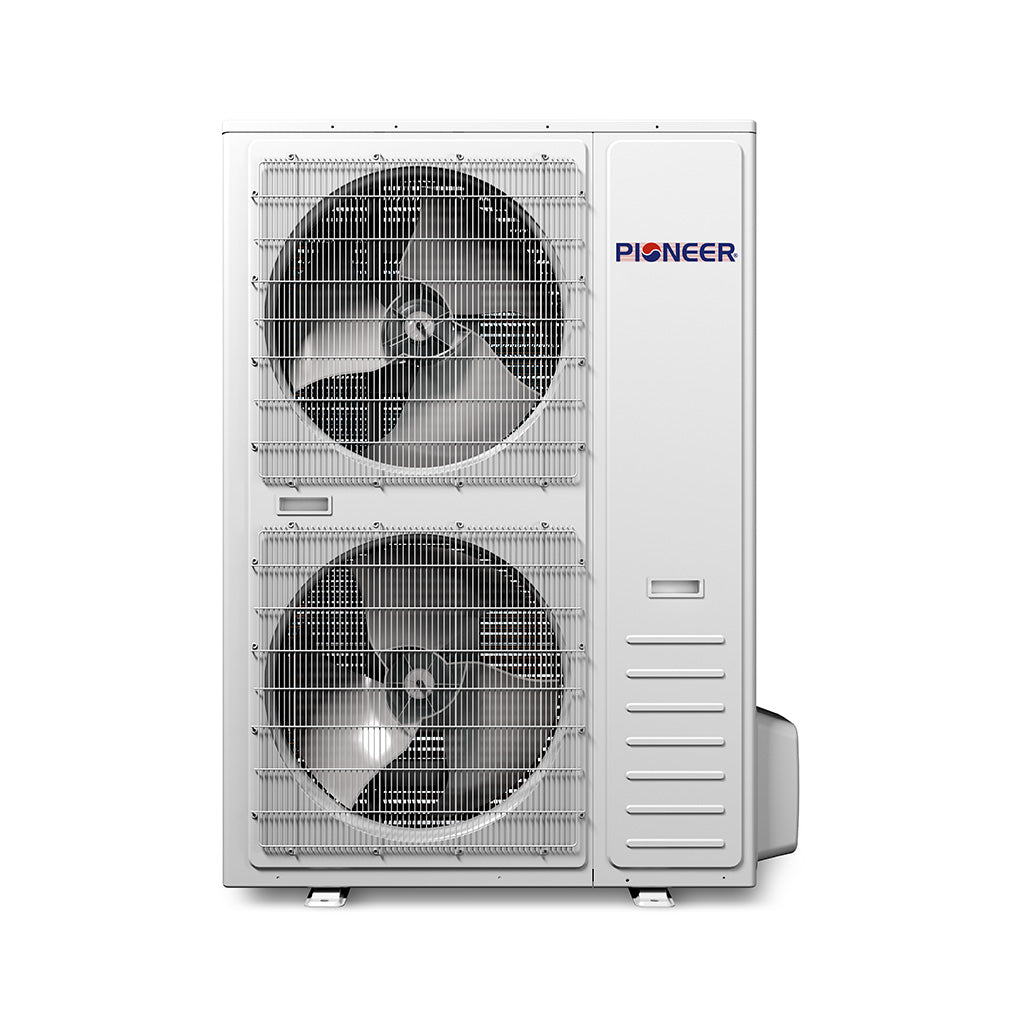

Outdoor Unit

  • Model: YH4248GHFD18R2
  • Sound Level: 59 dB(A)
  • Metering Device: EXV
  • Operating Temperatures: (-13°F - 75°F/Heating)/(5° - 122°F/Cooling)
  • Net Dimensions (WDH): 37-3/8 × 13-3/8 × 54-1/2 Inches
  • Carton Dimensions (WDH): 43-3/4 ×18-1/8 × 60-1/4 Inches
  • Net / Gross Weight: 251 / 278 Lbs
