Pioneer® 24,000 BTU 20 SEER Diamante Ultra Wi-Fi Ductless Mini-Split Inverter++ Air Conditioner Heat Pump Wall Mount Indoor Section - 230V

SKU: WT024GLFI22HLD-16

Price:
Sale price$538.00 Regular price$709.00

Shipping calculated at checkout

Financing:
Stock:
In stock

THIS IS AN INDOOR SECTION ONLY, YOU NEED TO ALSO PURCHASE A COMPATIBLE OUTDOOR SECTION IN ORDER TO HAVE A COMPLETE WORKING SYSTEM.

Pickup available at PD Doral

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

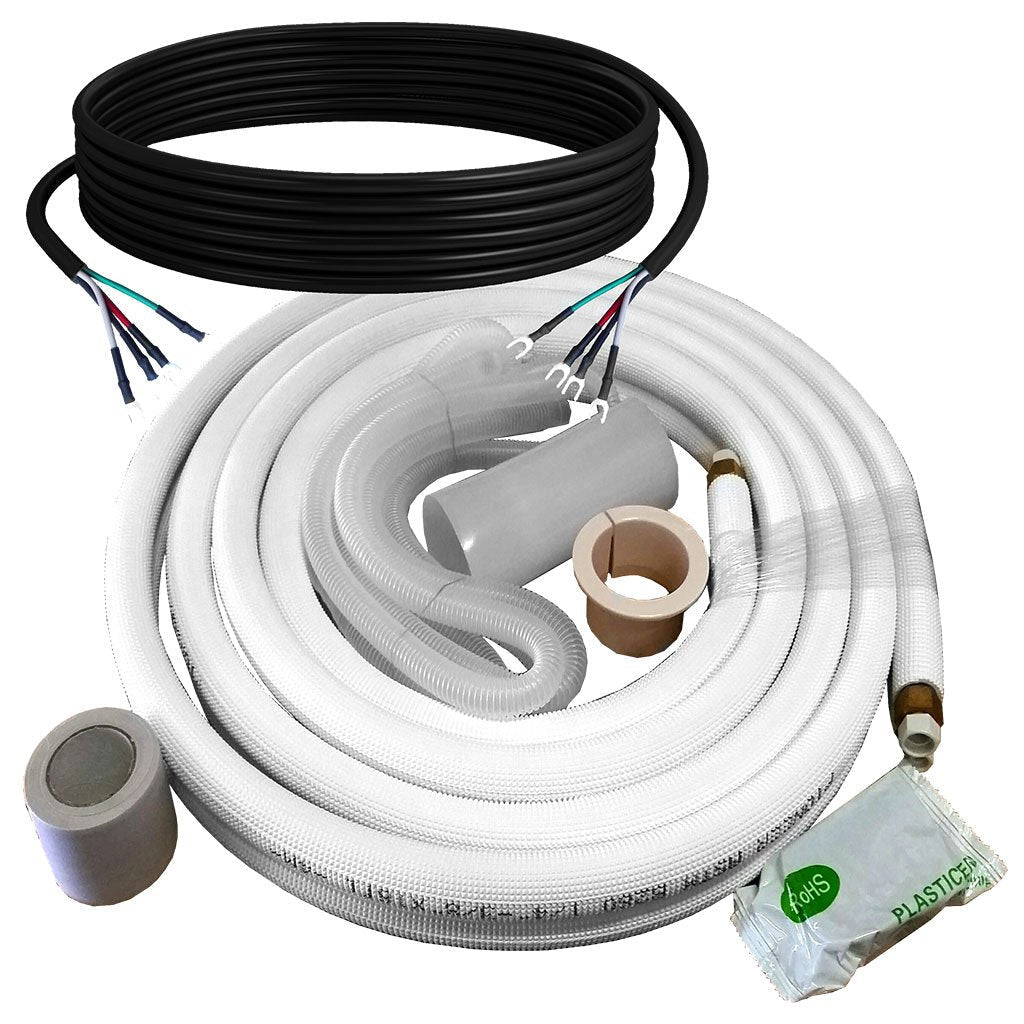

NOTE: The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Performance

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Capacity: 23,000 BTU/h
  • Cooling SEER: 20
  • Heating Capacity: 24,000 BTU/h
  • Heating HSPF: 10
  • Suitable Area: 400~650 Sq.F
  • Air Flow (Hi/Med/Lo): 735 / 618 / 529 CFM
  • Sound Level (Hi/Med/Lo/Mute): 48 / 43 / 38 / 35 dB(A)
  • Net Dimensions (WDH): 43-3/8 × 8-3/4 × 13-1/8 Inches
  • Carton Dimensions (WDH): 45-7/8 × 11-5/8 × 16 Inches
  • Net / Gross Weight: 30.9 / 35.3 Lbs

Manuals & Documents

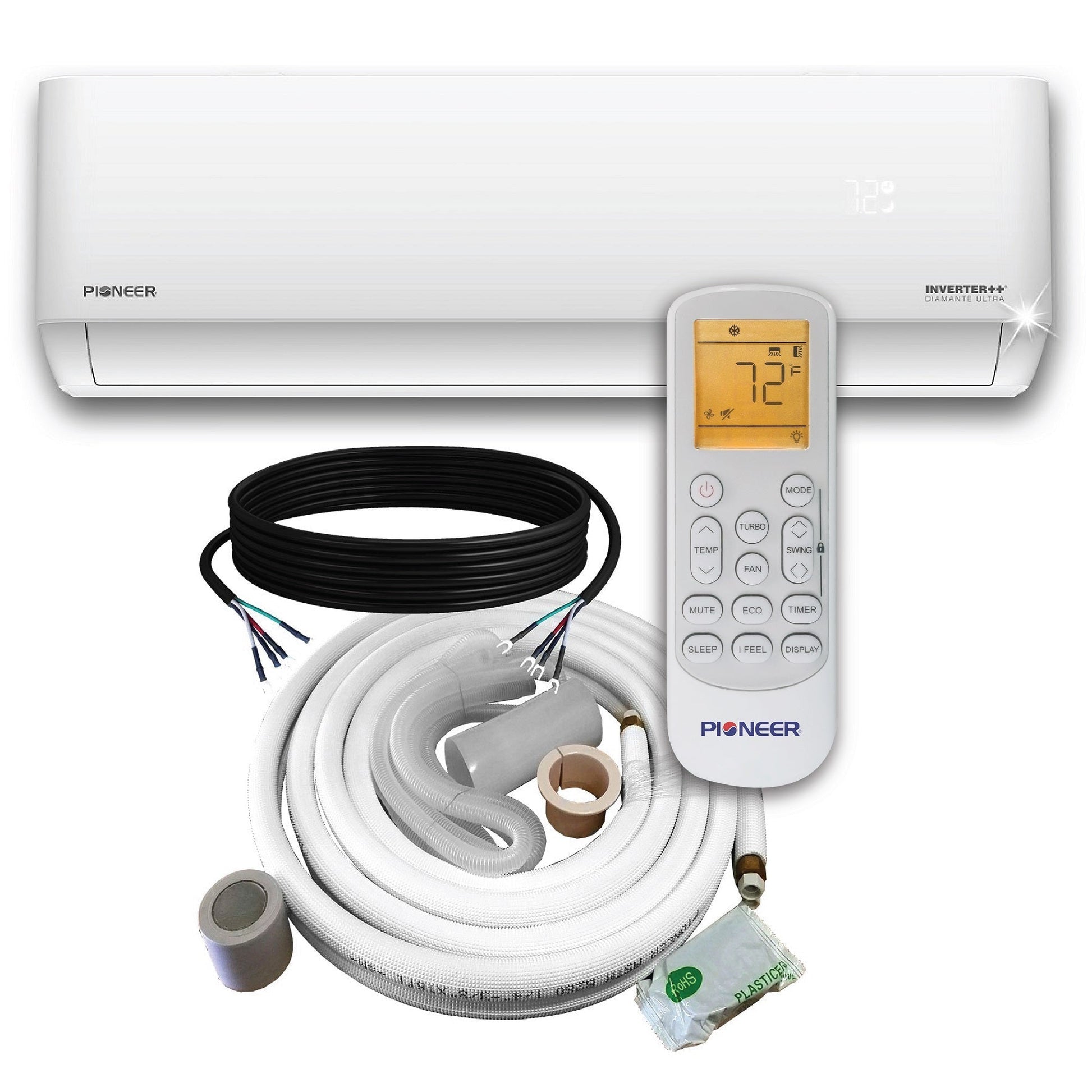

What's Included

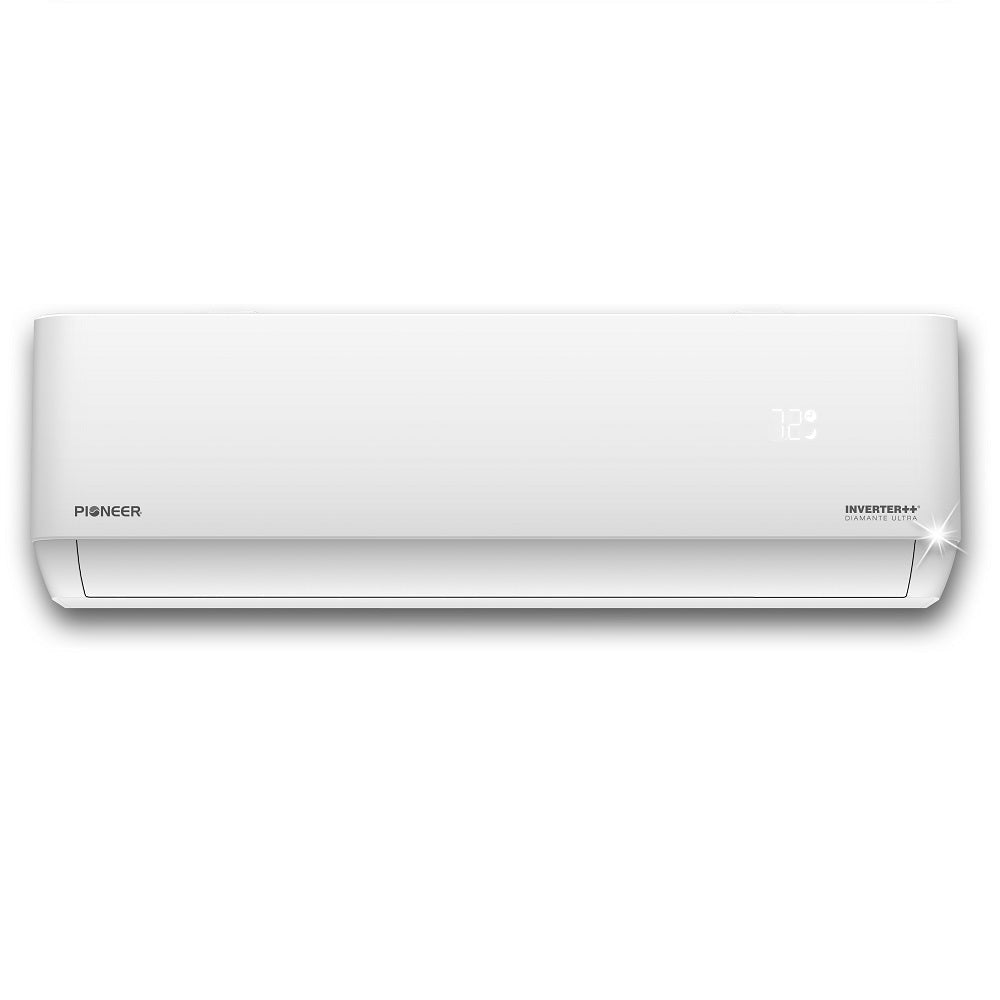

  • Indoor Unit

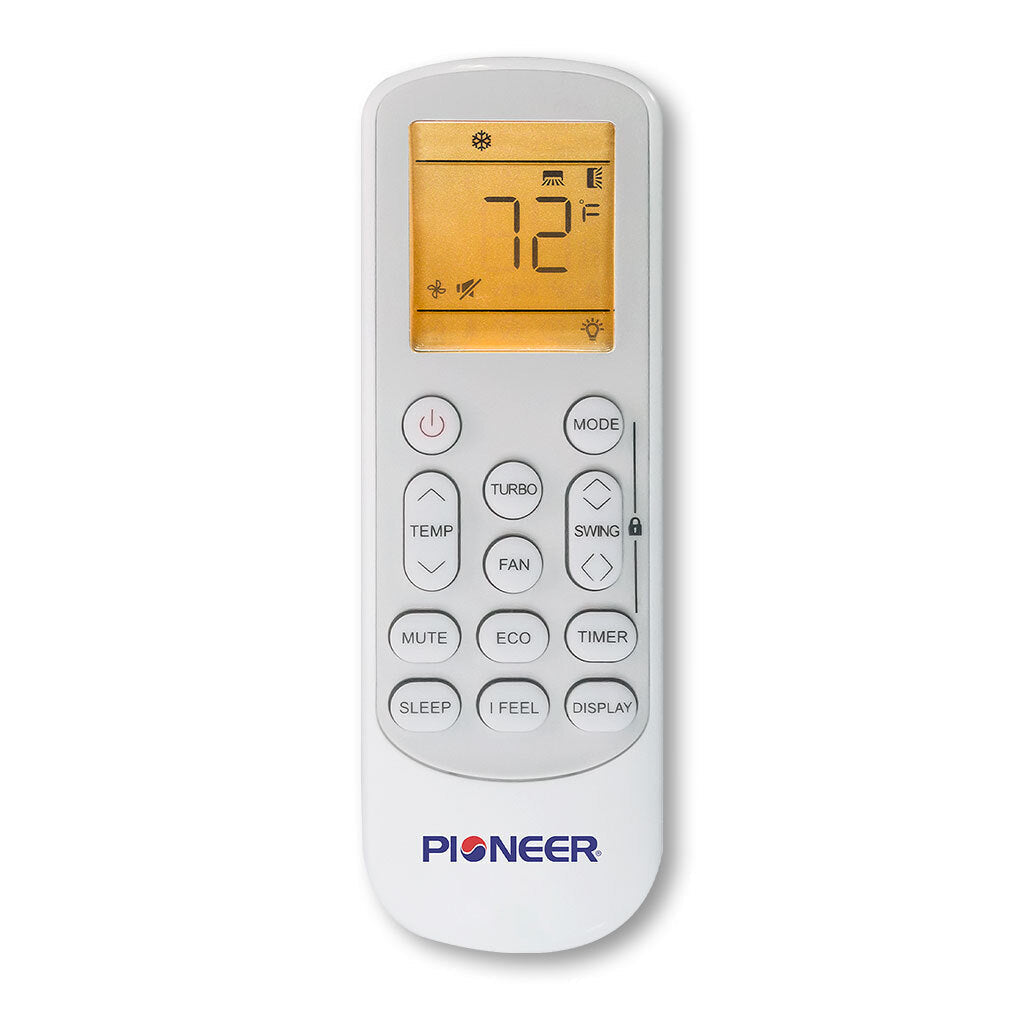

  • Wireless Remote Control
  • Full Installation Kit (unless "No Installation Kit" is selected)
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty
