Pioneer® 24,000 BTU 18 SEER Ducted Central Split Air Conditioner Heat Pump System, 2nd Generation

SKU: DYR1824GMFI18R

Price:
Sale price$2,748.00 Regular price$3,540.00

Shipping calculated at checkout

Financing:
Stock:
Only 1 unit left

Pickup available at PD Doral

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

Performance

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling SEER: 18 BTU/w
  • Heating Rated Capacity: 24,000 BTU/h
  • Heating HSPF: 10 BTU/w
  • Communicating system with dedicated signal transmission
  • Variable Speed DC Inverter Operation Mode
  • Refrigerant Type: R410a
  • Suitable Area: 800 Sq.F
  • Includes 5 kW Electric Strip Heater w/ breaker
  • AHRI Estimated Annual Operating Costs
    • Cooling: $176.00
    • Heating: $507.00

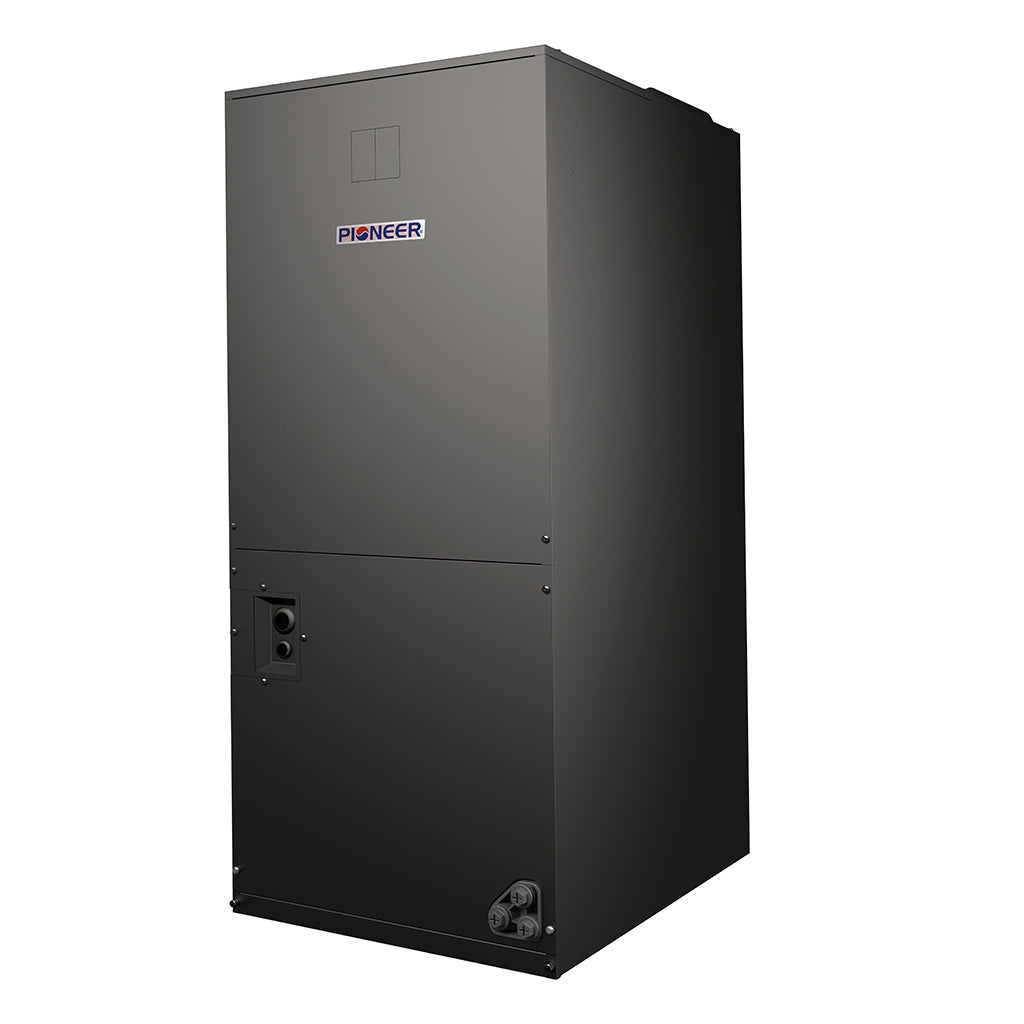

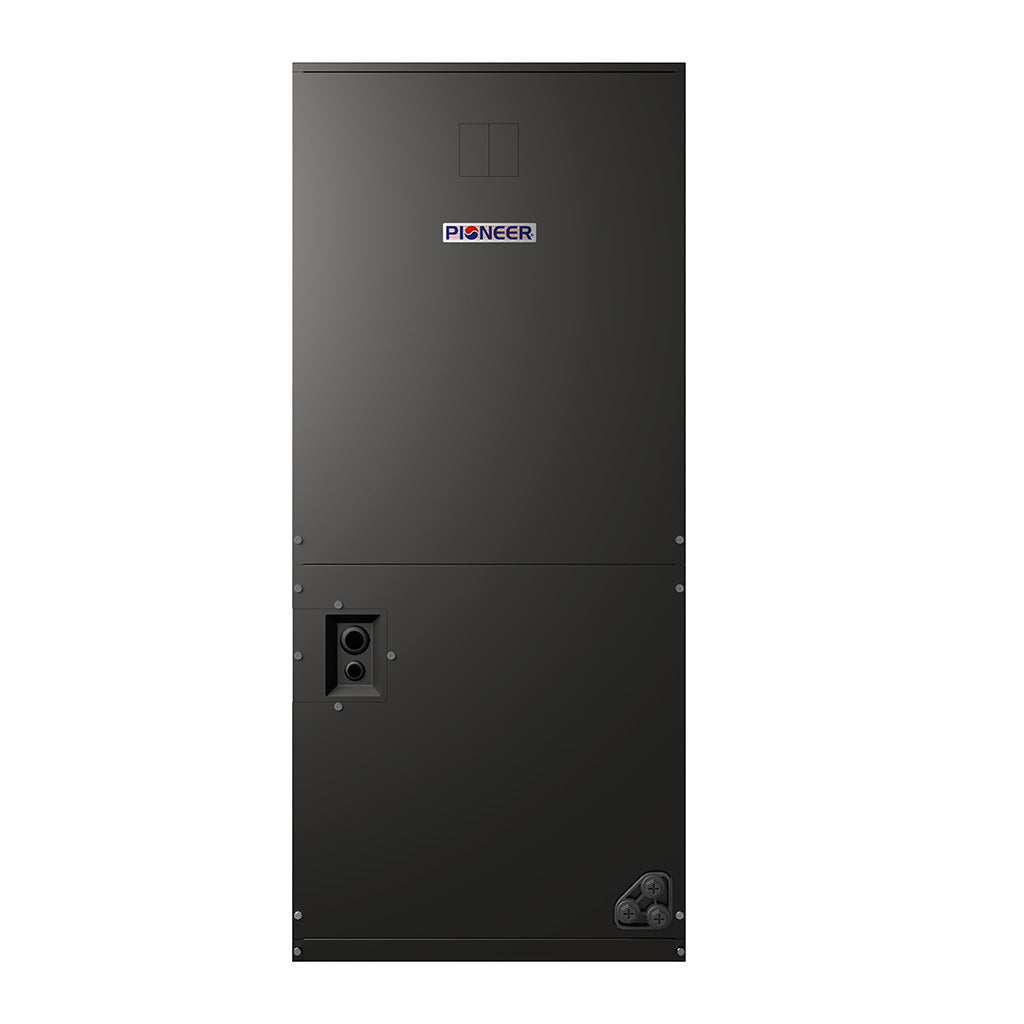

Indoor Unit

  • Model: DR024GHFD18HT2
  • Cooling Capacity Range: 6700~26000 BTU/h
  • Heating Capacity Range: 6700~26000 BTU/h
  • Air Flow: 800 CFM
  • Sound Level: 55 dB(A)
  • Fan Motor Type: Multi-Speed ECM
  • Net Dimensions (WDH): 19-5/8 × 21-5/8 x 46-1/8 Inches
  • Carton Dimensions (WDH): 22-1/2 × 25-3/8 × 49-5/8 Inches
  • Net / Gross Weight: 136 / 159 Lbs

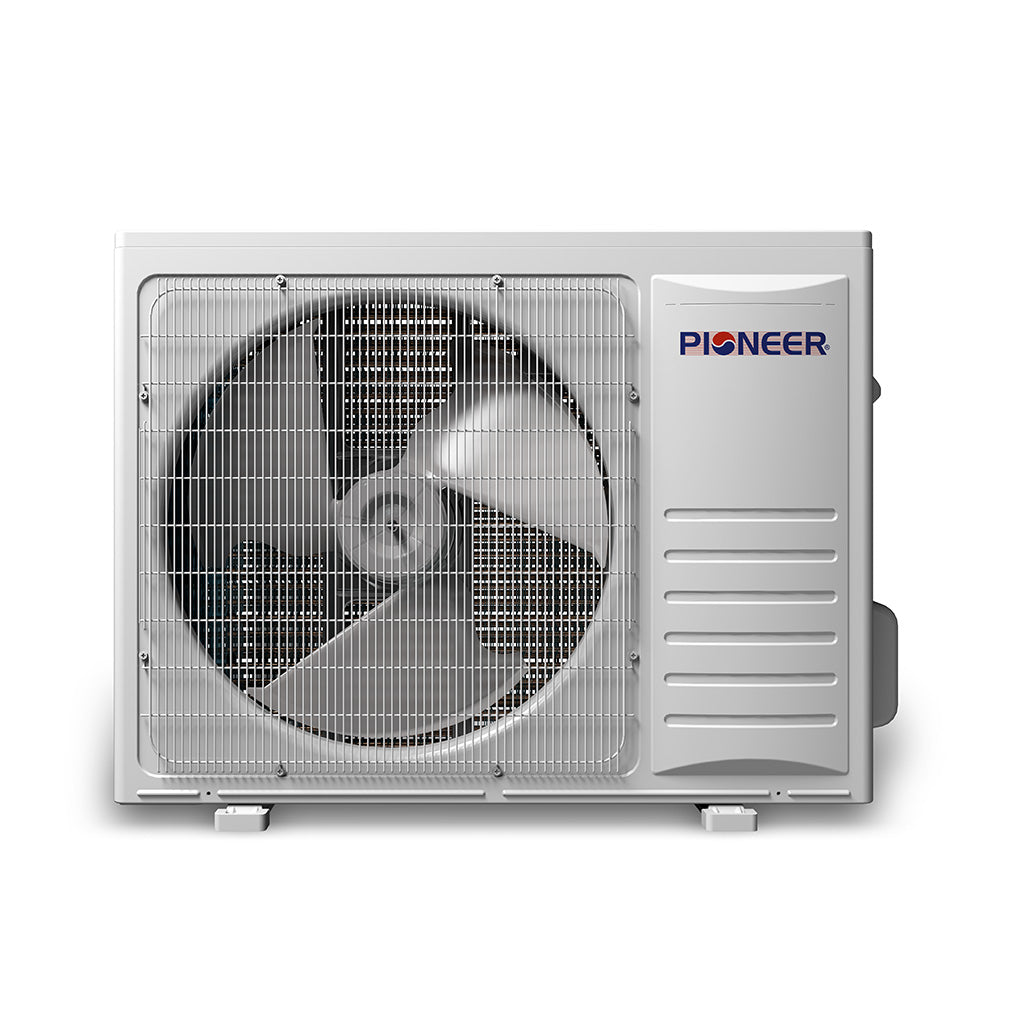

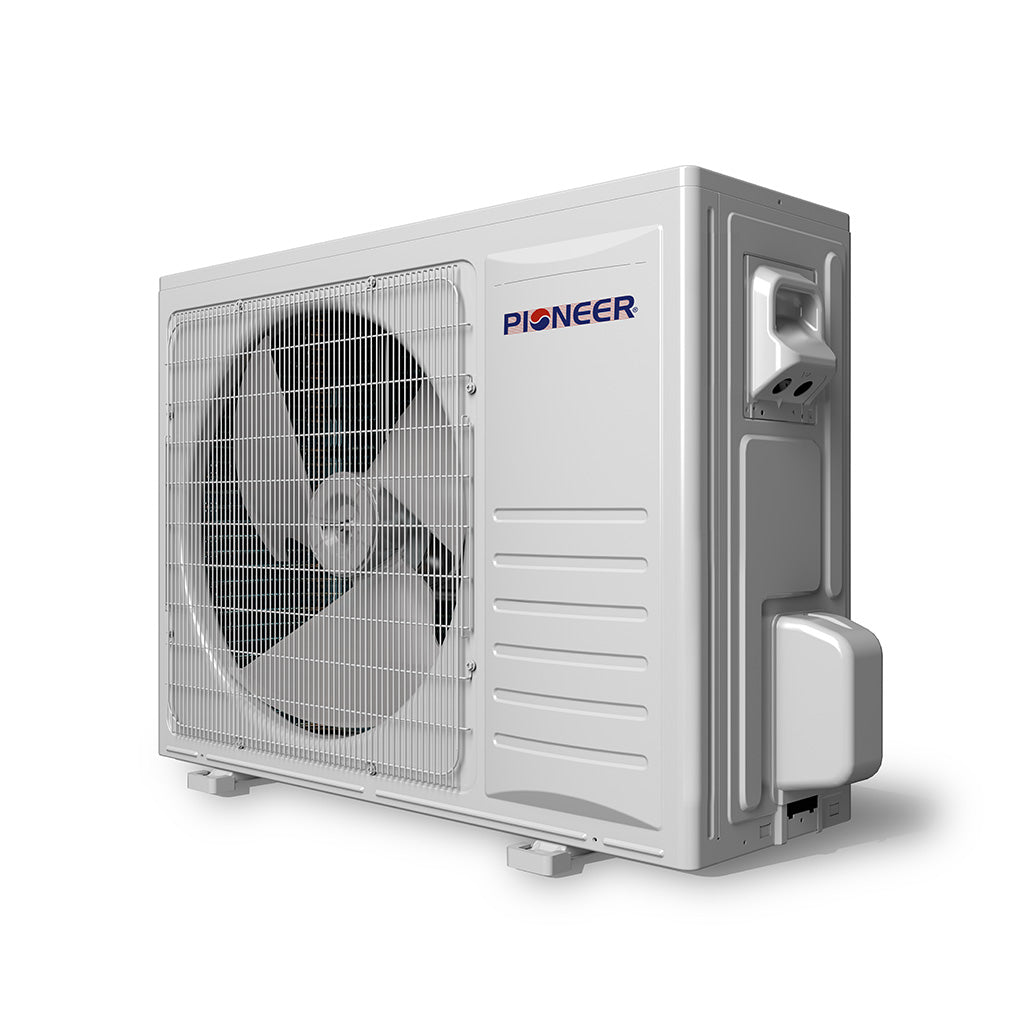

Outdoor Unit

  • Model: YH1824GHFD18R2
  • Sound Level: 54 dB(A)
  • Metering Device: EXV
  • Operating Temperatures: (-13°F - 75°F/Heating)/(5° - 122°F/Cooling)
  • Net Dimensions (WDH): 33-7/8 × 12-1/4 × 26-3/8 Inches
  • Carton Dimensions (WDH): 43-3/4 × 17-3/4 × 28-3/4 Inches
  • Net / Gross Weight: 112/ 121 Lbs

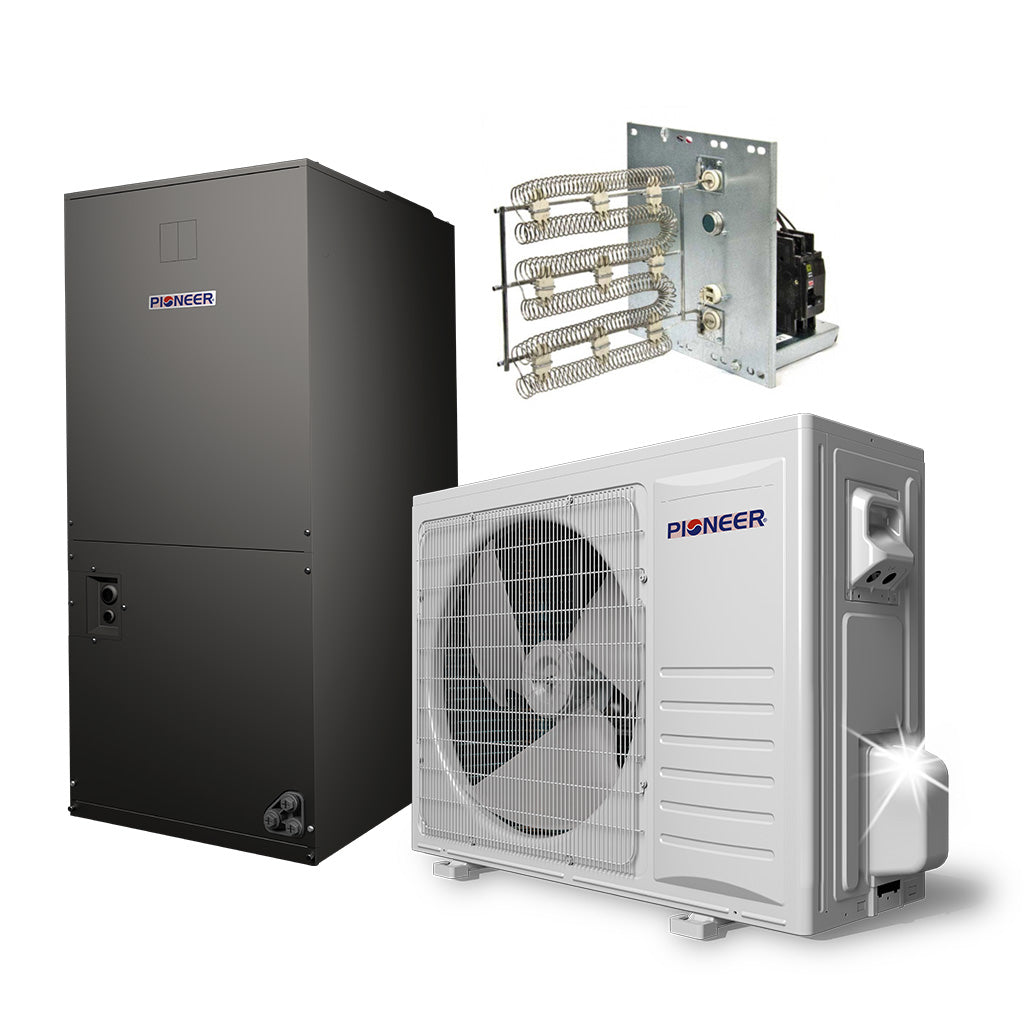

What's Included

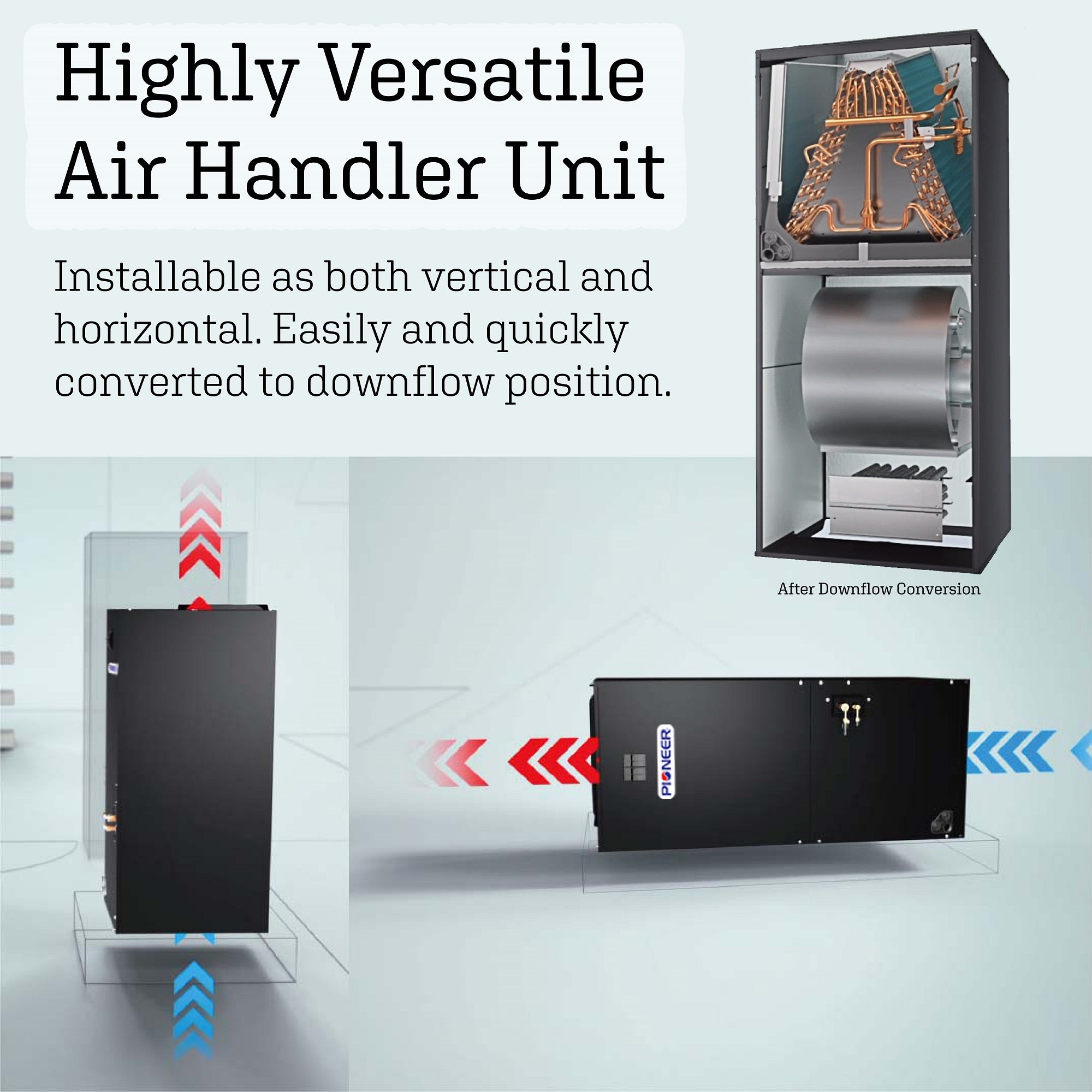

  • Indoor Unit (Downflow-capable)

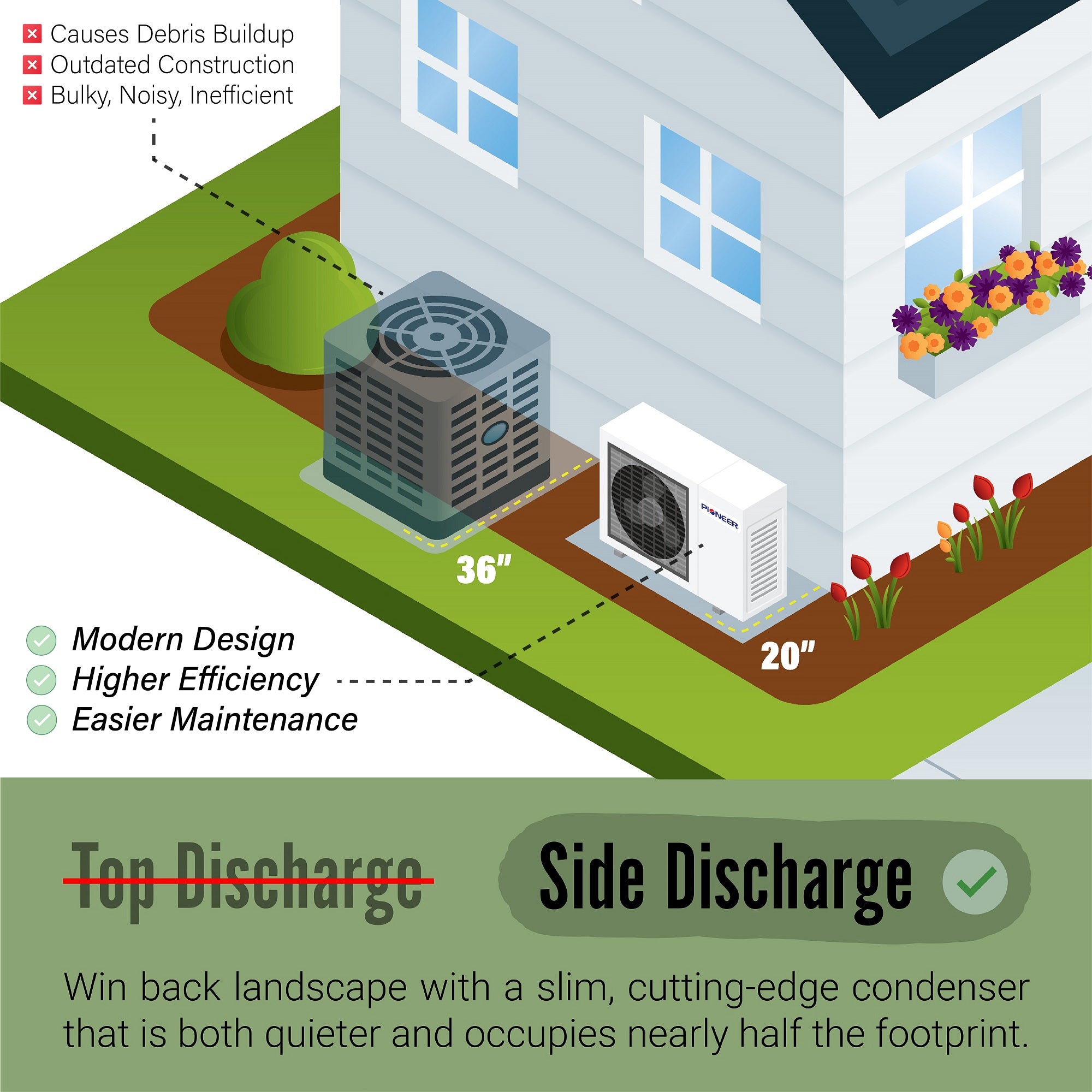

  • Outdoor Unit (Side-Discharge)
  • Electric Strip Heater (5 kW w/ breaker)
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty
