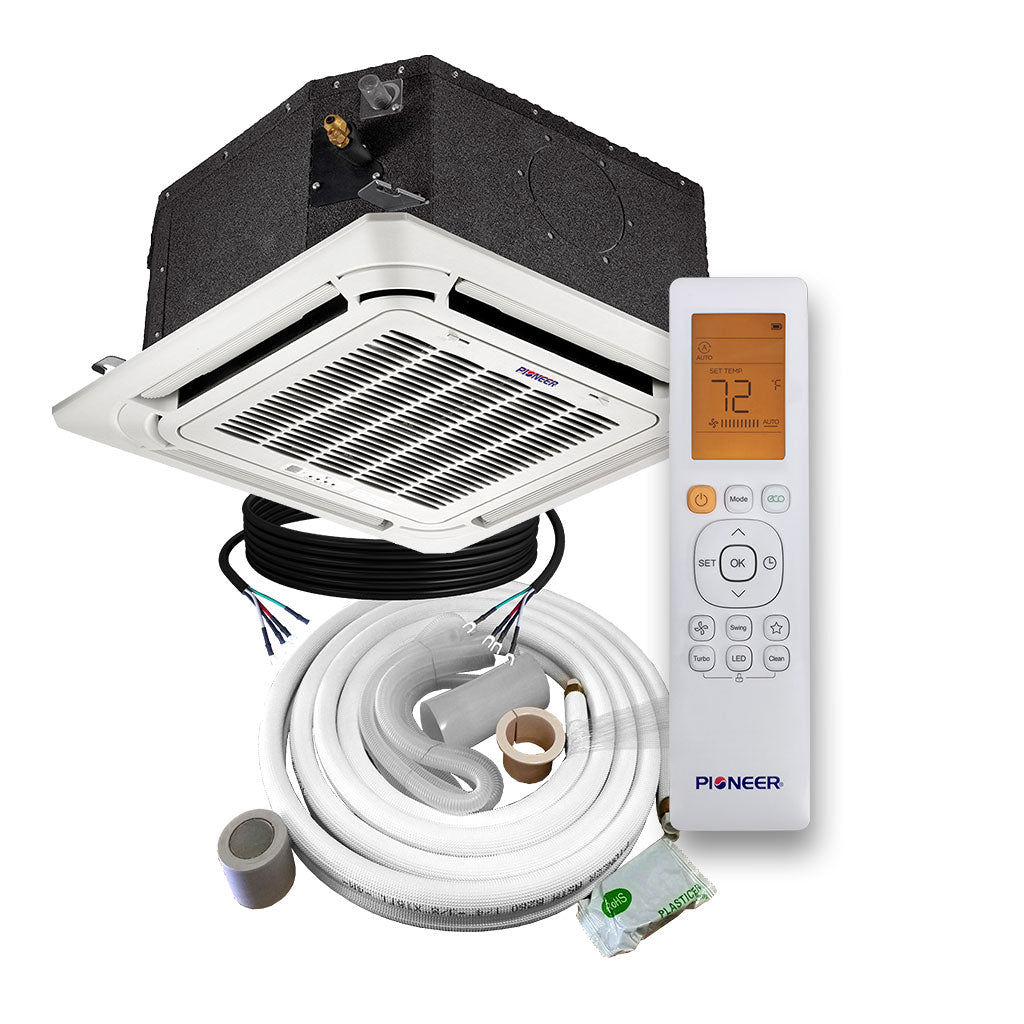

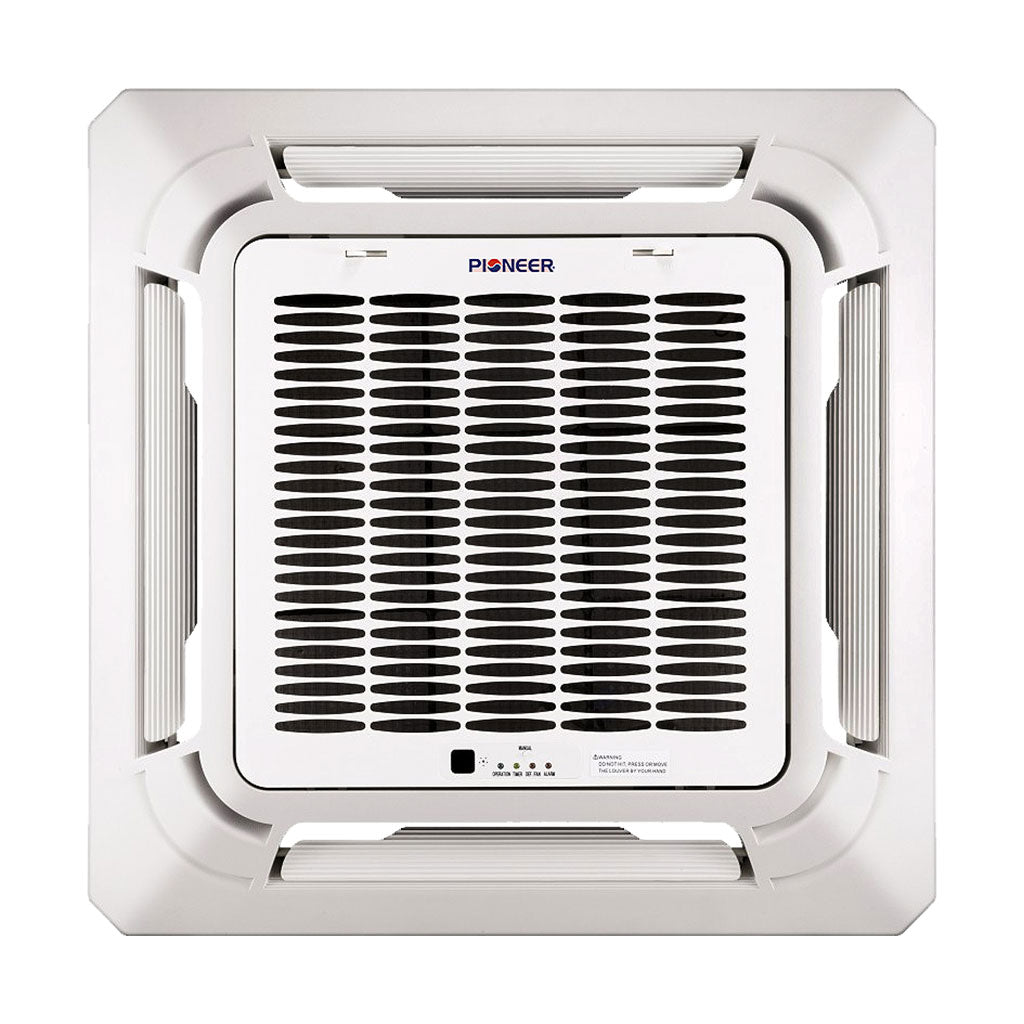

Pioneer® Multi Zone 9,000 BTU Quantum Series Ceiling Cassette Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V

SKU: CB009GMFILCFHD-16

Price:
Sale price$688.00 Regular price$869.00

Shipping calculated at checkout

Financing:
Stock:
In stock

THIS IS AN INDOOR SECTION ONLY, YOU NEED TO ALSO PURCHASE A COMPATIBLE OUTDOOR SECTION IN ORDER TO HAVE A COMPLETE WORKING SYSTEM.

Pickup available at Parker Davis HQ

Usually ready in 24 hours

Description

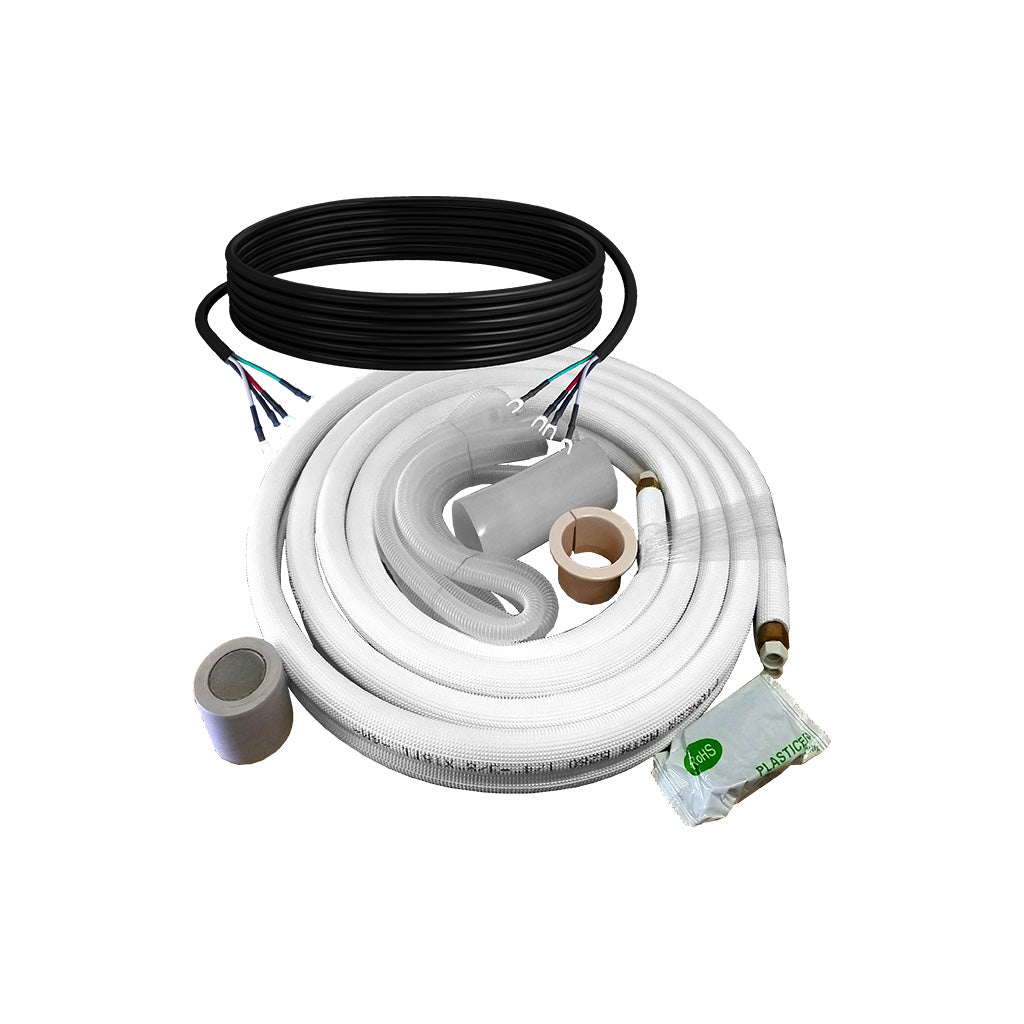

NOTE: The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Performance

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Capacity: 9,000 BTU/h
  • Cooling SEER: 20.0
  • Heating Capacity: 10,000 BTU/h
  • Heating HSPF: 10.5
  • Suitable Area: 250~350 Sq.F
  • Air Flow (Hi/Med/Lo): 374 / 301 / 257 CFM
  • Sound Level (Hi/Med/Lo): 41 / 37 / 33 dB(A)
  • Net Dimensions (WDH): 22"-1/2 x 22"-1/2 x 10"-1/4
  • Carton Dimensions (WDH): 25"-3/4 x 25"-3/4 x 11"-1/2
  • Net / Gross Weight: 32 / 38 Lbs
  • Panel Net Dimensions (WDH): 25-1/2 x 25-1/2 x 2
  • Panel Carton Dimensions (WDH): 28 x 28 x 5
  • Panel Net / Gross Weight: 5.5 / 10 Lbs

Manuals & Documents

What's Included

  • Indoor Unit

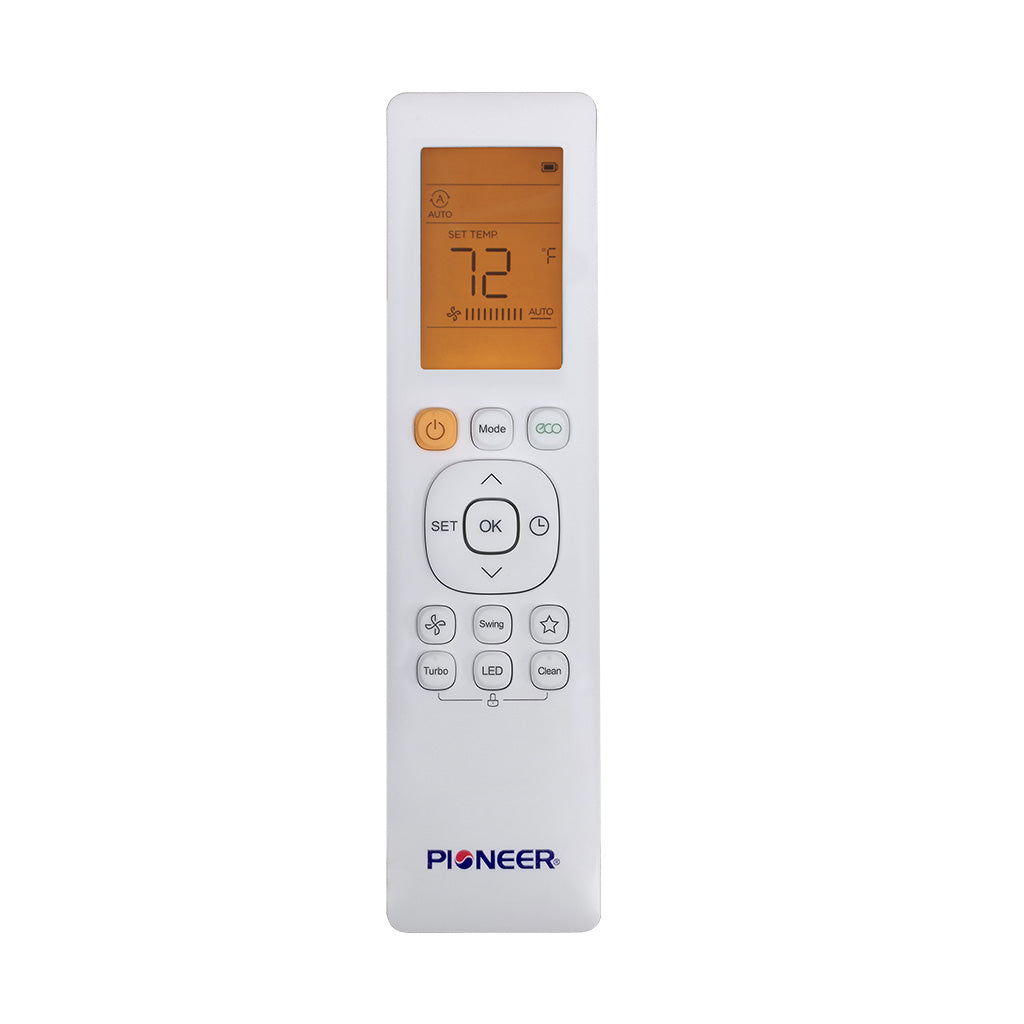

  • Wireless Remote Control
  • Full Installation Kit
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty
