Pioneer® 9,000 BTU 24 SEER2 Ductless Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

SKU: WYS009GMFI22RL-16

Price:
Sale price$868.00 Regular price$1,089.00

Shipping calculated at checkout

Financing:
Stock:
In stock

Pickup available at Parker Davis HQ

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

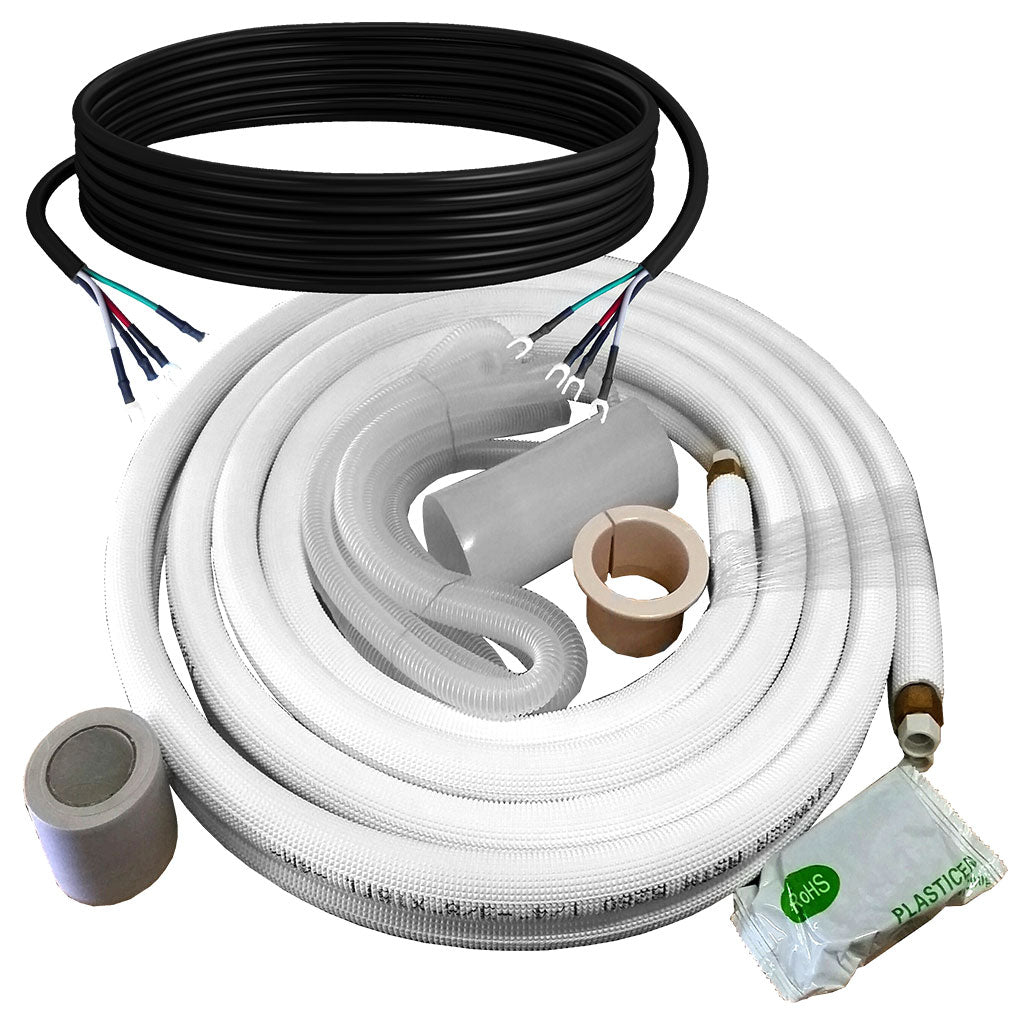

NOTE: The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Overview

Summary

  • Ultra High Efficiency Inverter++ ductless mini split heat pump system
  • Cooling capacity: 9,000 BTU/H with 24 SEER2 / 14 EER2 efficiency
  • Heating capacity: 9,800 BTU/H with 11.4 HSPF2 / 3.8 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $50.00
    • Heating: $187.00

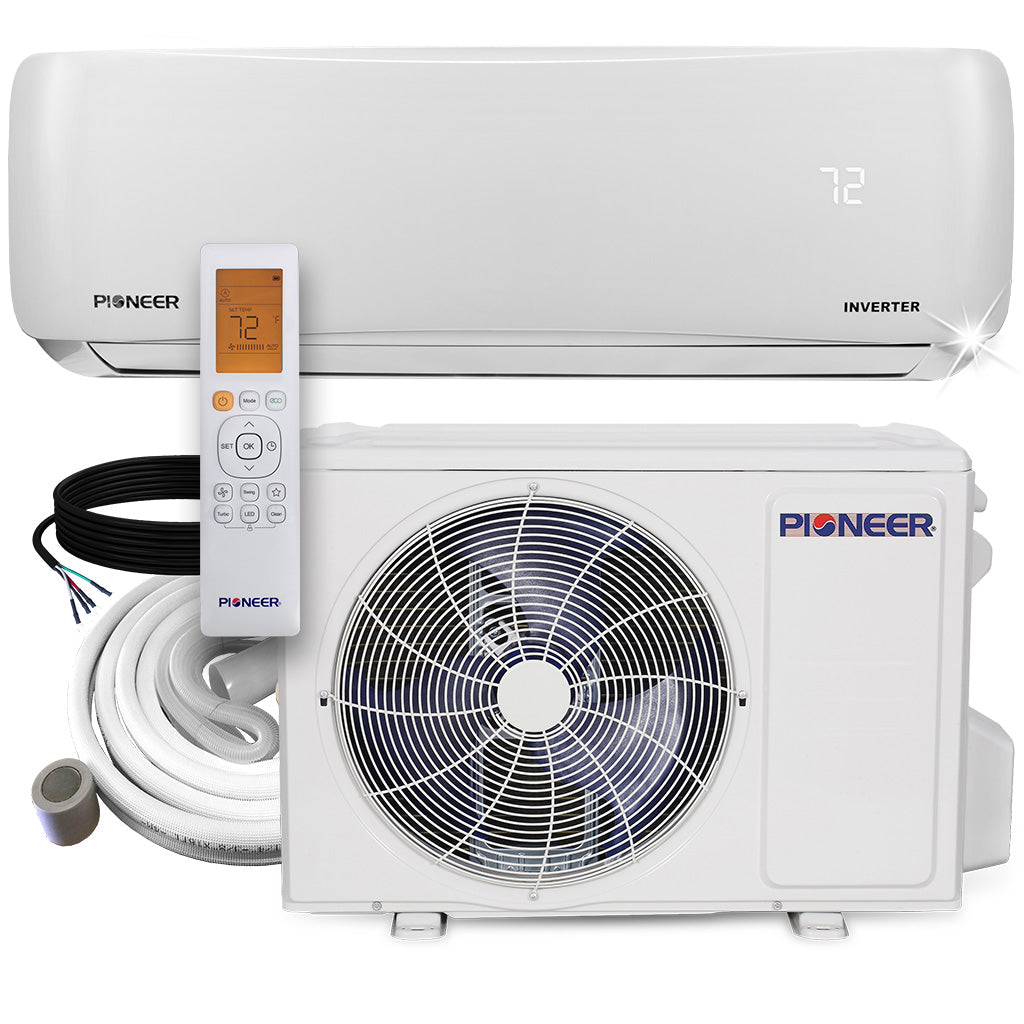

What's Included

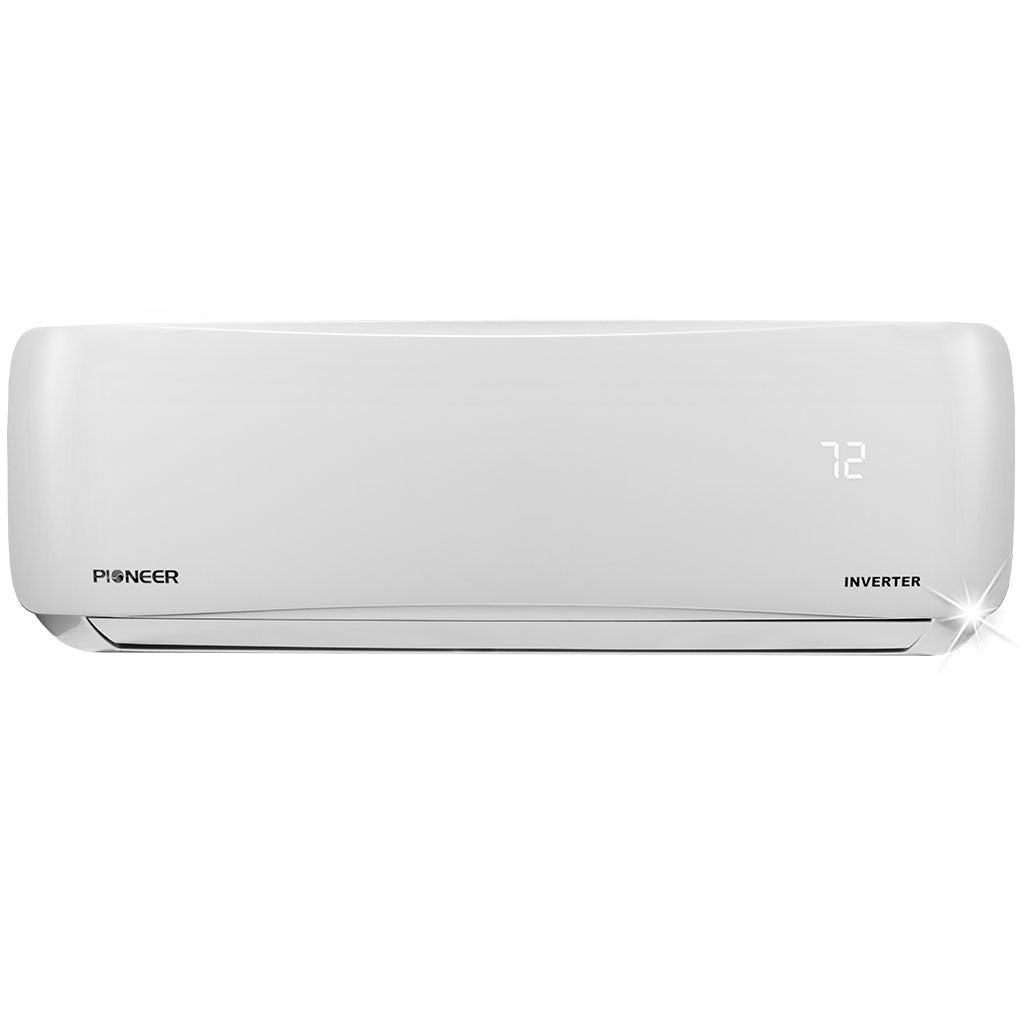

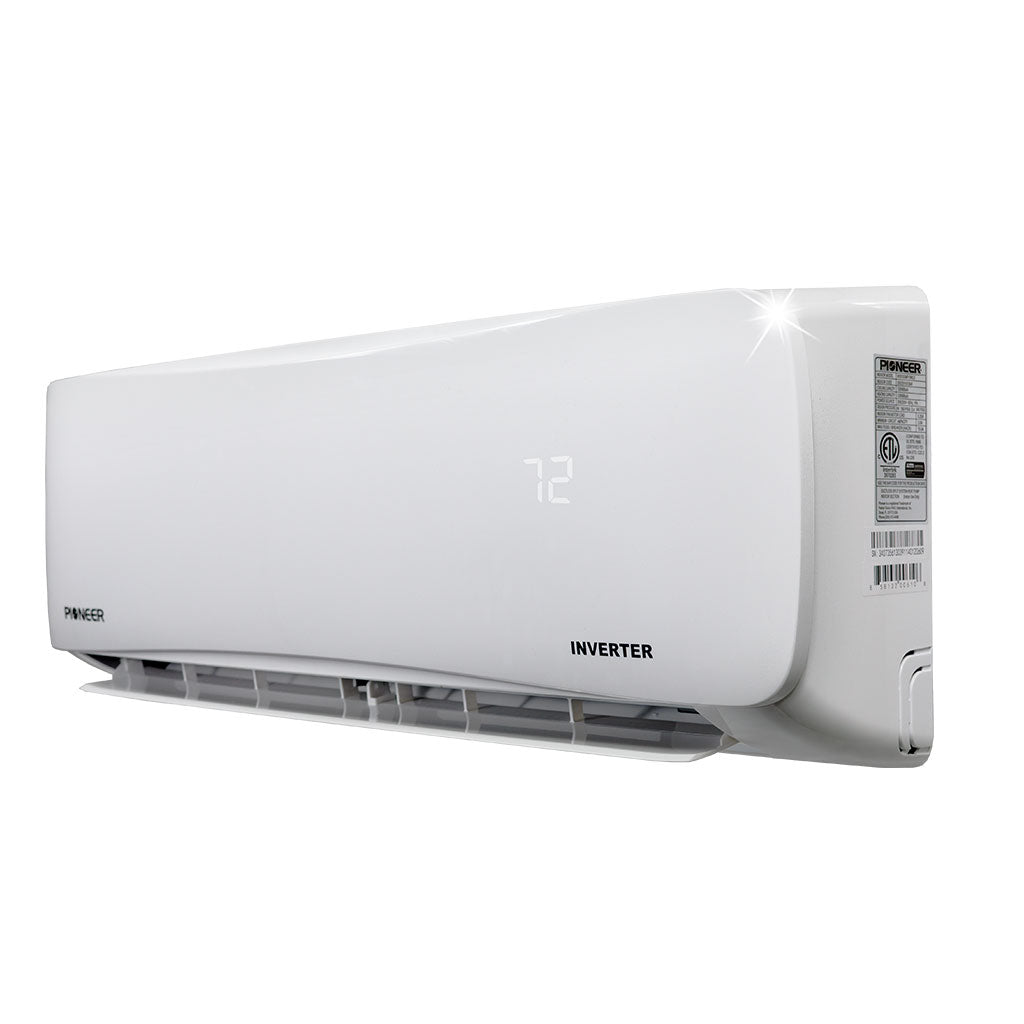

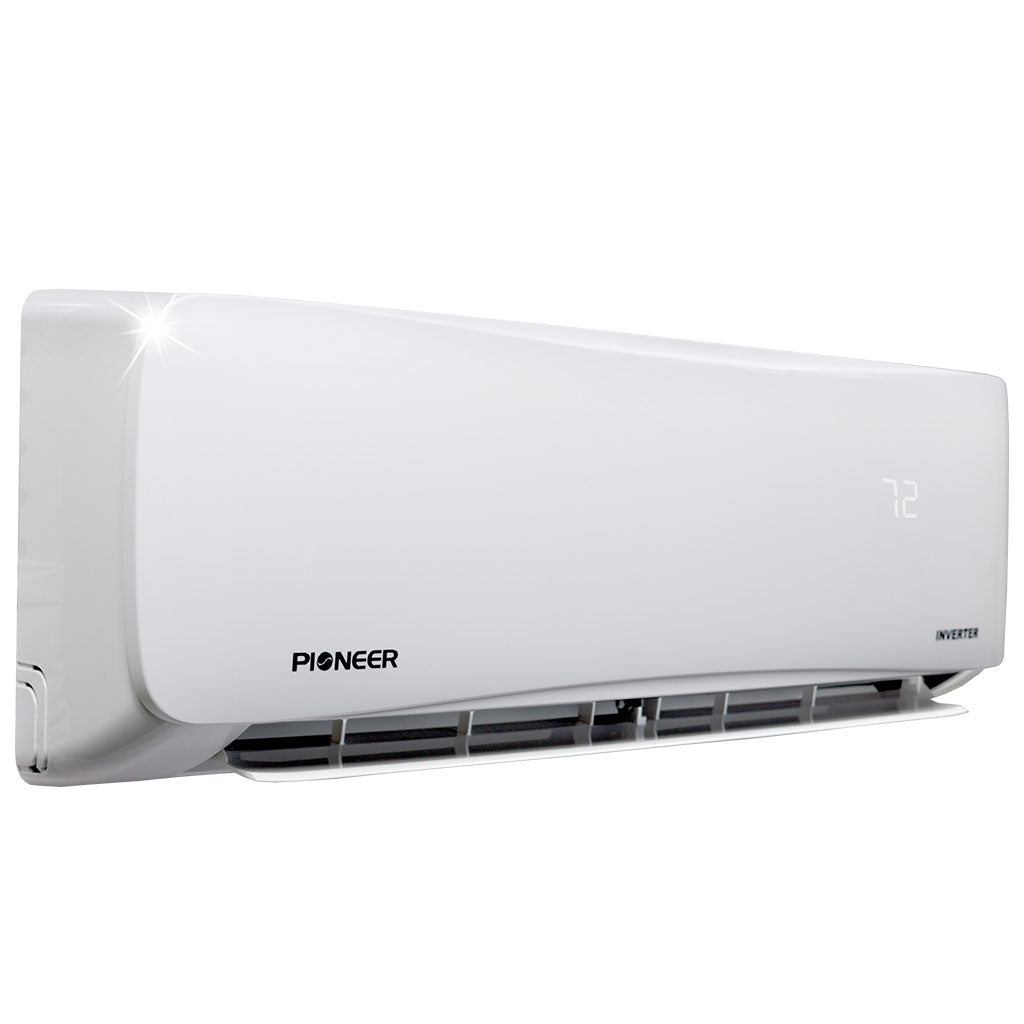

  • Indoor Unit

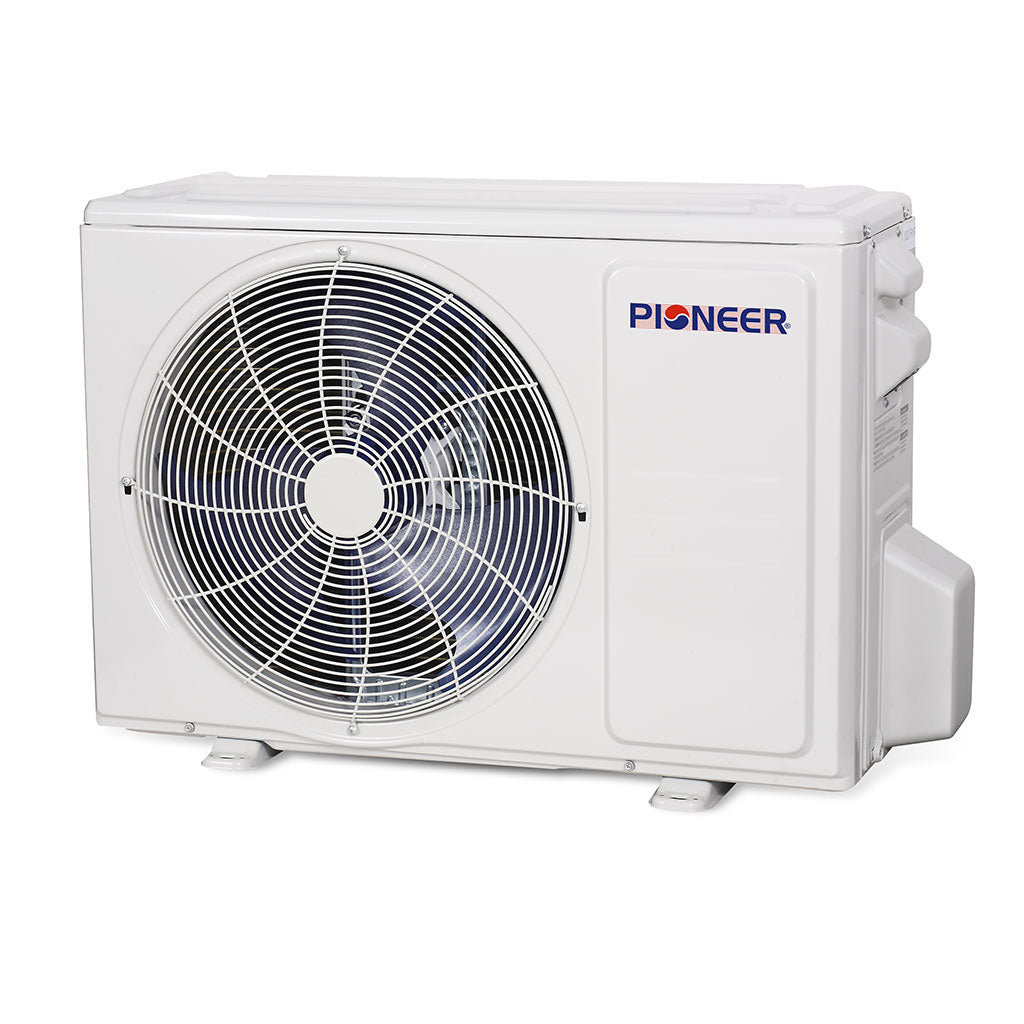

  • Outdoor Unit

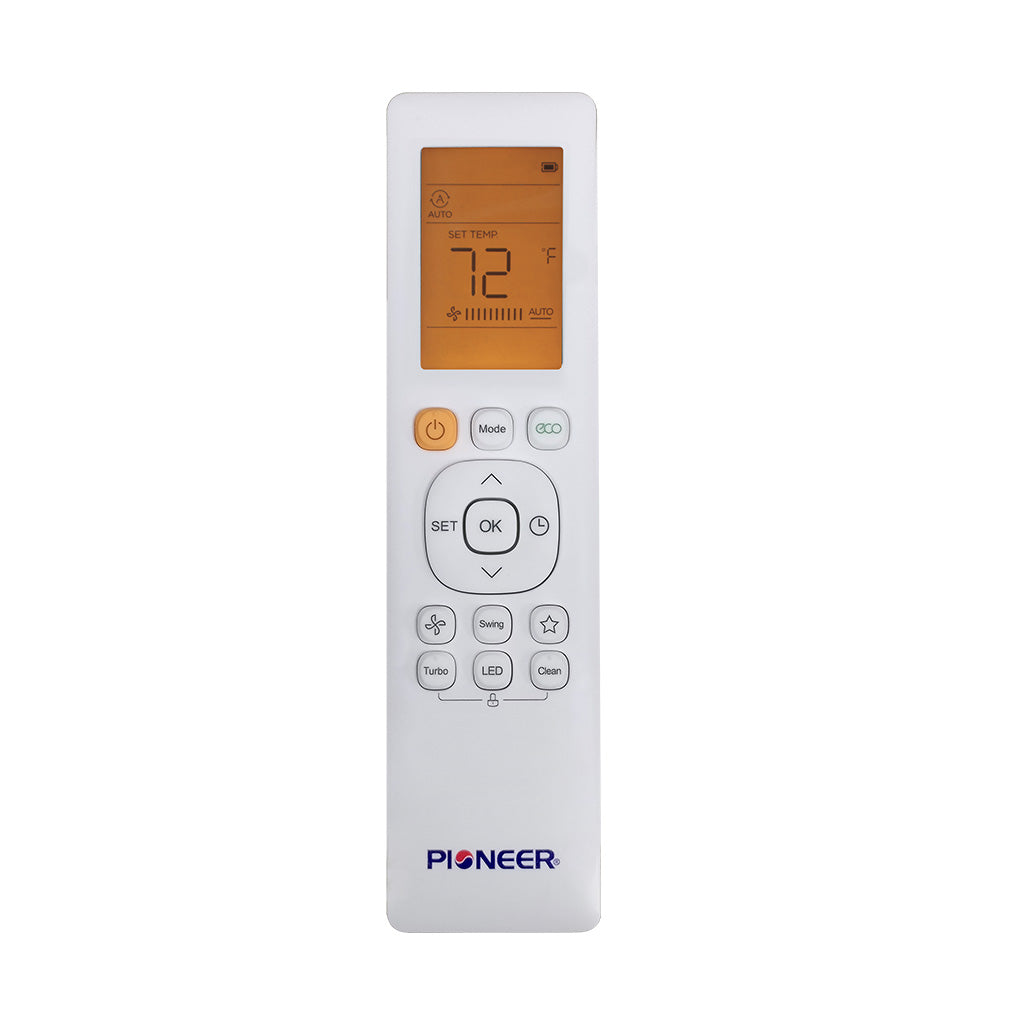

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 3,548~11,400 BTU/h
  • Cooling SEER2: 24 BTU/W.h
  • Cooling EER2 (95F): 14 BTU/W.h
  • Heating Rated Capacity: 10,000 BTU/h
  • Heating Capacity Range: 3,976~12,477 BTU/h
  • Heating HSPF2 (Region IV/V): 11.4 / 8.6 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.80 / 2.18 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 200~350 Sq.F

Indoor Unit Data

  • Model Number: WS009GMFI22HLE
  • Air Flow (Hi/Med/Lo): 265 / 205 / 141 CFM
  • Sound Level (Hi/Lo): 39.0 / 24.5 dB(A)
  • Net Dimensions (WDH): 31.5 x 7.3 x 11.6 Inches
  • Carton Dimensions (WDH): 34.5 x 11.2 x 14.7 Inches
  • Net / Gross Weight: 18 / 22 Lbs

Outdoor Unit Data

  • Model Number: YN009GMFI22RPE
  • Sound Level: 54.5 dB(A)
  • Breaker Needed: 15A (double-pole)
  • Net Dimensions (WDH): 30.2 x 11.8 x 21.8 Inches
  • Carton Dimensions (WDH): 34.9 x 13.2 x 24 Inches
  • Net / Gross Weight: 64 / 69 Lbs
