Pioneer® 9,000 BTU 20 SEER2 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
CYB009GMFILCAD
Pioneer® 9,000 BTU 20 SEER2 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
CYB009GMFILCAD
Pioneer® 9,000 BTU 20 SEER2 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
Roll over image to zoom in Click on image to zoom
Pioneer® 9,000 BTU 20 SEER2 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
CYB009GMFILCAD
Pioneer® 9,000 BTU 20 SEER2 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
CYB009GMFILCAD
Pioneer® 9,000 BTU 20 SEER2 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V

Pioneer® 9,000 BTU 20 SEER2 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V

SKU: CYB009GMFILCAD-16
Price:
$1,198.00 $1,660.00

Shipping calculated at checkout

Financing:
Stock:
Sold out

Pickup currently unavailable at Parker Davis HQ

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

NOTE: The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Overview

Summary

  • Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
  • Cooling capacity: 9,000 BTU/H with 20 SEER2 / 13 EER2 efficiency
  • Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.08 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Ceiling Compact Cassette Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $59.00
    • Heating: $201.00

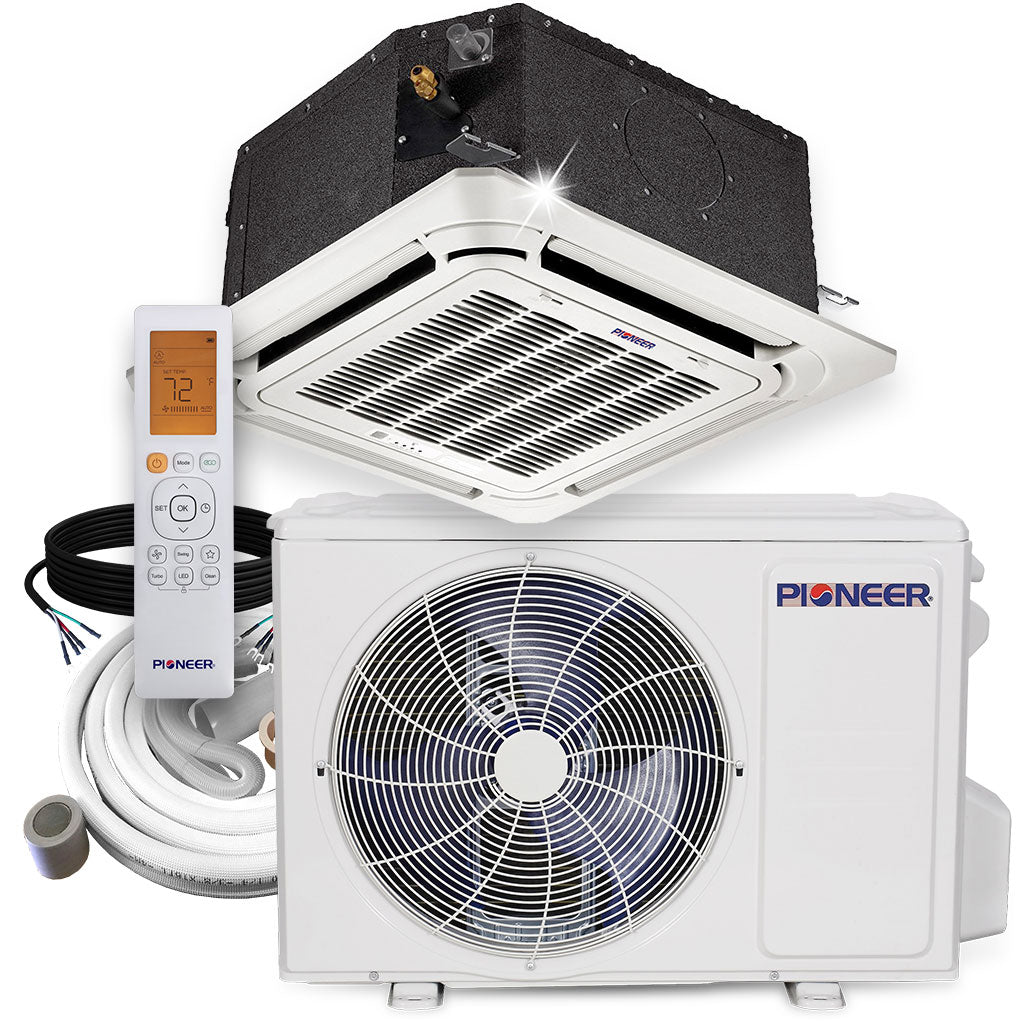

What's Included

  • Indoor Unit
  • Outdoor Unit
  • Panel

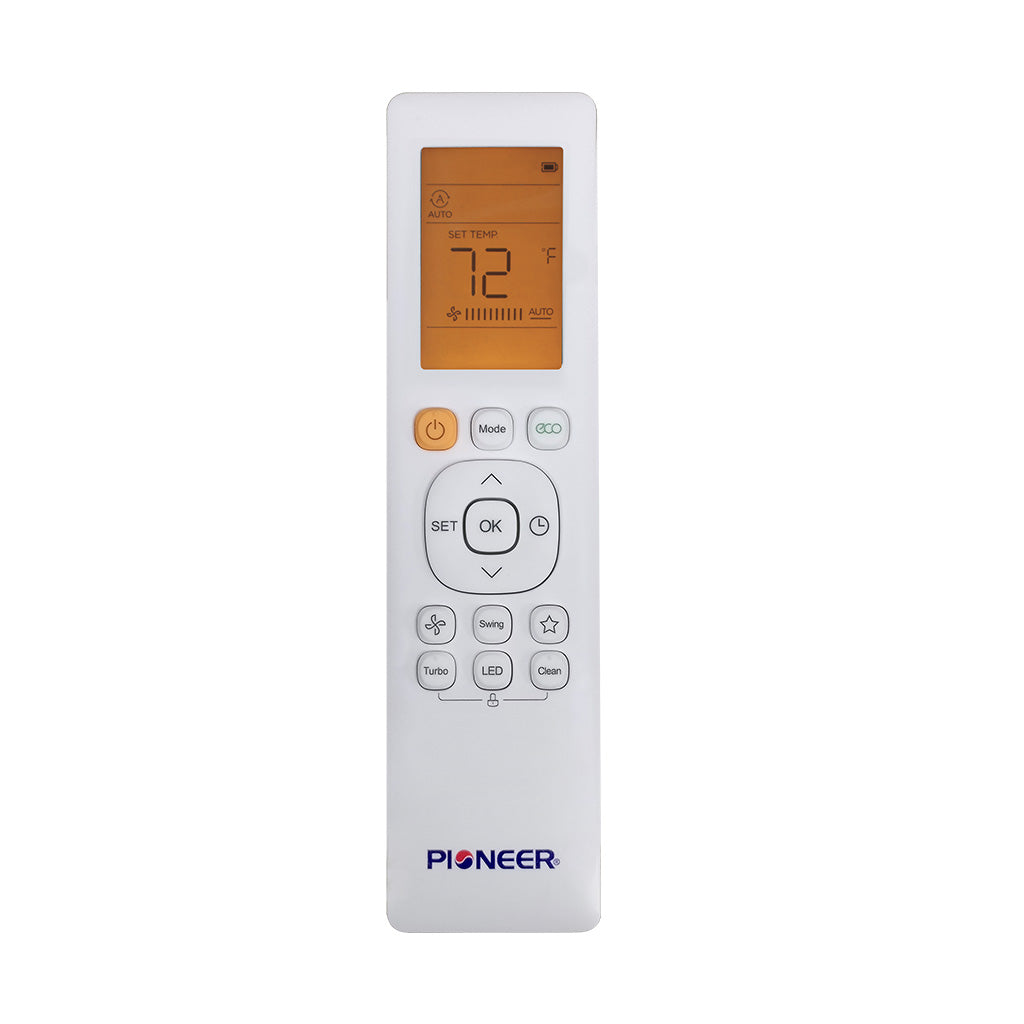

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 9,000 BTU/h
  • Cooling Capacity Range: 2,970~10,500 BTU/h
  • Cooling SEER2: 20.0 BTU  /W.h
  • Cooling EER2: 13.0 BTU  /W.h
  • Heating Rated Capacity: 10,000 BTU/h
  • Heating Capacity Range: 2,230~11,650 BTU/h
  • Heating HSPF2: 10.0 BTU/W.h
  • Heating C.O.P.2: 3.08 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 200~350 Sq.F

Indoor Unit Data

  • Model: CB009GMFILCFHD
  • Air Flow (Hi/Med/Lo): 309 / 265 / 200 CFM
  • Sound Level (Hi/Med/Lo): 37.5 / 34.5 / 31.5 dB(A)
  • Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
  • Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
  • Net / Gross Weight: 32 / 38 Lbs

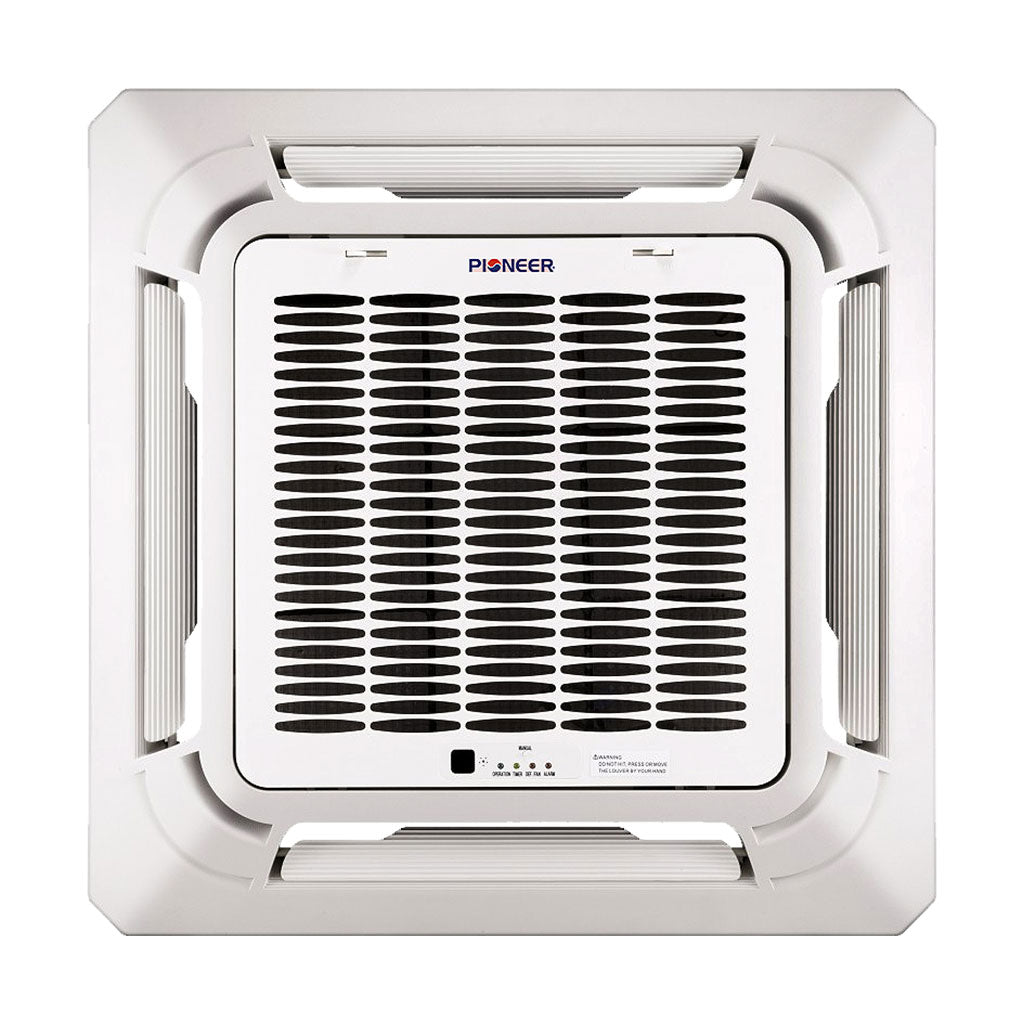

Panel Data

  • Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
  • Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
  • Net / Gross Weight: 6 / 10 Lbs

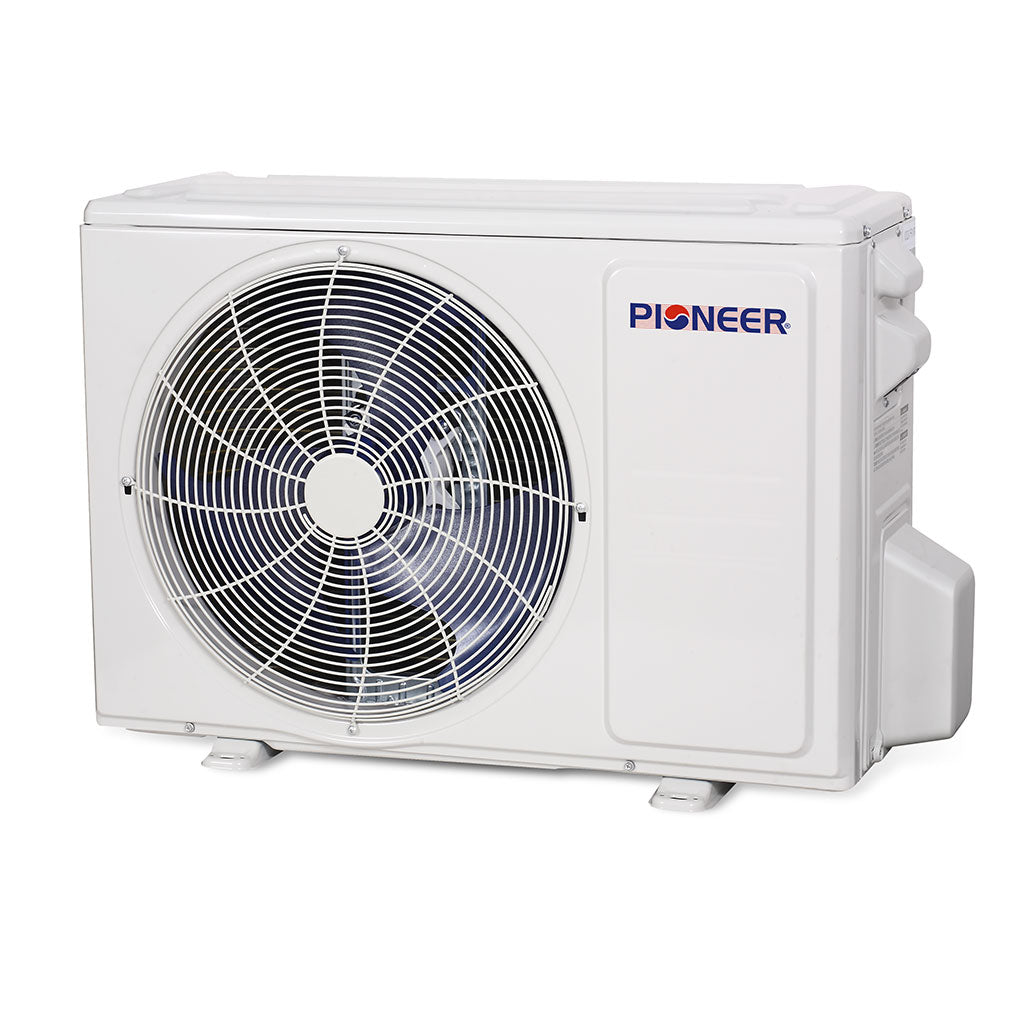

Outdoor Unit Data

  • Model: YN009GMFI22RPE
  • Sound Level: 54.5 dB(A)
  • Net Dimensions (WDH): 30.3 x 11.8 x 21.8 Inches
  • Carton Dimensions (WDH): 35.3 x 13.6 x 14.6 Inches
  • Net / Gross Weight: 64 / 69 Lbs
  • Breaker Needed: 15A (double-pole)

Manuals & Downloads
