Description
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

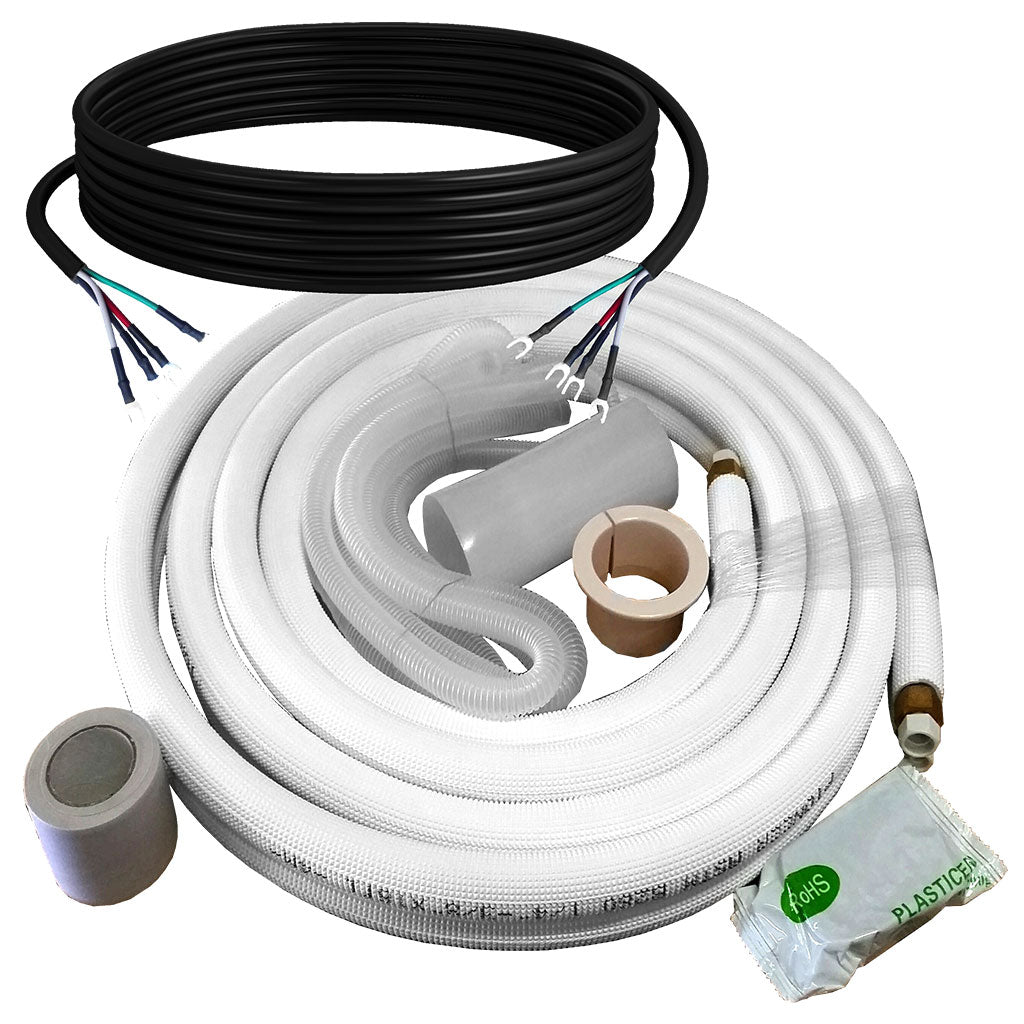

NOTE: The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Overview
Summary
- High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
- Cooling capacity: 36,000 BTU/H with 17.5 SEER2 / 8.5 EER2 efficiency
- Heating capacity: 36,000 BTU/H with 8.7 HSPF2 / 2.47 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- AHRI Estimated Annual Operating Costs:
- Cooling: $272.00
- Heating: $645.00

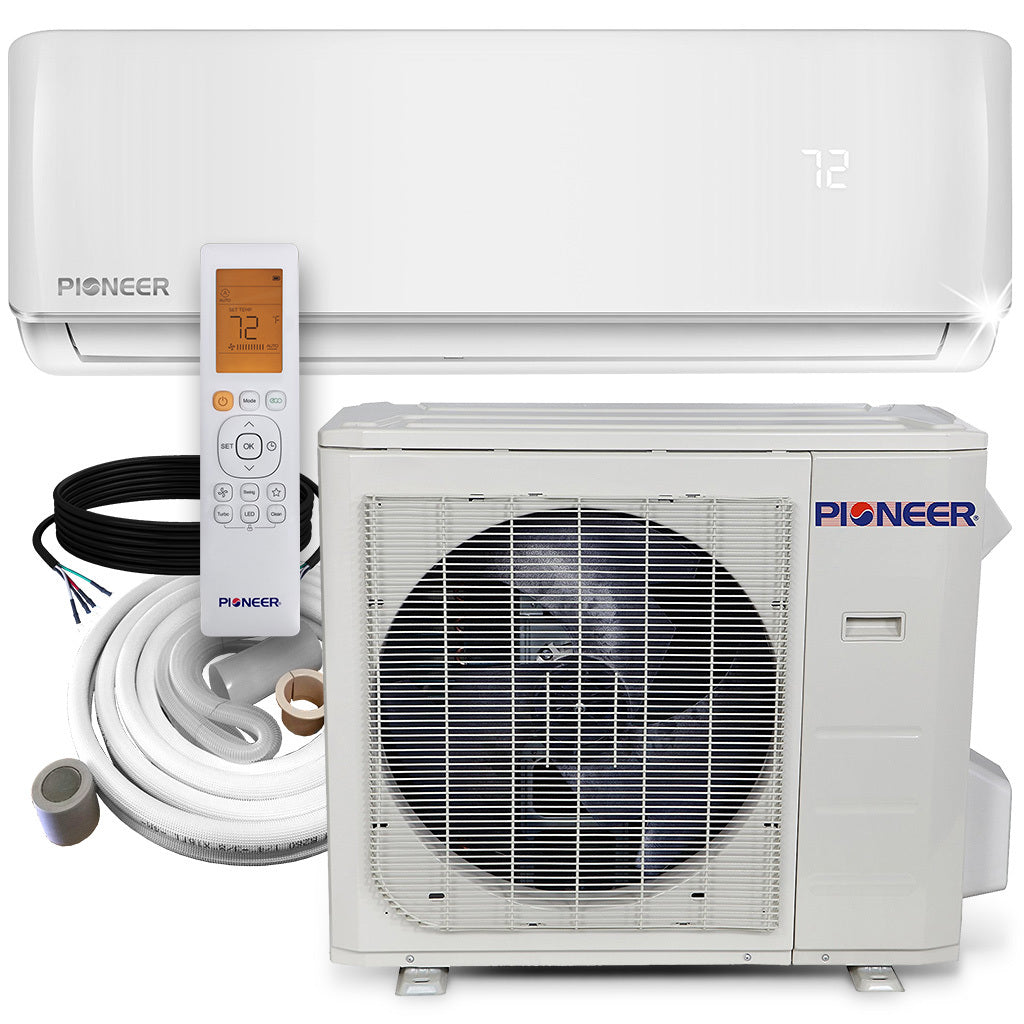

What's Included

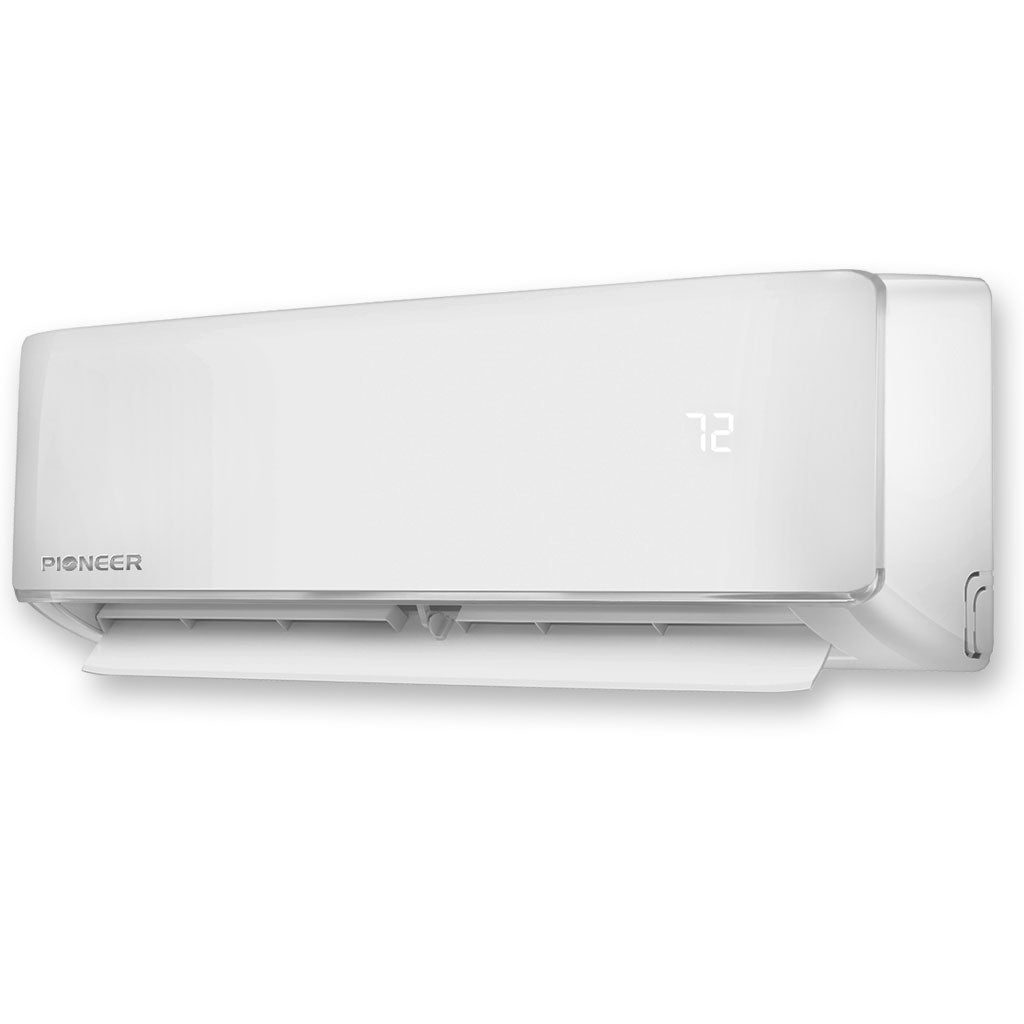

- Ductless Wall-Type Indoor Air Handler Unit

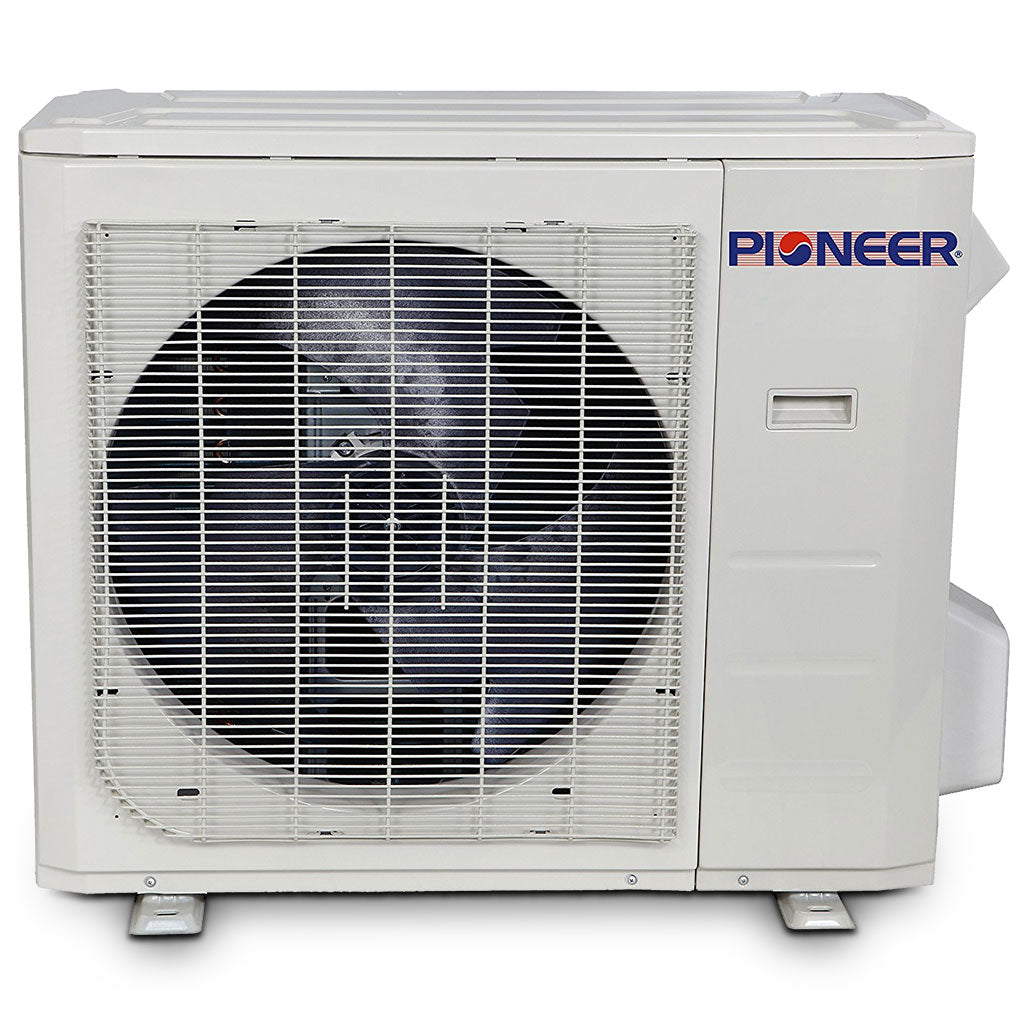

- Outdoor Heat Pump Condensing Unit

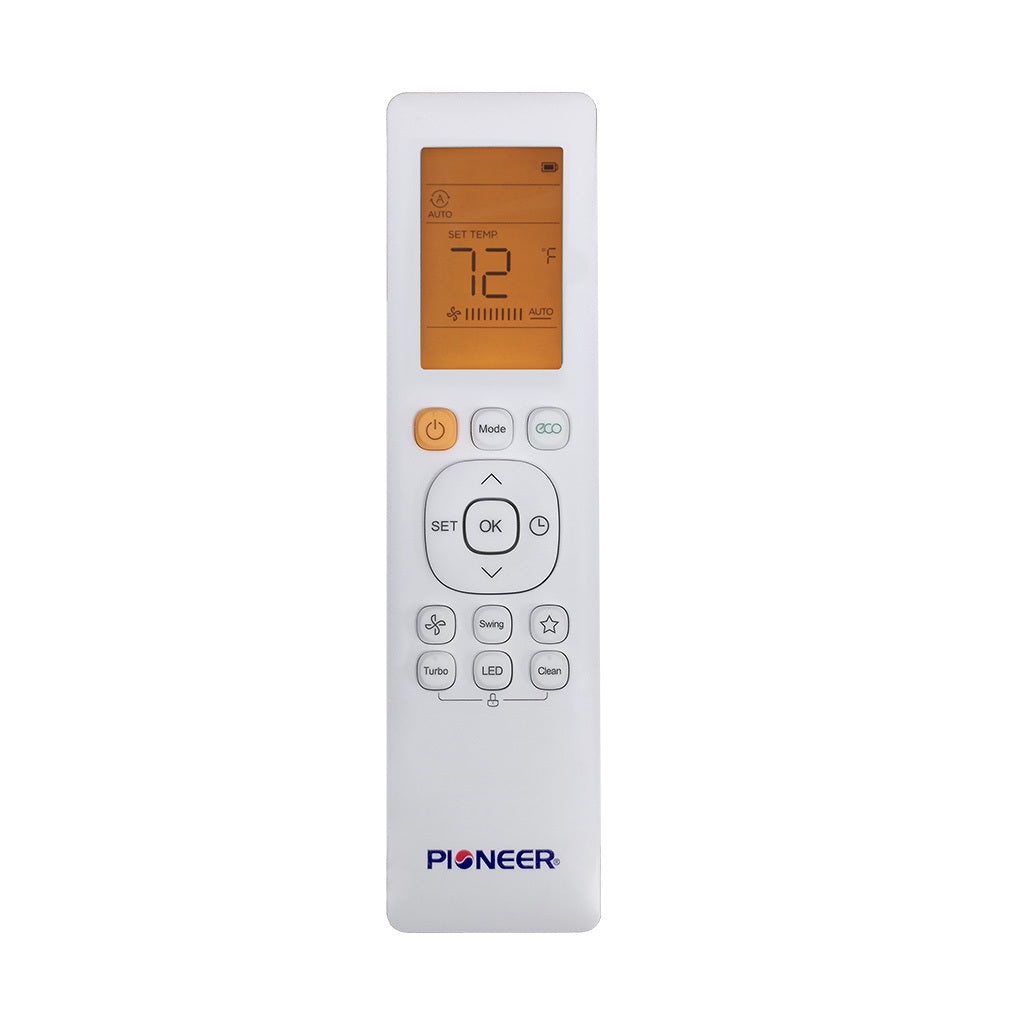

- Wireless Handheld Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h (3-Ton)
- Cooling Capacity Range: 8,900~36,300 BTU/h
- Cooling SEER2: 17.5 BTU/W.h
- Cooling EER2: 8.5 BTU/W.h
- Heating Rated Capacity: 36,000 BTU/h (3-Ton)
- Heating Capacity Range: 11,400~37,800 BTU/h
- Heating HSPF2 (Region IV/V): 8.7 / 6.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.47 / 1.97 W/W
- Refrigerant Type: R410A/120
- Suitable Area: 900~1,250 Sq.F
Indoor Unit Data
- Model Number: WS036GMFI20HLD
- Air Flow (Turbo/Hi/Med/Lo): 882 / 732 / 518 / 400 CFM
- Sound Level (Hi/Med/Lo): 56.5 / 54.5 / 40 dB(A)
- Net Dimensions (WDH): 49"-1/2 x 11"-1/8 x 14"-1/4 Inches
- Carton Dimensions (WDH): 52"-3/4 x 17"-3/4 x 15"-1/4 Inches
- Net / Gross Weight: 40 / 52.5 lbs
Outdoor Unit Data
- Model Number: YN036GMFI20RPD
- Sound Level: 63.5 dB(A)
- Breaker Needed: 30A (double-pole)
- Net Dimensions (WDH): 37"-1/4 x 16"-1/4 x 31"-7/8 Inches
- Carton Dimensions (WDH): 42"-7/8 x 19"-5/8 x 34" Inches
- Net / Gross Weight: 150 / 159 lbs
