Description
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit
NOTE: The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Overview
Summary
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 16,000 BTU/H with 20.5 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 19,000 BTU/H with 10.5 HSPF2 / 2.78 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Ceiling Compact Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $103.00
- Heating: $356.00

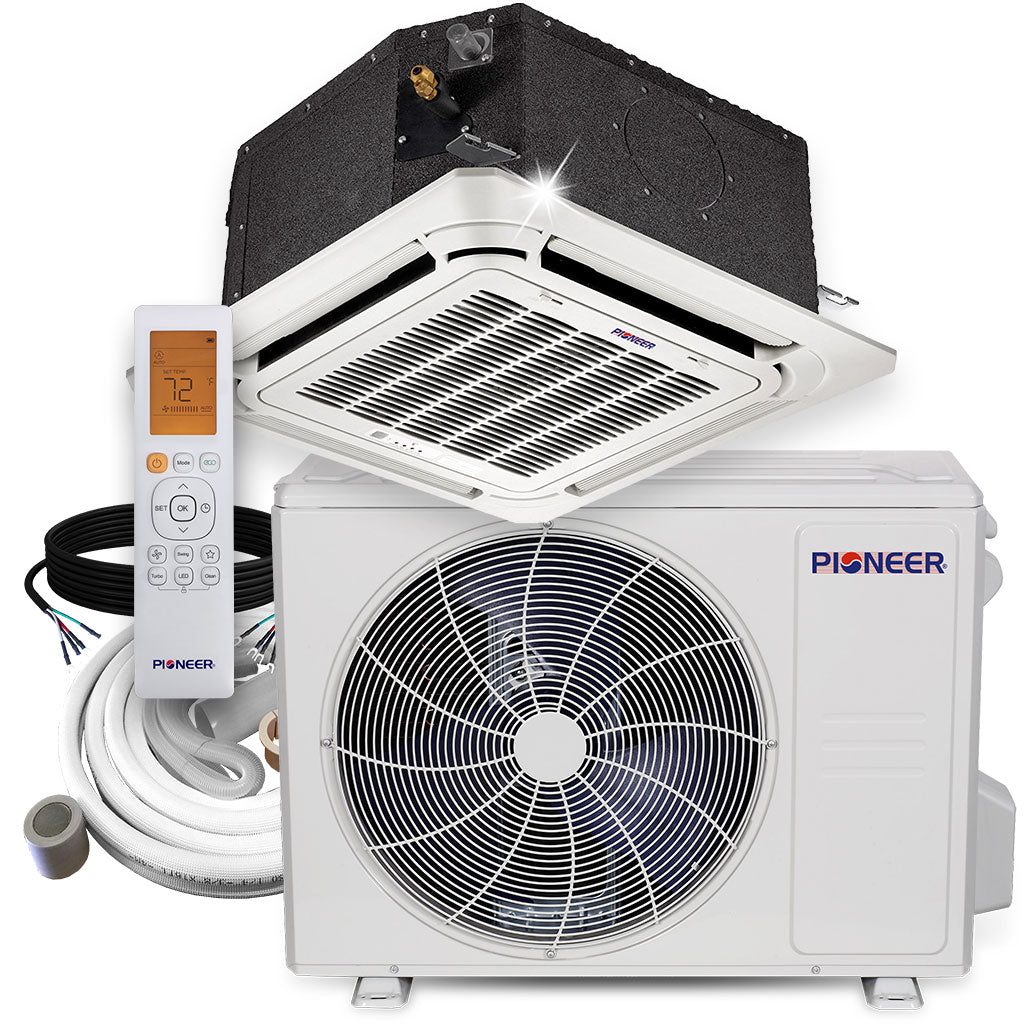

What's Included
- Indoor Unit
- Outdoor Unit
- Panel

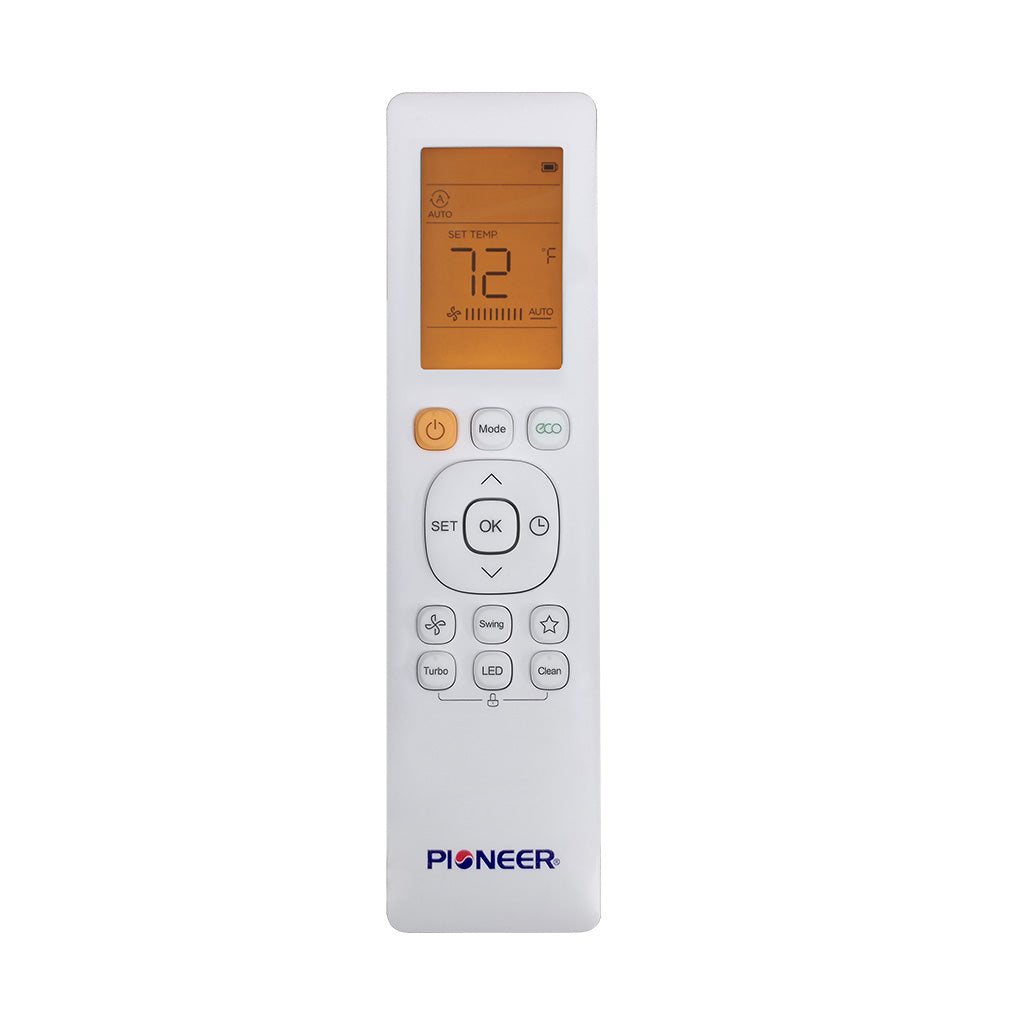

- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 16,000 BTU/h
- Cooling Capacity Range: 5,600~16,000 BTU/h
- Cooling SEER2: 20.5 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 19,000 BTU/h
- Heating Capacity Range: 7,700~19,000 BTU/h
- Heating HSPF2: 10.5 BTU/W.h
- Refrigerant Type: R410a
- Suitable Area: 400~650 Sq.F
Indoor Unit Data
- Model: CB018GMFILCFHD
- Air Flow (Hi/Med/Lo): 365 / 310 / 265 CFM
- Sound Level (Hi/Med/Lo): 43.0 / 38.5 / 34.5 dB(A)
- Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
- Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
- Net / Gross Weight: 35.7 / 47 Lbs

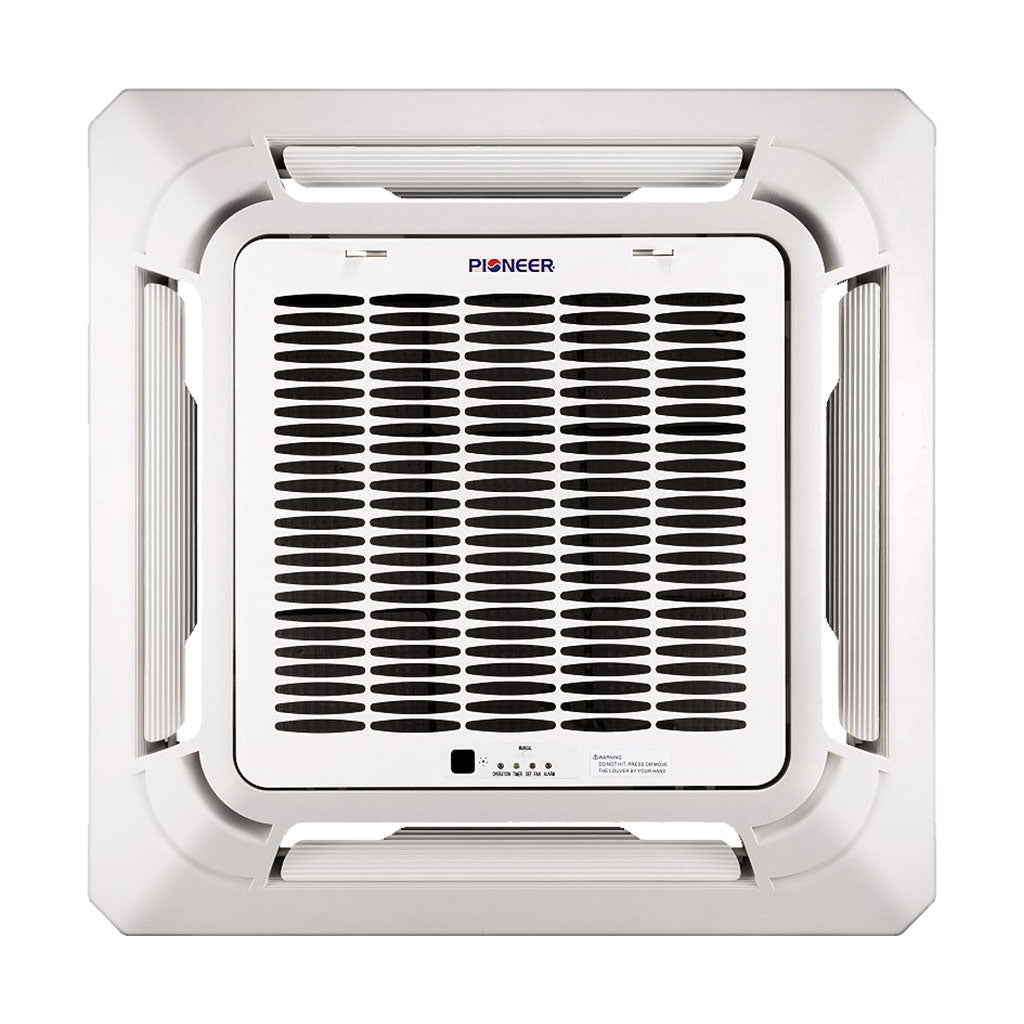

Panel Data
- Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
- Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
- Net / Gross Weight: 5.5 / 9.9 Lbs

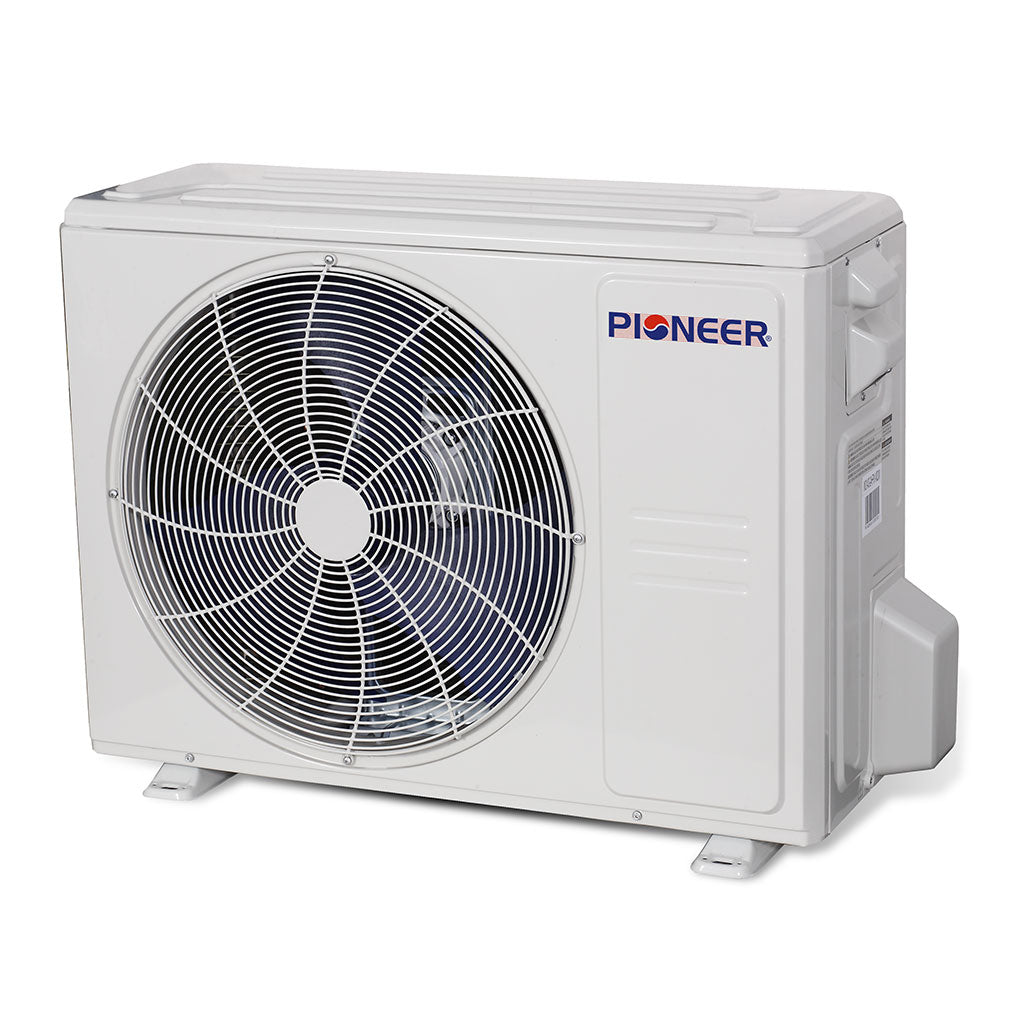

Outdoor Unit Data
- Model: YN018GMFI22RPE
- Sound Level: 59.0 dB(A)
- Net Dimensions (WDH): 35.0 x 13.5 x 26.5 Inches
- Carton Dimensions (WDH): 39.2 x 15.6 x 29.2 Inches
- Net / Gross Weight: 94.4 / 101 Lbs
- Breaker Needed: 20A (double-pole)
