Pioneer® Vertex™ 56,000 BTU 17 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump

Product Details

Summary

Standard Efficiency Vertex Ducted Central Split Heat Pump System
Cooling capacity: 55,500 BTU/H with 17.0 SEER2 / 10.0 EER2 efficiency
Heating capacity: 57,000 BTU/H with 8.6 HSPF2 / 2.1 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
High Wall-Mounted Ductless Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Standard Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)

Dimensioning Chart

Technical Information & Performance

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 55,500 BTU/h
- Cooling Capacity Range: 37,600~67,400 BTU/h
- Cooling SEER2: 17.0 BTU/W.h
- Cooling EER2: 10.0 BTU/W.h
- Heating Rated Capacity: 57,000 BTU/h
- Heating Capacity Range: 18,000~72,500 BTU/h
- Heating HSPF2 (Region IV): 8.6 BTU/W.h
- Heating C.O.P.2 (5°F): 2.1 W/W
- Refrigerant Type: R454b
- AHRI Reference: 217048500

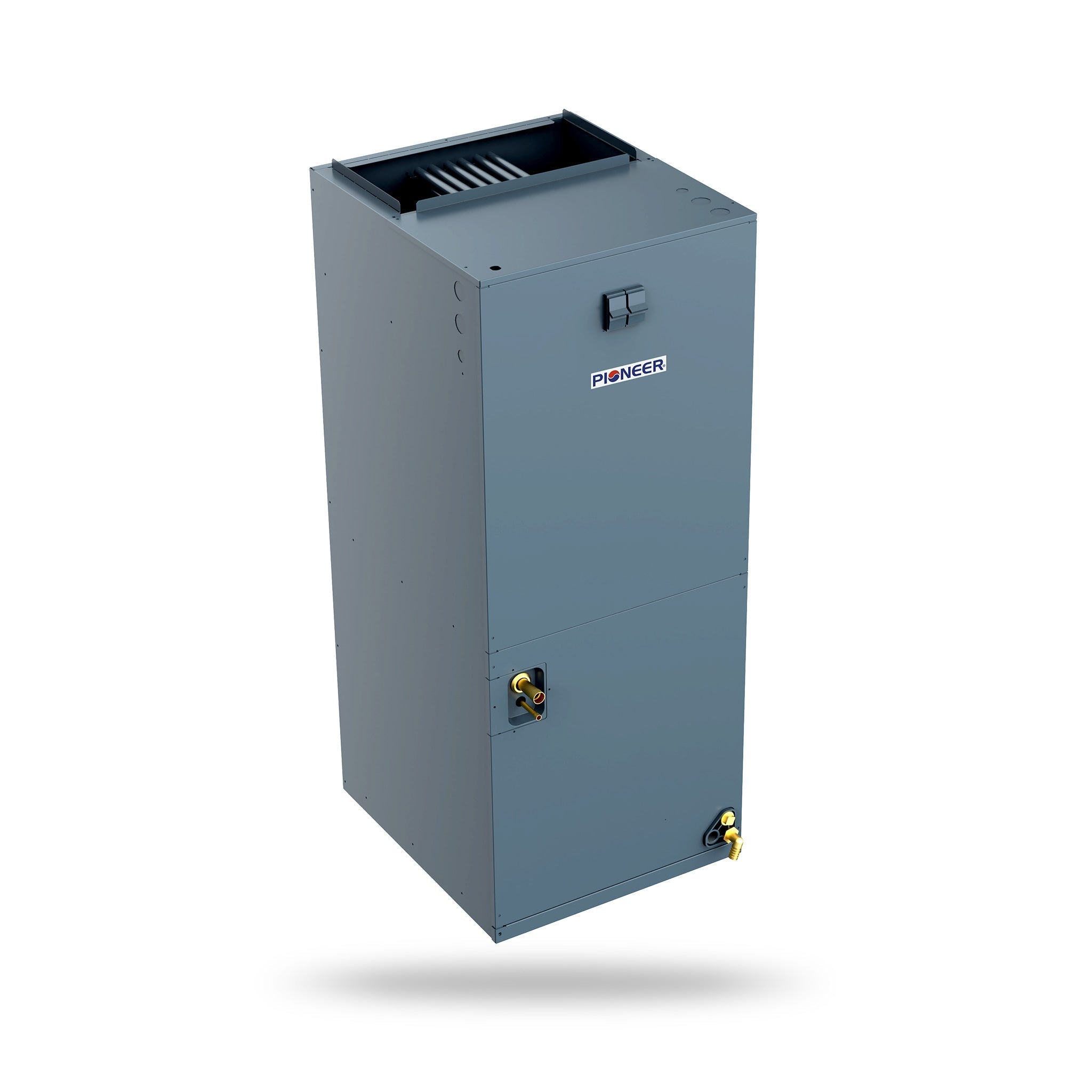

Air Handler
- Part Number: DC048GCSICDHRT
- Air Flow (Hi/Lo): 1,500 / 1,205 CFM
- Sound Level (Hi/Lo): 59 / 55 dB(A)
- Product Dimensions (WDH): 22" x 24"-1/2 x 53"-1/8 Inches
- Carton Dimensions (WDH): 25"-1/4 x 28" x 54"-3/4 Inches
- Net / Gross Weight: 169 / 182 lbs

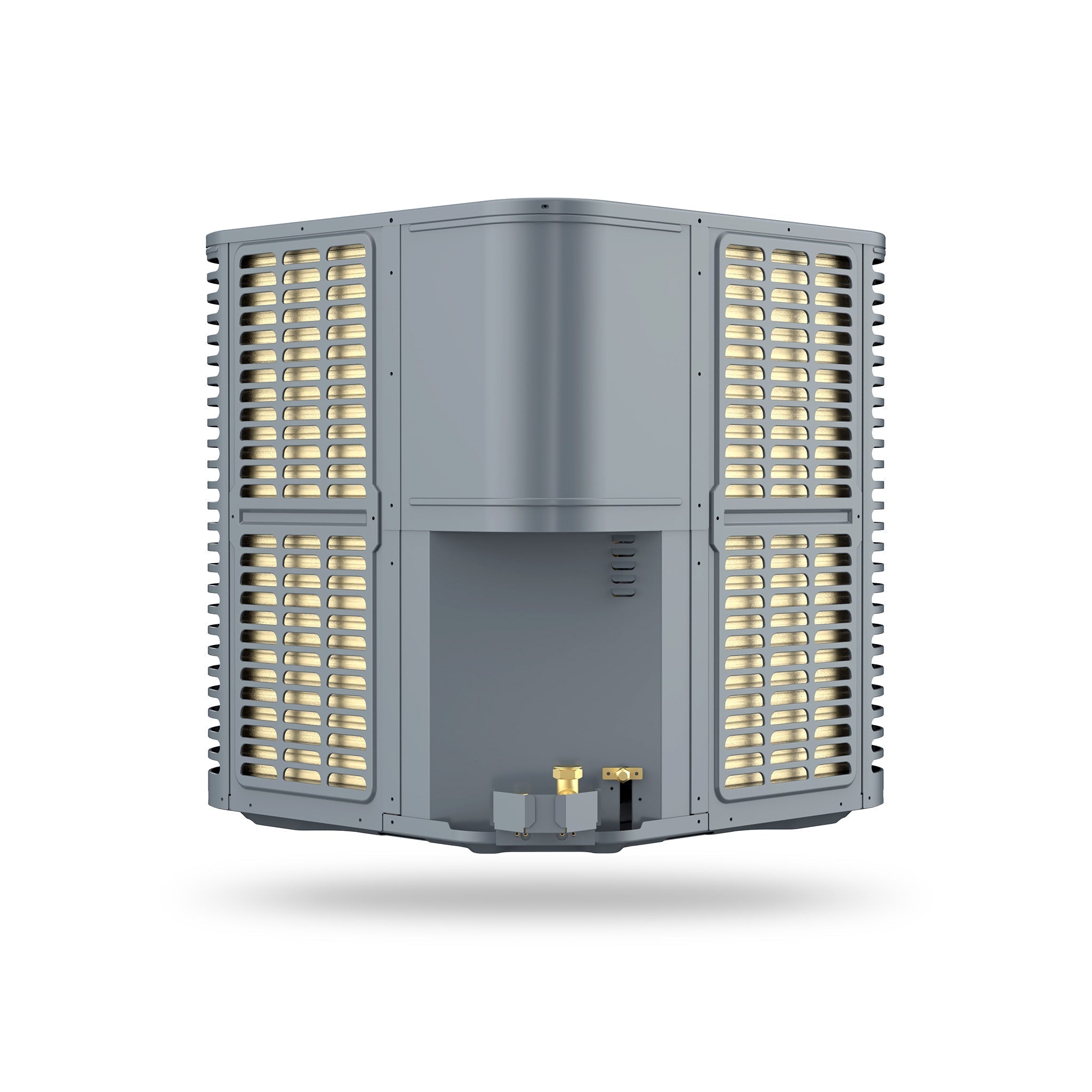

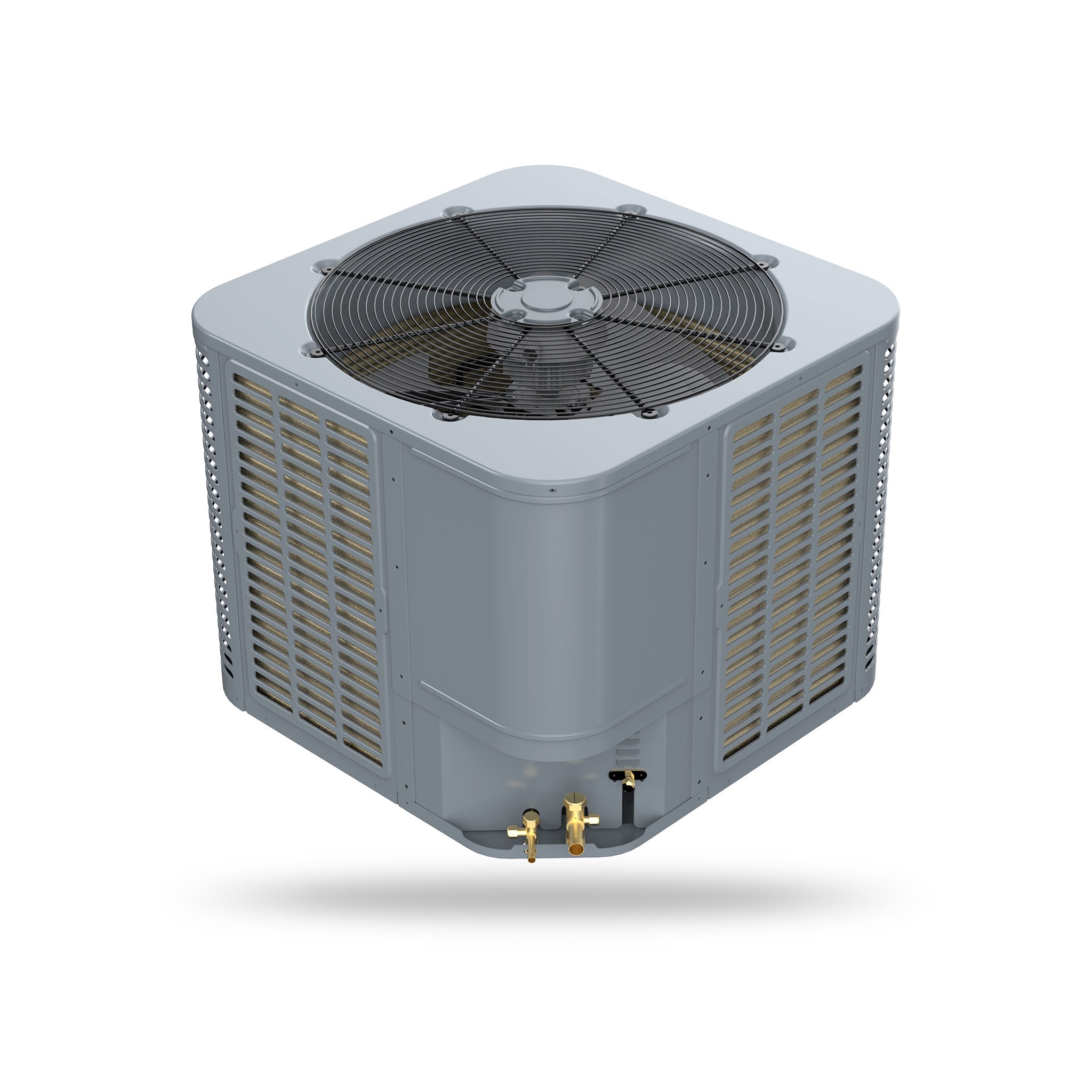

Outdoor Unit
- Part Number: YD4860GCSI18RD
- Breaker Needed: 30A (double-pole)
- Sound Level: 79 dB(A)
- Net Dimensions (WDH): 29"-1/8 x 29"-1/8 x 32" Inches
- Carton Dimensions (WDH): 30" x 30" x 34"-1/2 Inches
- Net / Gross Weight: 187 / 196 lbs

Product Certifications

Series Details

Vertex™ Ducted Central Split

Ducted air conditioning units provide climate control for multiple rooms using a single system and a network of air ducts. Pioneer’s ducted split systems offer whole-house heating and cooling with consistent comfort. Available in various configurations, our units range from 24,000–60,000 BTU with a SEER of 18. Built from quality materials with smart design, they deliver lasting performance.

IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to25 ft. per circuit. For longer refrigerant line sets, additional refrigerant is required. System is pre-configured to be used with the included digital controller system thermostat for fully automated variable capacity operations flawlessly using RS485 communications mode. It also provides an option to be controlled by any generic 24 Volt analog thermostat. See instructions to switch control modes between RS485 and 24 V analog modes, if using an alternate thermostats is desired. Variety of optional Electric Strip Heater options possible. They are available with multiple KW ratings as well as with or without breakers. Line sets require braze type connections for both sections and other complex installation tasks are involved, requiring installation by trained professionals.

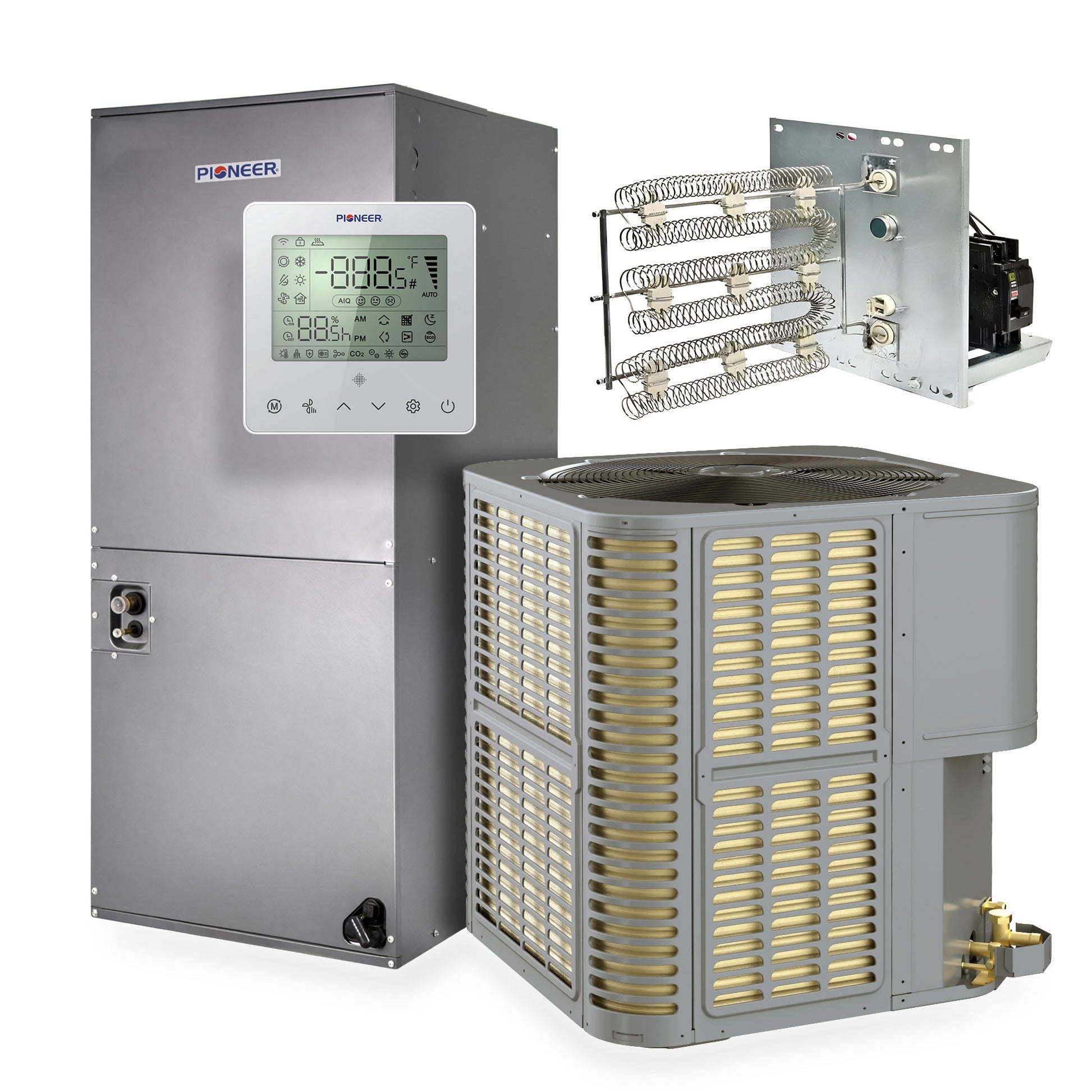

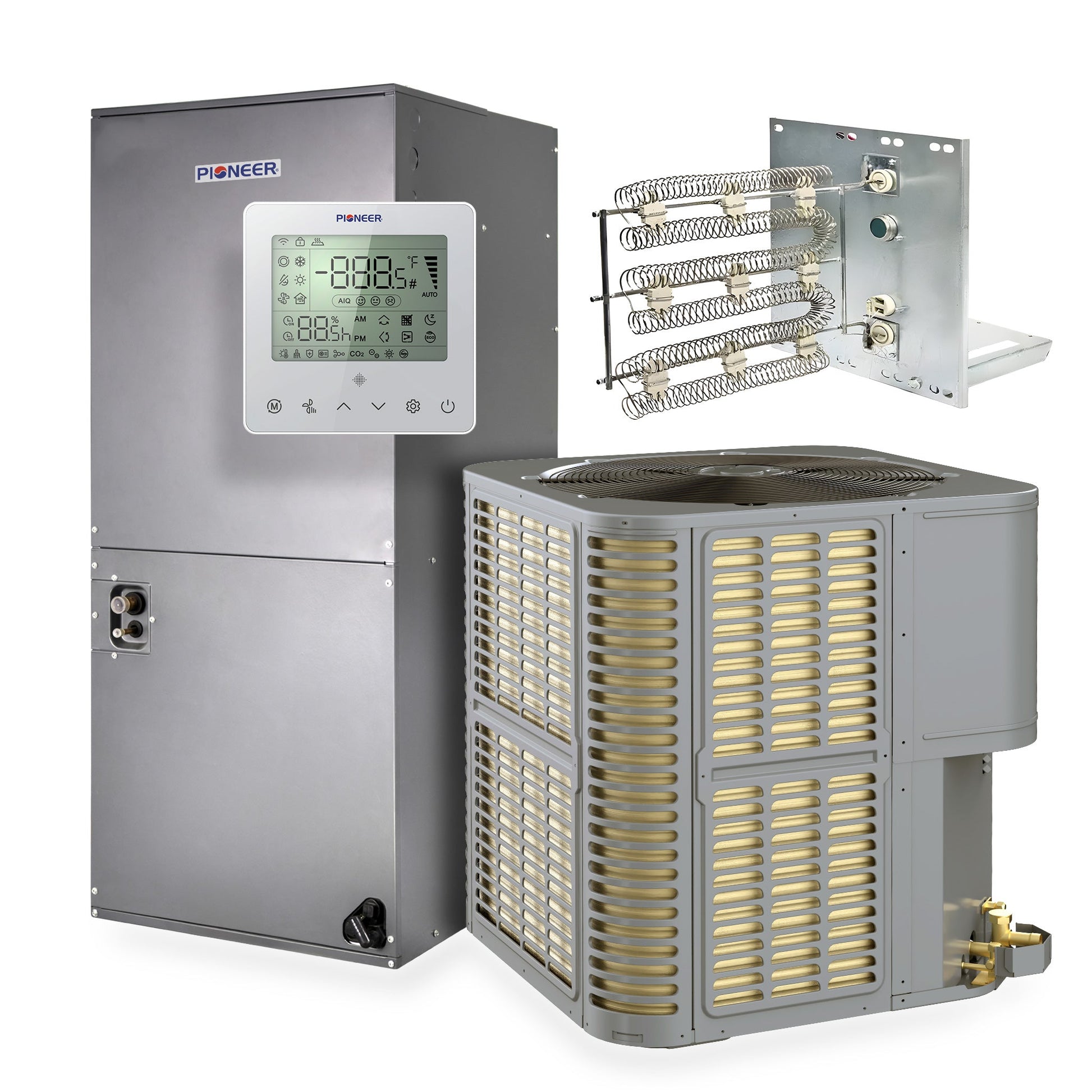

What's Included in Your Purchase

Air Handling Unit (Multi Position, Convertible)
Outdoor Unit (Vertical Discharge, Heat Pump)

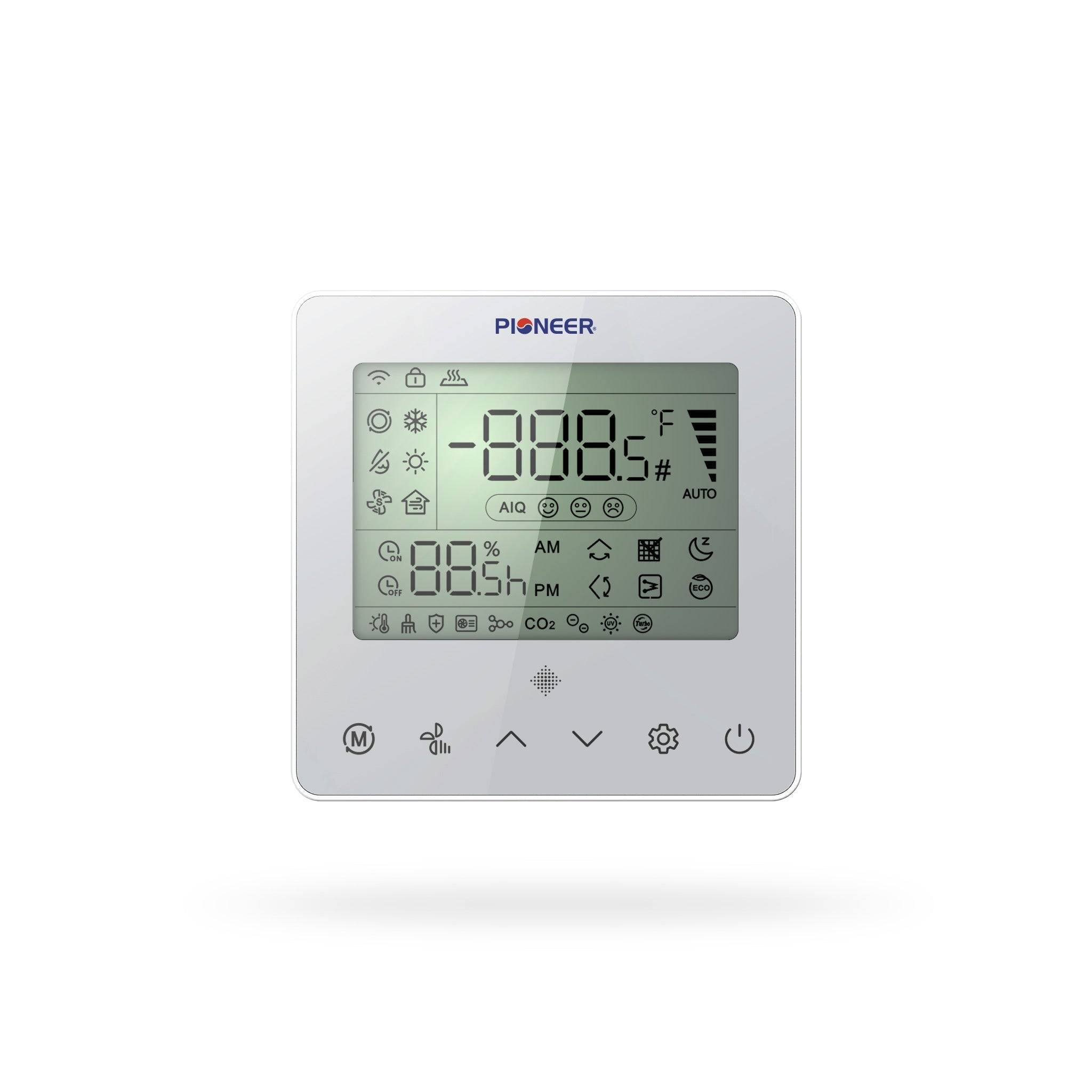

Digital Fully Communicating RS485 Thermostat
Wireless remote access and programming function
Thermostat and Digital Communication Cables
Condensate Float Switch
High-Capacity Bi-Directional Filter Dryer
Installation and User Manuals

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Manuals & Documents

Pioneer® Vertex™ 56,000 BTU 17 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump

Series: Vertex™ Ducted Central Split

SKU: DYC060GCSI18RD-08N

$4,228.00

Shipping calculated at checkout.

Electric Strip Heater Capacity: 7.5 kW

5 kW 7.5 kW 10 kW No Heater

Electric Strip Heater Type: Without Breaker

With Breaker Without Breaker
