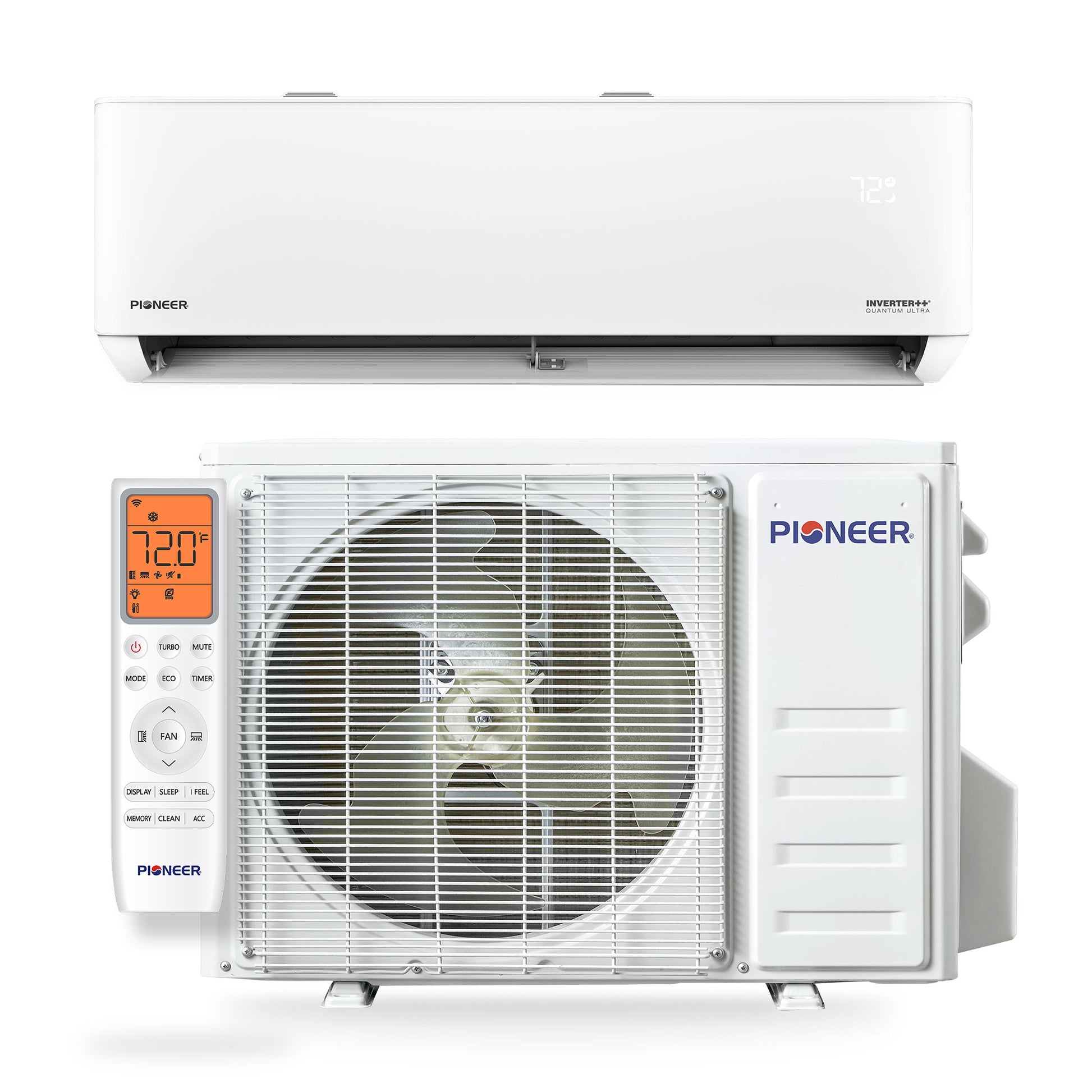

Pioneer® Quantum Ultra™ 12,000 BTU 23 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Product Details

Summary

High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
Cooling capacity: 12,000 BTU/H with 23 SEER2 / 13 EER2 efficiency
Heating capacity: 12,400 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
Voltage: 110/120V, 60Hz, 1Ph
High Wall-Mounted Ductless Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R454b Refrigerant
Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Dimensioning Chart

Technical Information & Performance

System Kit
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 2,500~12,500 BTU/h
- Cooling SEER2: 23.0 BTU/W.h
- Cooling EER2: 13.0 BTU/W.h
- Heating Rated Capacity: 12,400 BTU/h
- Heating Capacity Range: 2,500~15,000 BTU/h
- Heating HSPF2 (Region IV): 10.0 / 8.6 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.81 / 2.1 W/W
- Refrigerant Type: R454b
- Suitable Area: 350~500 Sq.F
- AHRI Reference: 217048750

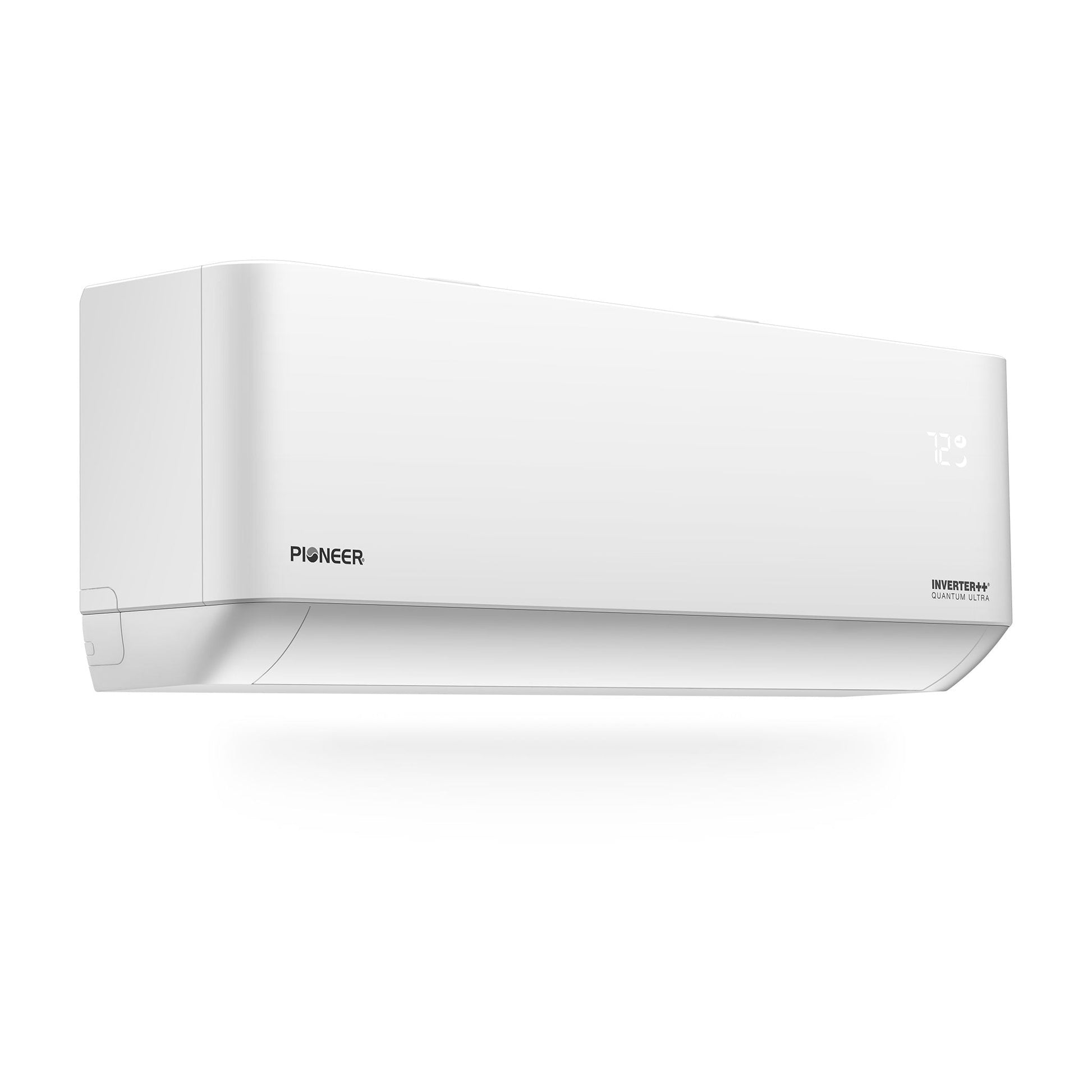

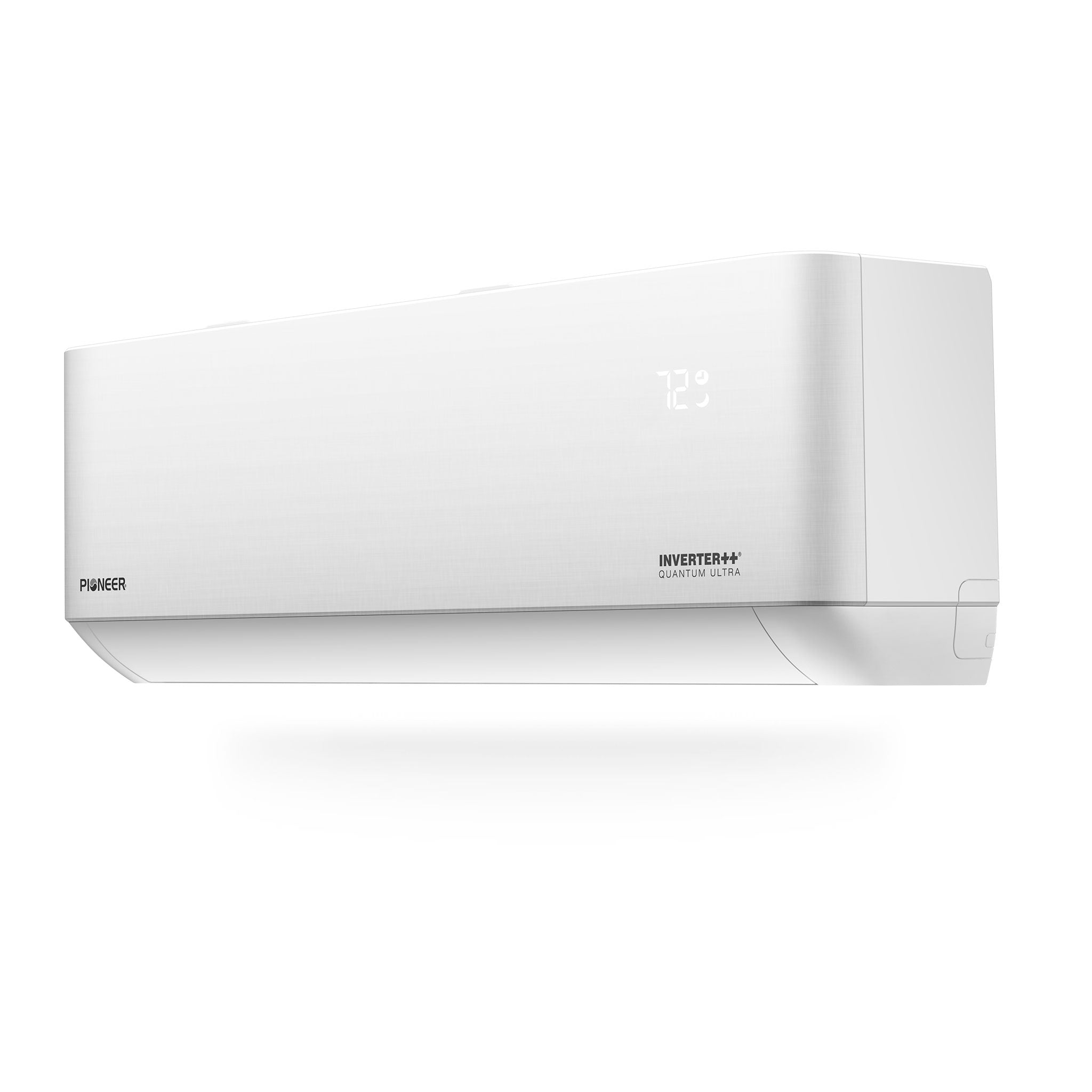

Indoor Unit
- Part Number: WT012ALSI24HLG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
- Product Dimensions (WDH): 36"-1/2 x 7"-5/8 x 12" Inches
- Carton Dimensions (WDH): 39" x 10"-1/2 x 15" Inches
- Net / Gross Weight: 23.1 / 30.9 lbs.

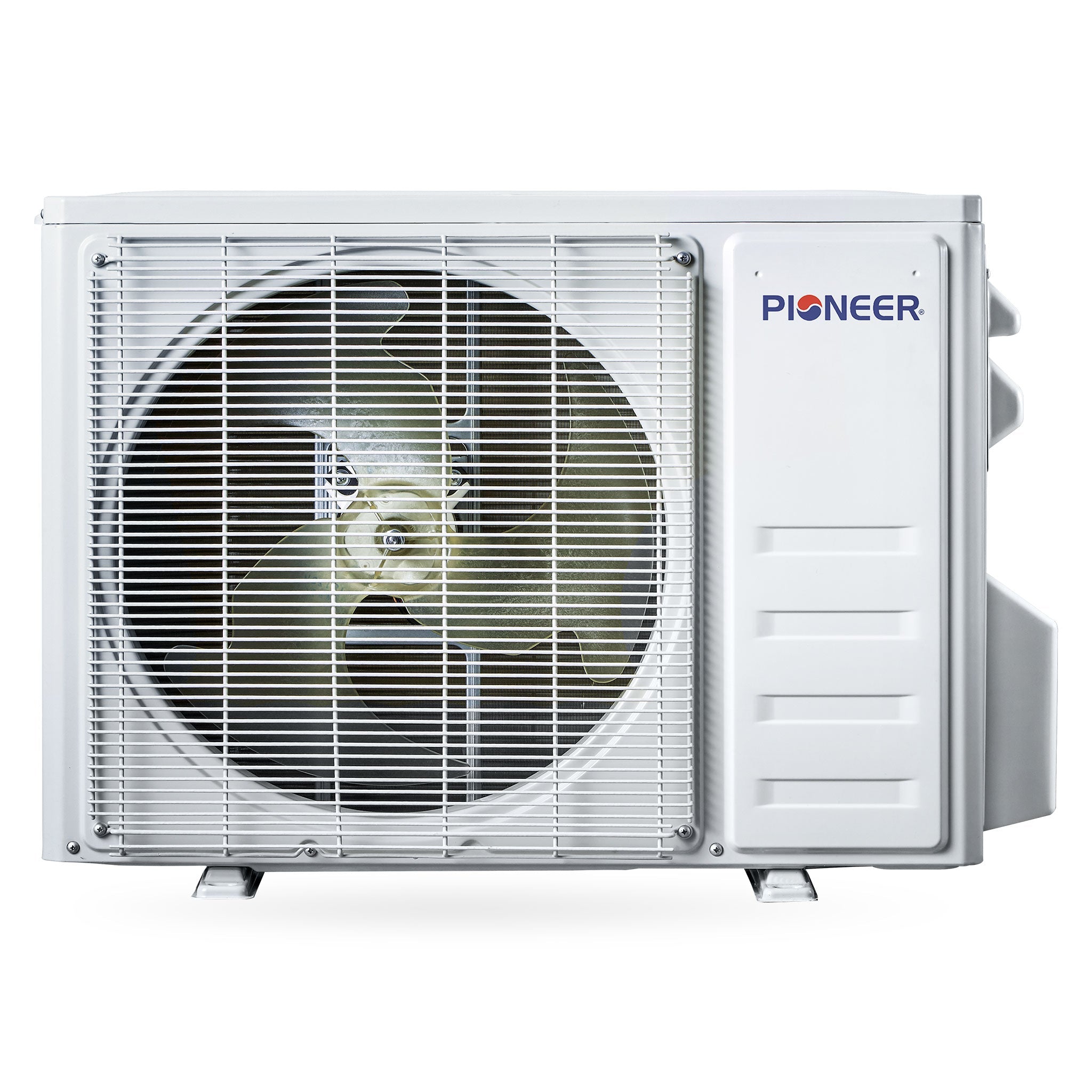

Outdoor Unit
- Part Number: YN012ALSI24RPG
- Breaker Needed: 25A (single-pole)
- Sound Level: 52 dB(A)
- Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
- Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
- Net / Gross Weight: 58.4 / 65.0 lbs.

Product Certifications

Series Details

Quantum Ultra™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

Features

Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
Dual-Drainage Ports
Washable, Reusable Air Filters
Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

Functional Remote

ECO and SLEEP Modes, for Energy-Conservation
Timer On/Off Control
TURBO, for Times of High-Demand
Self-Clean Cycle
MEMORY, to Recall Favorite Settings
IFEEL, to Detect and Adjust to Local Temperature

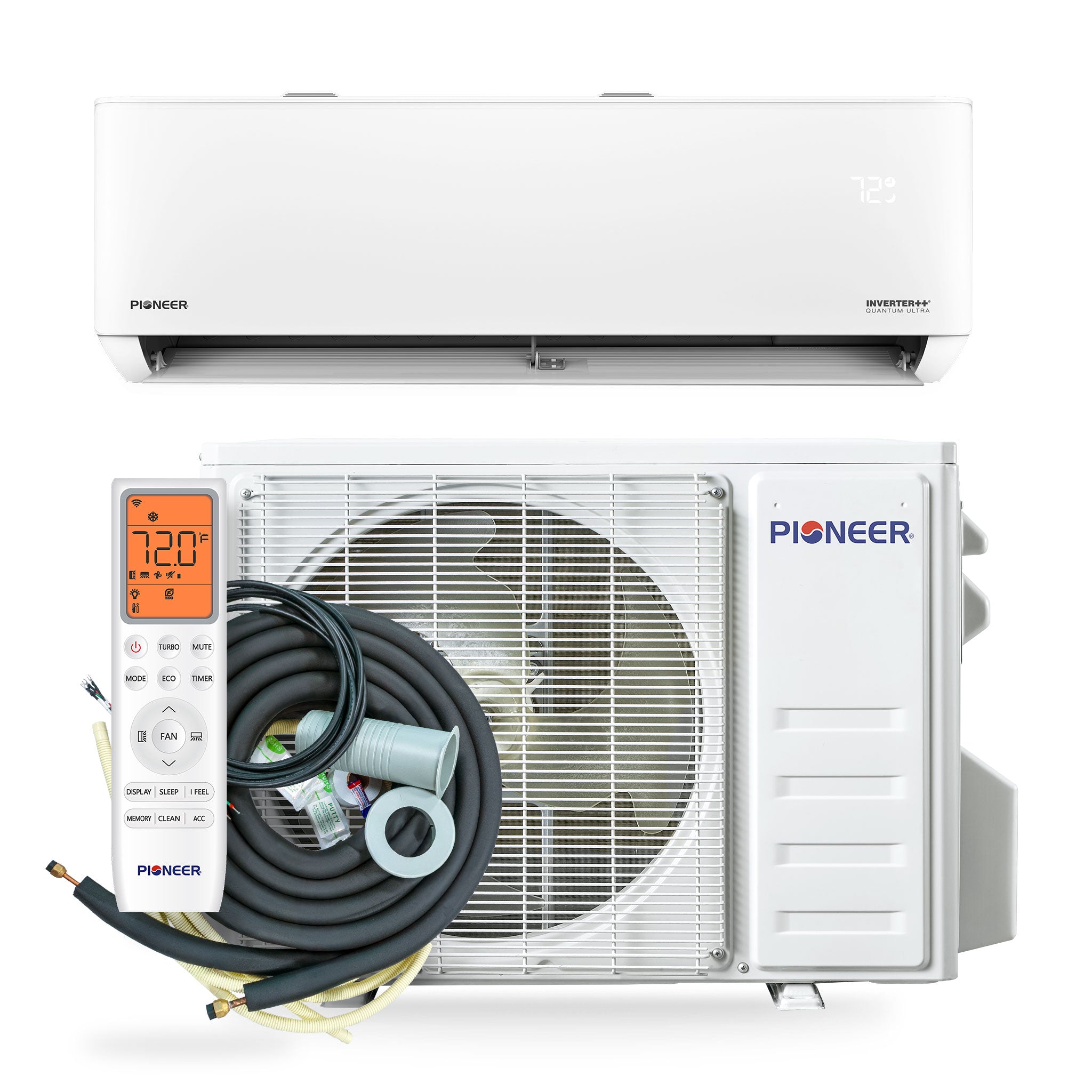

What's Included in Your Purchase

Indoor Unit
Outdoor Unit

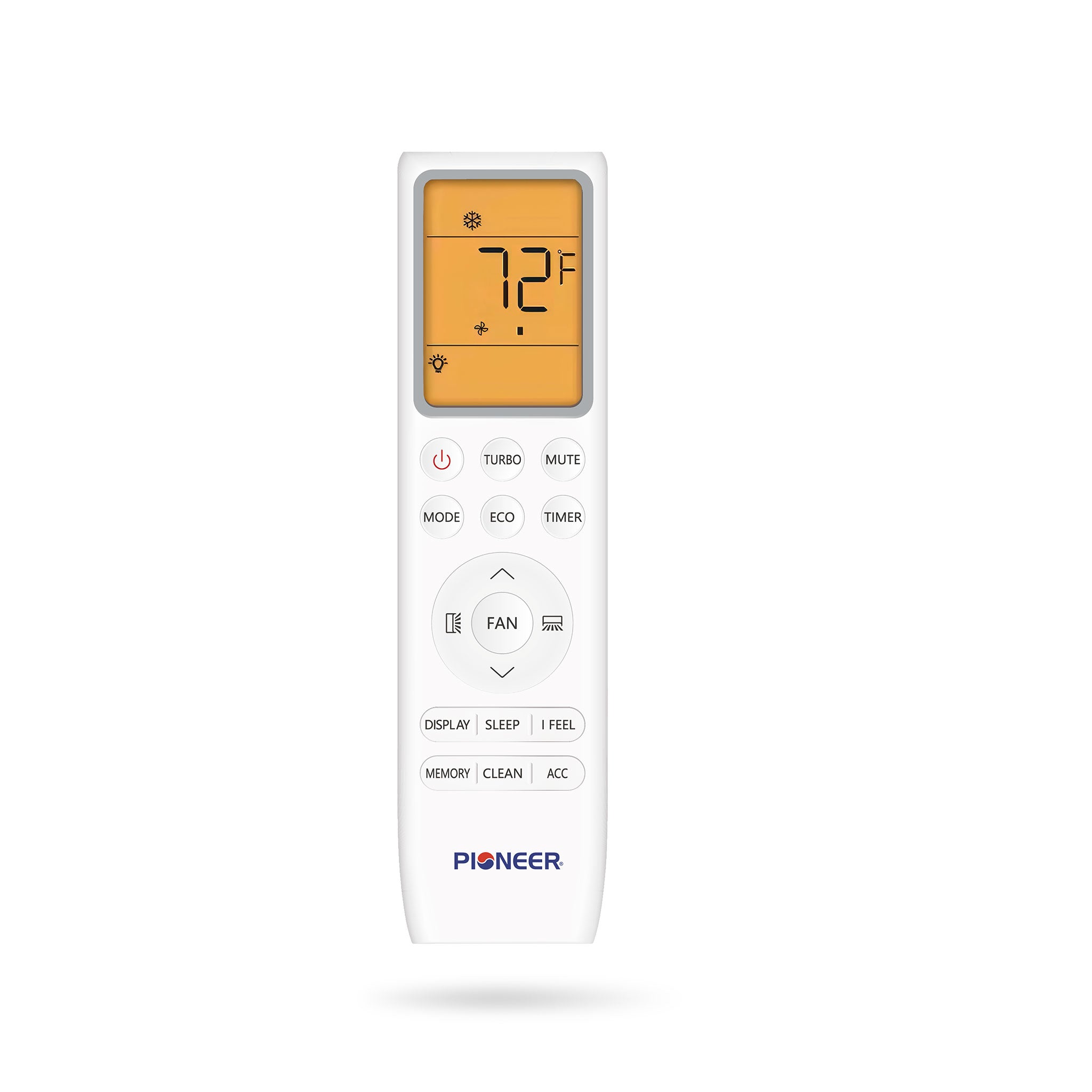

Wireless Remote Control
Remote Control Wall Holder
Remote Control Batteries
Customizable Length Copper Lines
Customizable Length Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Manuals & Documents

Sold out

Pioneer® Quantum Ultra™ 12,000 BTU 23 SEER2 115V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Series: Quantum Ultra™ High-Wall Series

SKU: WYT012ALSI24RL-10S

$993.00

$993.00 ~~$0.00~~

Shipping calculated at checkout.

Out of stock

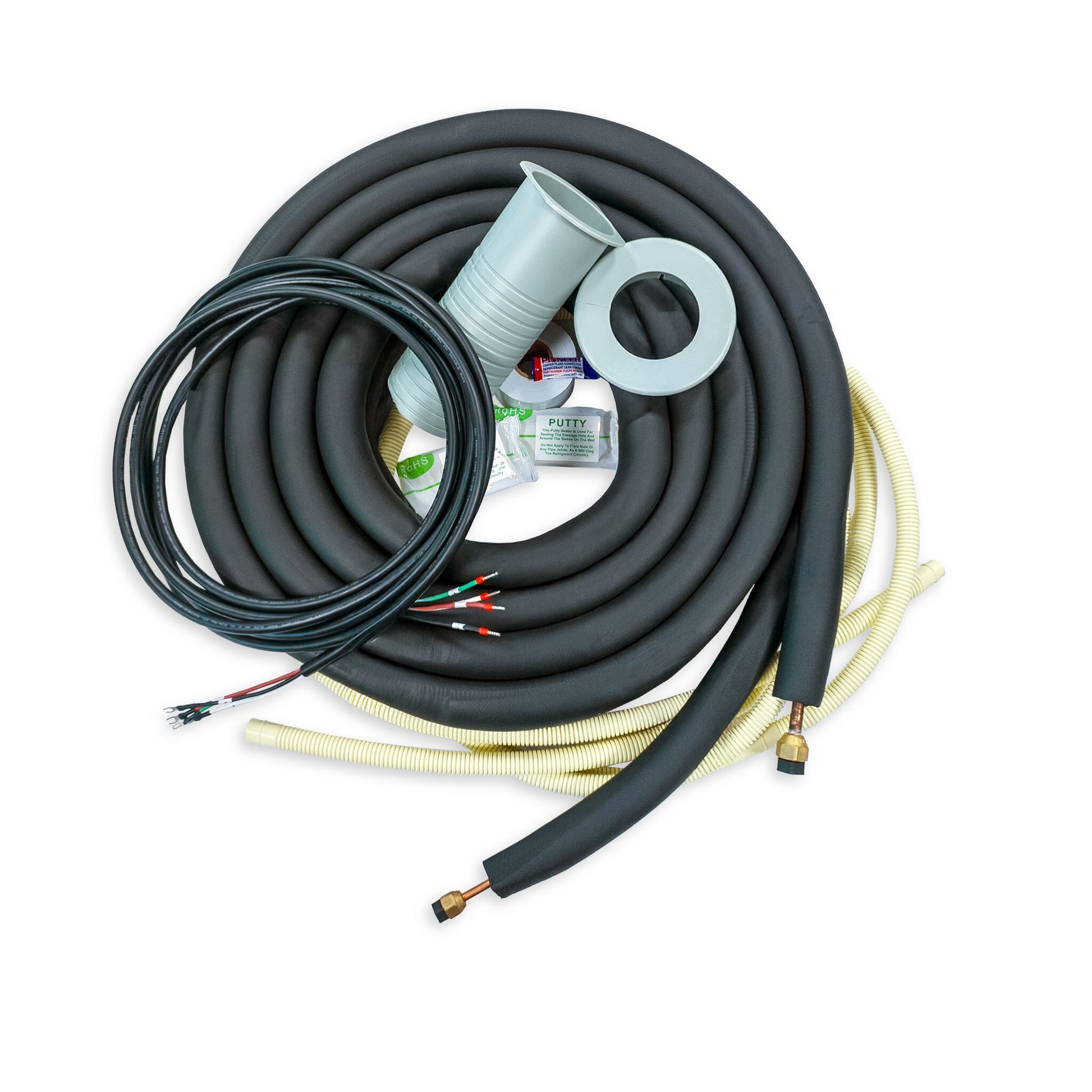

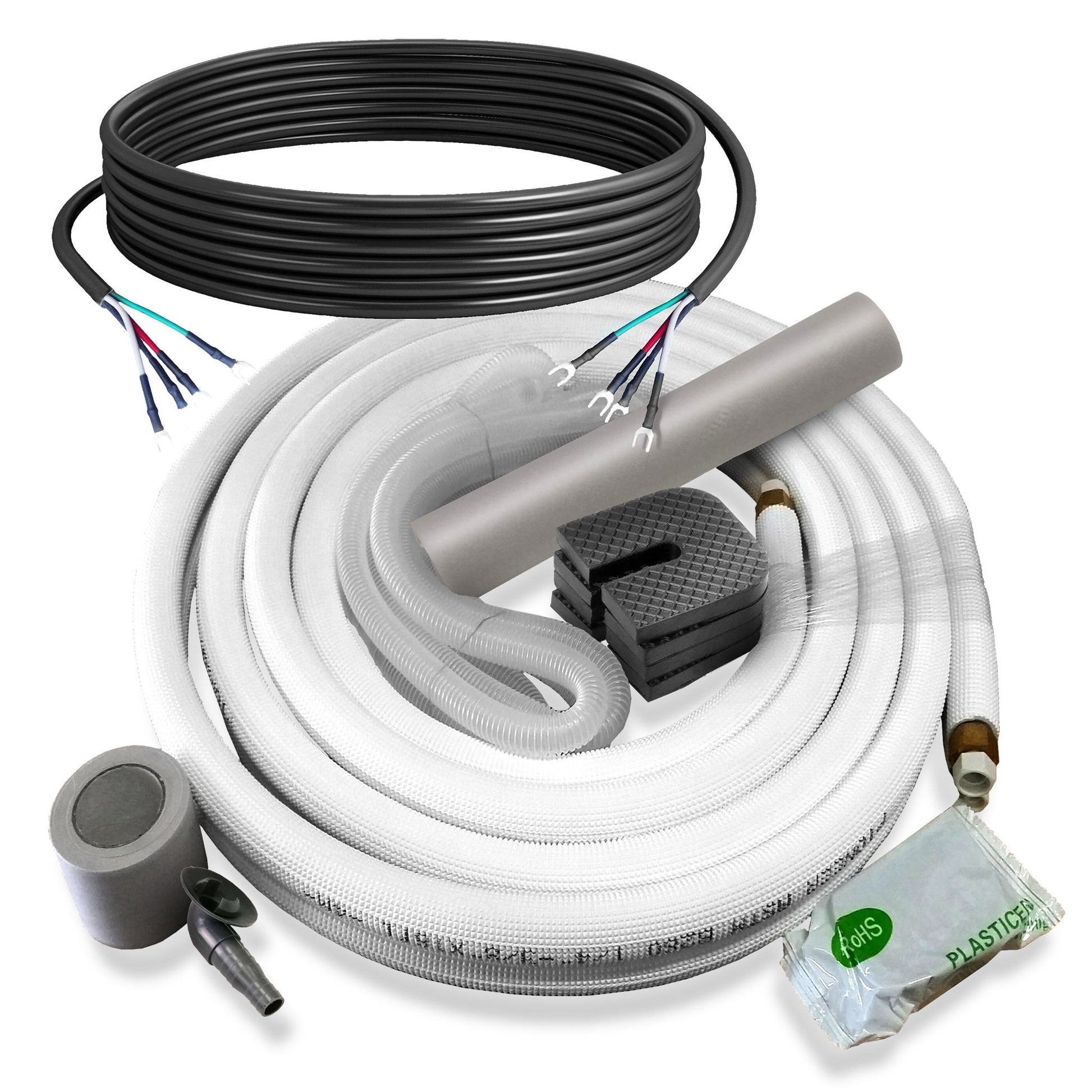

System Installation Kit: Standard Copper Pipe

Standard Copper Pipe EZFlex™ Flexible Pipe Don't include

Pipe Length: 10 Ft

10 Ft 16 Ft 25 Ft 33 Ft 50 Ft None
