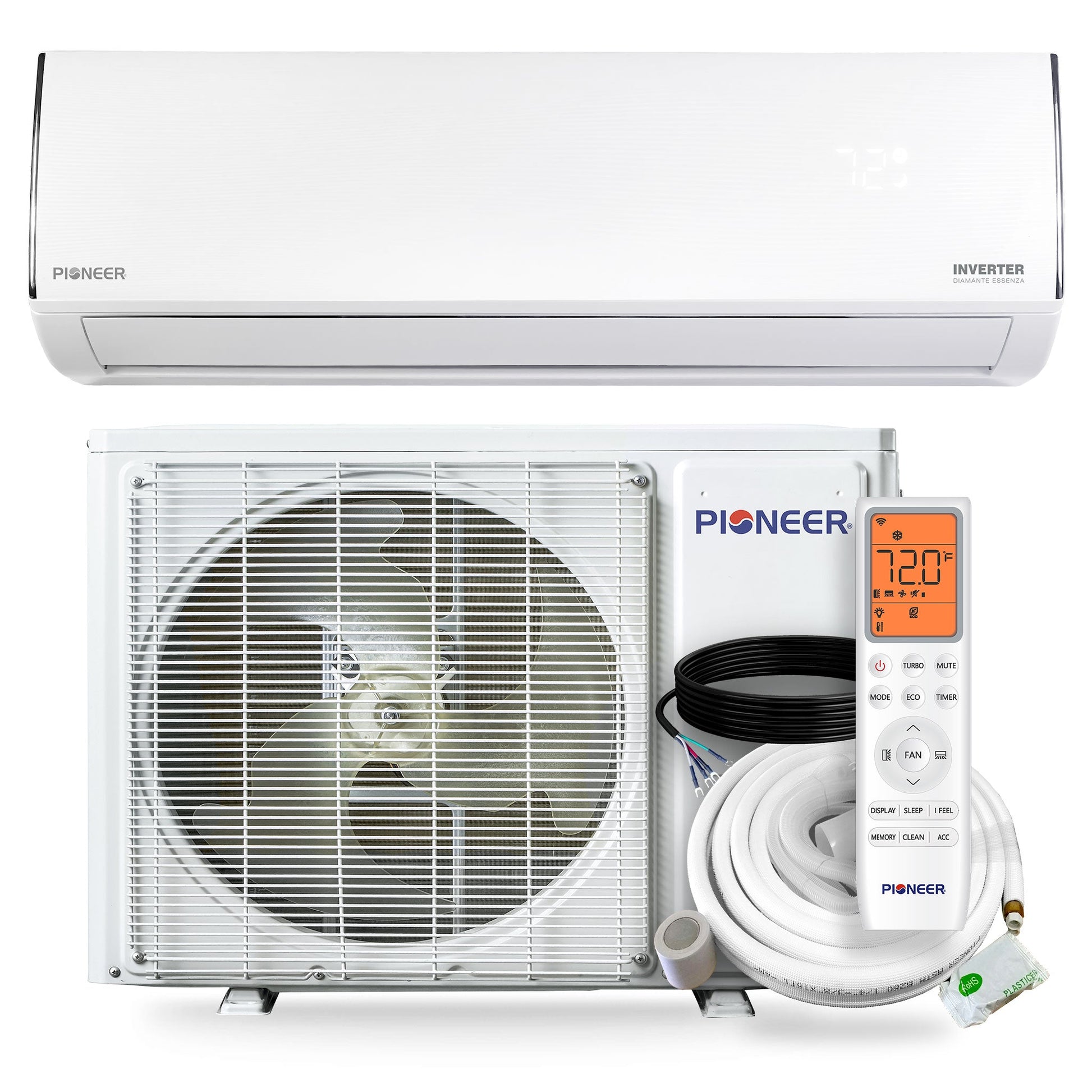

Pioneer® Diamante Essenza™ 36,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Product Details

Summary

Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
Cooling capacity: 35,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
Heating capacity: 35,400 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
Voltage: 208/230V, 60Hz, 1Ph
High Wall-Mounted Ductless Air Conditioning & Heating System
Variable-Speed DC Inverter Driven Performance
Factory-Precharged with Environmentally Friendly R-32 Refrigerant
Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)

Dimensioning Chart

Technical Information & Performance

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 35,000 BTU/h
- Cooling Capacity Range: 7,500~36,000 BTU/h
- Cooling SEER2: 17.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 35,400 BTU/h
- Heating Capacity Range: 7,500~36,000 BTU/h
- Heating HSPF2 (Region IV): 8.5 / 7.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
- Refrigerant Type: R-32
- Suitable Area: 800~1350 Sq.F
- AHRI Reference: 217048738
Indoor Unit
- Part Number: WT036GLUI17HLD
- Air Flow (Turbo/Hi/Med/Lo/Mute): 882 / 741 / 564 / 458 / 411 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 55 / 52 / 46 / 41 / 39 dB(A)
- Product Dimensions (WDH): 46-7/8 x 10-1/4 x 14-1/4 Inches
- Carton Dimensions (WDH): 49-5/8 x 12-7/8 x 16-7/8 Inches
- Net / Gross Weight: 38.6 / 46.3 lbs.
Outdoor Unit
- Part Number: YN036GLUI17RPD
- Breaker Needed: 30A (single-pole)
- Sound Level: 63 dB(A)
- Net Dimensions (WDH): 38-1/2 x 16-1/2 x 31-5/8 Inches
- Carton Dimensions (WDH): 40-1/4 x 18-7/8 x 32-7/8 Inches
- Net / Gross Weight: 105.8 / 120.2 lbs

Product Certifications

Series Details

Diamante Essenza™ High-Wall Series

Our Pioneer® ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level.

IMPORTANT
The outdoor unit is pre-charged with R32 Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The copper tubing is included in the outdoor unit box, and the communication wiring kit is included in the indoor unit box. This product set consists of only 2 cartons.

What's Included in Your Purchase

Indoor Unit
Outdoor Unit
Wireless Remote Control
Remote Control Wall Holder
Remote Control Batteries
16 Ft. Copper Lines
16 Ft. Electrical Wire
10 Ft. Drain for indoor/outdoor
Wall Passage Sleeve
Putty for Wall Hole
Leak Guard Sealer
Wrapping Tape
Installation Manual
User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

Up to 5 years Warranty for Parts
Up to 5 years Warranty for Compressor

Manuals & Documents

Pioneer® Diamante Essenza™ 36,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit

Name: Pioneer® Diamante Essenza™ 36,000 BTU 17 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit
Brand: Parker Davis HVAC International LLC.
SKU: WYT036GLUI17RL
Price: 1688.00 USD
Availability: InStock

Series: Diamante Essenza™ High-Wall Series

SKU: WYT036GLUI17RL

$1,688.00

$1,688.00 ~~$2,399.00~~
