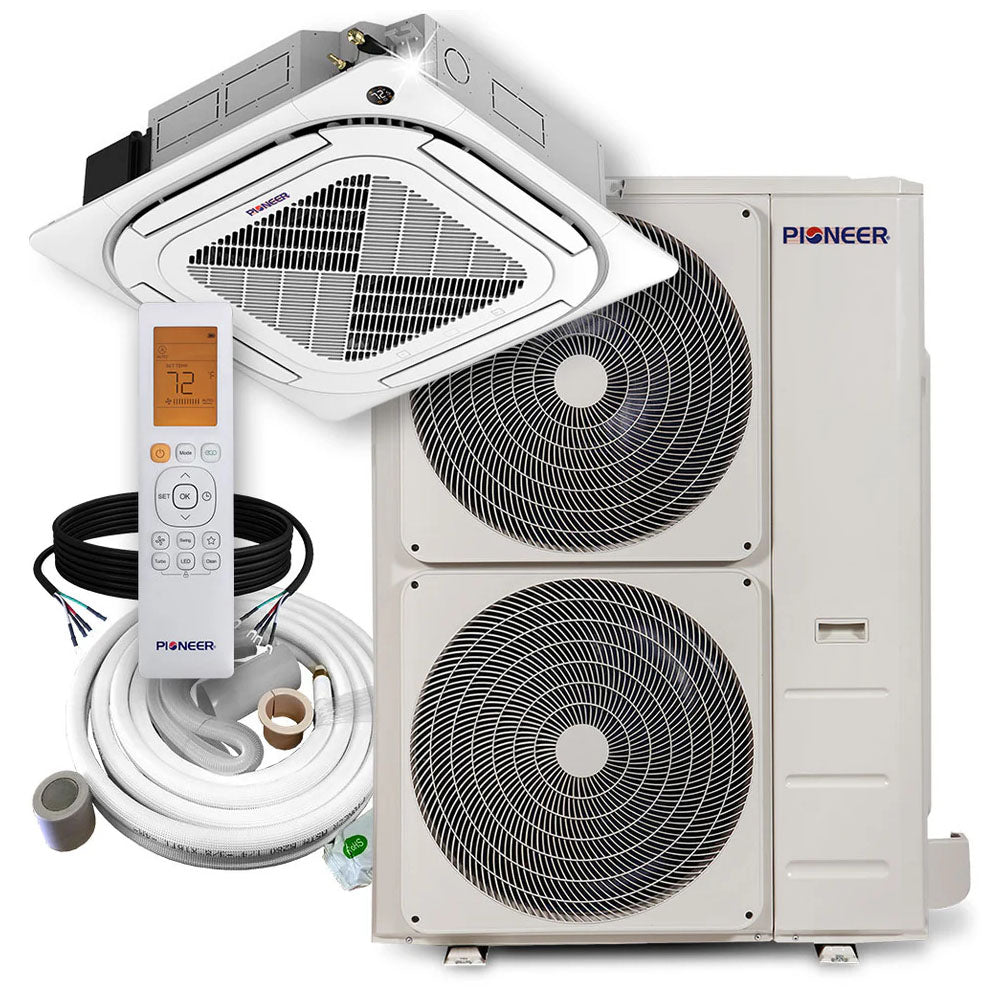

Pioneer® Quantum Ultra™ 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Pioneer® Quantum Ultra™ 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Series: Quantum Ultra™ Ceiling Cassette
Regular price
$4,743.00
Sale price
$4,743.00
Regular price
$6,165.90
Shipping calculated at checkout.
Hurry up, only 5 items left in stock.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Summary
- High Efficiency Quantum Ultra Four-Way Ceiling Recessed Cassette Split Heat Pump System
- Cooling capacity: 48,000 BTU/H with 19.0 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 50,000 BTU/H with 9.9 HSPF2 / 2.96 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Four-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Dimensioning Chart
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 48,000 BTU/h
- Cooling Capacity Range: 10,600~50,400 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 50,000 BTU/h
- Heating Capacity Range: 19,900~61,700 BTU/h
- Heating HSPF2 (Region IV/V): 9.9 / 7.7 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.96 / 2.11 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,400~1,800 sq ft
- Minimum Room Size: 143 sq ft
-
Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
- AHRI Reference: 218010992
-
Indoor Unit
- Part Number: CB048GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 1,236 / 1,124 / 1,018 / 800 / 689 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 56 / 52 / 50 / 42 / 38 dB(A)
- Product Dimensions (WDH): 32"-5/8 x 32"-5/8 x 11"-3/8 Inches
- Carton Dimensions (WDH): 35"-7/8 x 35"-7/8 x 13" Inches
- Net / Gross Weight: 64.5 / 76.1 lbs
-

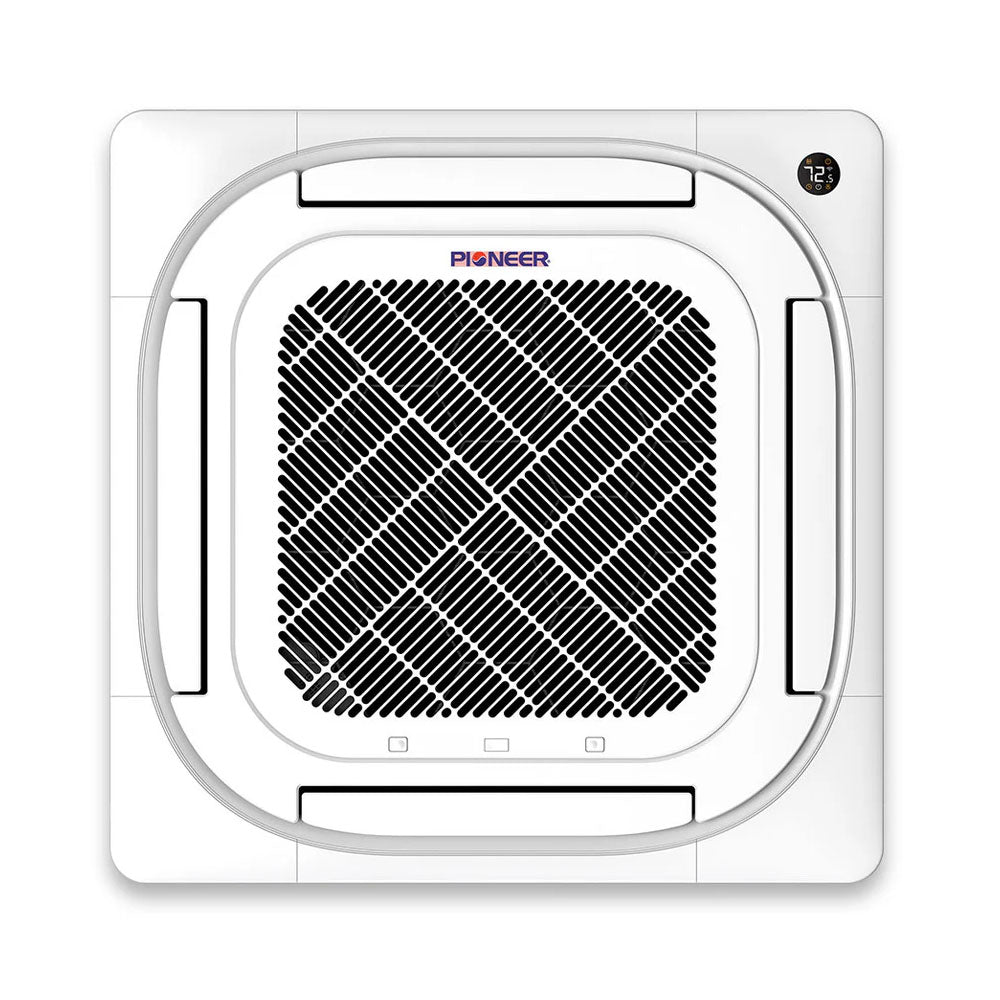

Decorative Panel
- Product Dimensions (WDH): 37"-3/8 x 37"-3/8 x 2"-1/8 Inches
- Carton Dimensions (WDH): 40"-3/4 x 40"-3/4 x 3"-1/2 Inches
- Net / Gross Weight: 13.2 / 19.8 lbs
-

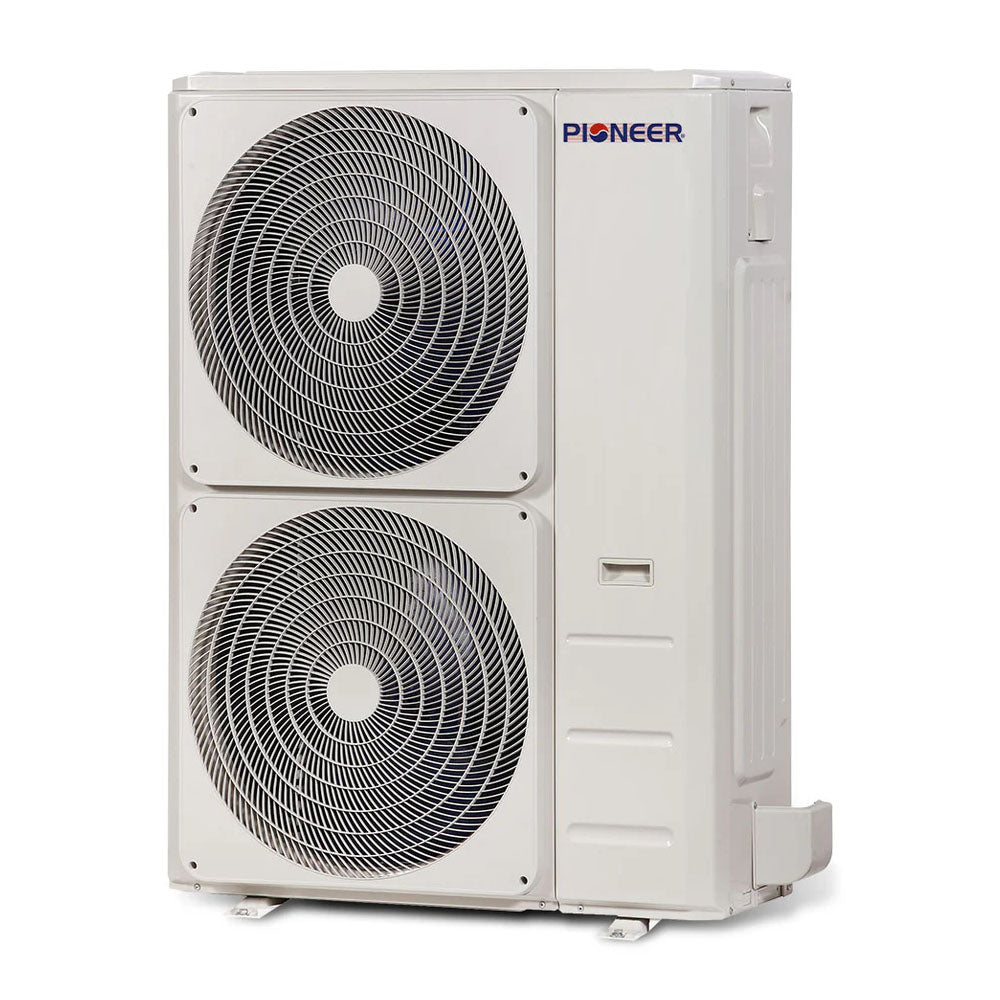

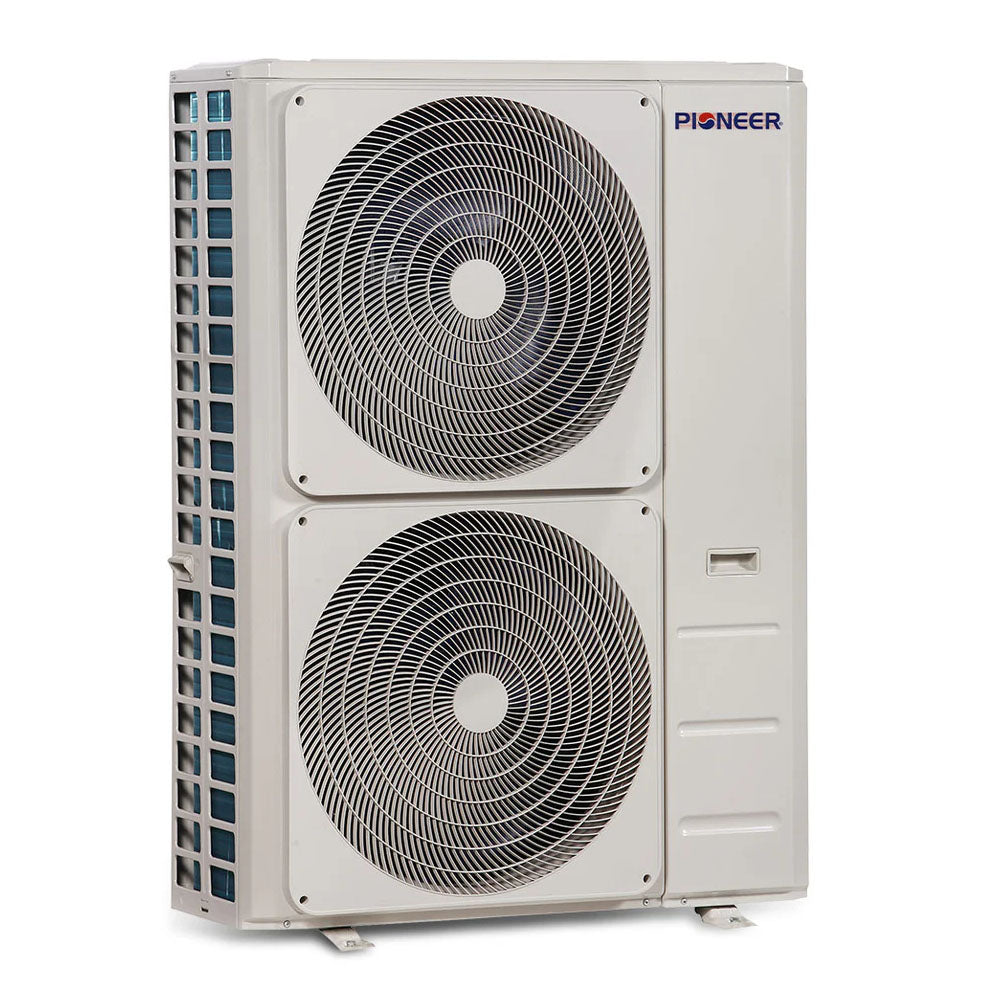

Outdoor Unit
- Part Number: YN048GMSI20RUG
- Breaker Needed: 40A (double-pole)
- Sound Level: 64 dB(A)
- Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
- Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 57"-1/2 Inches
- Net / Gross Weight: 208.8 / 239.8 lbs
Product Certifications
Series Details
Series Details
Quantum Ultra™ Ceiling Cassette
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| Summary
Dimensioning ChartTechnical Information & Performance
Product Certifications | Regular price
From $4,628.00
Sale price
From $4,628.00
Regular price
| Parker Davis HVAC International LLC. | CYB-20 |
Choose your option
Sale
Pioneer® Quantum Ultra™ 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Pioneer® Quantum Ultra™ 48,000 BTU 19 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Regular price
$4,743.00
Sale price
$4,743.00
Regular price
$6,165.90
Shipping calculated at checkout.
Hurry up, only 5 items left in stock.
Summary
- High Efficiency Quantum Ultra Four-Way Ceiling Recessed Cassette Split Heat Pump System
- Cooling capacity: 48,000 BTU/H with 19.0 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 50,000 BTU/H with 9.9 HSPF2 / 2.96 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Four-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Dimensioning Chart
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 48,000 BTU/h
- Cooling Capacity Range: 10,600~50,400 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 50,000 BTU/h
- Heating Capacity Range: 19,900~61,700 BTU/h
- Heating HSPF2 (Region IV/V): 9.9 / 7.7 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 2.96 / 2.11 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,400~1,800 sq ft
- Minimum Room Size: 143 sq ft
-
Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
- AHRI Reference: 218010992
-
Indoor Unit
- Part Number: CB048GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 1,236 / 1,124 / 1,018 / 800 / 689 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 56 / 52 / 50 / 42 / 38 dB(A)
- Product Dimensions (WDH): 32"-5/8 x 32"-5/8 x 11"-3/8 Inches
- Carton Dimensions (WDH): 35"-7/8 x 35"-7/8 x 13" Inches
- Net / Gross Weight: 64.5 / 76.1 lbs
-
Decorative Panel
- Product Dimensions (WDH): 37"-3/8 x 37"-3/8 x 2"-1/8 Inches
- Carton Dimensions (WDH): 40"-3/4 x 40"-3/4 x 3"-1/2 Inches
- Net / Gross Weight: 13.2 / 19.8 lbs
-
Outdoor Unit
- Part Number: YN048GMSI20RUG
- Breaker Needed: 40A (double-pole)
- Sound Level: 64 dB(A)
- Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
- Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 57"-1/2 Inches
- Net / Gross Weight: 208.8 / 239.8 lbs
Product Certifications
