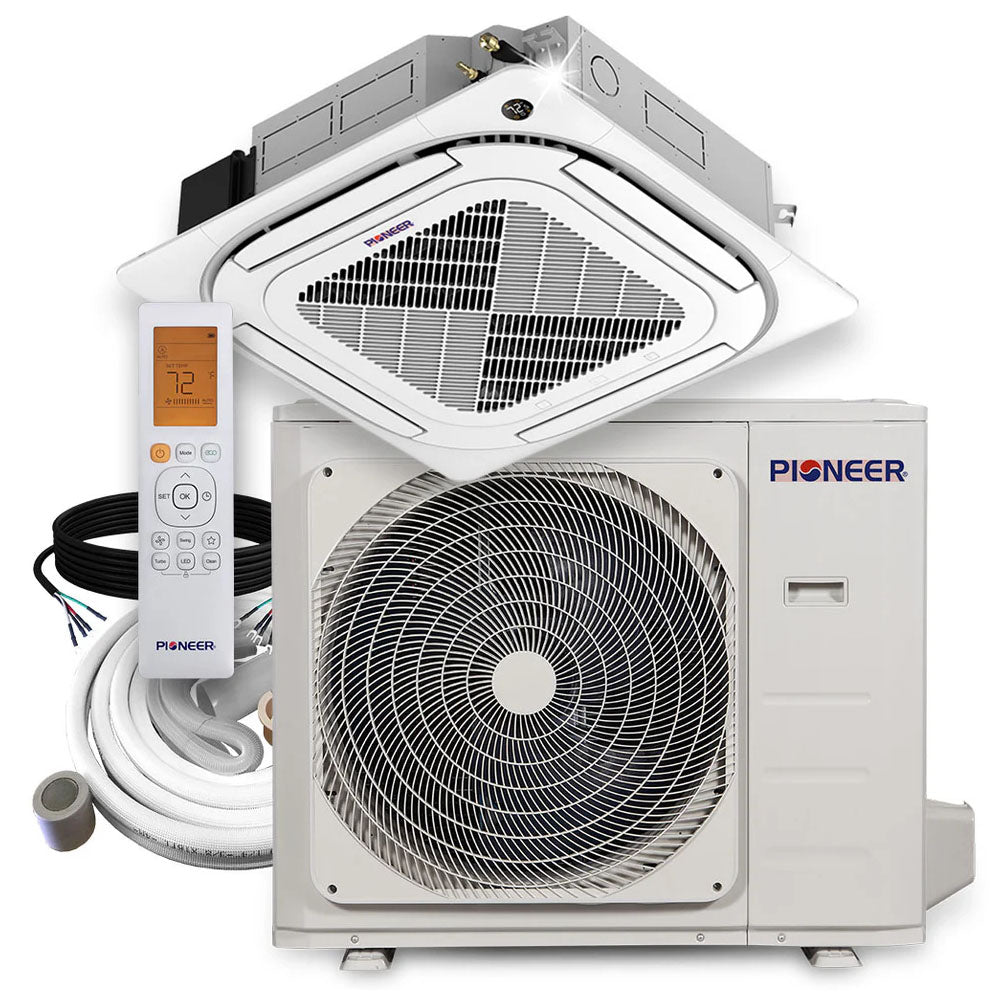

Pioneer® Quantum Ultra™ 36,000 BTU 20 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Pioneer® Quantum Ultra™ 36,000 BTU 20 SEER2 230V 4-Way Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Series: Quantum Ultra™ Ceiling Cassette
Regular price
$3,643.00
Sale price
$3,643.00
Regular price
$4,735.90
Shipping calculated at checkout.
Hurry up, only 5 items left in stock.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
Summary
- High Efficiency Quantum Ultra Four-Way Ceiling Recessed Cassette Split Heat Pump System
- Cooling capacity: 36,000 BTU/H with 20.0 SEER2 / 9.6 EER2 efficiency
- Heating capacity: 38,000 BTU/H with 10.3 HSPF2 / 3.31 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Four-Way Ceiling Recessed Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Dimensioning Chart
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 36,000 BTU/h
- Cooling Capacity Range: 6,400~39,800 BTU/h
- Cooling SEER2: 20.0 BTU/W.h
- Cooling EER2: 9.6 BTU/W.h
- Heating Rated Capacity: 38,000 BTU/h
- Heating Capacity Range: 14,400~42,200 BTU/h
- Heating HSPF2 (Region IV/V): 10.3 / 7.9 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.31 / 2.2 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,000~1,400 sq ft
- Minimum Room Size: 103 sq ft
-
Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
- AHRI Reference: 218010991
-
Indoor Unit
- Part Number: CB036GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 1,042 / 948 / 853 / 753 / 659 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 54 / 52 / 47 / 40 / 36 dB(A)
- Product Dimensions (WDH): 32"-5/8 x 32"-5/8 x 9"-5/8 Inches
- Carton Dimensions (WDH): 35"-7/8 x 35"-7/8 x 11"-3/8 Inches
- Net / Gross Weight: 59.3 / 71.5 lbs
-

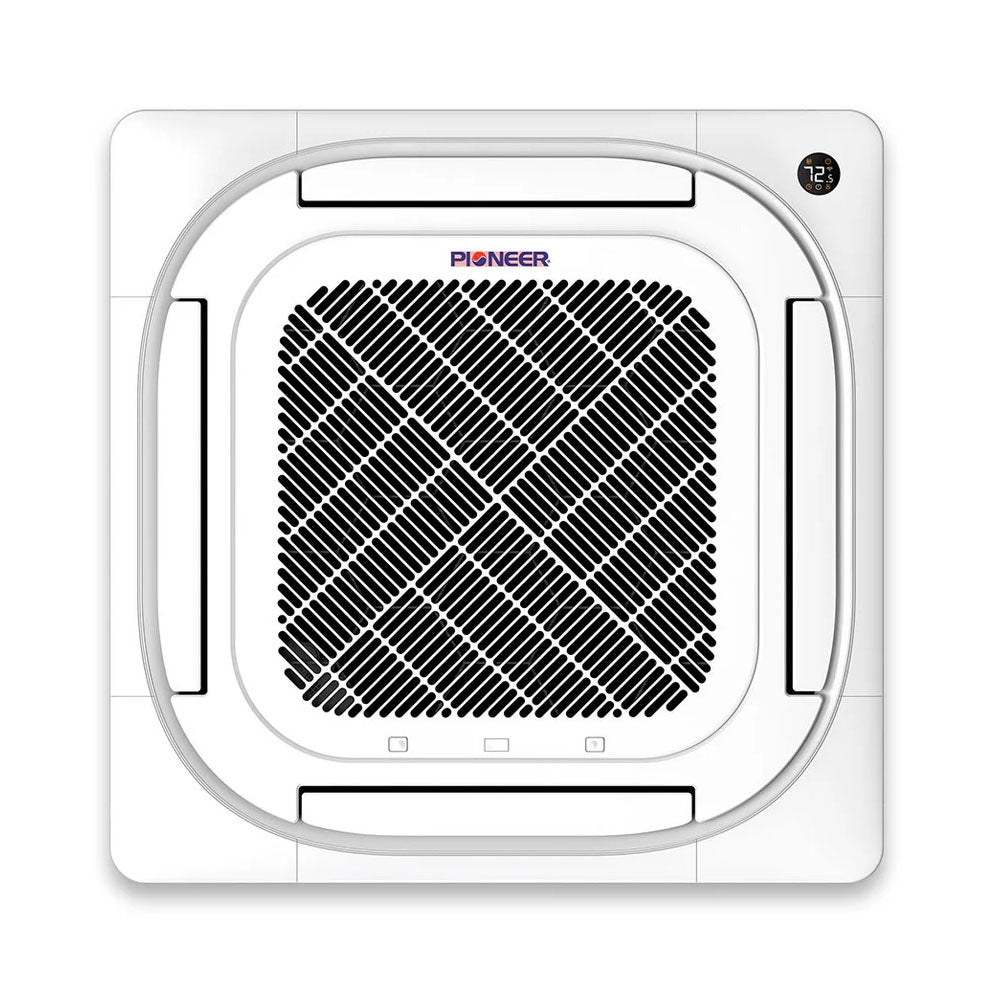

Decorative Panel
- Product Dimensions (WDH): 37"-3/8 x 37"-3/8 x 2"-1/8 Inches
- Carton Dimensions (WDH): 40"-3/4 x 40"-3/4 x 3"-1/2 Inches
- Net / Gross Weight: 13.2 / 19.8 lbs
-

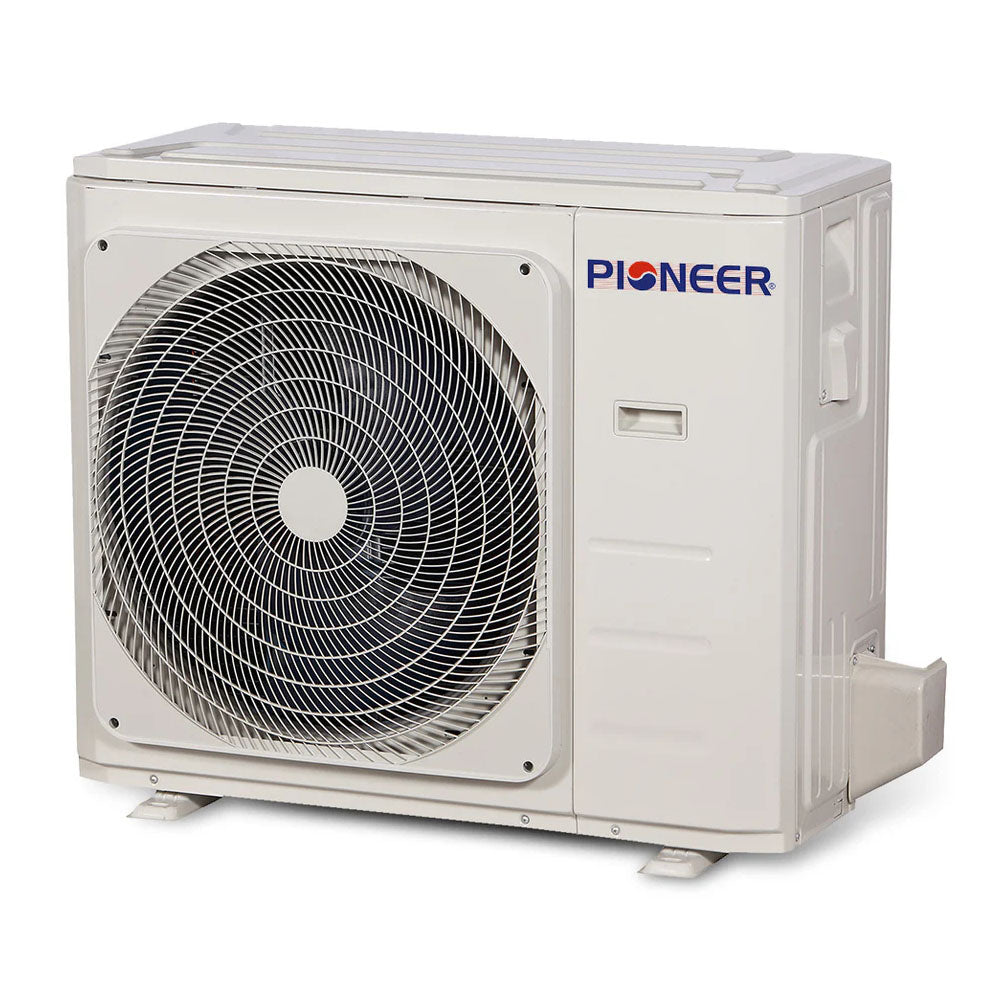

Outdoor Unit
- Part Number: YN036GMSI20RUG
- Breaker Needed: 35A (double-pole)
- Sound Level: 63 dB(A)
- Net Dimensions (WDH): 37"-1/4 x 16"-1/4 x 31"-7/8 Inches
- Carton Dimensions (WDH): 42"-7/8 x 19"-5/8 x 34"-7/8 Inches
-
Net / Gross Weight: 152.4 / 162.5 lbs
Product Certifications
