Summary

• High Efficiency Quantum Ultra Slim-Duct Ceiling Concealed Split Heat Pump System
• Cooling capacity: 36,000 BTU/H with 18.7 SEER2 / 10.1 EER2 efficiency
• Heating capacity: 40,000 BTU/H with 10.2 HSPF2 / 3.7 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Slim-Duct Ceiling Concealed Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)


Dimensioning Chart

Technical Information & Performance

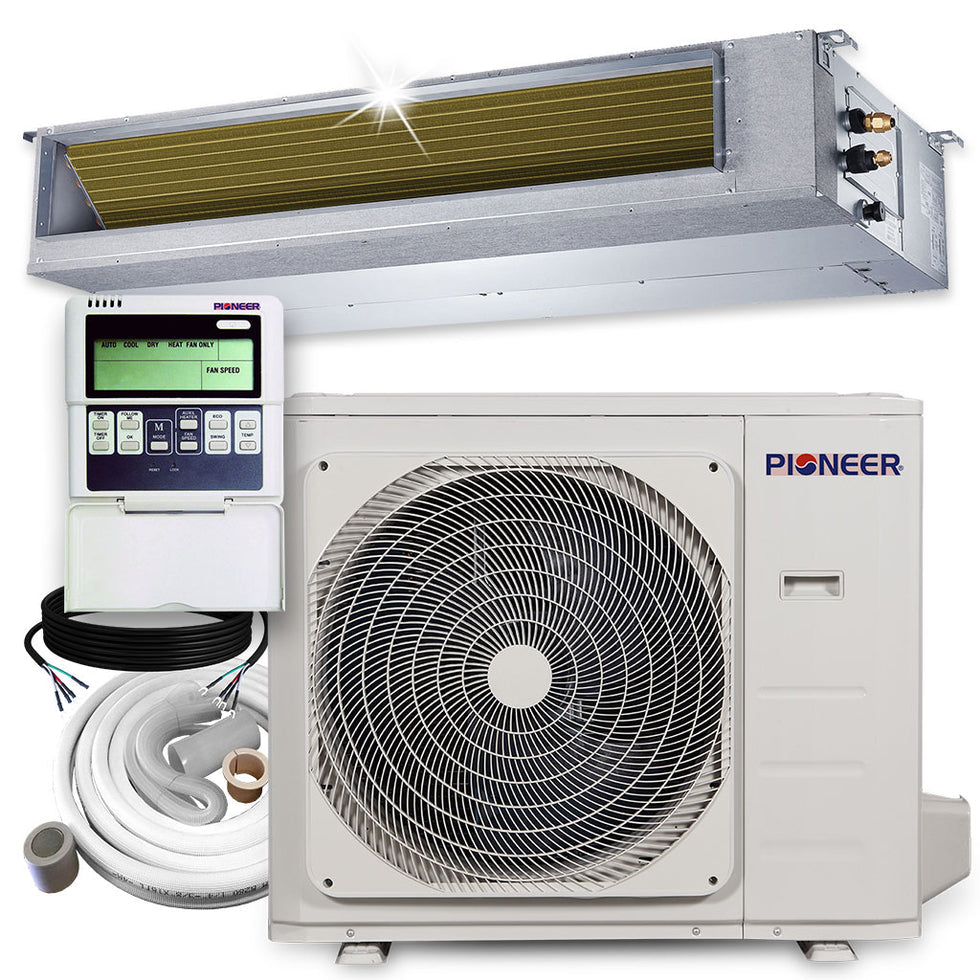

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 36,000 BTU/h
  • Cooling Capacity Range: 7,900~42,500 BTU/h
  • Cooling SEER2: 18.7 BTU/W.h
  • Cooling EER2: 10.1 BTU/W.h
  • Heating Rated Capacity: 40,000 BTU/h
  • Heating Capacity Range: 8,100~43,500 BTU/h
  • Heating HSPF2 (Region IV/V): 10.2 / 7.8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.7 / 2.1 W/W
  • Refrigerant Type: R454b
  • Recommended Room Size: 1,000~1,400 sq ft
  • Minimum Room Size: 104 sq ft
  • Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)

  • AHRI Reference: 218010993

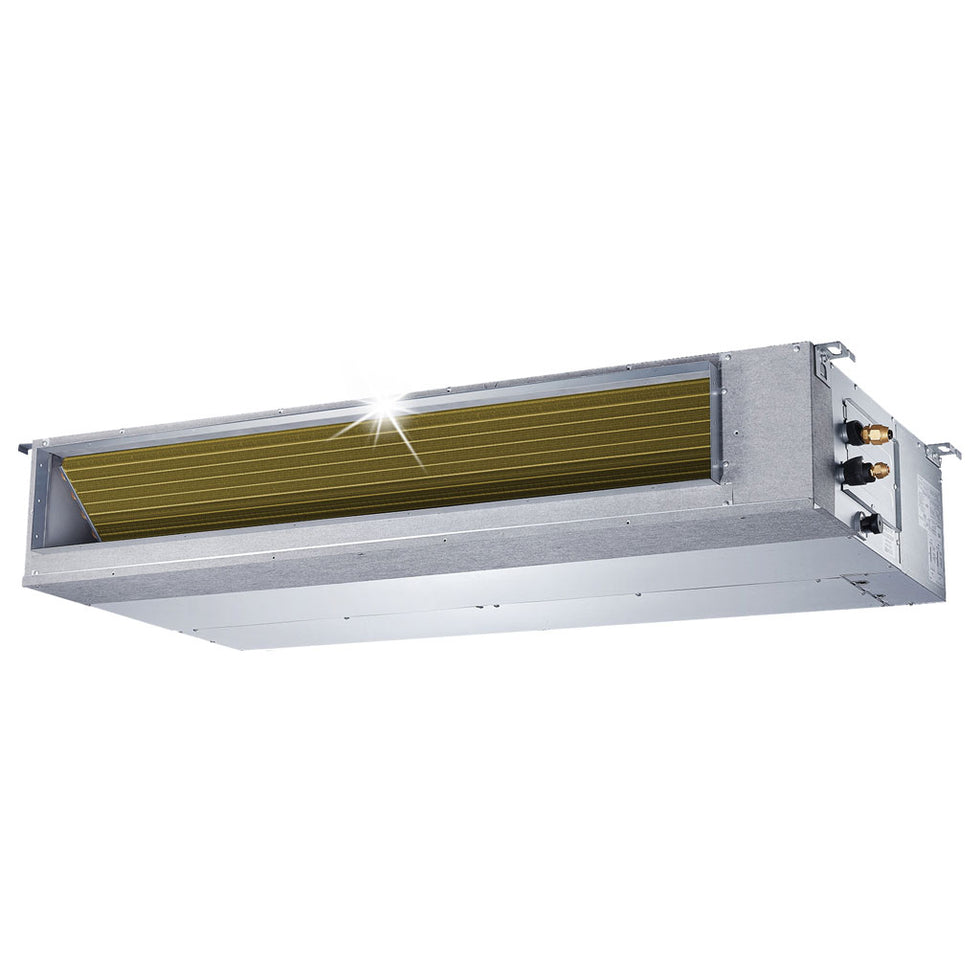

• Indoor Unit
  • Part Number: RB036GMSILDFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 1,235 / 1,059 / 941 / 765 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 45 / 39.5 / 33 / 30 dB(A)
  • Product Dimensions (WDH): 47"-1/4 x 29"-1/2 x 11"-7/8 Inches
  • Carton Dimensions (WDH): 56"-1/8 x 33"-7/8 x 14"-1/8 Inches
  • Net / Gross Weight: 106.3 / 120.3 lbs

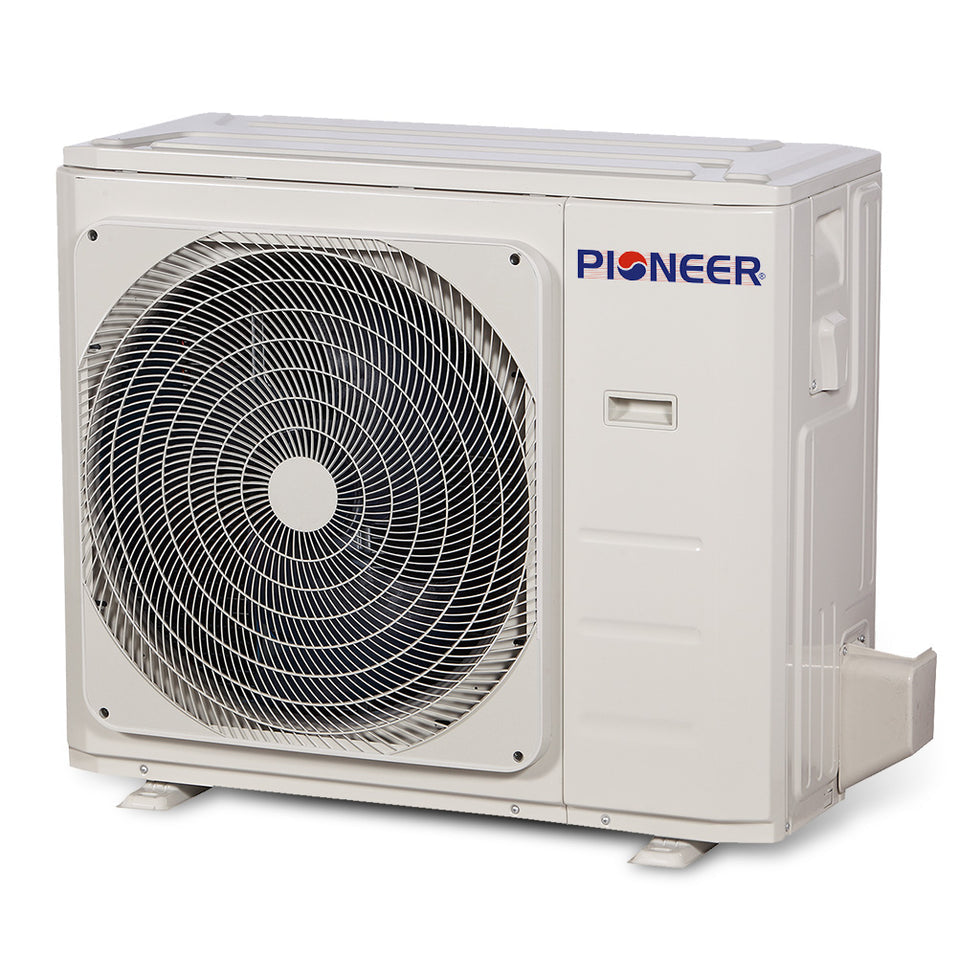

• Outdoor Unit
  • Part Number: YN036GMSI20RUG
  • Breaker Needed: 40A (double-pole)
  • Sound Level: 63 dB(A)
  • Net Dimensions (WDH): 37"-1/4 x 16"-1/4 x 31"-7/8 Inches
  • Carton Dimensions (WDH): 42"-7/8 x 19"-5/8 x 34"-7/8 Inches
  • Net / Gross Weight: 152.4 / 162.5 lbs

Product Certifications

• AHRI Certificate
• Energy Guide
• Submittal Sheet

Quantum Ultra™ Slim-Duct Ceiling Concealed
