Description
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 56,000 BTU/h
- Cooling SEER: 17.5 BTU/w
- Heating Rated Capacity: 56,000 BTU/h
- Heating HSPF: 10 BTU/w
- Communicating system with dedicated signal transmission
- Refrigerant Type: R410a
- Suitable Area: 2,000 Sq.F
- Includes 10 kW Electric Strip Heater w/ breaker
- AHRI Estimated Annual Operating Costs:
- Cooling: $422.00
- Heating: $1184.00
Indoor Unit
- Model: DR060GHFD18HT2
- Air Flow: 1706 CFM
- Sound Level: 65 dB(A)
- Fan Motor Type: Multi-Speed ECM
- Net Dimensions (WDH): 22 × 24 × 53-7/8 Inches
- Carton Dimensions (WDH): 25-1/4 × 28 × 55-1/2 Inches
- Net / Gross Weight: 187 / 214 Lbs

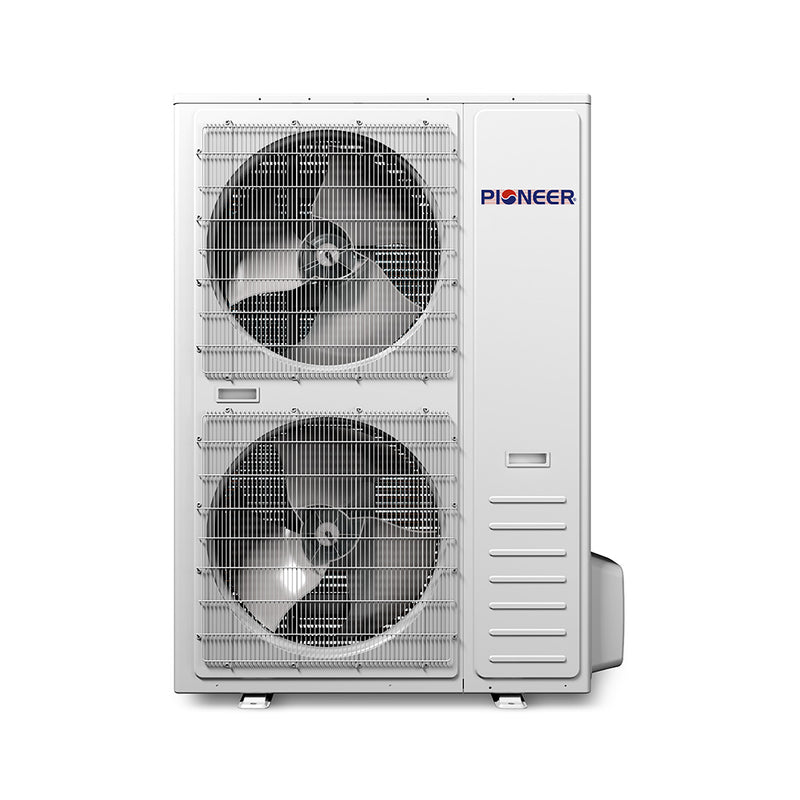

Outdoor Unit
- Model: YH4860GHFD18R2
- Sound Level: 60 dB(A)
- Metering Device: EXV
- Operating Temperatures: (-13°F - 75°F/Heating)/(5° - 122°F/Cooling)
- Net Dimensions (WDH): 37-3/8 × 13-3/8 × 54-1/2 Inches
- Carton Dimensions (WDH): 43-3/4 ×18-1/8 × 60-1/4 Inches
- Net / Gross Weight: 251 / 278 Lbs
